Active USB interface - USB-to-CAN - IXXAT® - HMS

PrintSuggestShareMore info

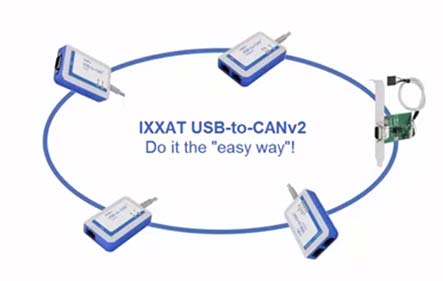

With up to two CAN High Speed channels, one CAN Low Speed channel, and a LIN channel, depending on the device variant, a wide variety of applications can be addressed by the USB-to-CAN V2 IXXAT® - HMS – in both the industrial and the automotive sectors.

more details
Request proposal
High performance and flexibility

By using powerful hardware and connecting over USB 2.0 Hi-Speed (480 MBit/sec), the USB-to-CAN V2 interfaces achieve very high data throughput with minimum latency and low power consumption. This allows them to provide the reliable, loss-free transmission and receipt of messages in CAN networks at high transmission rates and bus load. The messages are also timestamped and can be filtered and buffered directly in the USB-to-CAN V2 IXXAT® - HMS.

Due to its extremely interesting price and compact size, the USB-to-CAN V2 interface is ideal for use in series products and in combination with the canAnalyser for development, service, and maintenance tasks.
Its newly developed, rugged housing permits easy customer-specific adaptation (custom design / brand labeling).

All USB-to-CAN V2 variants are supported by the IXXAT® - HMS driver packages and higher layer protocol APIs as well as by the IXXAT® - HMS tool suite. A detailed software support overview can be found.

Features
  • PC bus interface:USB 2.0, Hi-Speed;
  • CAN controller: Internal; CAN 2.0 A/B;
  • CAN baudrates: 10 kBit/s ... 1 Mbit/s;
  • LIN protocol (1): V1.3 and V2.0;
  • LIN baudrate (1): max. 20 kBaud;
  • Power supply: 5 V, max. 500 mA via USB port;
  • Temperature range:-20°C ... 70°C;
  • Certification: CE, EN 55022:2010, EN61000-6-1:2007.

Advantages
  • Cost-effective and extremely versatile;
  • Common driver interface for easy exchange of the PC interface type;
  • For industrial and automotive applications;
  • Galvanic isolation optional.

Industries
  • Industrial and the automotive sectors.


F.Fonseca is the representative of IXXAT® - HMS in Portugal.
