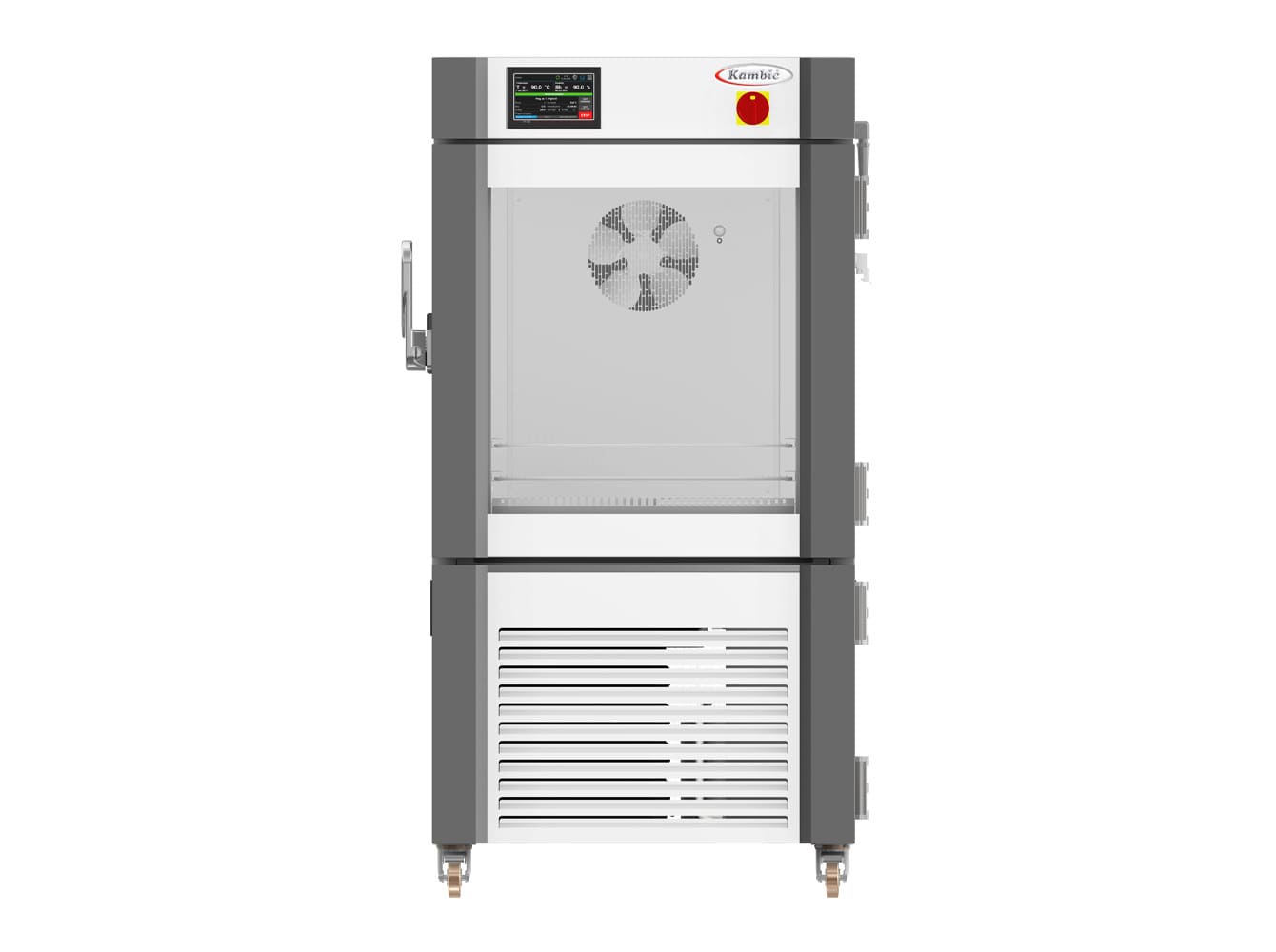

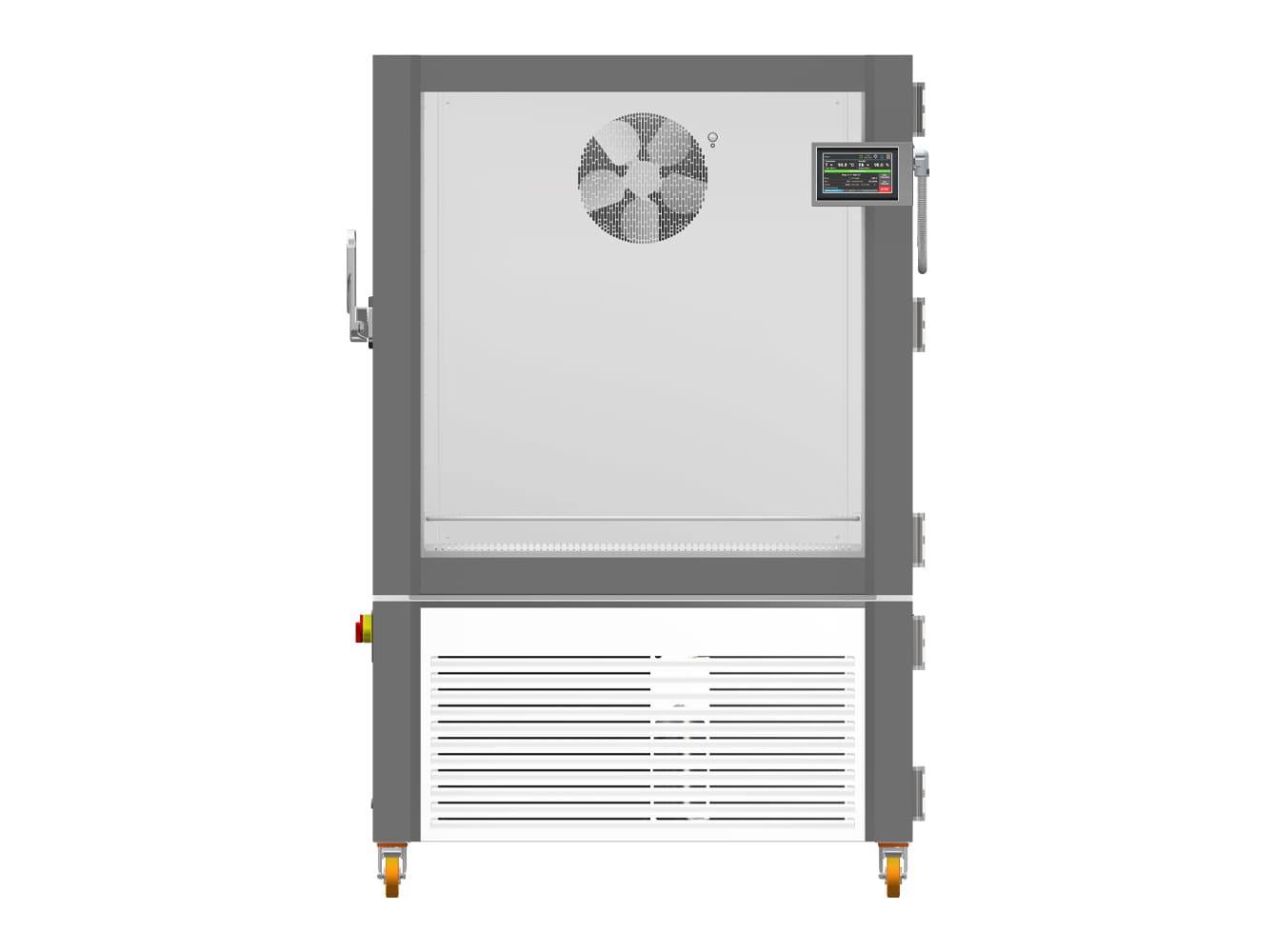

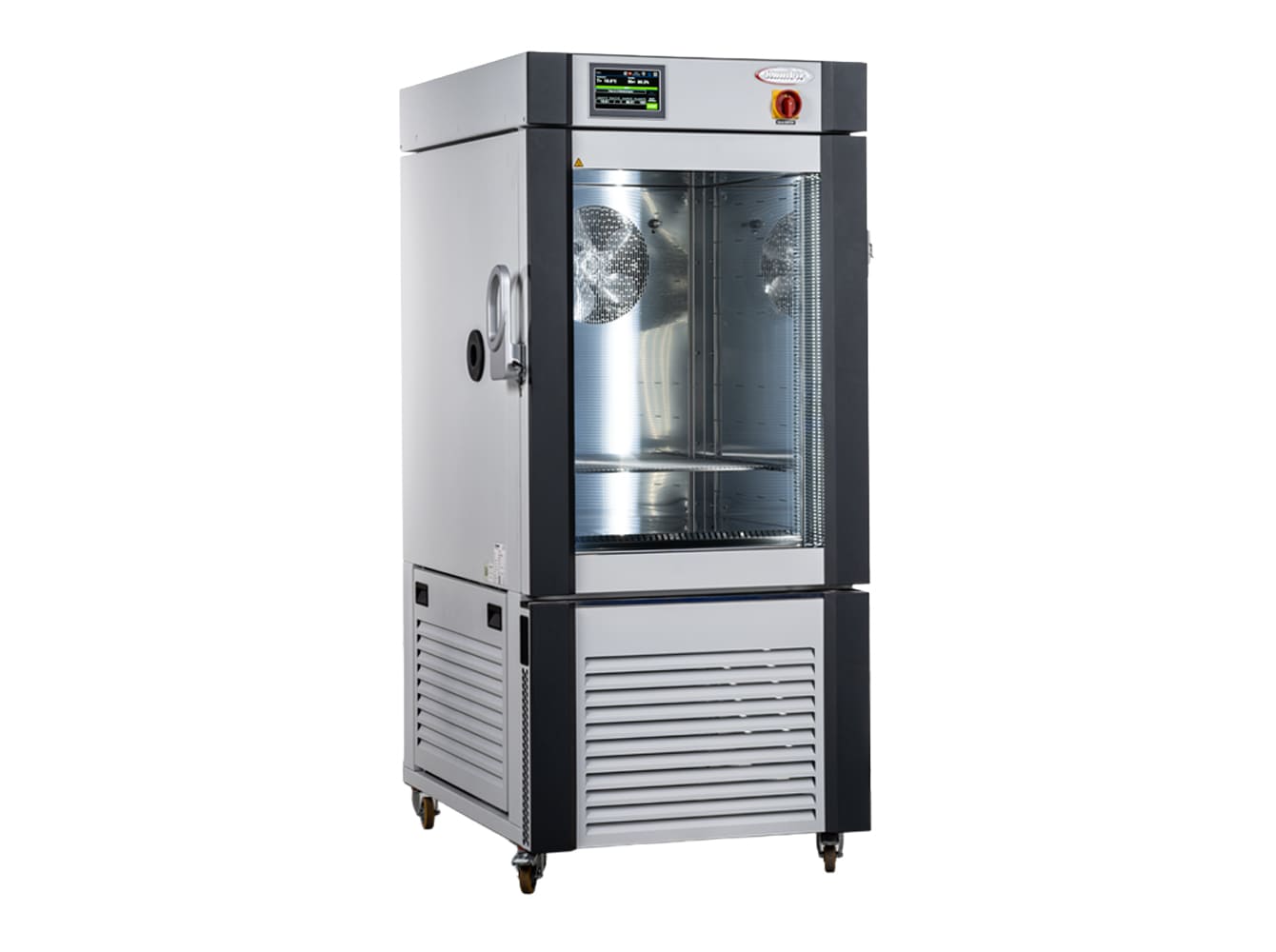

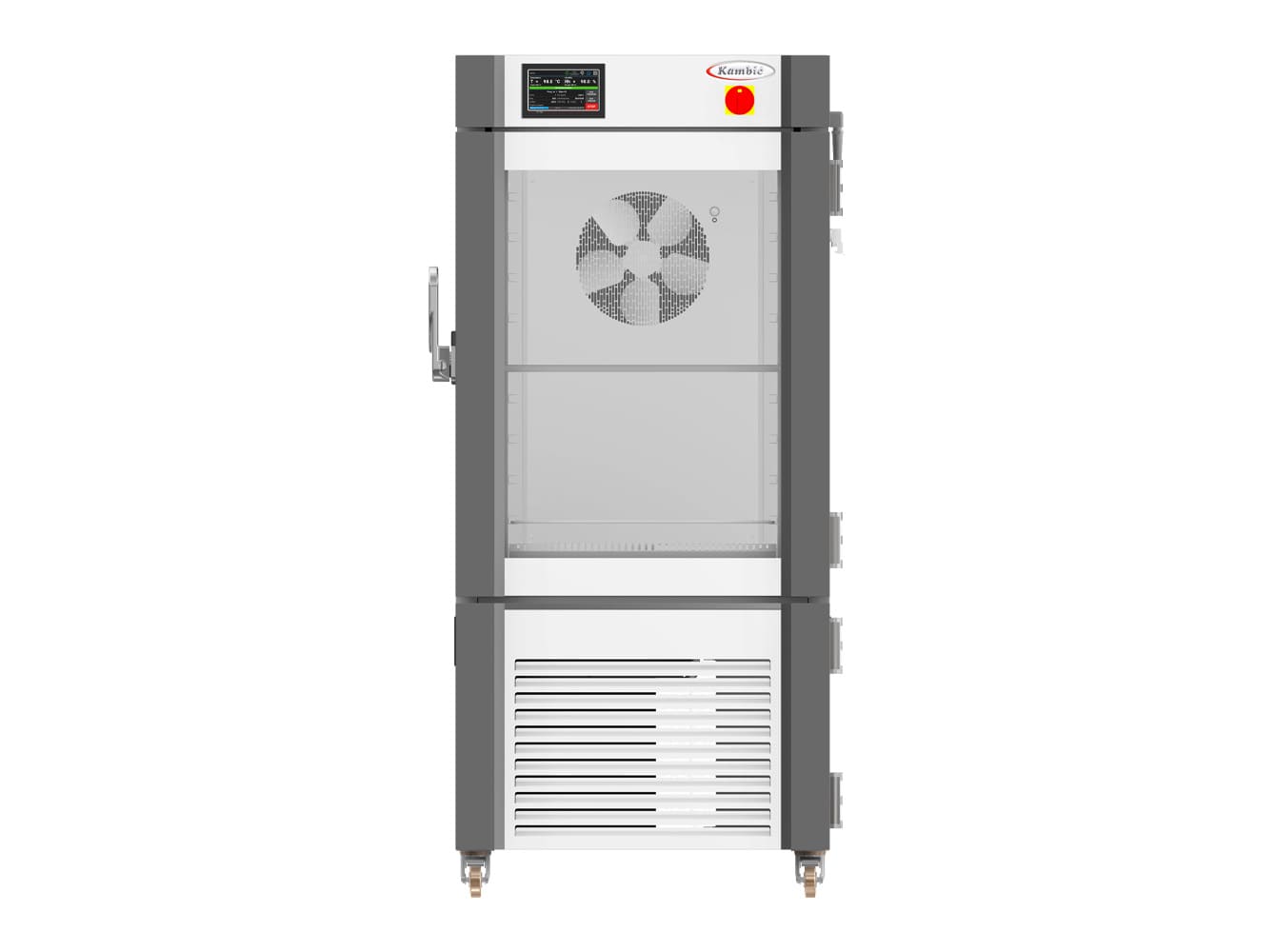

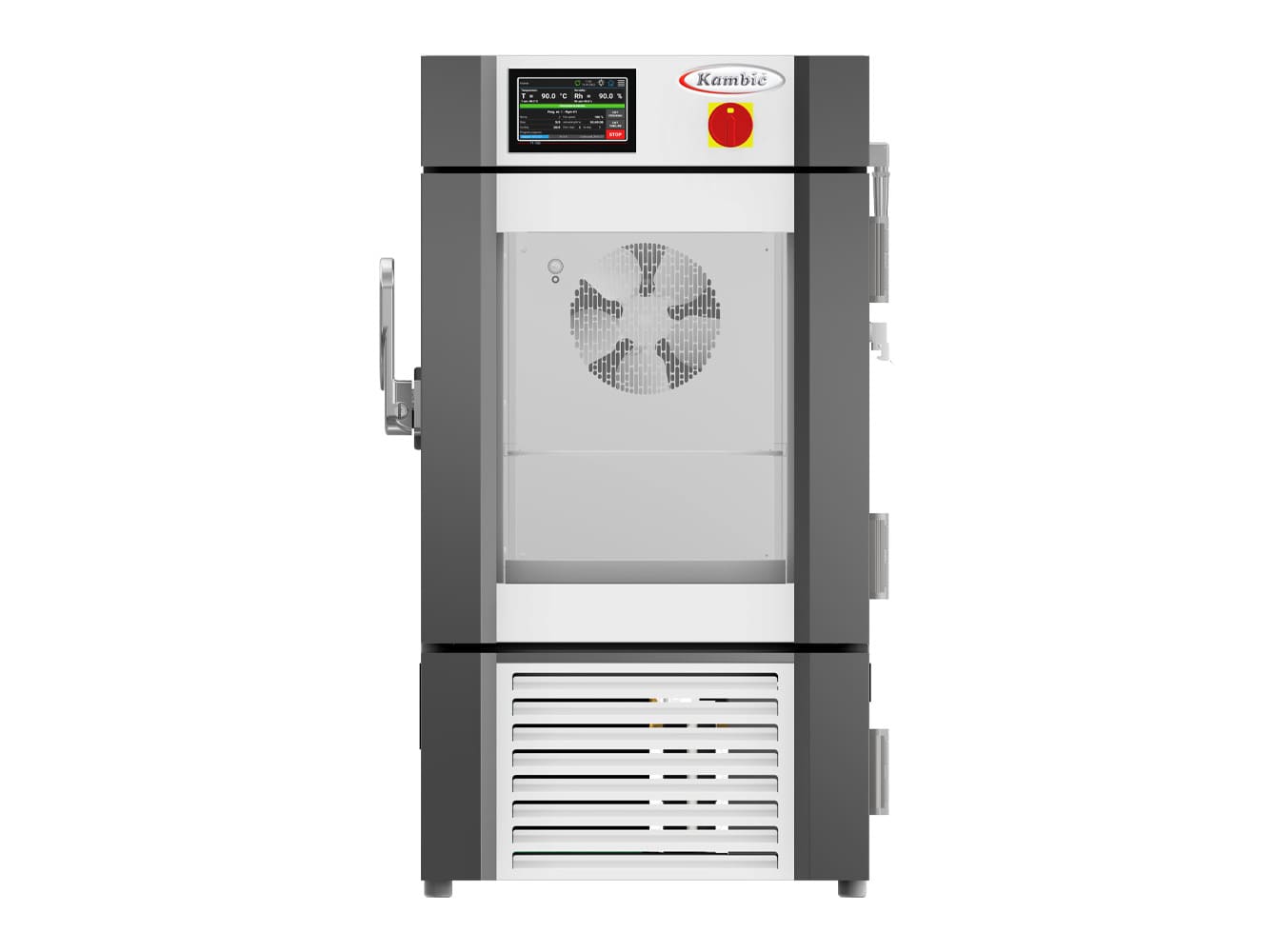

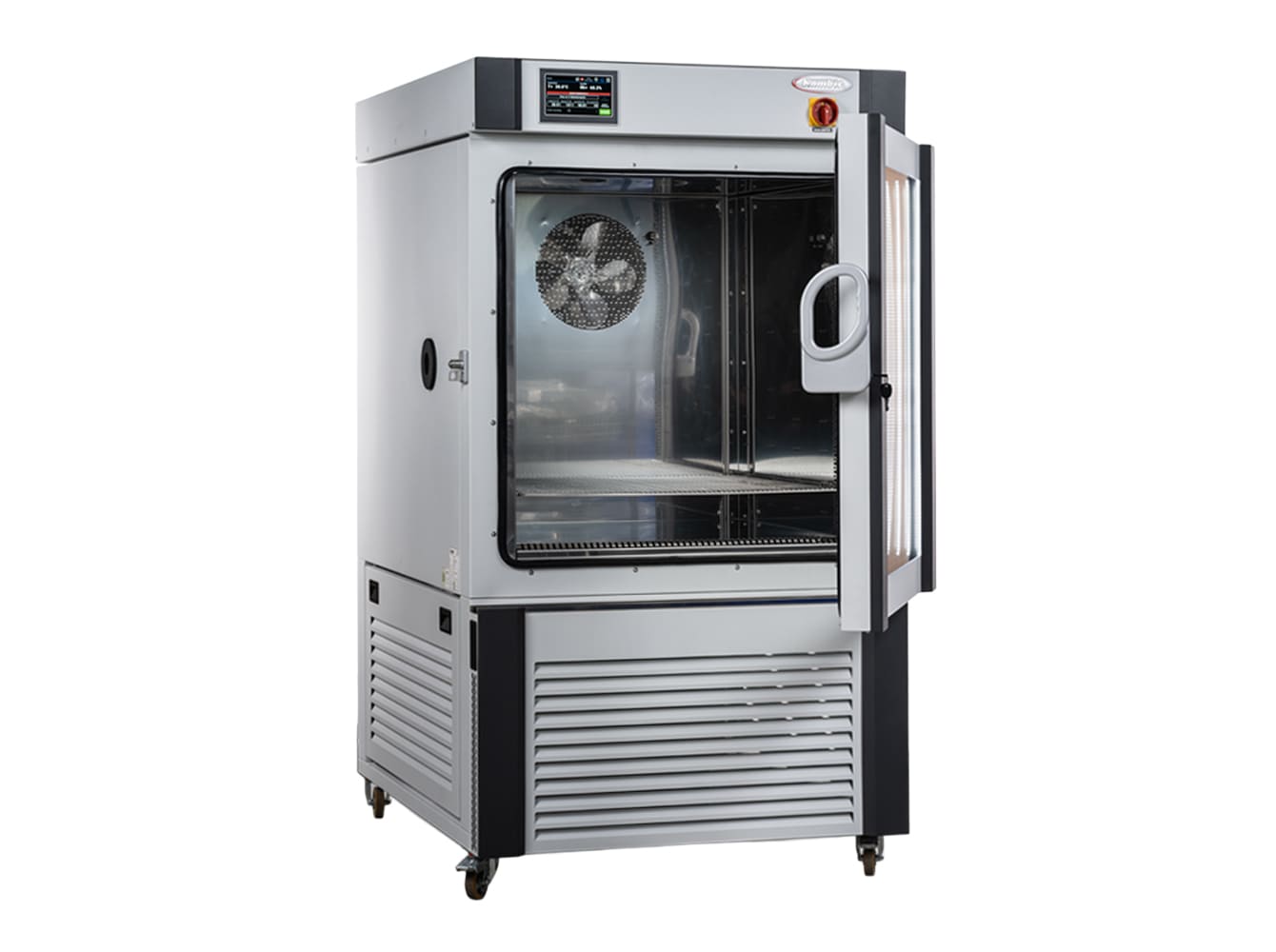

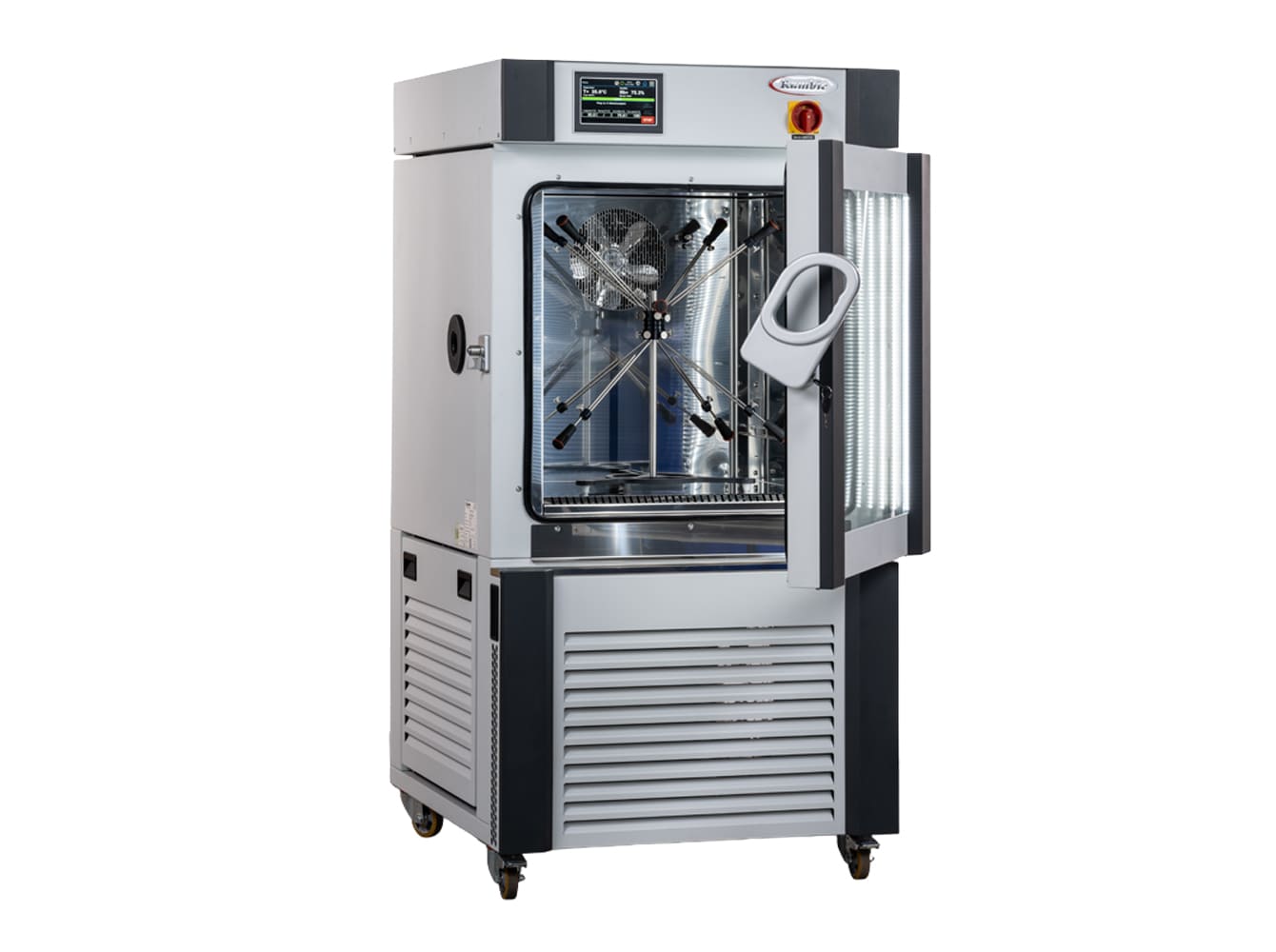

Climatic chambers KK-CHLT - Kambič
The Kambič KK-CHLT range consists of low-temperature climatic chambers for controlled temperature and relative humidity testing. The range covers five models - KK-68 CHLT, KK-190 CHLT, KK-340 CHLT, KK-500 CHLT and KK-1000 CHLT - with a temperature range from -40 °C to +180 °C and a relative humidity range from 10 % to 98 %.
These chambers are intended for temperature and relative humidity-controlled testing, material temperature/RH resistance and product testing, sample conditioning prior to other tests, data logger and sensor calibration, accelerated ageing and stress tests.
These chambers are intended for temperature and relative humidity-controlled testing, material temperature/RH resistance and product testing, sample conditioning prior to other tests, data logger and sensor calibration, accelerated ageing and stress tests.
more details

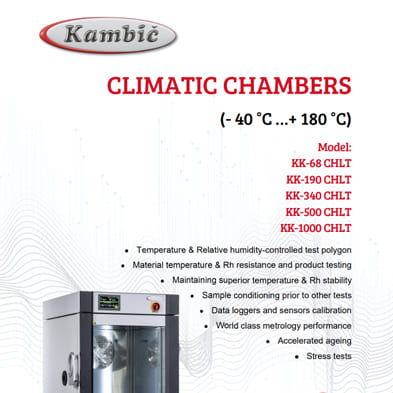

Downloads
Request Offer
Features
Advantages
Applications
F.Fonseca is the representative of Kambič in Portugal.

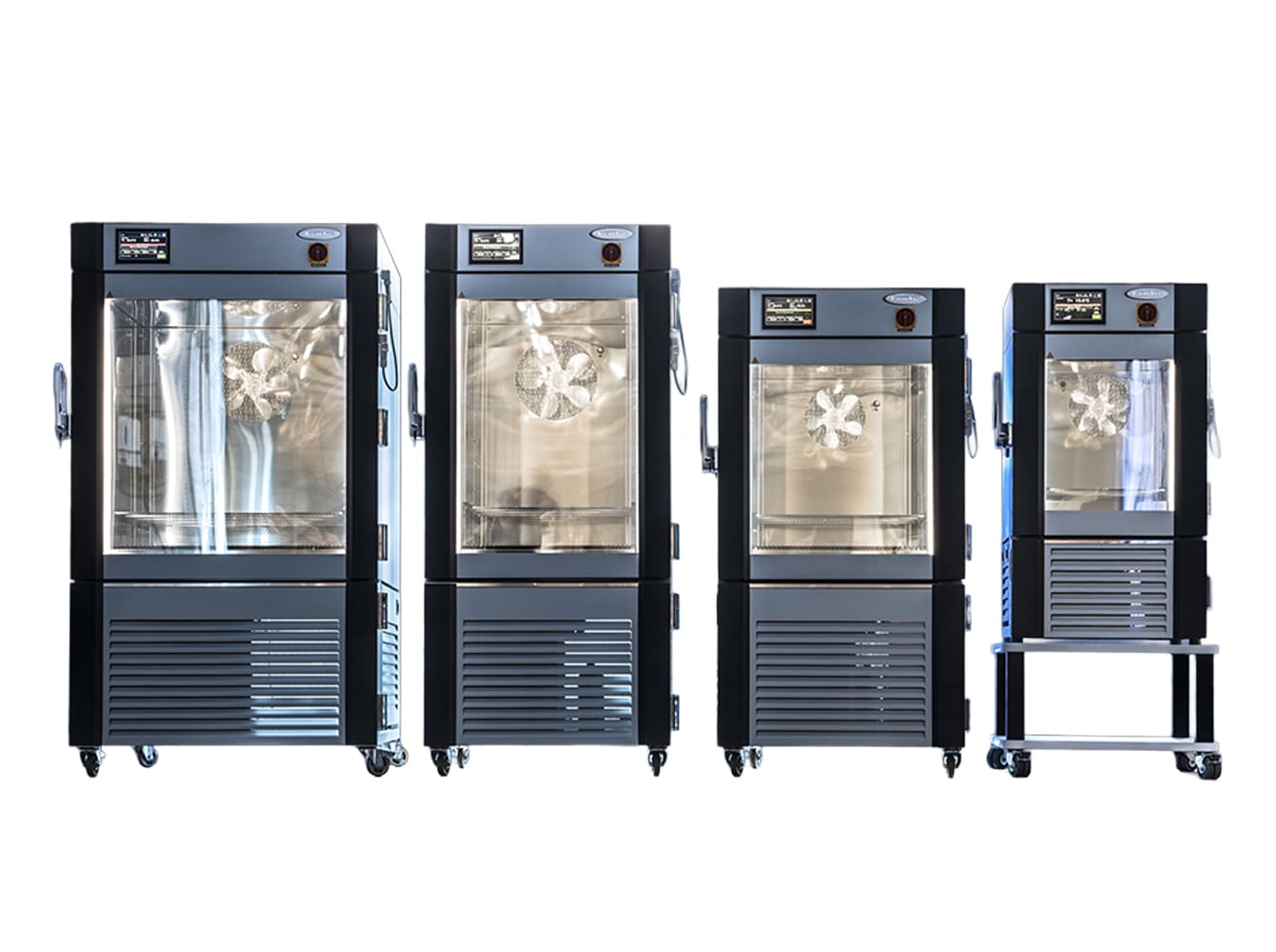

- Five model sizes: approximately 68 L, 190 L, 340 L, 500 L and 1000 L;
- Temperature range from -40 °C to +180 °C across all listed KK-CHLT models;
- Relative humidity range from 10 % to 98 %, with 0.1 % RH display resolution and 1 % RH set resolution;
- Temperature display and set resolution of 0.1 °C;
- Temperature control via PID with PT-100 sensor;
- Relative humidity control by dew point RH control via capacitive RH sensor; extended range via dry air purge;
- Humidity stability of ±0.3 % RH at 50 °C / 50 % RH and 90 °C / 90 % RH;
- 7-inch capacitive touch-screen controller with program setup, program selection, measured quantities, status information and chamber light control;
- KK-Tool PC software included with every unit, providing virtual control, real-time graphs, channel view and process history overview;
- USB and Ethernet interface;
- Stainless-steel interior chamber and galvanized, powder-coated aluminized steel exterior;
- Standard observation window, Ø50 mm left-side access port, adjustable stainless-steel wire shelf and internal air circulation with speed control;
- Two-level overtemperature protection: heating disabled at 5 °C over setpoint and mechanical shut-off at 10 °C above maximum temperature.
Advantages
- Supports repeatable environmental testing by combining controlled temperature and relative humidity in the same chamber platform;
- Covers low-temperature, high-temperature and high-humidity test profiles with one product family;
- Allows chamber capacity to be selected according to sample size, load and laboratory or industrial testing requirements;
- Improves process monitoring through the touch-screen controller, real-time PC graphing, channel overview and process history;
- Facilitates sensor, probe and cable routing during tests through the standard Ø50 mm access port;
- Supports visual inspection during testing through the heated observation window with LED illumination;
- Improves day-to-day operation and serviceability through adjustable shelving, four-side maintenance access and heavy-duty swivel wheels with brakes;
- Reduces operational risk associated with overheating through two-level overtemperature protection and a heavy-duty locking door mechanism.
Applications
- Industrial R&D and quality control environments;
- Manufacturing sectors requiring sample conditioning, accelerated ageing or stress testing before release, qualification or further testing;
- Material resistance testing under controlled temperature and relative humidity;
- Metrology and calibration laboratories;
- Product validation and environmental testing laboratories;
- Sensor and data logger testing or calibration.
F.Fonseca is the representative of Kambič in Portugal.
