Process, Instrumentation & Environment
Electromagnetic flowmeter MIS - Kobold
The new flowmeter MIS from Kobold was developed for measuring and monitoring medium-sized flow of conductive liquids in pipes.
The device operates according to the electromagnetic measurement principle. According to Faraday’s Law of magnetic induction, a voltage is induced in a conductor moving through a magnetic field. The electrically conductive measuring agent acts as the moved conductor. The voltage induced in the measuring agent is proportional to the flow velocity and is therefore a value for the volumetric flow. The flowing media must have a minimum conductivity. The induced voltage is picked up by two sensing electrodes, which are in contact with the measuring agent.
The device operates according to the electromagnetic measurement principle. According to Faraday’s Law of magnetic induction, a voltage is induced in a conductor moving through a magnetic field. The electrically conductive measuring agent acts as the moved conductor. The voltage induced in the measuring agent is proportional to the flow velocity and is therefore a value for the volumetric flow. The flowing media must have a minimum conductivity. The induced voltage is picked up by two sensing electrodes, which are in contact with the measuring agent.
more details

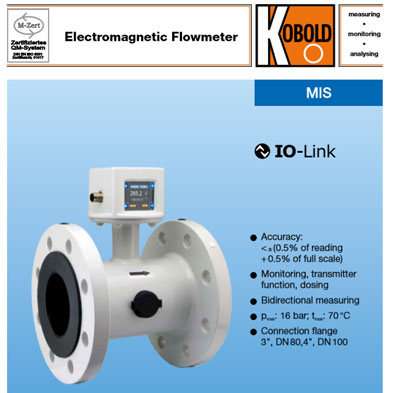

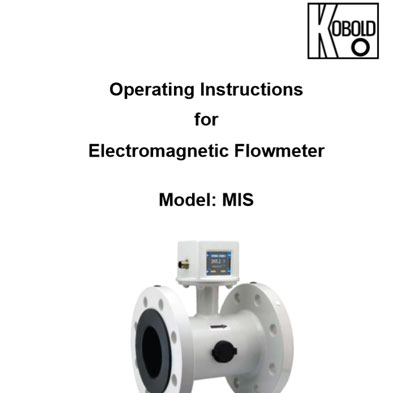

Downloads
Request Offer
The flow rate will be calculated based on the cross sectional area of the pipe.
Two given outputs can be set to be switch, analogue or frequency. Also a dosing function can be selected, where output 1 is set as switch NPN/PNP/PP and output 2 is set as control input.
Features
Advantages
Industries
F.Fonseca is the representative of Kobold in Portugal.
Two given outputs can be set to be switch, analogue or frequency. Also a dosing function can be selected, where output 1 is set as switch NPN/PNP/PP and output 2 is set as control input.
Features
- IO-Link communication;
- Monitoring, dosing and transmitter function;
- Dosing function with external control output;
- Coloured, multi-parameter configurable TFT-display, rotatable in 90º steps;
- Bidirectional measuring;
- Intuitive setup menu via 4 optical touch keys;
- 2 configurable outputs (pulse-/frequency-/alarm- and analogue output);
- Grand and resettable totalizer;
- Usable even with hand gloves.
Advantages
- The measurement is not depending on the process liquid and its material properties such as density, viscosity and temperature.
Industries
- Filtration systems;
- Industrial applications;
- Waste water treatment;
- Water distribution network (leakage detection management);
- Water tapping;
- Water treatment;
- Watering.
F.Fonseca is the representative of Kobold in Portugal.
