We introduce the new MX 32, a controller that takes analog & digital inputs and covers all needs for a wide variety of applications.
TELEDYNE Oldham MX 32, is a compact, low-profile controller that continuously monitors gas detection, including 4-20 mA, dry logic input, MODBUS RS485 signal from compatible detectors.

Designed to meet SIL1 requirements, the new MX 32 gas detection controller is an analog and digital controller that continuously measures and controls gases in the atmosphere. It uses the same platform as the MX 43 which has already proven to be a very high performing and reliable controller.

more details

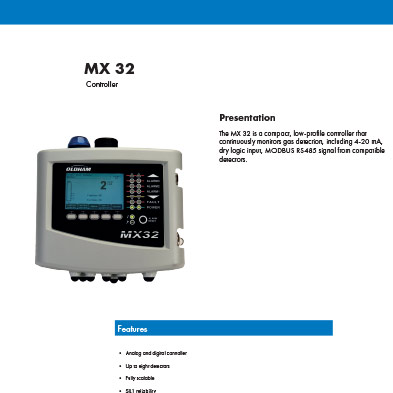

Downloads

Request Offer

The new MX 32 manages both digital lines and analog channels and covers all needs for a wide variety of gas monitoring applications. Its digital technology allows up to eight detectors to be distributed on two lines for increased savings. The unit allows two inputs for Wheatstone bridge sensors.

Features

Analog and digital controller;
1 or 2 channels, up to 8 detectors;
Fully scalable;
5” LCD back-lit graphic display;
Five programmable events per detector;
Smart keys make embedded multi-language menus simple to use.

Advantages

Five programmable events per detector (one to three alarms, underscale, overscale) and fault event;
Manages Wheatstone bridge sensor inputs without the need of additional module;
Two extra MOSFET outputs for driving the audible and visual alarms;
Front panel LEDs allow for a quick and basic overview of the installation and onboard alarm buzzer;
Easy to read large graphic and multi-language LCD back-lit display;
Manages both digital lines and analog channels and covers all needs for a wide variety of applications.
