Electrical safety testing for photovoltaic systems PV:1525 – Seaward

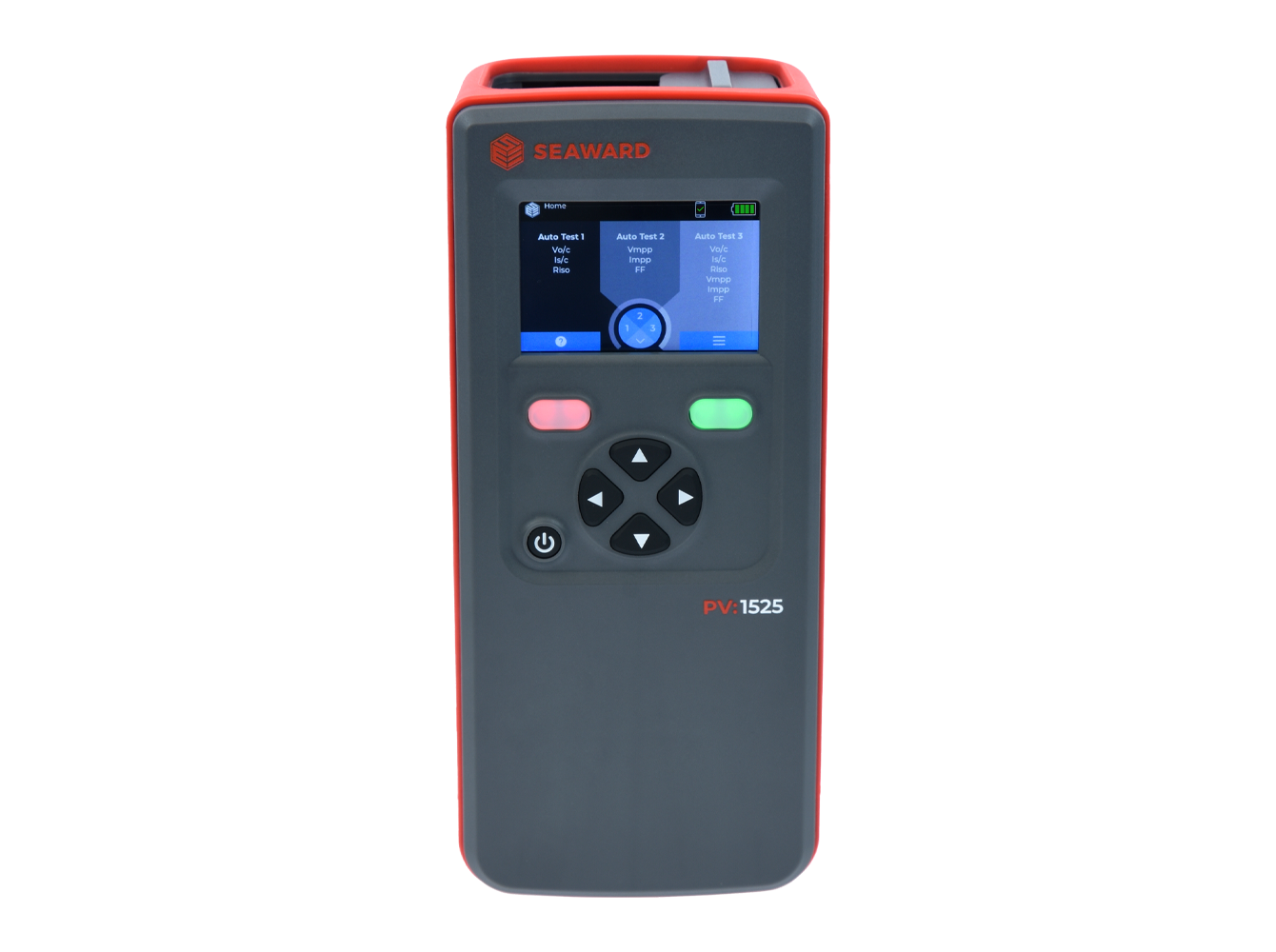

The new Seaward PV1525 is the ideal handheld instrument for testing the electrical safety of residential and commercial photovoltaic systems. With voltage measurement up to 1500 V DC and short-circuit current measurement up to 25 A, it ensures full readiness for the photovoltaic systems of the future.

The PV1525 has been designed for installers and operations & maintenance (O&M) engineers, enabling electrical safety testing and performance measurements in photovoltaic systems up to 1500 V DC and 25 A DC, making it suitable for both residential and commercial installations.

more details

Downloads

Request Offer

The instrument performs:

Ground continuity tests
Insulation resistance tests
Open-circuit voltage measurements
Short-circuit current measurements

With its modern, innovative user interface, the PV1525 retains the ease of use of the previous generation while adding enhanced features suited to a modern test instrument. Test results can be tagged with installation-related information, simplifying data management.
Thanks to Bluetooth® connectivity, results can be easily transferred to the PV:Sync Mobile app (available for iOS and Android™) for review and export, with further synchronisation available via SolarCert software.
Over-the-Air updates via the app ensure the instrument is always kept up to date with the latest features.

Features

Test voltage: up to 1500 V DC;
Short-circuit current: up to 25 A DC;
Test functions: ground continuity | insulation resistance | open-circuit voltage | short-circuit current;
User interface: modern and intuitive, with result tagging for easier data management;
Connectivity: Bluetooth® | Compatible with PV:Sync Mobile (iOS and Android);
Export to SolarCert software;
Over-the-Air updates via the app.
