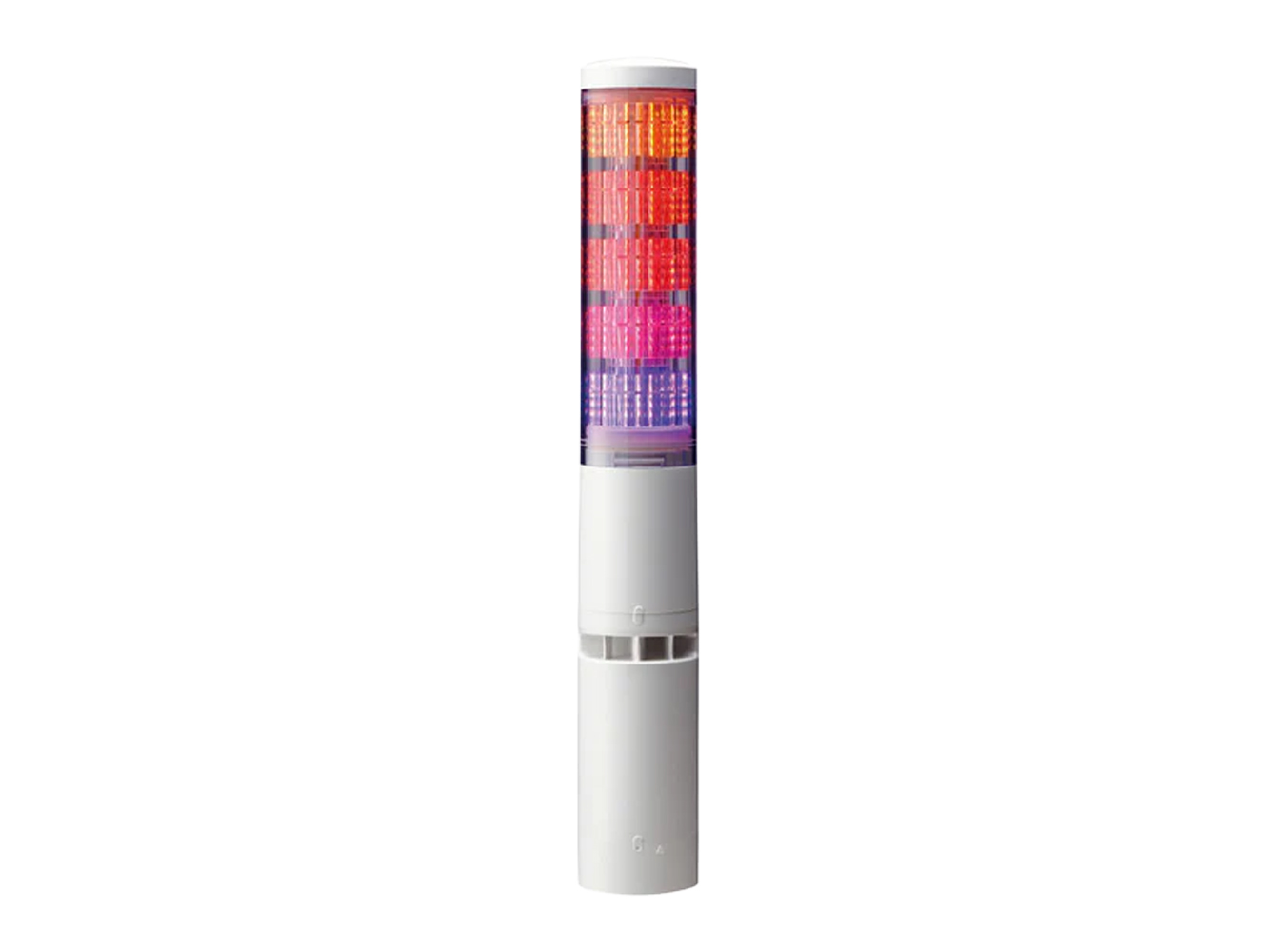

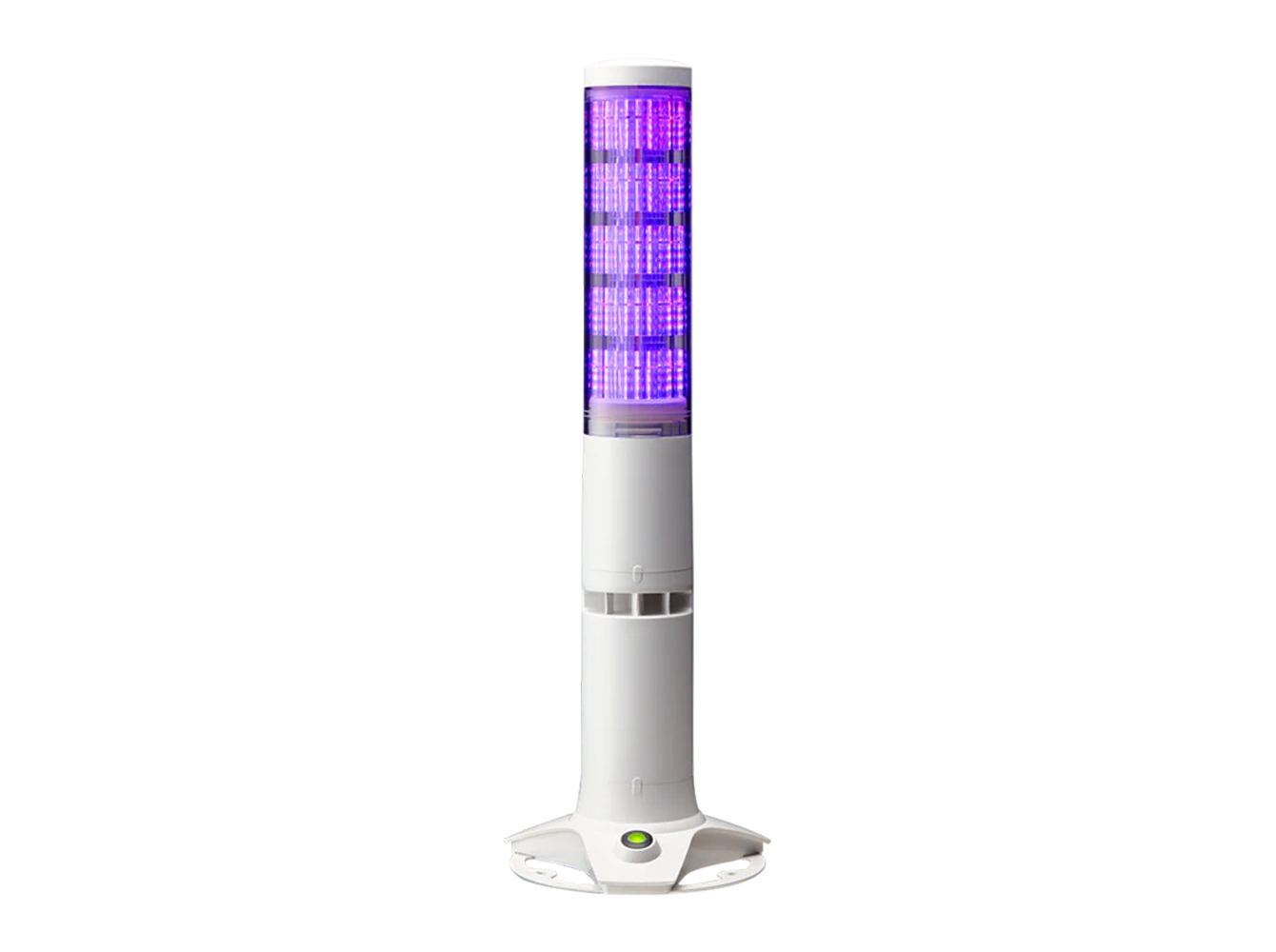

Ethernet signal tower LA6-POE - PATLITE

The LA6-POE Ethernet signal tower from PATLITE combines Power over Ethernet (PoE) convenience with highly customizable visual and audible alerts. With 21 programmable LED colors, 11 alarm sounds, and smart modes for time, pulse, or continuous monitoring, it delivers clear, adaptable signaling for diverse applications. A mirroring function allows one master unit to control up to eight slaves, while support for Modbus TCP/IP, HTTP, and PATLITE protocols ensures seamless integration. Easy setup via a web interface or free Editor Software, plus global certifications (EMC, RoHS, UL 508, FCC, KC), make the LA6-POE a reliable, scalable, and user-friendly solution for modern industrial environments.

more details

Downloads

Request Offer

Features

Dimensions: 60 mm diameter;
Operating voltage: 24V DC, and 48V DC for Power over Ethernet (PoE);
Stackable tiers: 5 modules with 21 color options;
Audible style: 11 alarm sounds available;
Volume: adjustable up to a maximum of 85dB;
Protection rating: IP54 (IEC 60529).

Advantages

Flexible control options: easily integrates with different systems, offering multiple control methods including 4 digital inputs, network commands, HTTP, Modbus TCP, and PATLITE’s own PNS/PHN protocols;
Meets major international standards and directives, including EMC Directive, RoHS Directive, UL 508, FCC, and KC, ensuring safety, reliability, and easy adoption worldwide.
Single-cable installation: Ethernet connection with Power over Ethernet (PoE) support simplifies wiring by combining power and data in one cable;
Seamless system integration: supports Modbus TCP/IP and HTTP protocols to connect easily with existing infrastructure;
Quick and simple setup: Built-in web interface allows fast and intuitive configuration;
Clear and flexible signaling: offers 21 programmable LED colors and 11 selectable alarms for unambiguous status indication;
Efficient monitoring at scale: Mirroring function replicates visual and audible statuses from one master LA6-POE to up to eight remote slave units;

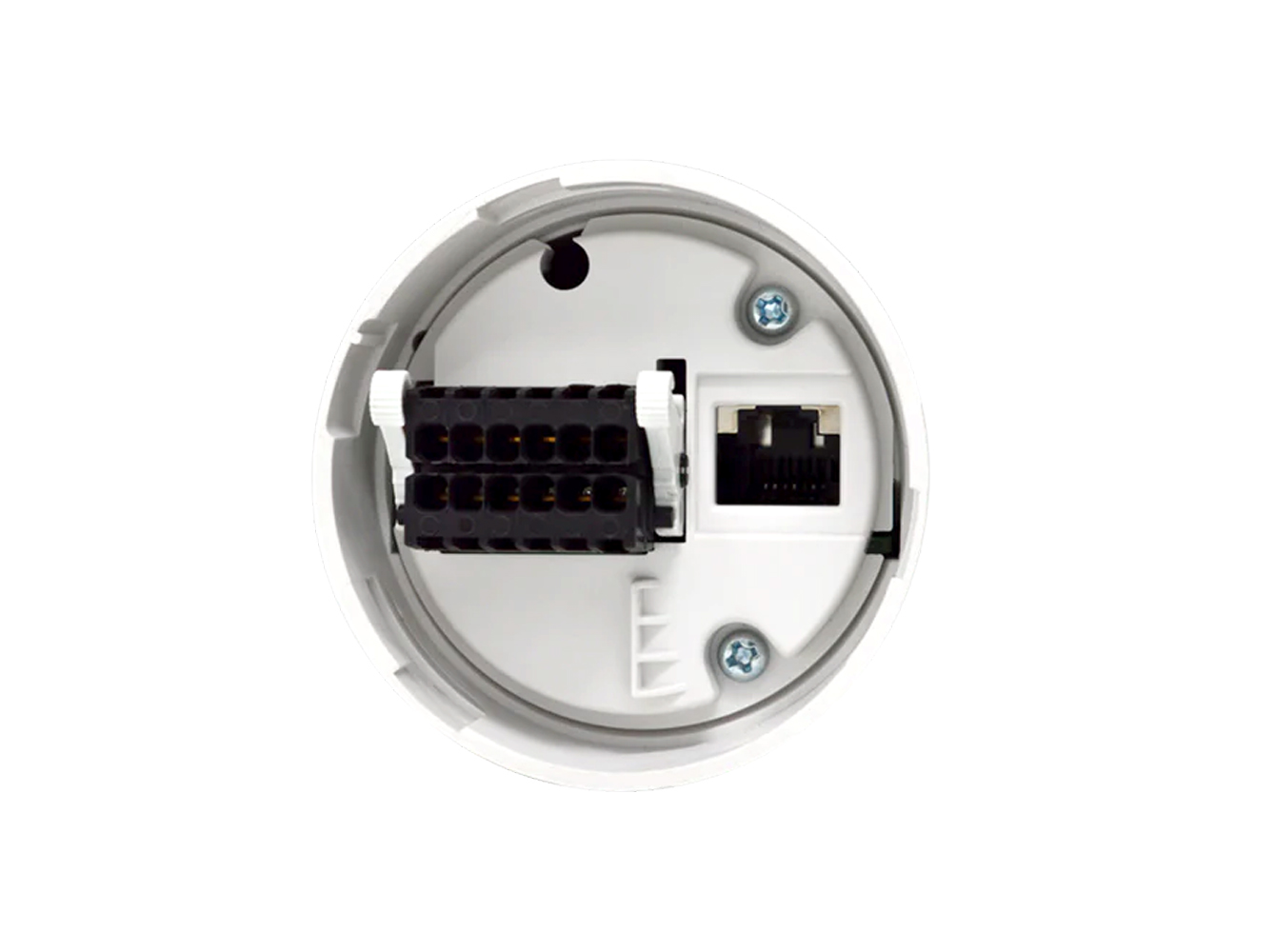

Versatile control options: built-in terminal block provides an alternative method of control when needed.
