Flying Trigger AI vision inspection – Techman Robot

Name: Flying Trigger AI vision inspection Techman Robot
Brand: Techman Robot

In automated visual inspection, every stop required to acquire an image increases cycle time. When a component requires several inspection points, repeated movement, stopping, and image acquisition can reduce productivity.

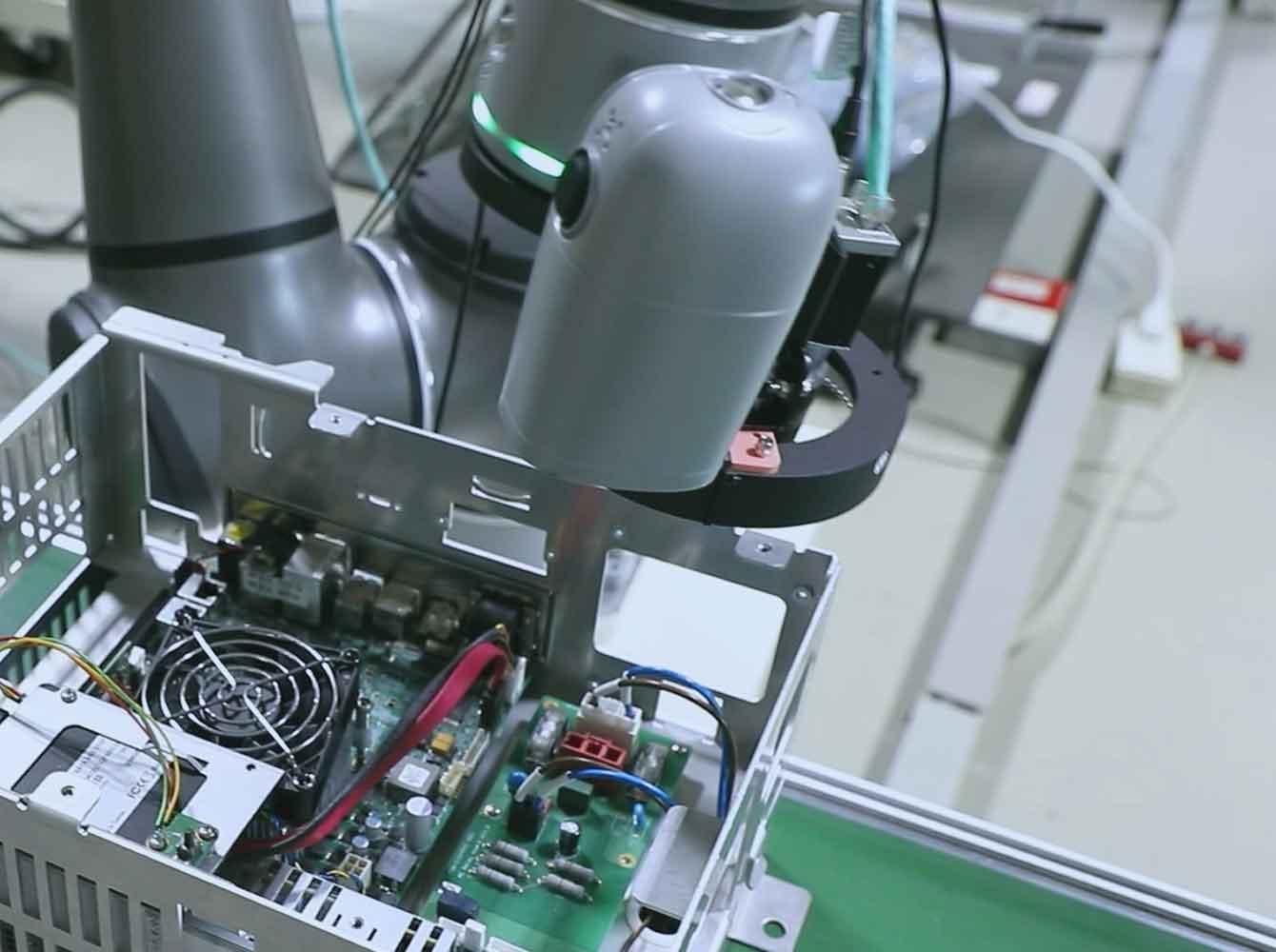

Techman Robot’s Flying Trigger technology synchronises cobot motion with image acquisition, allowing the camera to capture images at predefined positions along the robot trajectory without stopping at each inspection point.

more details

Downloads

Request Offer

Features

Synchronised motion and vision: the camera is automatically triggered at specific positions along the cobot trajectory, acquiring images at the defined inspection points;
Integrated configuration in TMflow: a built-in Wizard guides the setup process and reduces the need for complex programming logic;
Dynamic compensation: an integrated precision dynamic compensation algorithm compensates for robot motion during image acquisition, enabling image capture while the cobot is moving;
AI-supported inspection: captured images can be analysed by machine vision and AI models to identify defects, anomalies and non-conformities;

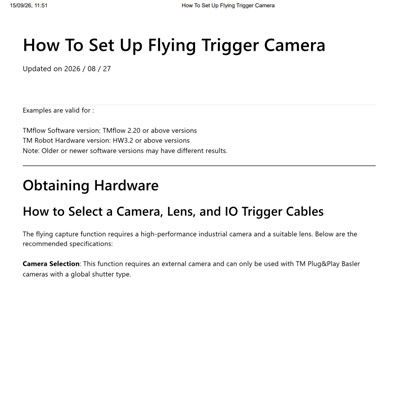

Flying Trigger camera setup supports hardware/software trigger mode selection, camera installation and software connection, and photo trigger timing via I/O control and Trigger Box.

Advantages

Reduced inspection time by eliminating stops used exclusively for image acquisition;
More inspection points can be added with a reduced impact on cycle time;
Fewer robot acceleration and deceleration cycles, with the potential to reduce mechanical wear;
A more continuous, stable and consistent inspection process;
According to applications demonstrated by Techman Robot, inspection time can be reduced by up to 50%, depending on the application.

Applications

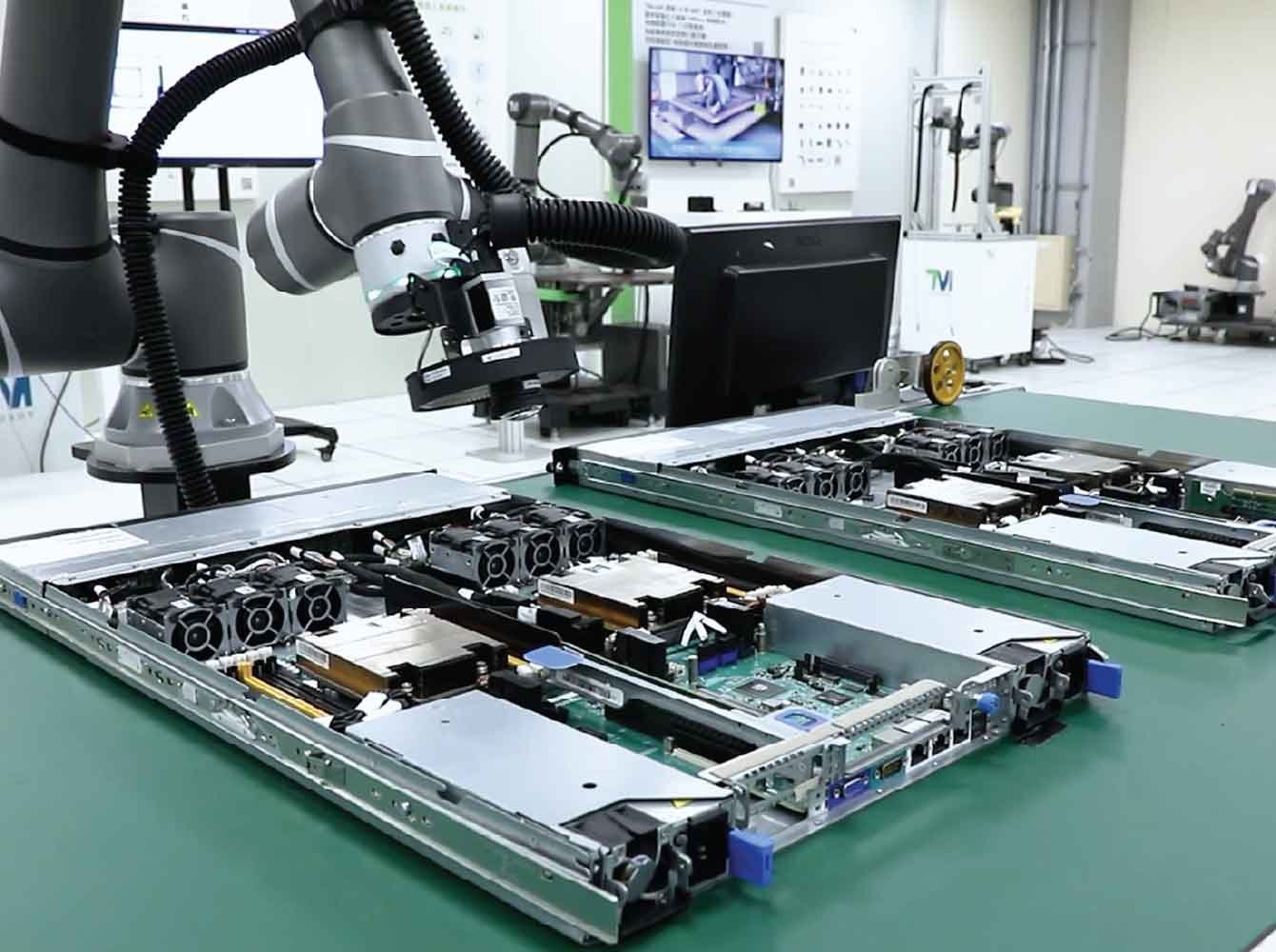

Electronics industry, particularly for inspection of:Component assembly, presence, position and orientation verification:
