Industrial Automation

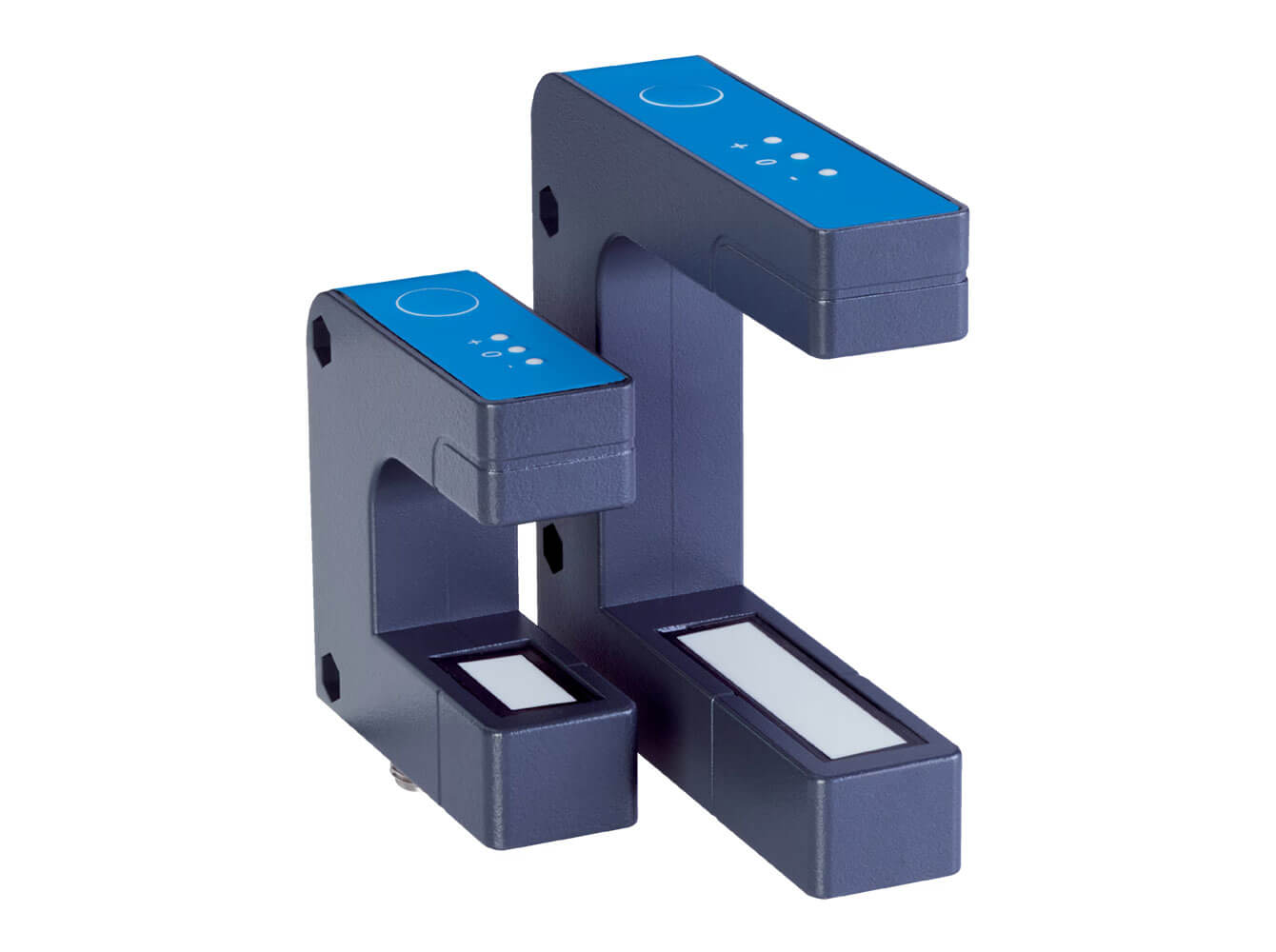

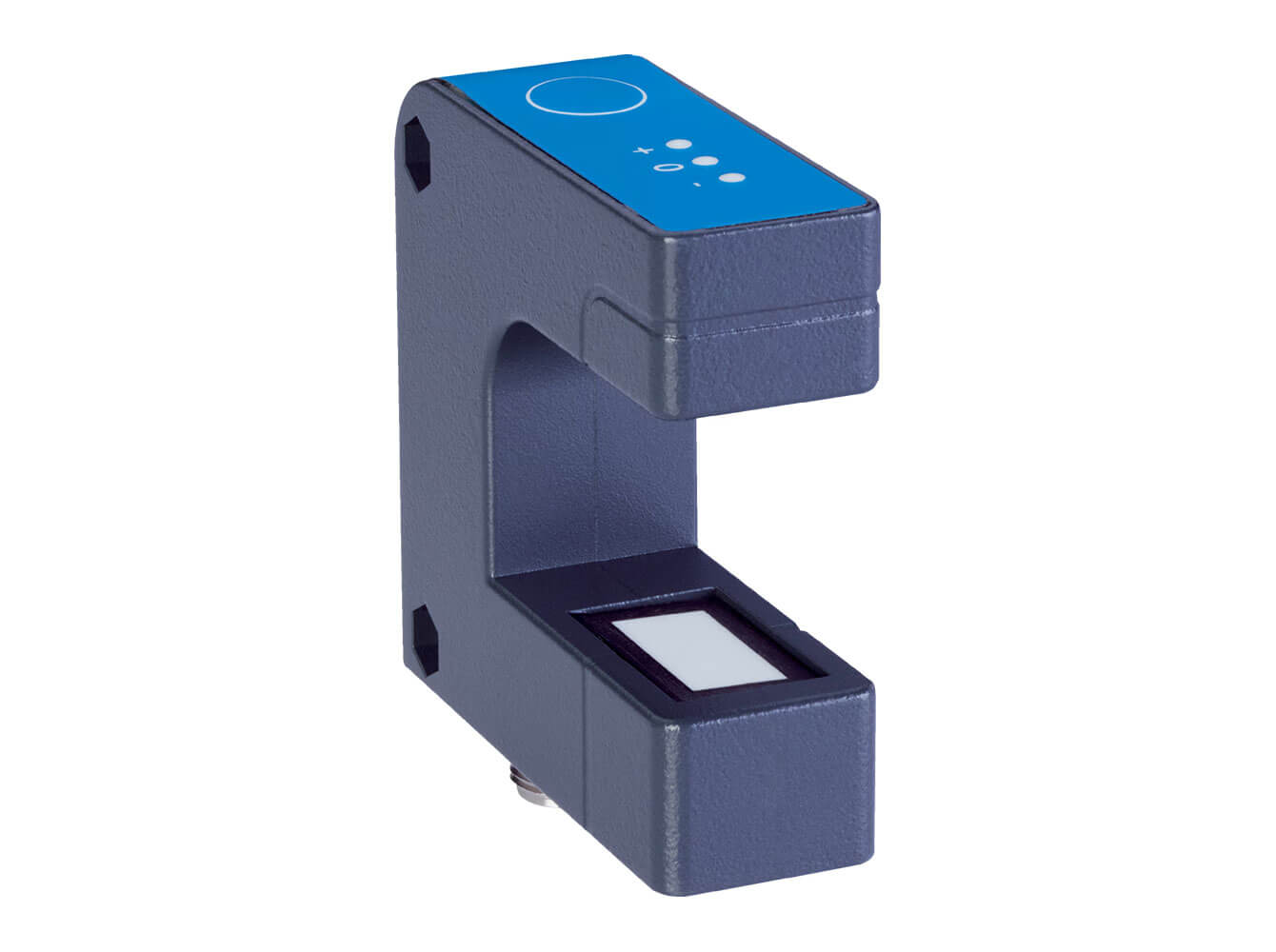

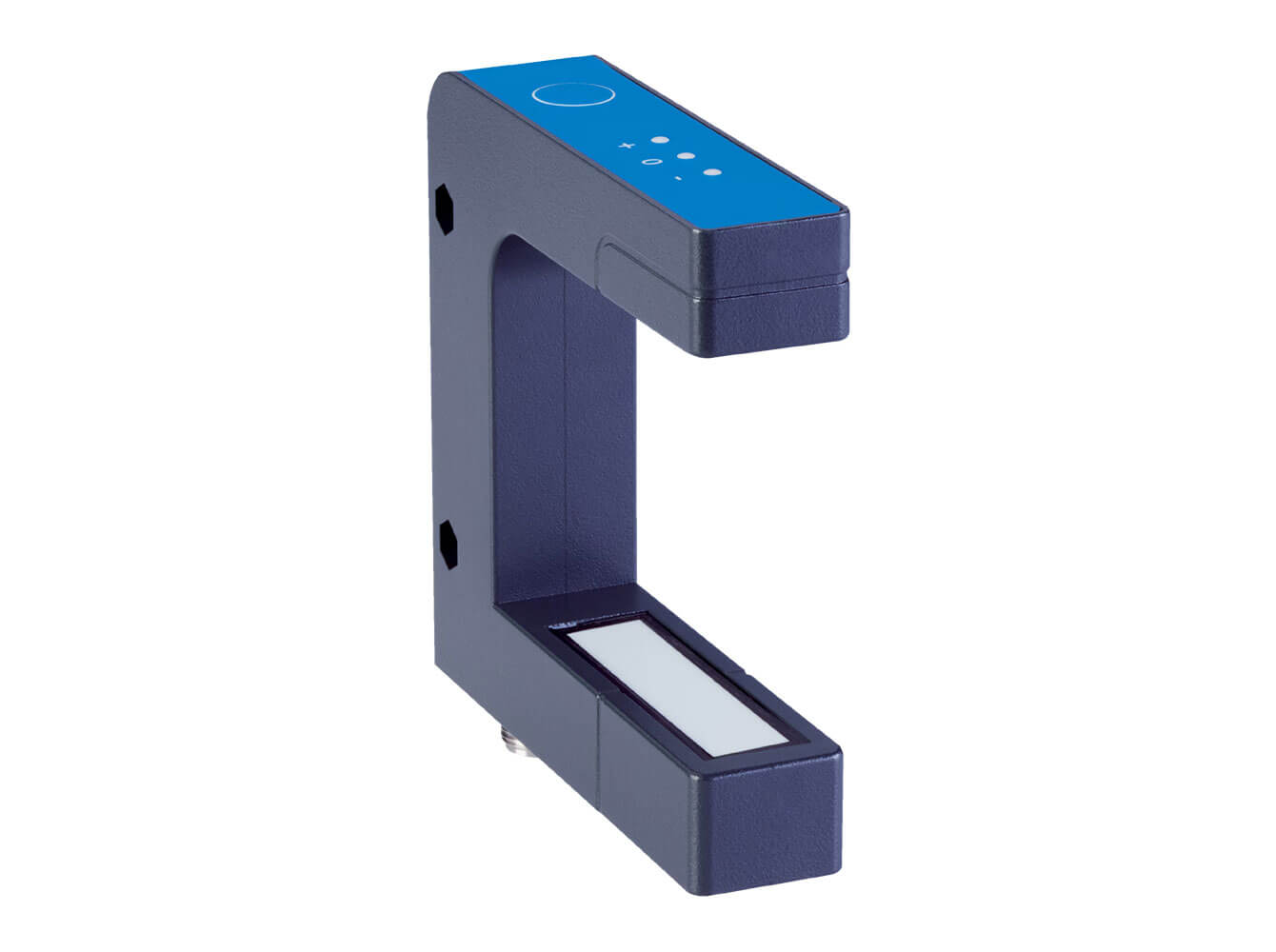

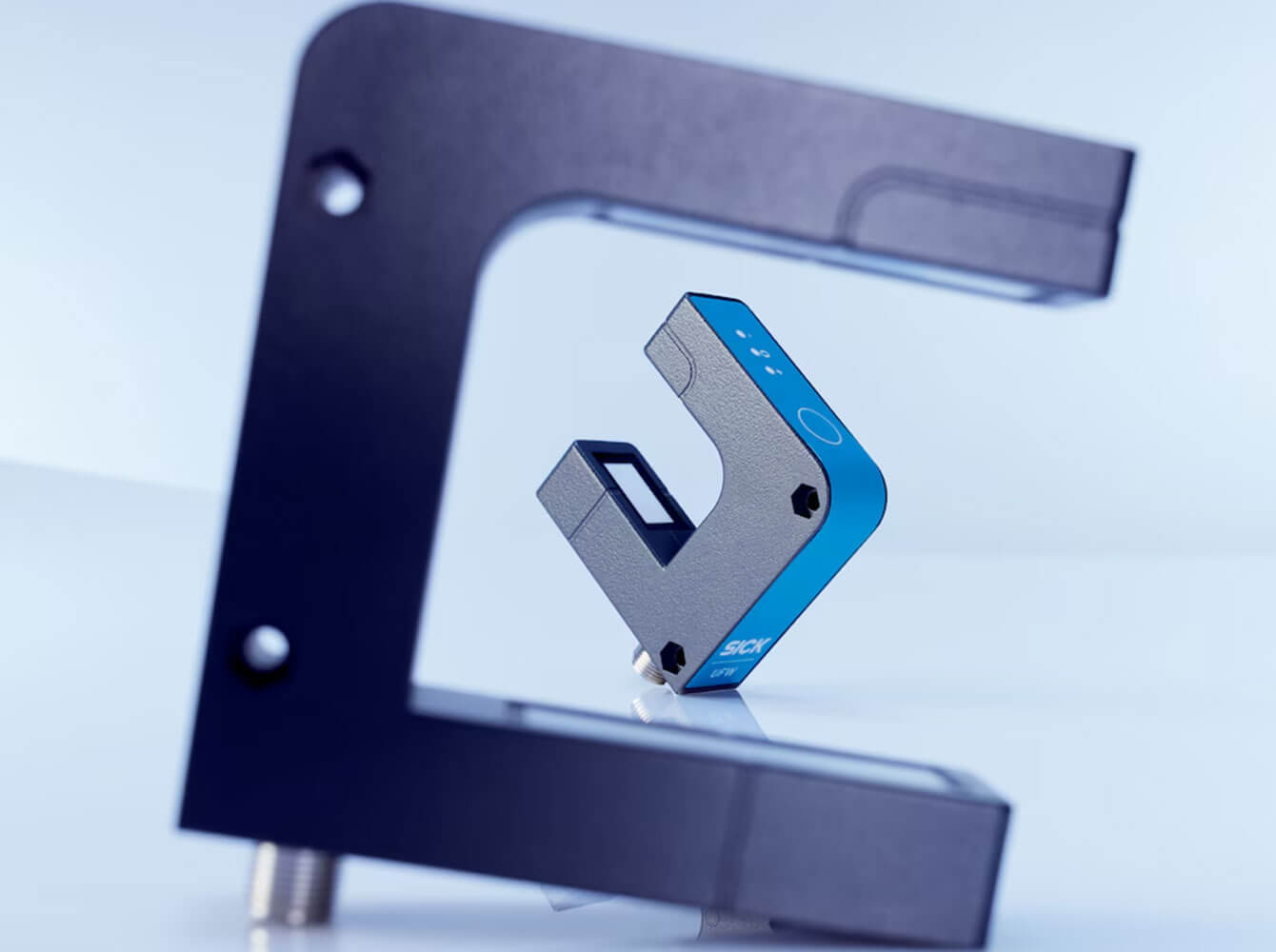

Fork sensor UFW - SICK
The UFW fork sensor from SICK makes non-contact web edge guiding possible. Thanks to ultrasonic technology, the UFW detects various materials with great precision and is therefore ideally suited for applications with transparent films or light-sensitive materials. The compact housing designs (30 mm and 60 mm fork width) allow space-saving installation. Calibration is simple to perform using a teach-in button. Three LEDs indicate immediately the position of the web material within the fork. Furthermore, the IO-Link communication interface opens numerous possibilities for fine adjustment, analyses, and monitoring.
more details
Downloads
Request Offer
Features
Advantages
Industries
Consumer goods.
A F.Fonseca é a representante da SICK em Portugal.
- Fork available in the widths 30 mm and 60 mm;
- High resolution of 0.01–0.02 mm and repeatability of 0.1 mm;
- Easy adjustment via IO-Link;
- Analog output can be switched between current (4–20 mA) and voltage (0–10 V);
- Visualization of the web material position within the fork using three LEDs;
- Durable metal housing.
Advantages
- High process reliability thanks to ultrasonic technology, even for optically demanding materials;
- Slim housing requires little installation space;
- IO-Link for fine adjustment, analyses, and monitoring;
- The sensor is easy to integrate into processes thanks to adjustable current/voltage output;
- Reliable function with sender and receiver integrated into the housing.
Industries
Consumer goods.
A F.Fonseca é a representante da SICK em Portugal.
