Handheld thermal camera M20 – HIKMICRO

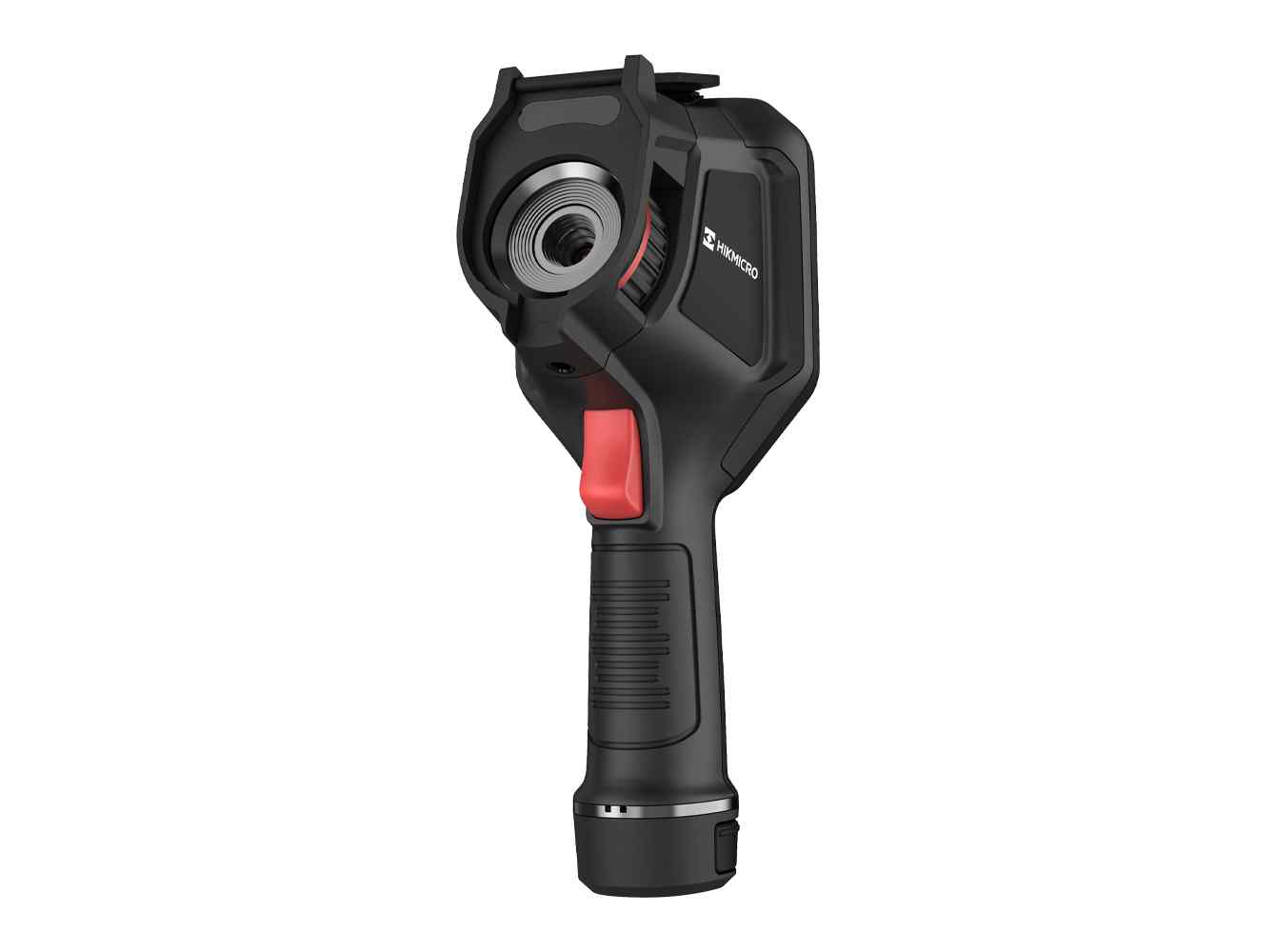

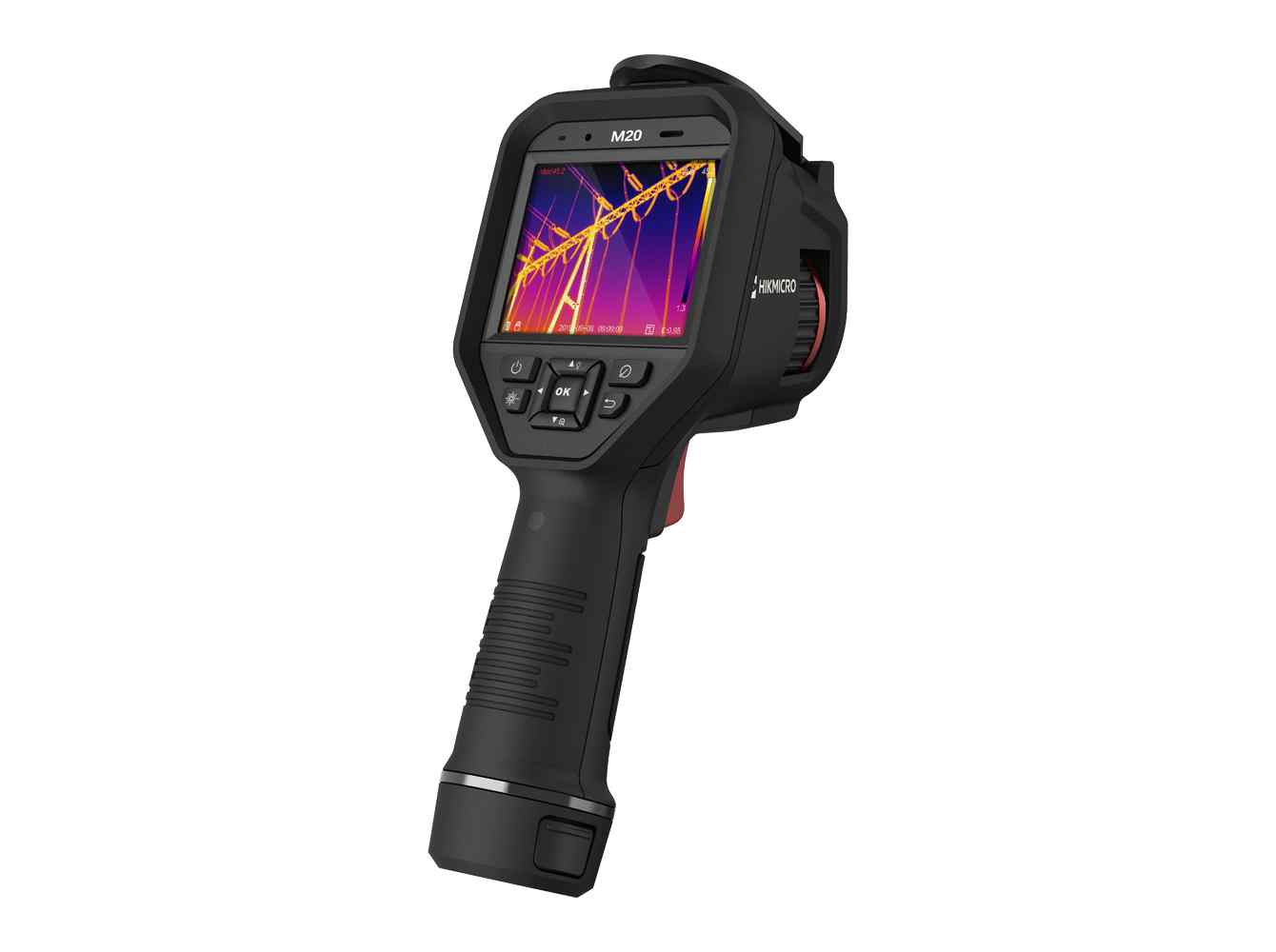

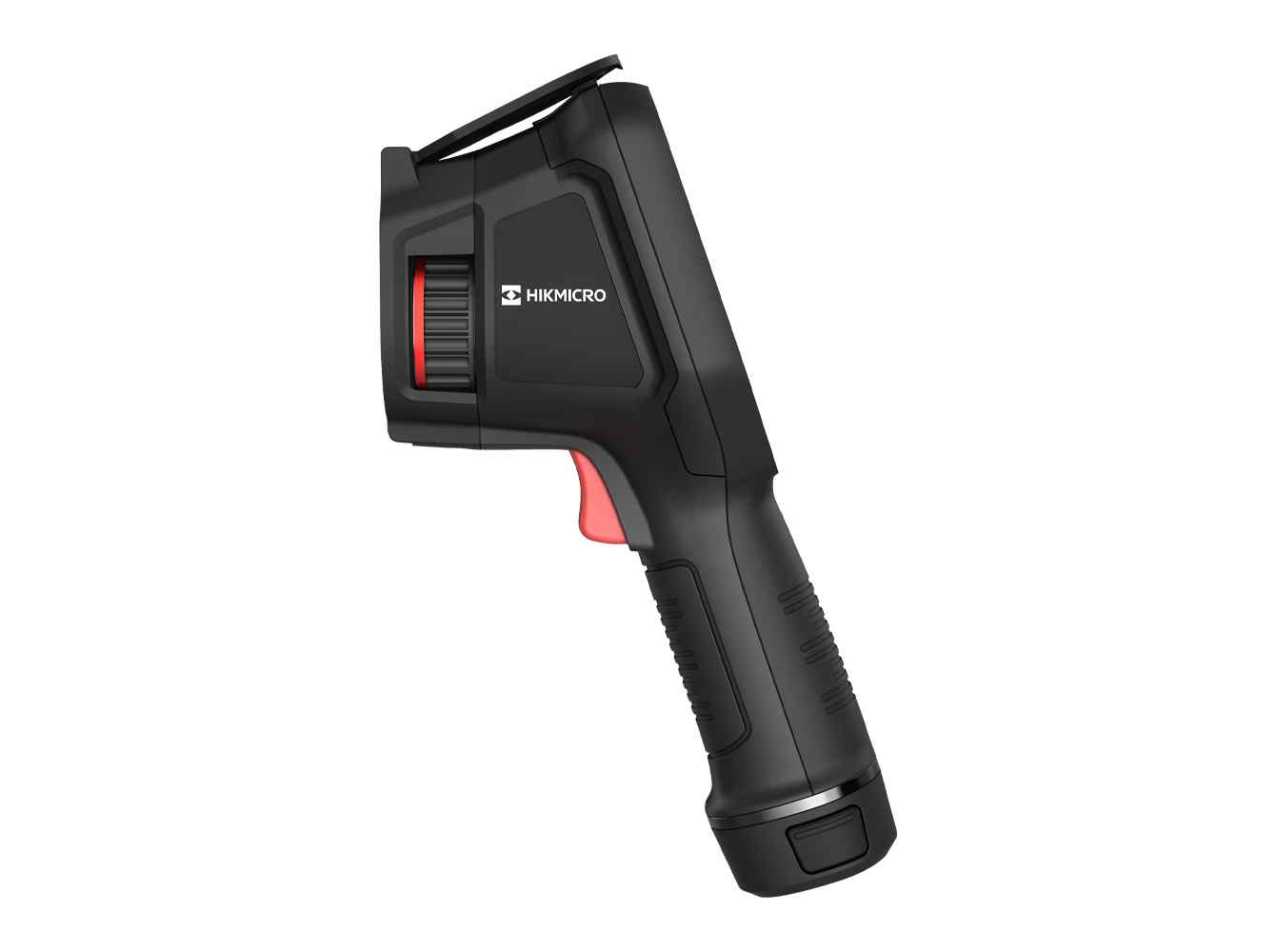

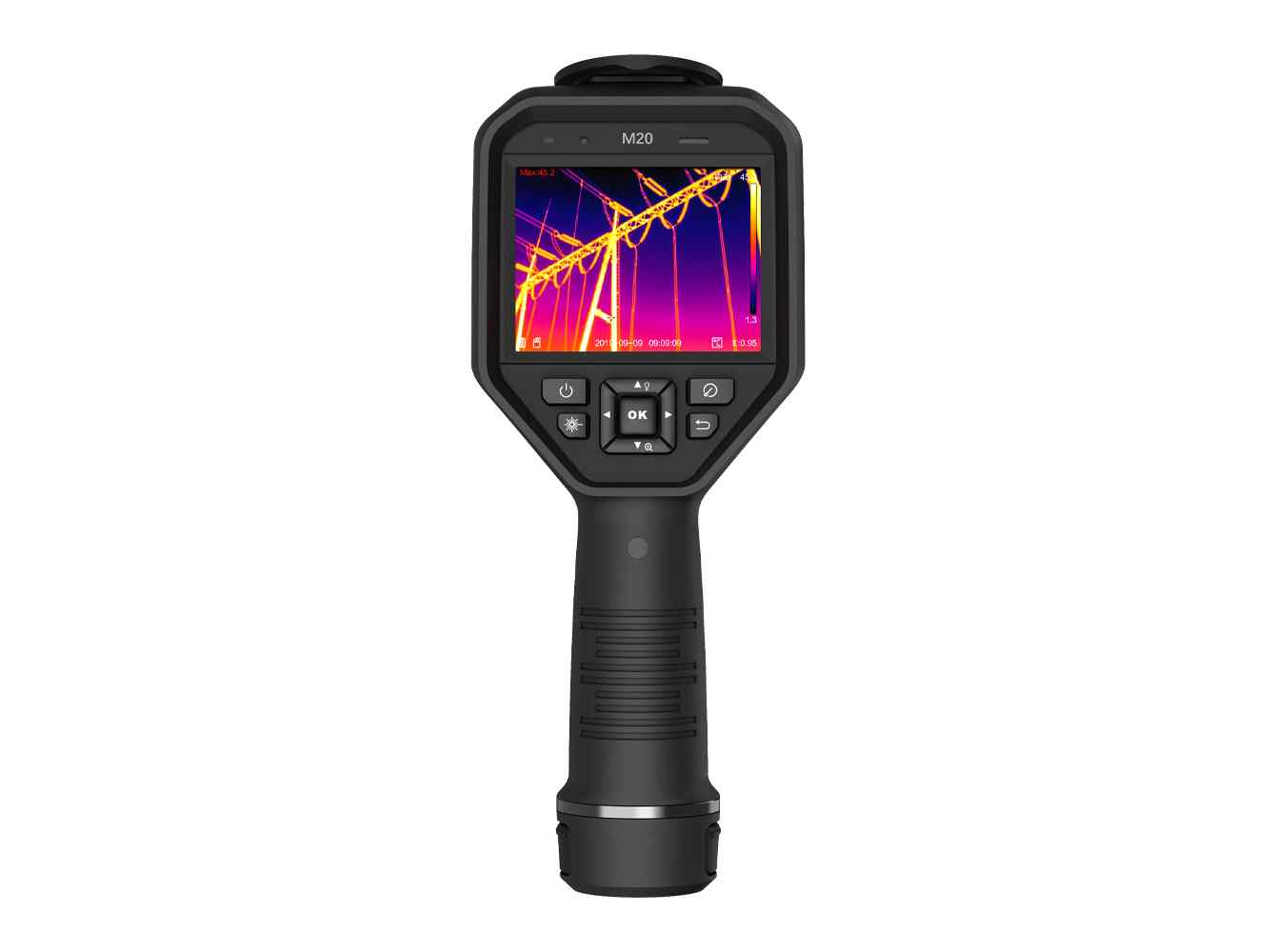

HIKMICRO M20 handheld thermography camera is specially designed for professional inspections. It’s equipped with a 256 × 192 resolution thermal detector and an 8MP resolution visual camera. The high resolution 3.5-inch touch screen displays crisp, clear images and streamlines camera operations.

Imaging modes include thermal, visual, picture in a picture of the optical and thermal view, and fusion of both channels. The M20 quickly identifies potential faults, quantifies the impact with accurate temperature measurement, provides detailed documentation to complete your inspections efficiently.

more details

Downloads

Request Offer

Features

High sensitivity thermal module with 256 × 192 resolution;
Supports multiple palettes;
High quality optical module with 8 MP resolution;
Bi-spectrum image fusion, picture-in-picture preview;
Wide temperature measurement range: -20 - 650° C;
High temperature measurement accuracy: Max ± 2°C for 0 to 100°C, ± 2% for 100 to 600° C, ± 4% for 600 to 650°C at the ambient temp. 15 to 35°C;
640 x 480 resolution 3.5'' LCD touch display;
Long-distance laser light supplement for thermography targets;
LED light supplement makes the device a torch in required scenarios;
1.0x to 8.0x continuous digital zoom;
Supports remote album access, download and quick report with APP.

Advantages

Enhanced image quality with superIR: owered by HIKMICRO SuperlR image enhancement technology, images are upscaled 4X to deliver highly detailed live and recorded radiometric images for inspection and reporting;
Interchangeable battery system: HIKMICRO M series Includes 2 interchangeable Li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation. You can stay powered up for even the longest inspections;
Complete image annotations: quickly annotate your images with voice, text, picture note QR codes, tag note, make your work more efficient with M series;
1-tap level & span: HIKMICRO M series supports 3-level/span modes (manual, automatic, and 1-Tap) to help to instantly improve image contrast and highlight potential problems. Touchscreen, instantly improving image contrast and highlighting potential problems;
5 image modes: thermal, Fusion, PIP, Visual and Blending modes to suit your preferred;
Rugged & durable design: HIKMICRO M series with IP54 rated for protection against water and dust. Featuring 2-meter (6.6ft) drop protection, suitable for industrial use;
Laser pointer: the Laser Pointer with HIKMICRO M series helps show the position of the center point on actual object. Analyze, share images, and generate reports in real-time on-site;
HIKMICRO Viewer: connect HIKMICRO Viewer app via Wi-Fi to transfer photos or videos from camera to mobile device. Analyze, share images, and generate reports in real-time on-site.
