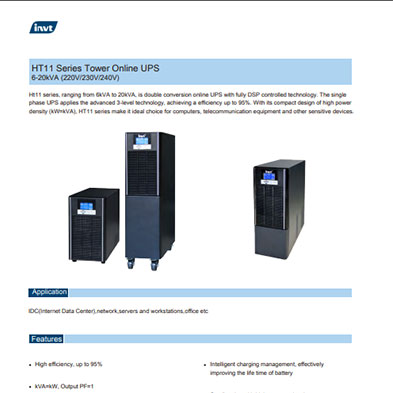

HT11 series tower online UPS 6-20kVA - INVT
The HT11 series is online UPS with the most advanced DSP control technology which can protect the sensitive device from utility fail, over/under voltage, surges, transients, spikes and other electrical abnormalities.
HT11 series, ranging from 6KVA to 20KVA, is double conversion online UPS with fully DSP controlled technology.
HT11 series, ranging from 6KVA to 20KVA, is double conversion online UPS with fully DSP controlled technology.
more details
Request Offer
The single phase UPS applies the advanced 3-level technology, achieving a efficiency up to 95%. With its compact design of high power density (kW=kVA), HT11 series make it ideal choice for computers, telecommunication equipment and other sensitive devices.
Features
Advantages
Industries
F.Fonseca is distributor of INVT in Portugal.
Features
- High efficiency, up to 95%;
- kVA=kW, Output PF=1;
- 3 level of technology, compatible with complicated load;
- Battery number can be set on LCD;
- Intelligent charging management, effectively improving the life time of battery;
- Smaller size with higher power density;
- Parallel up to 4 units;
- 12A charger for option, charging for large capacity batteries.
Advantages
Model | HT1106S HT1106L |
HT1110S HT1110L |
HT1115L | HT1120L | HT1106S-TX HT1106L-TX |
HT1110L-TX | ||||||
Capacity | 6kVA | 10kVA | 15kVA | 20kVA | 6kVA | 10kVA | ||||||
Phase | Single phase in,single phase out | Two phase in, two phase out | ||||||||||
Input voltage range | 50%-125%(220VAC/230VAC/240VAC) | |||||||||||
100% load@80%-125%; 90% load@70%-80% 80% load@60%-70%; 65% load@50%-60% |
||||||||||||
Input PF | ≥0.99 | ≥0.98 | ≥0.99 | |||||||||
Input frequency range | 40Hz-70Hz | |||||||||||
Output PF | 0.9 | 0.8 | ||||||||||
Output voltage | 220V/230V/240V | 110/220VAC | ||||||||||
Voltage regulation | ±1% | ±2% | ||||||||||
THDu | ≤1%(full linear load) ; ≤5% (none-linear load) | ≤1%(full linear load) ;≤5%(none-linear load) | ||||||||||
Battery voltage | 192VDC | |||||||||||
Battery type/number | 12V,7Ah*16 | 12V,9Ah*16 | External | External | 12V,7Ah*16 | External | ||||||
External | External | External | ||||||||||
System Efficiency | Normal mode:93%; ECO mode:98%; Battery mode:92% |
Normal mode:93.5%; ECO mode:98%; Battery mode:92% |
Normal mode:88%; ECO mode:93%; Battery mode:87% |
|||||||||
Noise(1 meter away) | <48dB@<70%load; <58dB@>70%load |
<48dB@<70%; load;60dB@>70%load |
<48dB@<70%load; <60dB@>70%load |
|||||||||
Overload Capability (Inverter mode) |
110%:for 10 min ; 130%:for 1min ; 150%:for 30 sec (shut down the bypass after 1 min) |
|||||||||||
Overload Capability (Battery mode) |
110%: Shutdown after 10mins; 125%:Shutdown after 10s; >125%: Shutdown after 1s |
|||||||||||
Crest Ratio | 3:1 | |||||||||||
Display | LED+LCD | |||||||||||
Interface | Standard:RS232,EPO Optional: SNMP, USB, dry contactor(AS400),parallel Kit, ECO Kit, external battery cable(standard model), Maintenance bypass, maintenance bypass detecting Kit |
|||||||||||
W*D*H(mm) | 250*562*650 250*504*480 |
250*562*650 250*504*480 |
250*562*650 | 250*562*710 | 250*504*945 250*504*945 |
250*504*885 | ||||||
Net Weight(Kg) | 59 | 65 | 27 | 34 | 104 | 78 | ||||||
18 | 20 | 65 |
Industries
- Airports;
- Commercial spaces;
- Data and communication centers;
- Emergency systems;
- Hospitals;
- Hotels;
- Industrial buildings;
- Office buildings;
- Schools;
- Telecommunications;
- Transport.
F.Fonseca is distributor of INVT in Portugal.
