Industrial Automation

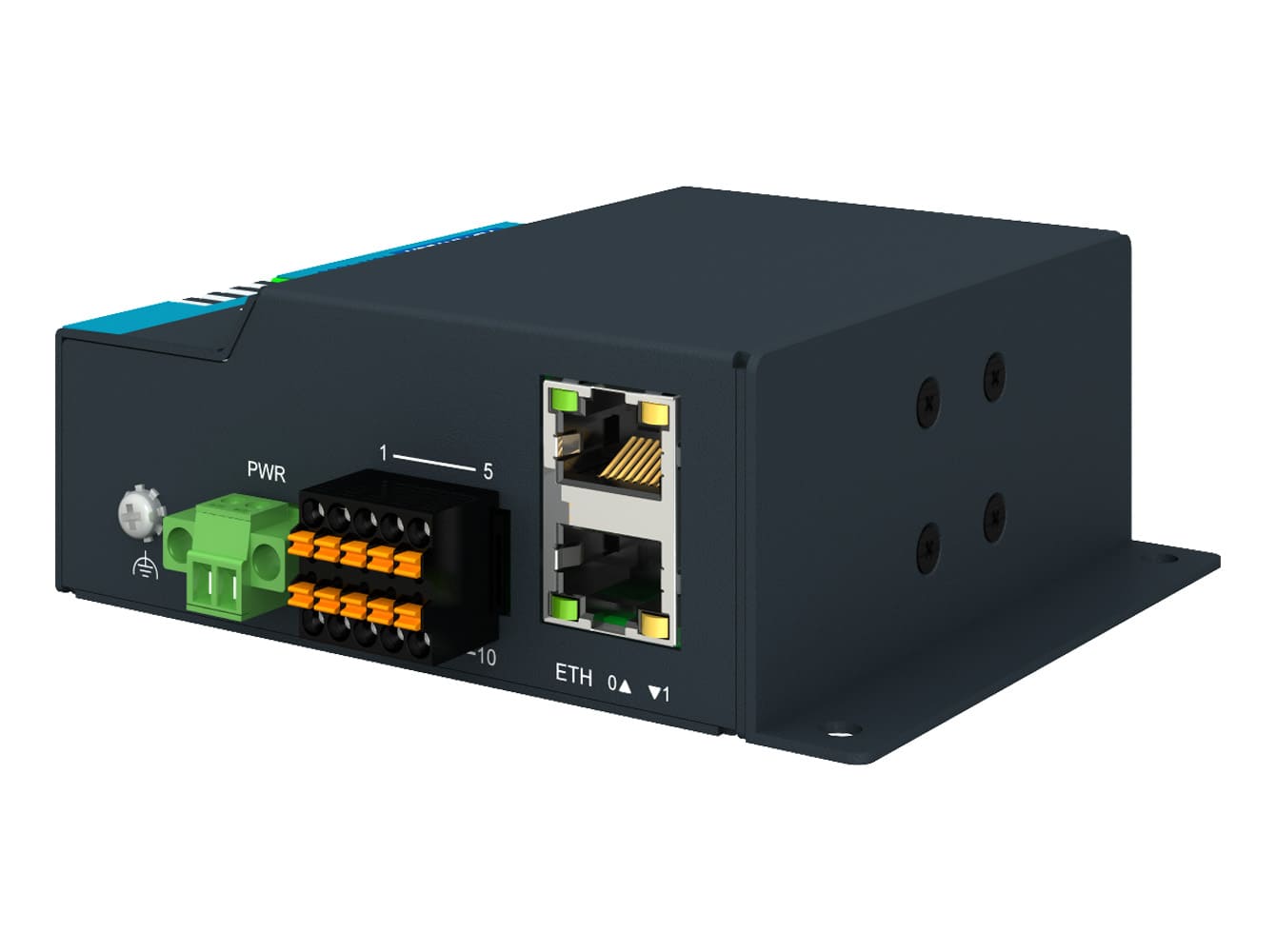

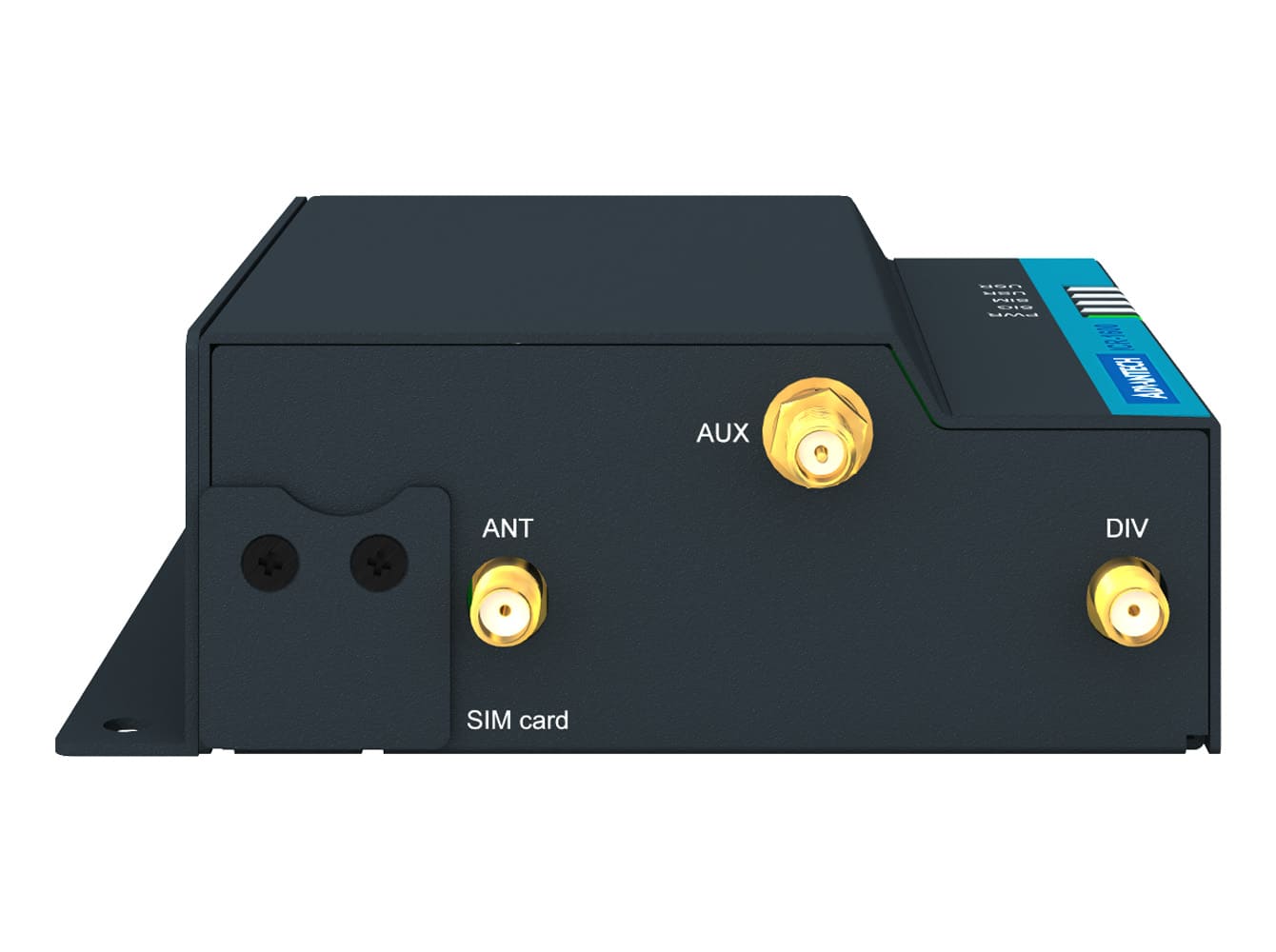

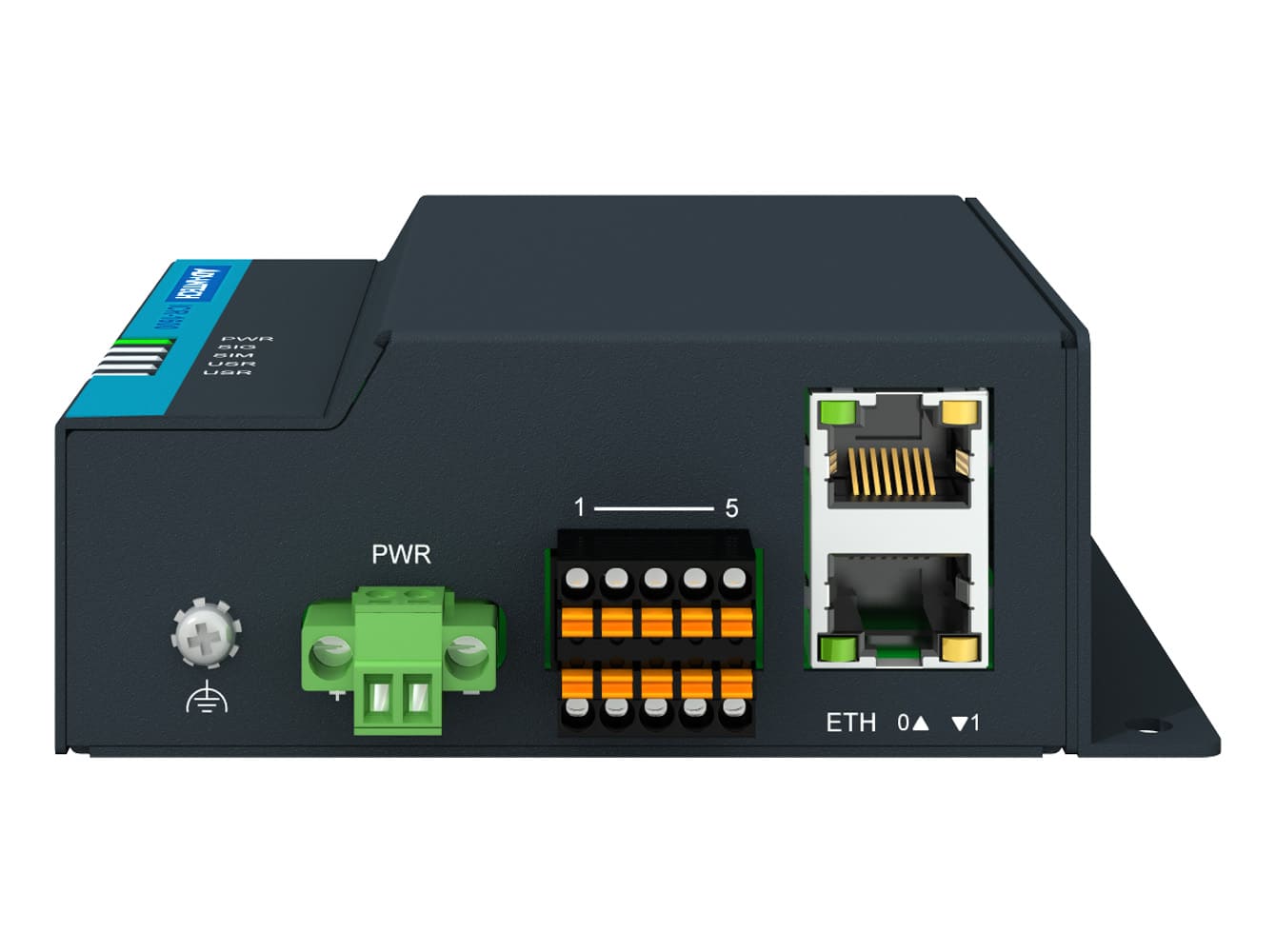

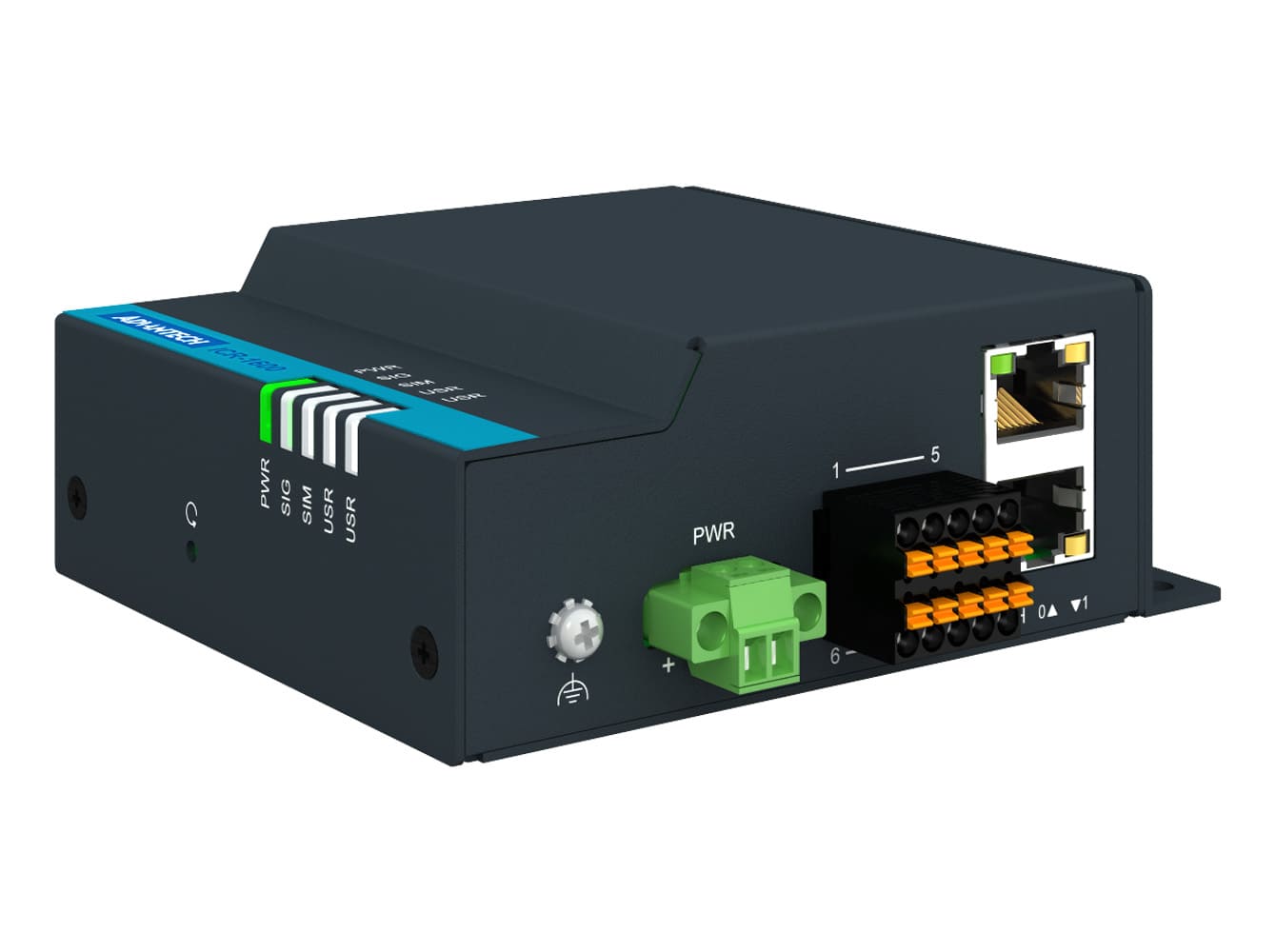

Industrial router ICR-1642W - Advantech
The industrial router ICR-1642/1602 series industrial from Advantech is designed for wireless communication, enabling IP devices to connect to a cellular network.
It is ideal for M2M and IoT applications, including kiosks, industrial PCs, HMIs, traffic controllers, meters, and UPS systems. LTE Cat.4 offers a peak downlink data rate of approximately 150 Mbps and an uplink peak data rate of 50 Mbps.
It is ideal for M2M and IoT applications, including kiosks, industrial PCs, HMIs, traffic controllers, meters, and UPS systems. LTE Cat.4 offers a peak downlink data rate of approximately 150 Mbps and an uplink peak data rate of 50 Mbps.
more details

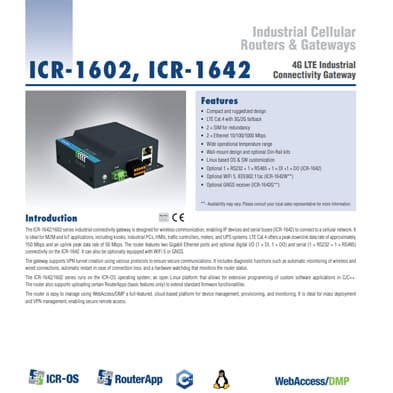

Downloads
Request Offer
The router features two Gigabit Ethernet ports and optional digital I/O (1 × DI, 1 × DO) and serial (1 × RS232 + 1 × RS485) connectivity on the ICR-1642. It can also be optionally equipped with WiFi 5 or GNSS.
The gateway supports VPN tunnel creation using various protocols to ensure secure communications. It includes diagnostic functions such as automatic monitoring of wireless and wired connections, automatic restart in case of connection loss, and a hardware watchdog that monitors the router status.
The ICR-1642/1602 series from Advantech runs on the ICR-OS operating system, an open Linux platform that allows for extensive programming of custom software applications in C/C++.
The router also supports uploading certain RouterApps (basic features only) to extend standard firmware functionalities. The router is easy to manage using WebAccess/DMP, a full-featured, cloud-based platform for device management, provisioning, and monitoring. It is ideal for mass deployment and VPN management, enabling secure remote access.
Features
Advantages
Applications
F.Fonseca is the representative of Advantech in Portugal.
The gateway supports VPN tunnel creation using various protocols to ensure secure communications. It includes diagnostic functions such as automatic monitoring of wireless and wired connections, automatic restart in case of connection loss, and a hardware watchdog that monitors the router status.
The ICR-1642/1602 series from Advantech runs on the ICR-OS operating system, an open Linux platform that allows for extensive programming of custom software applications in C/C++.
The router also supports uploading certain RouterApps (basic features only) to extend standard firmware functionalities. The router is easy to manage using WebAccess/DMP, a full-featured, cloud-based platform for device management, provisioning, and monitoring. It is ideal for mass deployment and VPN management, enabling secure remote access.
Features
- Compact and ruggedized design;
- LTE Cat.4 with 3G/2G fallback;
- 2 × SIM for redundancy;
- 2 × Ethernet 10/100/1000 Mbps;
- Wide operational temperature range;
- Wall-mount design and optional DIN-Rail kits;
- Linux-based OS & SW customization;
- Optional 1 × RS232 + 1 × RS485 + 1 × DI +1 × DO (ICR-1642);
- Optional WiFi 5, IEEE802.11ac (ICR-1642W**);
- Optional GNSS receiver (ICR-1642G**).
Advantages
- Operational resilience: dual SIM failover and watchdog mechanisms minimize downtime in mission-critical deployments;
- Edge computing capability: open Linux environment allows on-device processing, reducing latency and cloud dependency;
- Secure communication: multi-protocol VPN support ensures encrypted data transmission across public networks;
- Deployment scalability: full integration with WebAccess/DMP enables centralized configuration, monitoring, and firmware management;
- Interface flexibility: combines Ethernet, Wi-Fi, serial, and I/O interfaces in a single platform, reducing hardware complexity;
- Industrial-grade reliability: designed for extended temperature ranges and electrically noisy environments.
Applications
- Controllers;
- HMIs;
- Industrial PCs;
- Kiosks;
- Meters;
- Traffic;
- UPS systems.
F.Fonseca is the representative of Advantech in Portugal.
