Industrial switch EKI-2705E-1GPI - Advantech

Advantech's PoE unmanaged switches provide power for devices via Ethernet cable, eliminating the need for additional wiring.

The EKI-2705 series supports up to 4-port IEEE 802.3 af/at PoE /PoE+ ports.

Each port of EKI-2705 has two LED indicators to show the link status transmission speed.

EKI-2705 and EKI-2706 series from Advantech offer up to 90W PoE power budget, enabling you to connect and power a variety of powered devices (PD), from high-performance IP cameras to wireless access points and displays.

more details

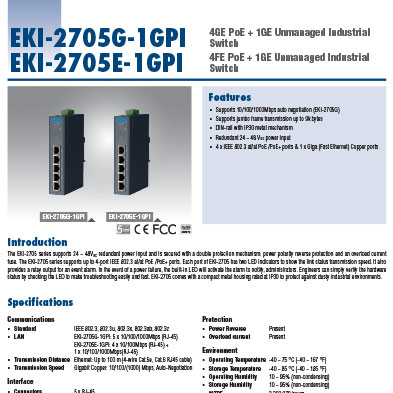

Downloads
Request Offer
Features
  • Supports 10/100/1000Mbps auto negotiation (EKI-2705G);
  • Supports jumbo frame transmission up to 9k bytes;
  • 4 x IEEE 802.3 af/at PoE /PoE+ ports & 1 x Giga (Fast Ethernet) Copper ports;
  • Provides compact size with DIN-rail/Wall mount and IP30 metal mechanism.

Advantages
  • Supports redundant 12~48VDC power input and a relay output for an event alarm;
  • The EKI-2705 series supports 24 ~ 48VDC redundant power input and is secured with a double protection mechanism: power polarity reverse protection and an overload current fuse;
  • In the event of a power failure, the built-in LED will activate the alarm to notify, administrators. Engineers can simply verify the hardware status by checking the LED to make troubleshooting easily and fast;
  • EKI-2705 and EKI-2706 series are designed with a slim and compact form factor, allowing for hassle-free installation even in the most confined spaces;
  • Our EKI-2705 and EKI-2706 series PoE unmanaged switches supports both 24VDC and 48VDC input, making it compatible with a wide range of power sources for industrial environments. The built-in redundancy power input ensures uninterrupted operation, minimizing downtime and enhancing overall reliability.

Applications
  • Energy;
  • Industrial automation;
  • Process control;
  • Transportation.

F.Fonseca is the representative of Advantech in Portugal.
