LED lighting for industry CLA-A - PATLITE

IP69K-rated LED work light designed for hygienic environments such as food processing and pharmaceutical plants. Withstands high-pressure hot water washdowns up to 80°C. Low-heat surface design (<40 °C on housing), durable polycarbonate housing, and wide temperature tolerance (-40°C to +60°C). Available in daylight white (all models) and amber (324 mm model only), with six lengths ranging from 100 mm to 1200 mm, and featuring four mounting options, this model is a strong candidate for replacing traditional fluorescent tubes. CE and RoHS compliant for global use.

more details

Downloads

Request Offer

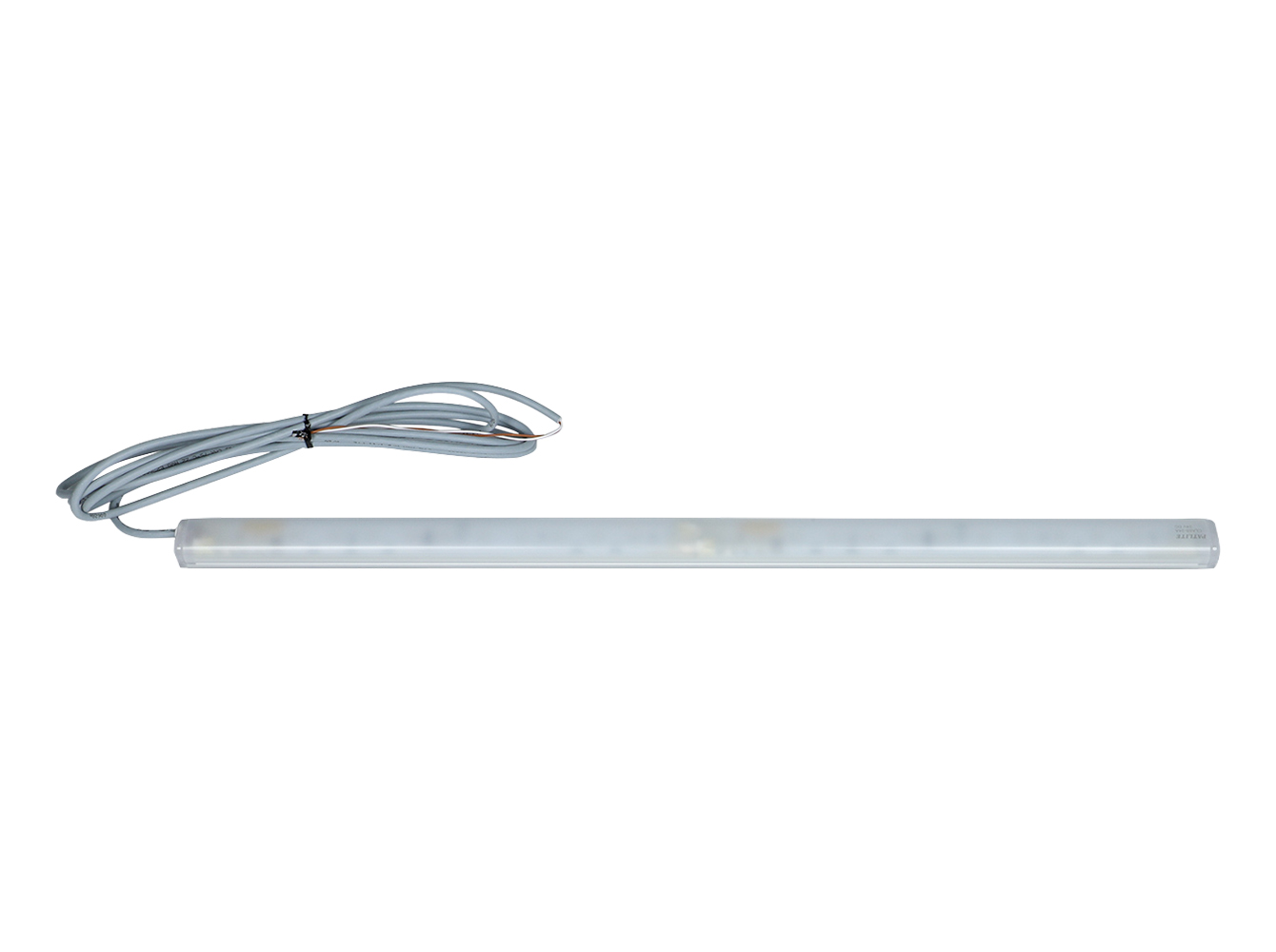

The CLA Series LED Light Bar delivers bright, uniform illumination in a high-protection IP69K-rated enclosure, suitable for high-temperature washdown environments in food and pharmaceutical facilities. It is also ideal for lighting control panels and workstations.

Features

Rated voltage: 24 V DC;
Function: steady (continuous on);
Mounting options: snap-in bracket (screw-fixed or magnetic type) and side-mount brackets; suitable for indoor installation in any orientation;
Body style: polycarbonate housing, pre-assembled and pre-wired;
Light source: high-intensity LED chips in daylight white (all models) and amber (324 mm model only), with a rated lifetime (L70) of 40,000 hours;
Protection rating: IP66/IP67/IP69K.

Advantages

Versatile application: the CLA LED light is suitable for use in a wide range of demanding environments;
Highly resistant: withstands extreme conditions, including high-pressure washdowns at temperatures up to 80 °C, without performance loss;
Seamless design: prevents dirt buildup and ensures easy cleaning;
Optimized light distribution: engineered to evenly spread illumination by smoothing surface unevenness; the translucent housing enhances uniformity and provides a wide 120° beam angle with consistent brightness;

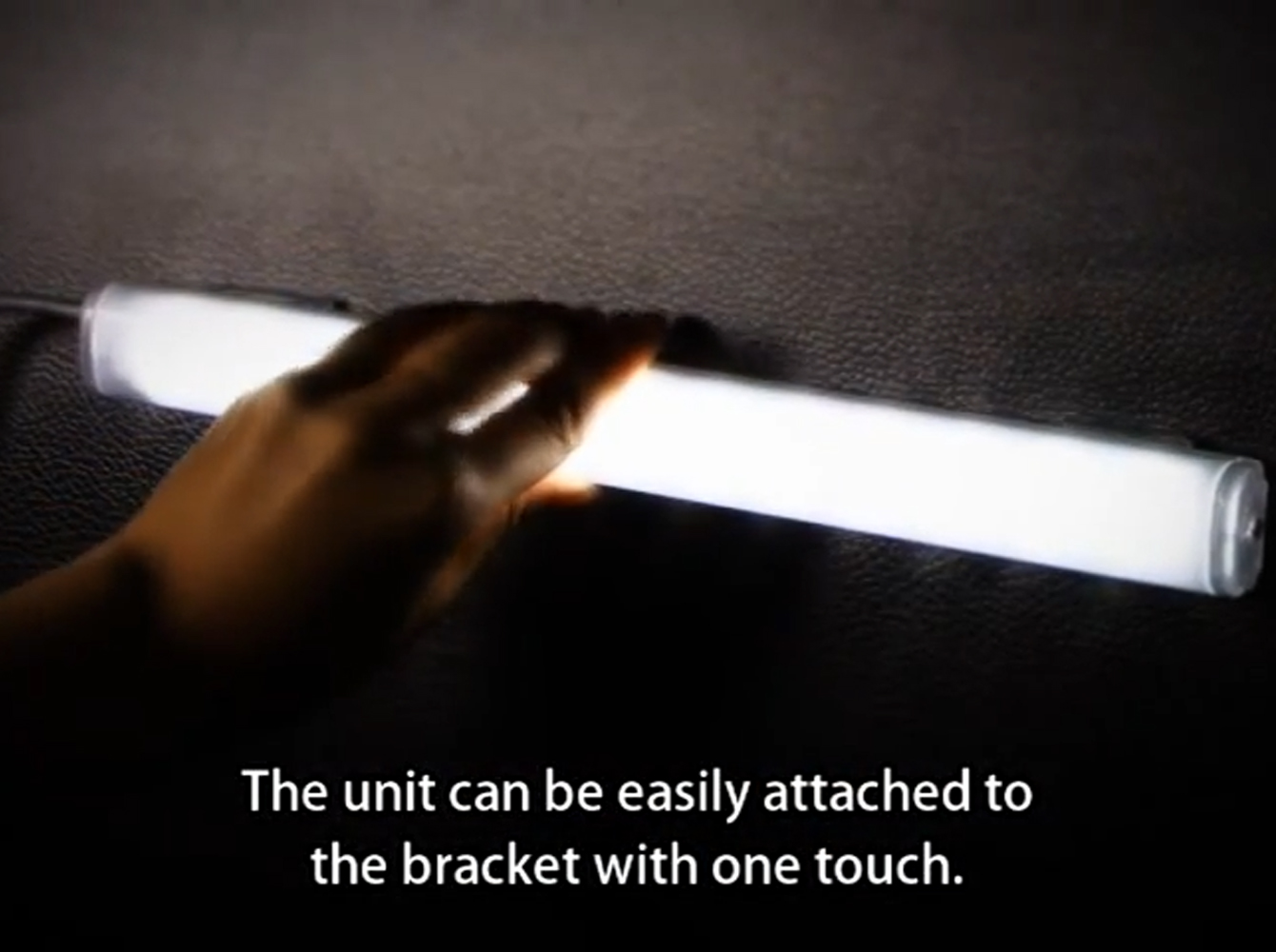

Quick installation and removal: the one-touch mounting system and slide rail structure allow the unit to be securely attached or repositioned with ease;
Energy efficient: reduces power consumption by up to 52% compared to a 100 V, 20 W fluorescent light;
Long lifespan: offers 10 times the durability of conventional fluorescent lighting, minimizing replacement and maintenance costs.

Applications
