Luximeter MAVOMONITOR - KIT - Gossen Metrawatt

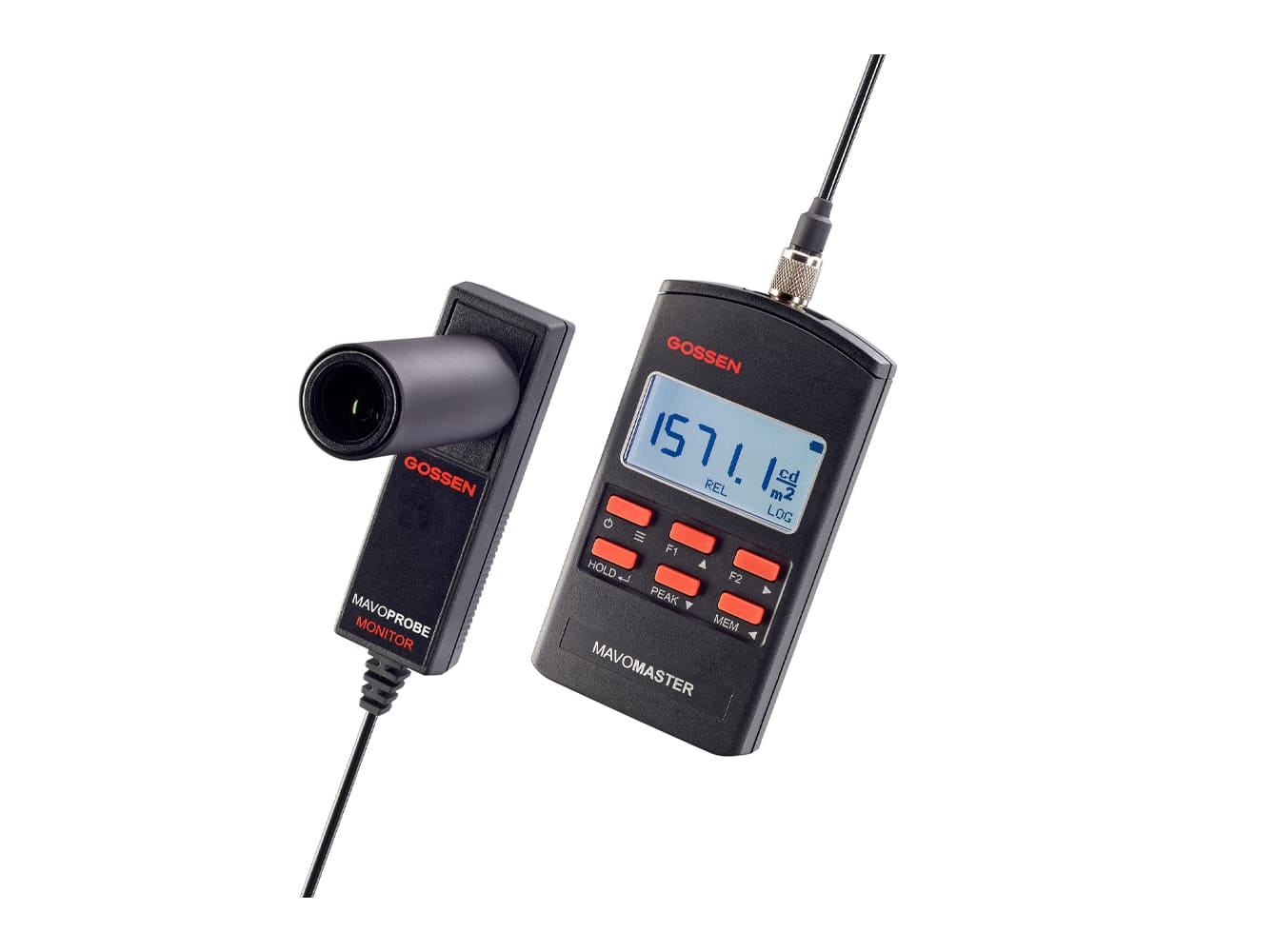

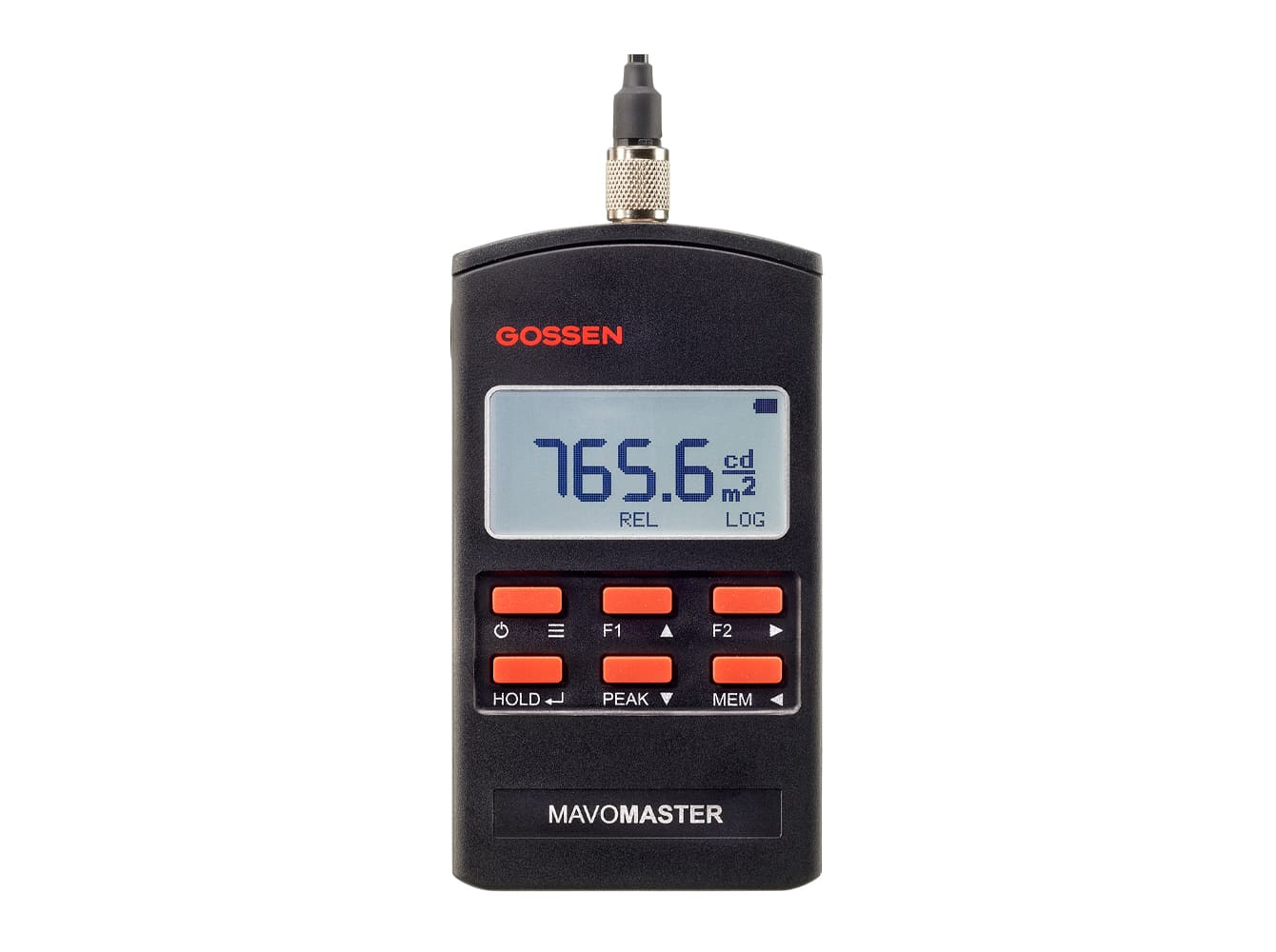

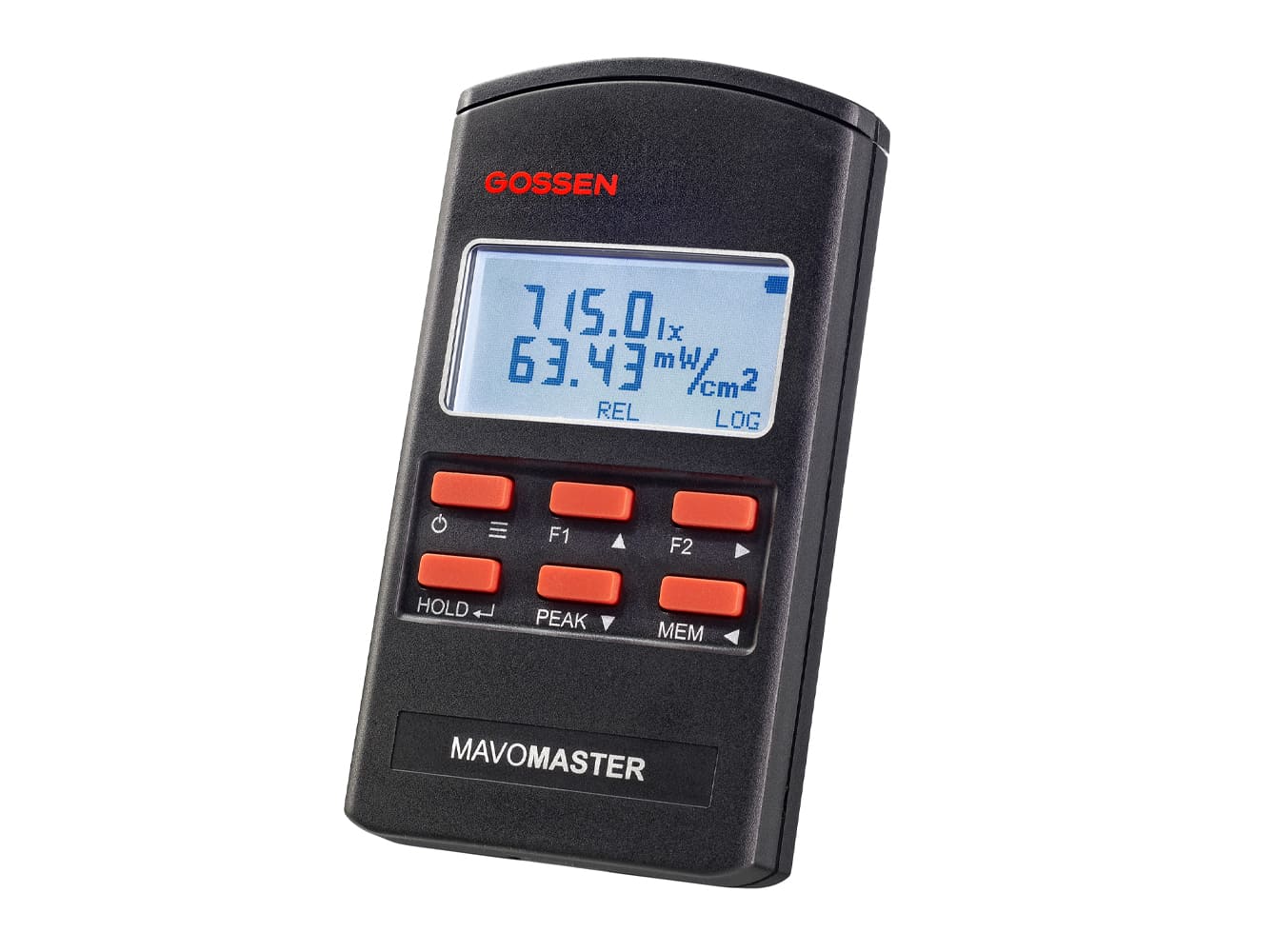

The MAVOMONITOR-KIT from Gossen Metrawatt combines the MAVOMASTER base unit with the MAVOPROBE MONITOR sensor to form a Class B luminance measuring system in accordance with DIN 5032-7, DIN EN 13032-1 Appendix B, and ISO/CIE 19476.
The system from Gossen Metrawatt is designed for contact luminance measurement of actively illuminated and backlit surfaces. It determines luminance in cd/m² or fL (foot-lambert) and is particularly suited for flat panel displays, industrial monitors, control screens, light boxes, illuminated advertising panels and similar emissive surfaces.

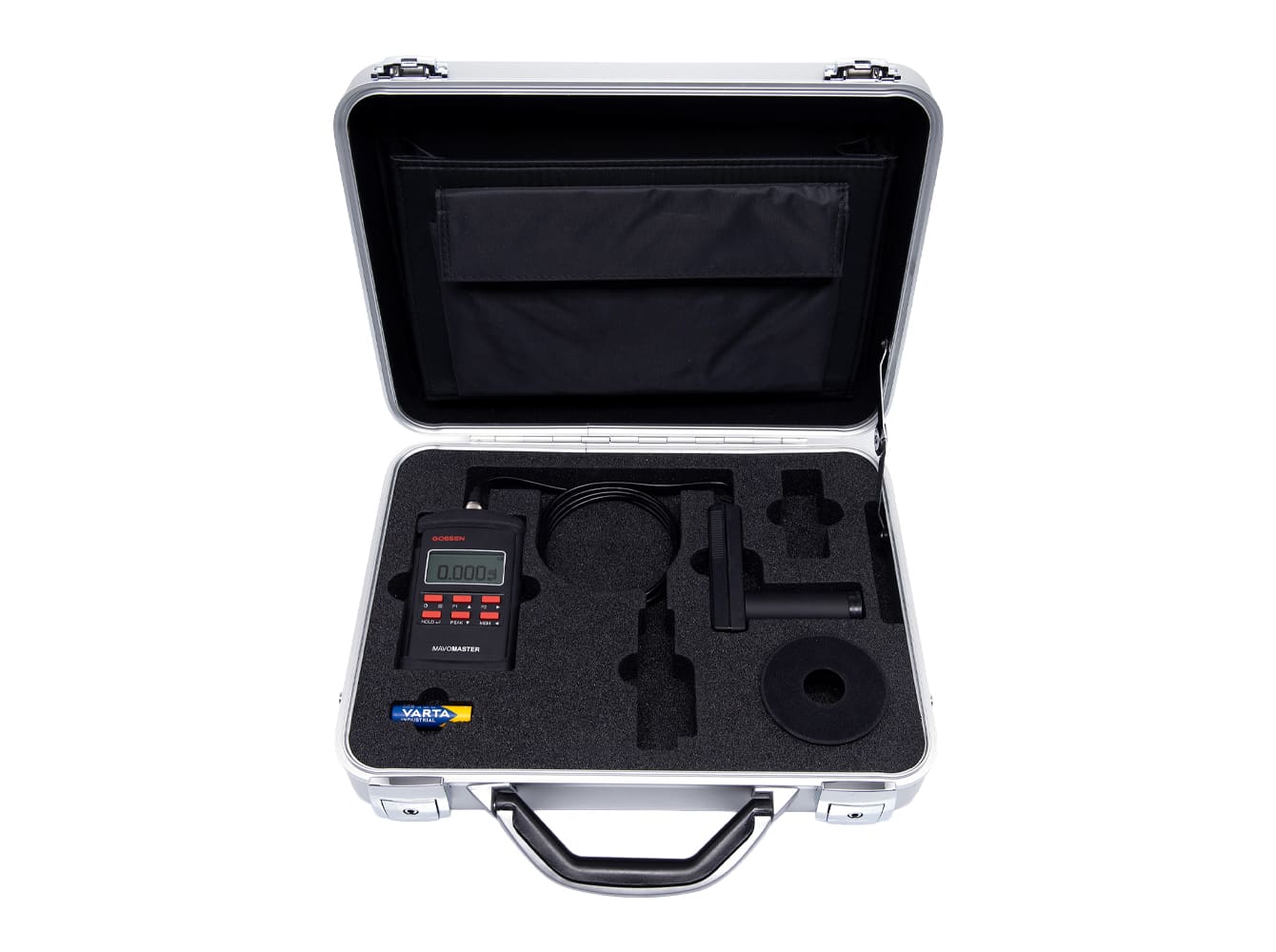

The supplied velvet-coated adapter disk minimizes stray light during measurement and protects sensitive display surfaces from scratches. A rubber protective cover with integrated stand and a robust aluminium transport case ensure mechanical protection and safe transport.

more details

Downloads

Request Offer

Features

Class B luminance measurement according to DIN 5032-7, DIN EN 13032-1 Appendix B and ISO/CIE 19476;
Contact measurement of emissive and backlit surfaces;
Measurement units: cd/m² and fL;
Relative, integral, deviation and ratio measurement modes;
Minimum, maximum and average value recording;
Integrated data logger with adjustable logging interval;
4 GB internal measurement memory;
USB interface with mass storage functionality;
Continuous operation via USB (PC, power bank or external power supply);
Integrated Excel macros for automated reporting and data evaluation;
Factory calibration certificate included.

Advantages

Class B standard-compliant luminance measurement according to DIN 5032-7, DIN EN 13032-1 Appendix B and ISO/CIE 19476, ensuring reliable and reproducible results;
Integrated data logging with 4 GB internal memory, enabling long-term measurements and structured data evaluation;
Factory calibration with traceability, supporting quality assurance and compliance requirements.

Applications
