Multimeter METRAHIT IM E-DRIVE BT – Gossen Metrawatt

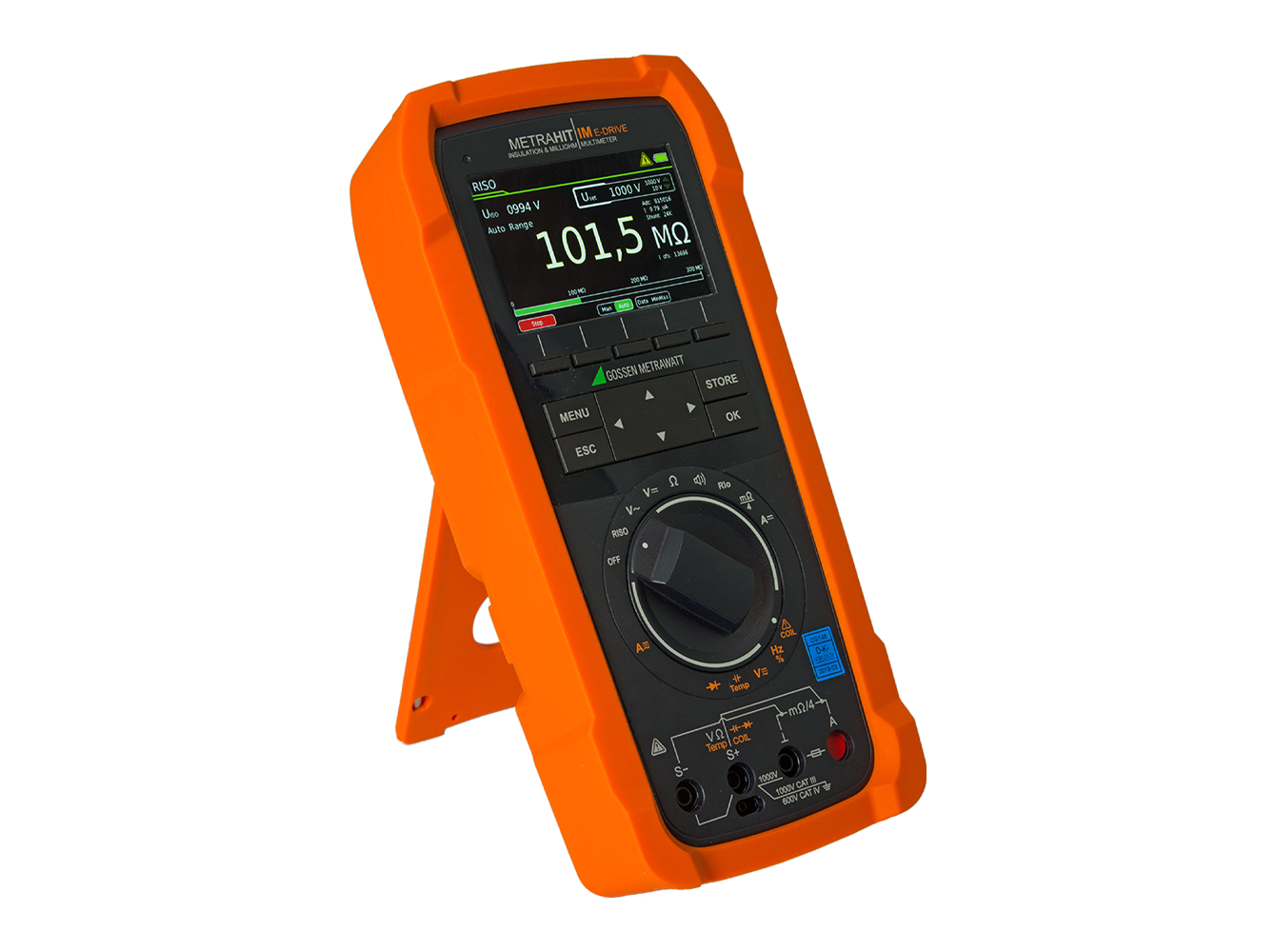

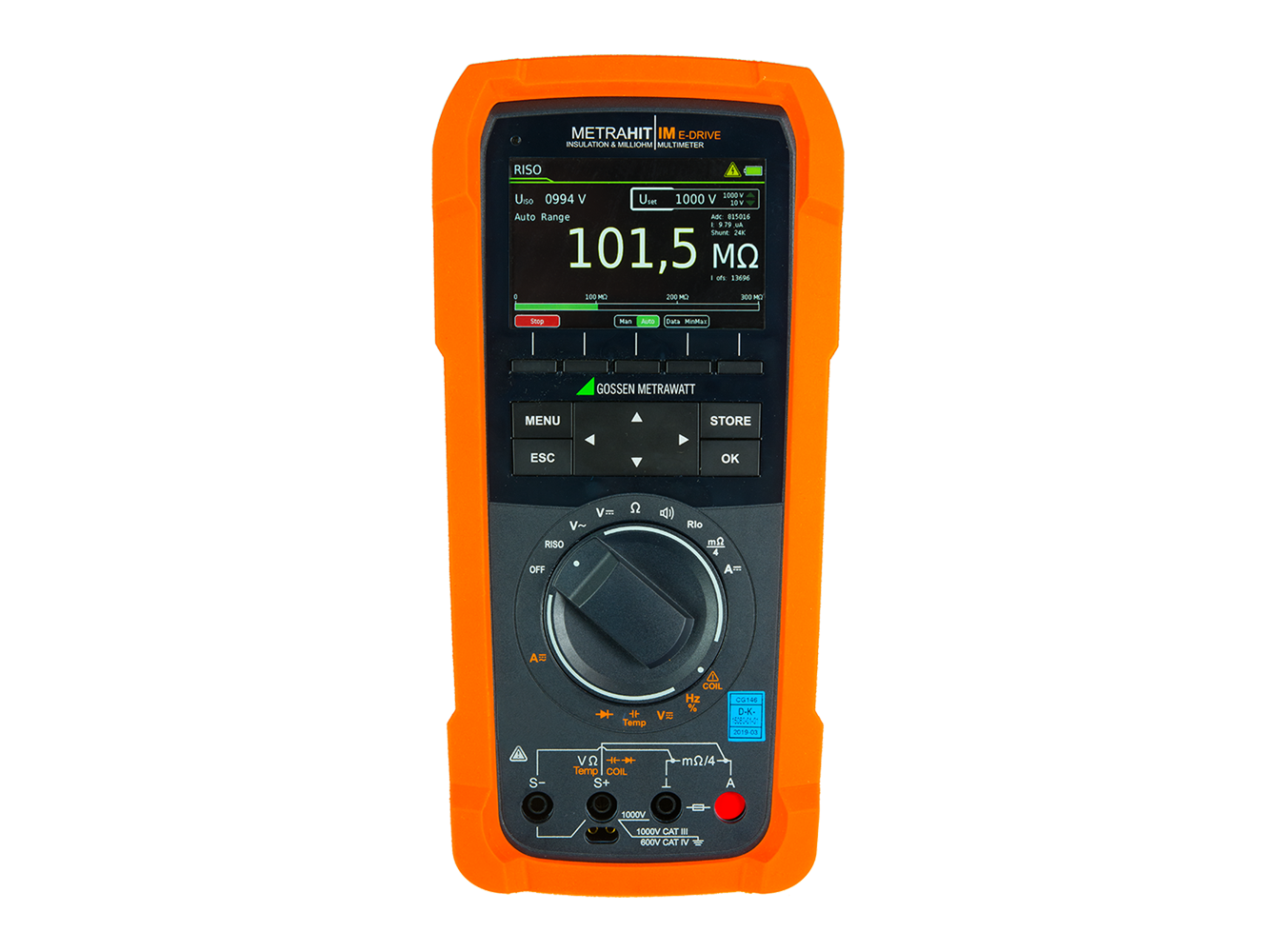

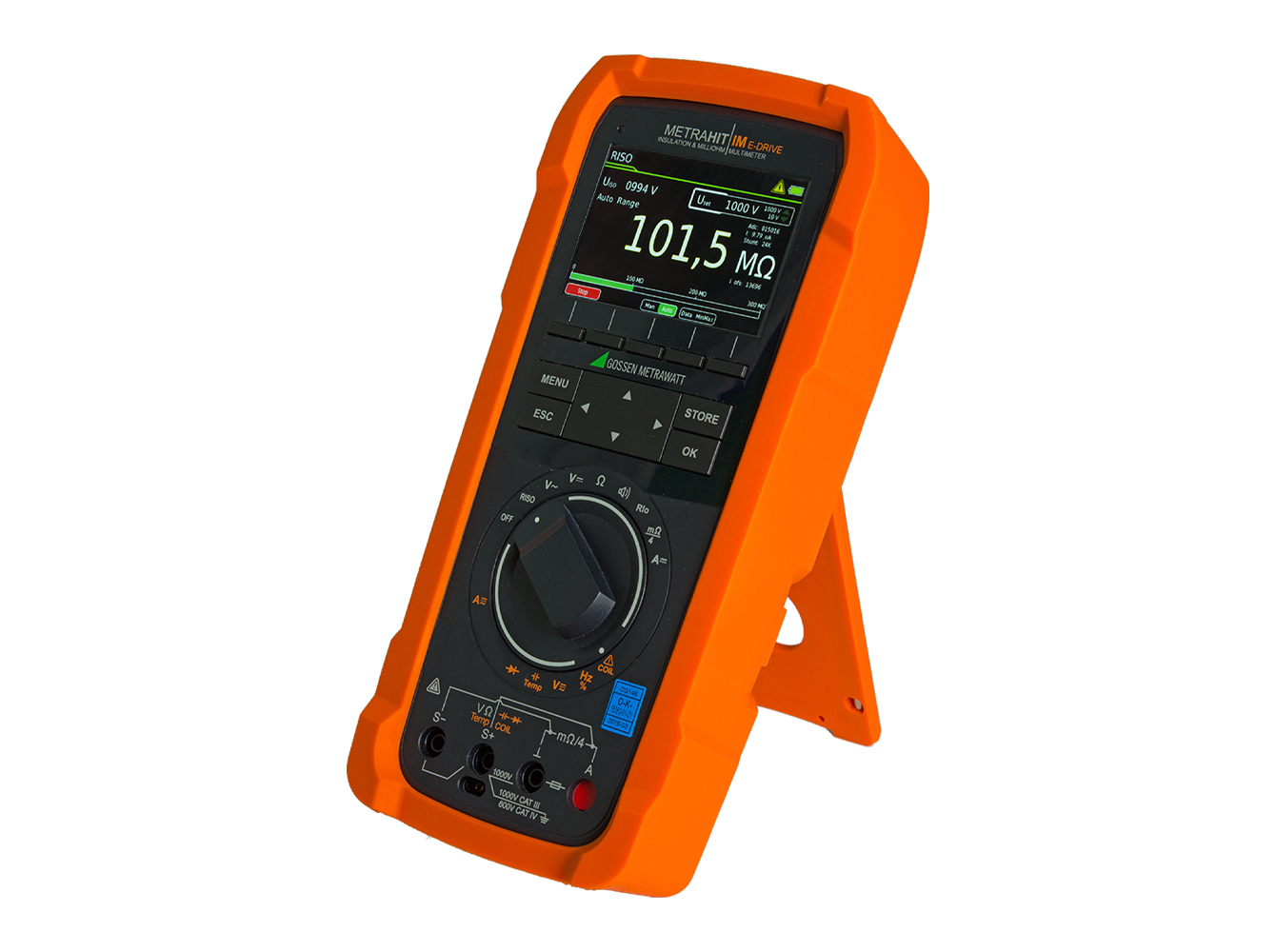

The METRAHIT IM E-DRIVE BT from Gossen Metrawatt is a multimeter, milliohmmeter, insulation tester, coil tester, and data logger for hybrid and electric drives — all in one.

The Gossen Metrawatt METRAHIT IM E-DRIVE BT is a portable, extremely rugged instrument designed for field use. It is ideal for maintenance, servicing, and diagnostics of electric machines, drive units, and systems across the automotive, aerospace, energy, and automation sectors.
This all-in-one device combines an insulation tester, a milliohmmeter, a coil short-circuit tester, and a universal multimeter. It is perfectly suited for safety testing and diagnostics of electric and hybrid vehicles, as well as all types of electric machines.
When used with an optional coil test adapter from Gossen Metrawatt, it enables the detection of inter-turn short circuits with high precision.

more details

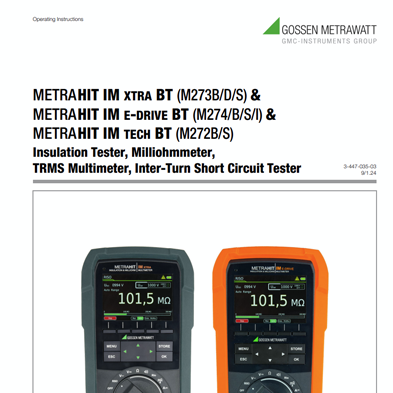

Downloads

Request Offer

Features

Insulation resistance measurement up to 3.1 GΩ;
DAR and PI calculation (Dielectric Absorption Ratio / Polarization Index);
4-wire milliohm measurement;
2-wire Rlow measurement with 200 mA test current according to EN 61557-4 / VDE 0413-4;
Coil short-circuit testing;
TRMS AC / AC+DC current/voltage measurement up to 10/100 kHz;
AC / AC+DC low-pass filter;
Capacitance measurement;
Precision temperature measurement;
Diode testing (forward voltage up to 5.1 V) and continuity check;
Recording of minimum/maximum values, DATA Hold function;
Data logging via integrated memory module and real-time clock, also for single measurements;
Push/Print function to transfer measured values to application software;
METRALOG app for Android systems;
Test probe with START (ISO) and STORE buttons;
Integrated Bluetooth; USB with optional power module;
IZYTRONIQ software.
