Portable pneumatic pressure test pump ADT992 - Additel

The ADT992 pneumatic pressure pump offers a pressure range from 95% vacuum to 700 psi (50 bar), making it highly versatile for various applications. Designed for ease of use, the dual-stage pre-pressure piston provides a broad pressure range and energy-efficient performance. The pump quickly stabilizes pressure with its lever-type pressurization system, and the fine adjustment screw ensures precise pressure settings.

Its longitudinal layout enhances control during operation, and four different operating positions allow users to adapt to various work requirements, making it an ideal, modern replacement for traditional handheld pressure pumps.

more details

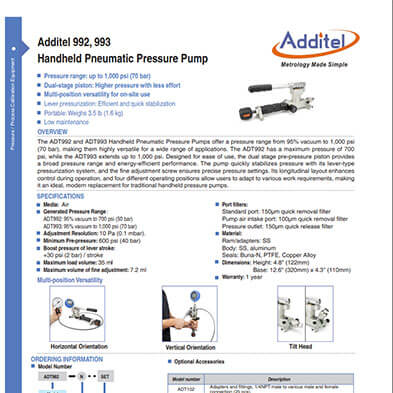

Downloads

Request Offer

Features

Medium: Air;
Range: 95% vacuum to 700 psi (50 bar);
Adjustment resolution: 0.1 mbar;
Minimum pre-pressure: 600 psi (40 bar);
Boost pressure of lever stroke: +30 psi (2 bar) / stroke;
Maximum load volume: 35 ml;
Maximum volume of fine adjustment: 7.2 ml;
Port filters: Standard port with 150μm quick removal filter, pump air intake port with 100μm quick removal filter, pressure outlet with 150μm quick release filter;
Ram/adapters: SS;
Body: SS, aluminum;
Seals: Buna-N, PTFE, Copper Alloy;
Dimensions: Height of 4.8'' (122 mm) and base of 12.6'' (320 mm) x 4.3'' (110mm);
Weight: 1.6 kg
