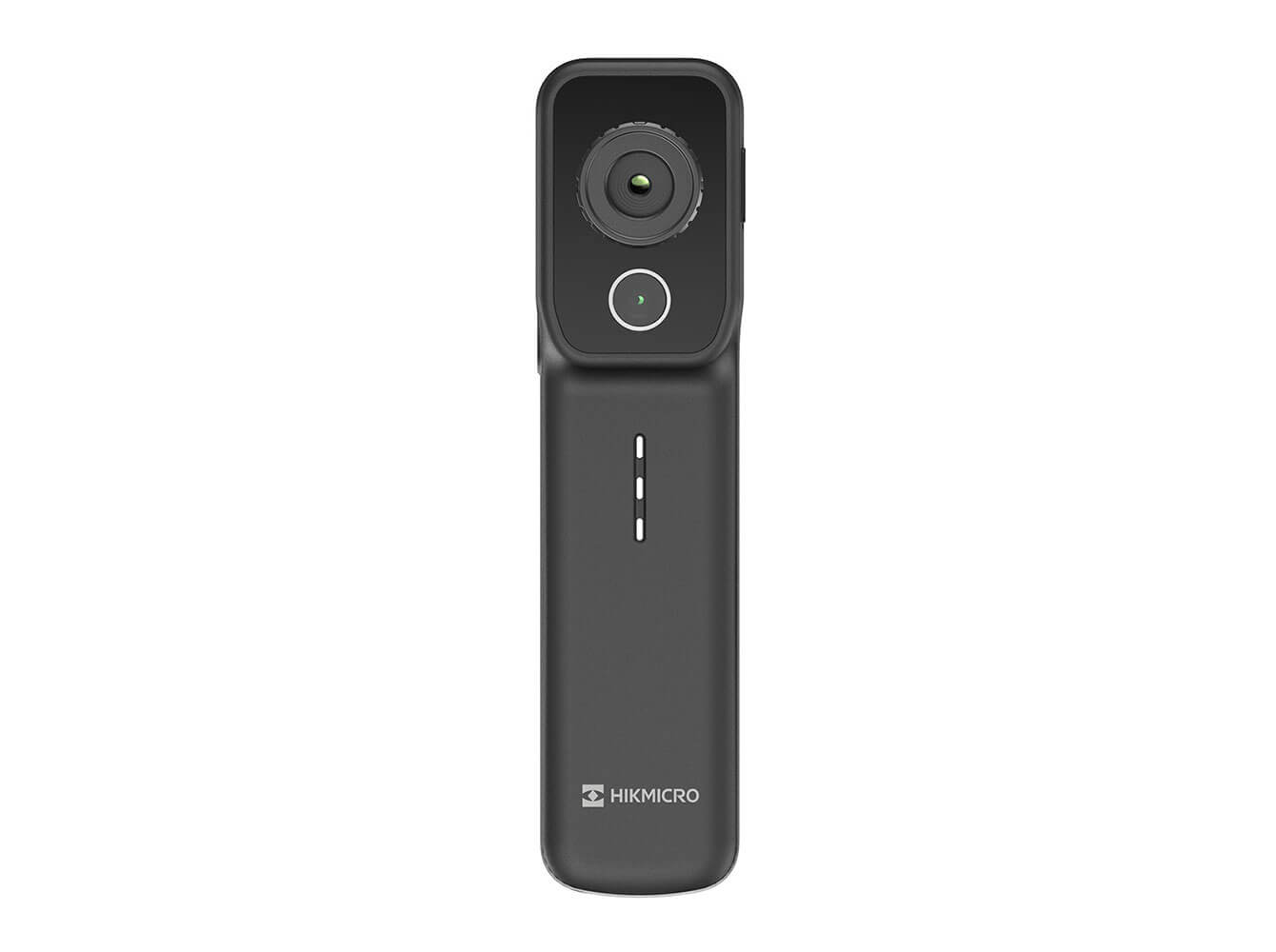

The HIKMICRO innovation Mini-X is a versatile thermal imaging tool that wirelessly connects to your smart device. The Mini-X provides brackets for flexible installation options, such as clipping it onto your phone or tablet for easy one-handed operation, magnetic wall mounting, or tripod installation for long-term temperature monitoring. It can be used to conduct temperature measurement, snapshot capturing, video recording, PDF report generation and sharing, and other functions with the software HIKMICRO Viewer.

It features a dual-lens, a high-resolution VOx detector, and a 0.3 MP optical camera for added detail. With SuperIR™ and fusion features, you can capture crisp thermal images and quickly locate hidden problems with accurate temperature measurements. The wide temperature range of -20°C to 550°C makes it ideal for building inspection, HVAC, electrical, and mechanical equipment maintenance. The Mini-X has a 25 Hz frame rate for fast inspections and a Wi-Fi function for real-time image sharing. It is a powerful thermography tool that fits in your pocket, ready whenever you need it.

more details

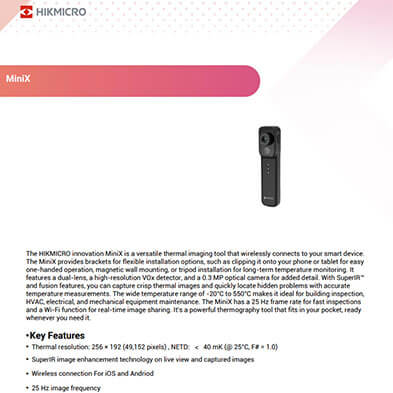

Downloads

Request Offer

Features

Thermal resolution: 256 x 192 (49,152 pixels), NETD: ＜ 40 mK (@ 25°C, F# = 1.0);

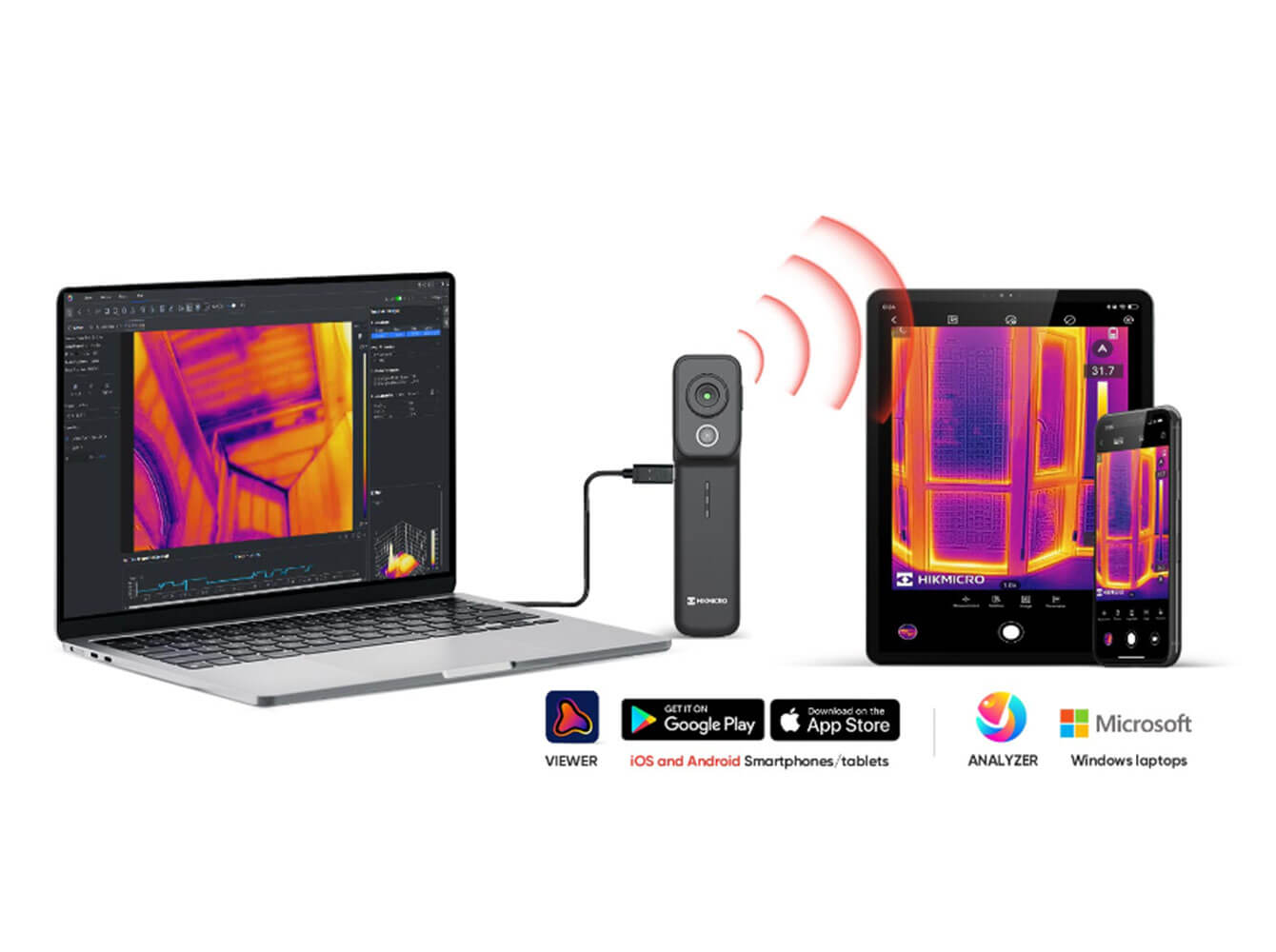

Wireless connection for iOS and Android;
25 Hz image frequency;
Accuracy: ± 2 °C (-20°C to 100°C); ± 2 % (100°C to 550°C);
Accurately measure temperature from -20°C to 550°C;

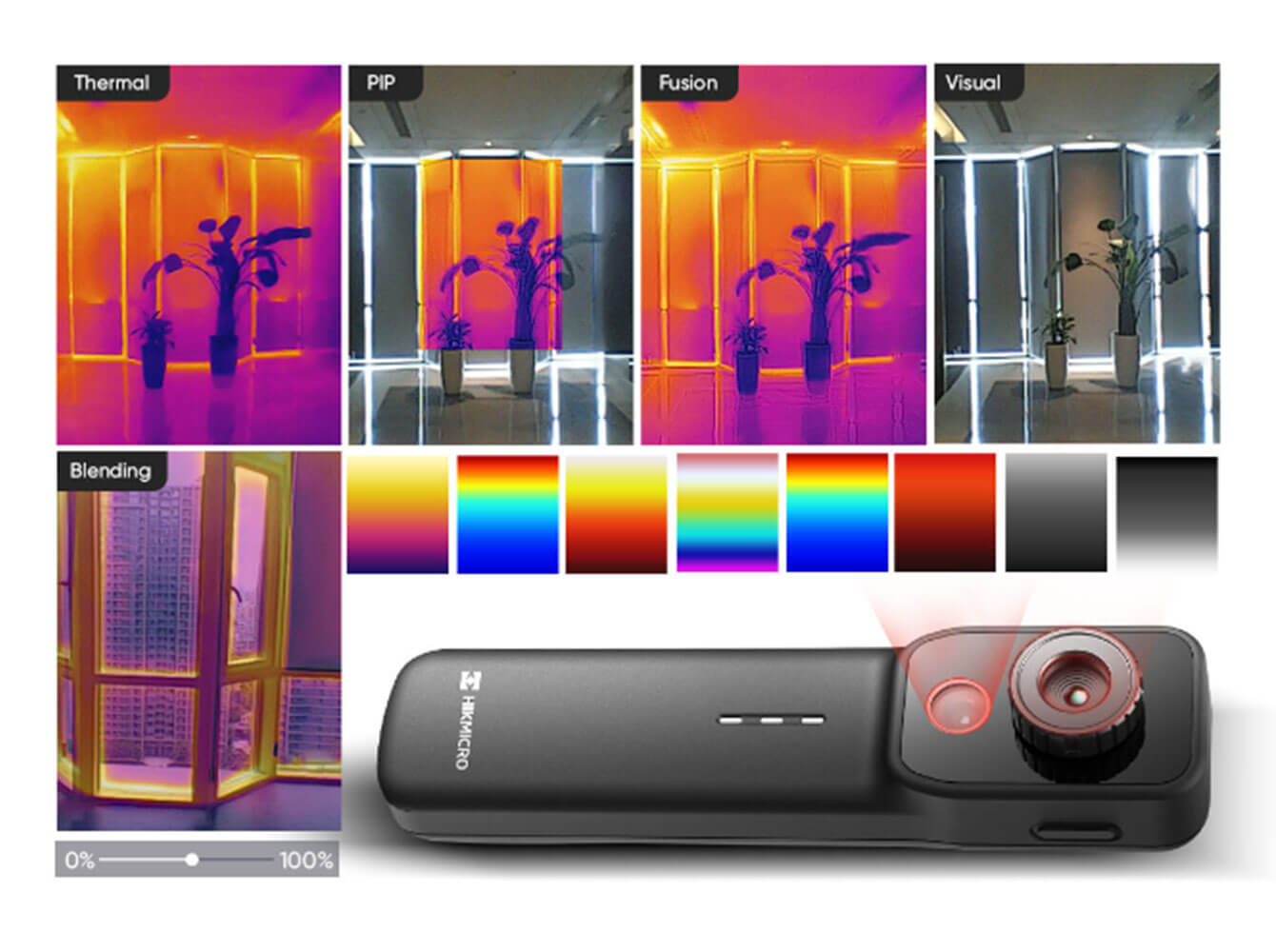

Thermal, Fusion, PIP, Visual, and Blending modes;
0.3MP visual camera.

Advantages

Stable wireless connection, wide compatibility: HIKIMICRO Mini-X thermal camera connects to Android/iOS devices, no need to replace it when switching phones;
Dual camera thermal imager: the high-resolution IR and visual cameras uncover hidden details with 5 image modes & 8 color palettes;
Enhanced image quality with SuperIR: HIKIMICRO Mini-X features a highly sensitive (NETD < 40 mK) VOx detector with a resolution of 256 x 192 (49,152) pixels, along with optimized image enhancement algorithms to provide clear thermal images;
Adjustable focal lens: crisp focus from near to far with a 3.5mm adjustable focal lens for precise details in PCB repair, inspections, and tracking;

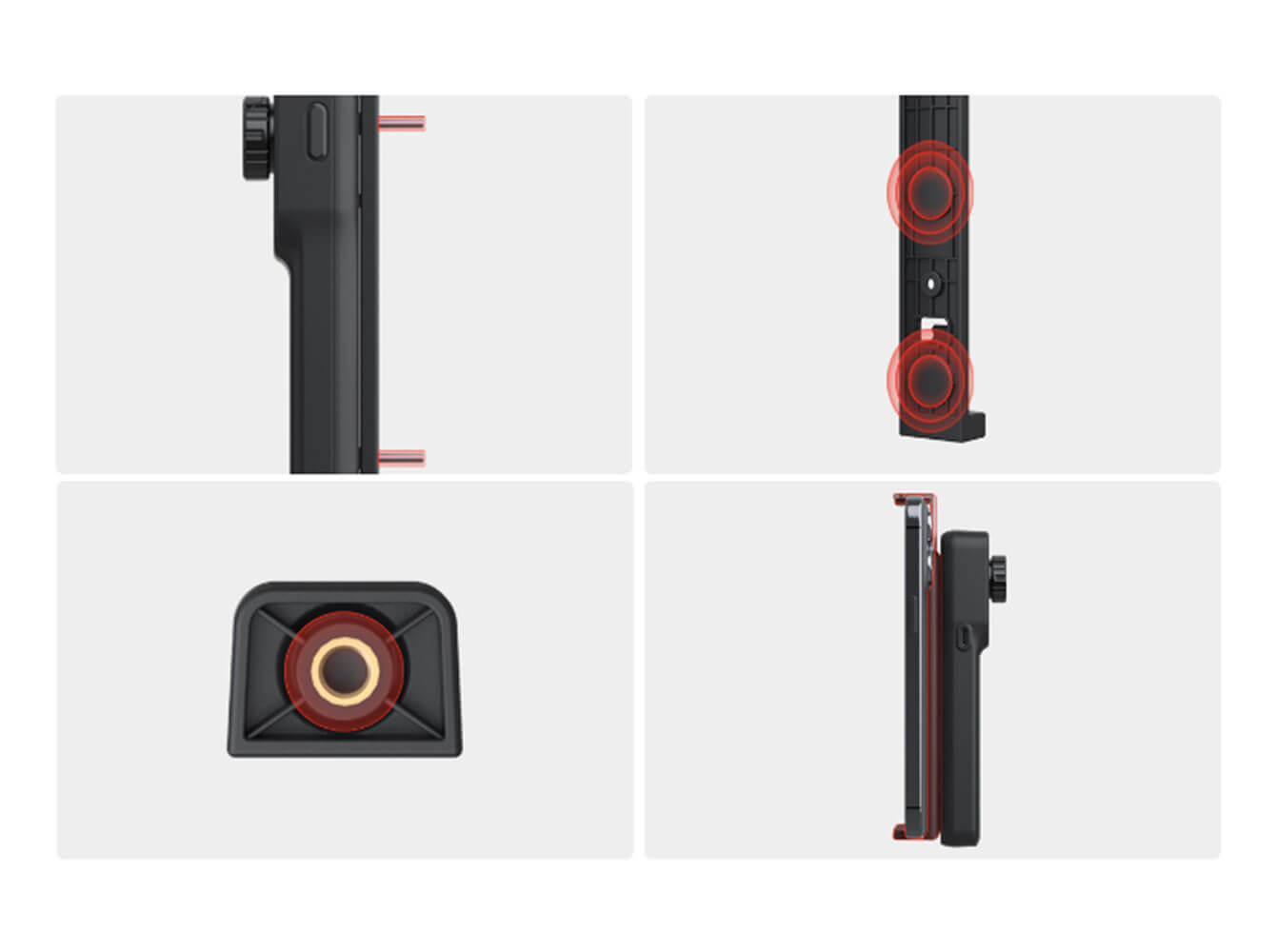

Compact, ergonomic, versatile mounting: the HIKMICRO Mini-X features a portable, ergonomic design with four mounting options: magnetic, wall, tripod, and clamp, offering flexibility for any task;
Long-lasting battery life: enjoy up to 4 hours of continuous operation with the built-in Li-ion rechargeable battery.
