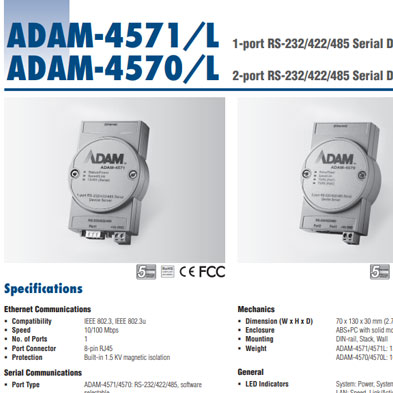

Remote module for QE Adam 4571 - Advantech

Configure your modules with a Windows utility.
Enjoy the benefits of remote control and accessibility data for RS-232/422/485 devices.
The Adam 4571 from Advantech is a module that works as a data gateway between Serial and Ethernet interfaces. Data transmission is ensured up to 921.6kbps and the configuration of the modules can be done very simply with a Windows utility.
more details
Request Offer
It maps virtual COM ports and also detects all Ethernet data gateways that may be on the network.
  • Supports RS-232/422/485 serial communication;
  • Supports baud rate up to 921.6 kbps;
  • Allows a max. of 5 hosts to access one serial port;
  • Allows a max. of 16 hosts to be accessed as TCP client mode;
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes;
  • Provides 10/100 Mbps auto-sensing Ethernet port;
  • Supports auto re-connection function;
  • Built-in 15 KV ESD protection for all serial signals;
  • Automatic RS-485 data flow control;
  • Supports remote update firmware.
  • Includes drivers for Windows 2000/XP/Vista/7/8 at 32 or 64 bits, so it can be integrated in any type of computer;
  • Supports remote firmware update, it´s not necessary to remove the equipment from the place where it is installed to perform this update;
  • 15KV ESD isolation for all serial interfaces, thus protecting the equipment against voltage spikes in the network.
  • The entire industry in general that needs to monitor digital signals remotely via the WEB.

F.Fonseca is the representative of Advantech in Portugal.
