Titanium Level Probe MAERA S29 SW - Jumo

This latest innovation is especially sturdy and durable as it is designed primarily for use in salt water or water that contains chloride in maritime applications or in swimming pool technology. The device is also designed for potentially explosive areas.

The chemically high-resistant titanium design and the intrinsically safe ATEX approval allow the probe to be used in difficult environmental conditions.
The level probe has a medium-separated, piezo-resistive measuring system with front-flush membrane. It stands out due to its optimum moisture and vibration protection.

more details

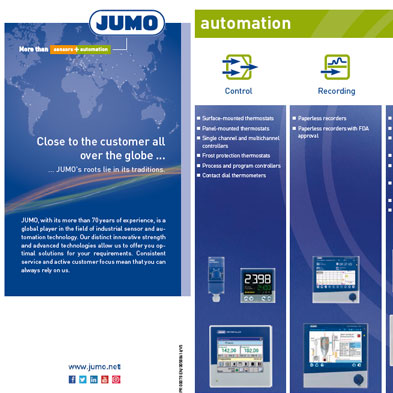

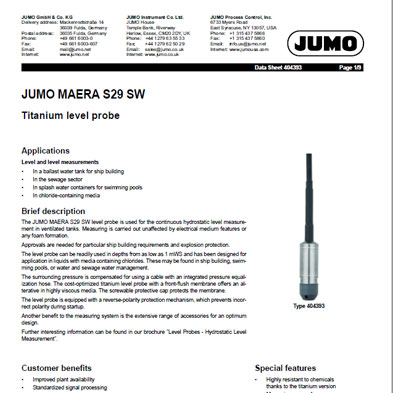

Downloads
Request Offer
The combination with the extensive range of accessories that are available from Jumo allows the creation of an integrated measuring station solution with an unbeatable price-performance ratio.

Features
  • Measuring ranges: 100 mbar to 10 bar (1 mWC to 100 mWC);
  • Medium temperature: 0 to 50 °C;
  • Piezoresistive silicon sensor;
  • Accuracy: 0.3 % MSP (linearity);
  • Highly resistant to chemicals through titanium version;
  • Approved for use in ships according to GL;
  • Explosion protection according to ATEX;
  • Resistant to climate due to improved moisture and vibration protection;
  • Excellent long-term stability;
  • High overload resistance.

Advantages
  • A two-wire reverse-polarity protection mechanism, which protects the measuring instrument against damage, ensures maximum safety in the event of faulty startup;
  • The design, which includes a removable protective cap, gives users the option of a front-flush variant with G½" external thread.

Industries
  • In combination with the GL shipping approval the Jumo MAERA S29 SW is suitable for such jobs as continual level measurement in ballast water tanks to ensure a ship's ideal depth;
  • Moreover, Jumo MAERA S29 SW is also suitable for anti-heeling systems in ships. The probe can be used in swimming pool technology. One specific use here is in splash water containers as the probe can be used for media containing chloride. Furthermore, the Jumo MAERA S29 SW can be used in tough and highly viscous media to be measured such as heavy oil;
  • Also used in the wastewater industry.

F.Fonseca is the representative of Jumo in Portugal.
