F.Fonseca presents datalogger industrial multichannel FieldLogger from Novus

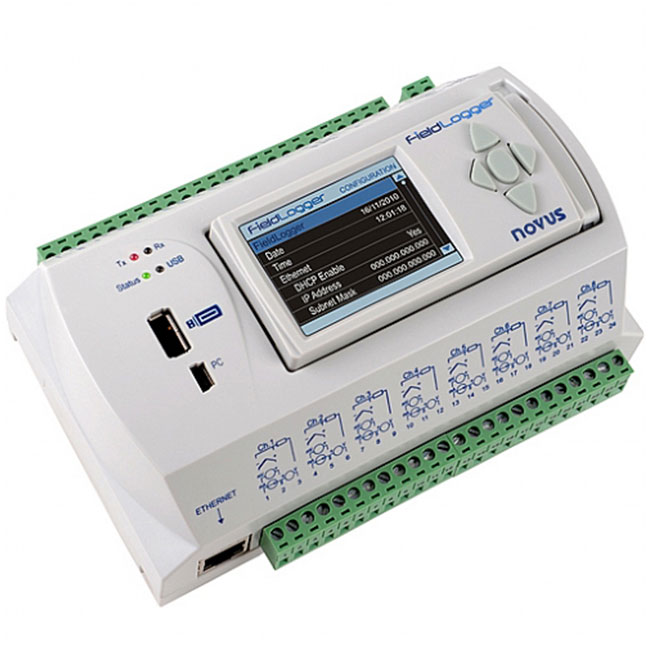

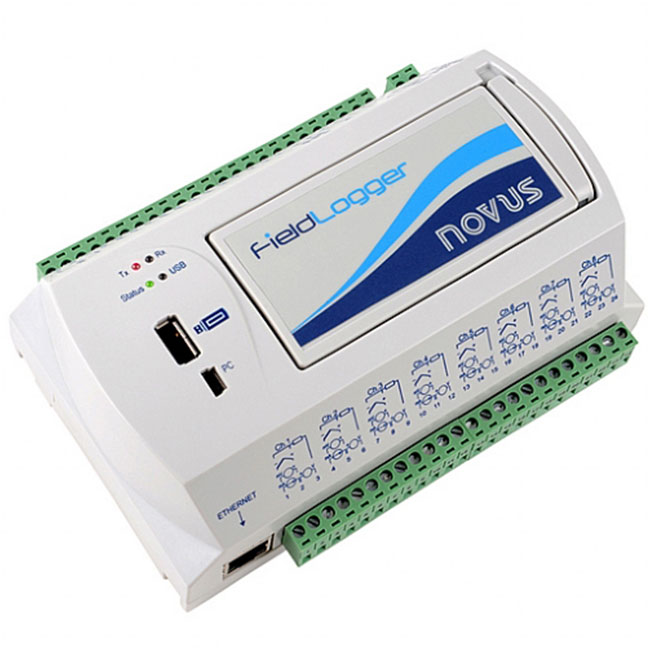

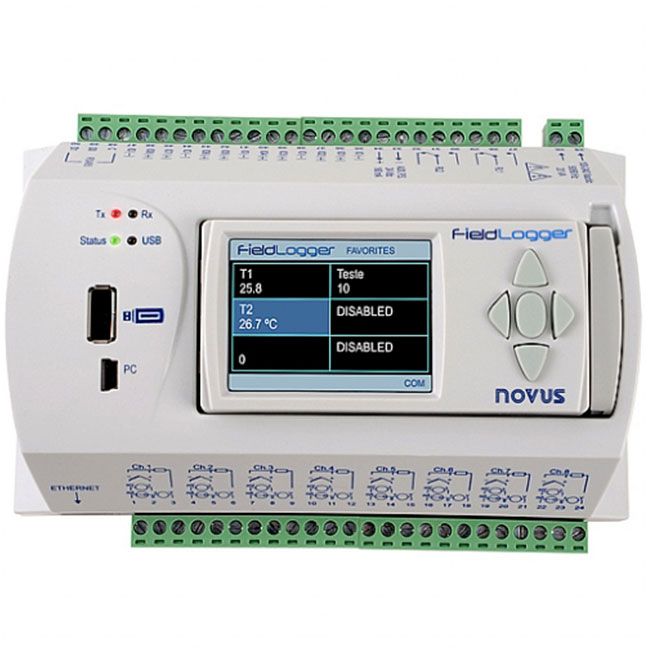

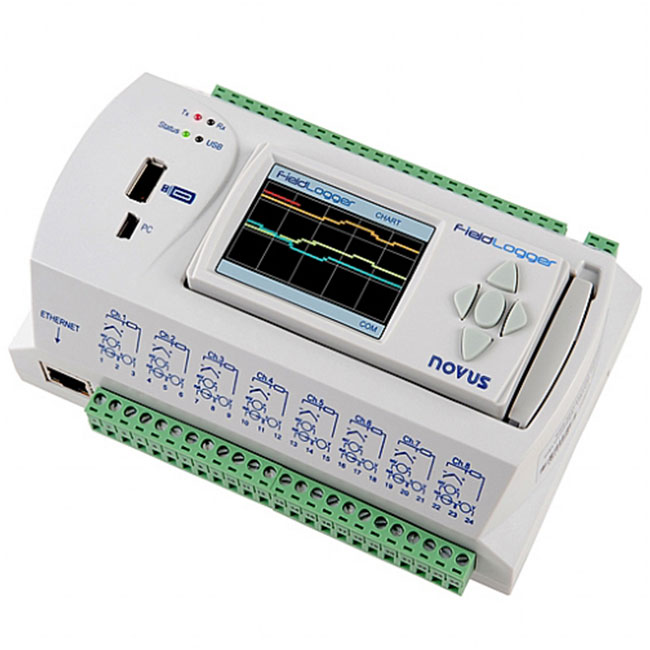

FieldLogger is a module for reading and recording analog, digital and other variables, with great speed and resolution. It is a high performance and connectivity device, but easy to operate and configure. It allows various types of visualization, registration and information processing. It can also be used as an analog + digital I/O expansion for PLC's in monitoring and control applications.

The FieldLogger has 8 software configurable analog inputs for voltage, current, thermocouple, Pt100 and Pt1000 signals. It has 2 relay outputs and 8 digital ports individually configurable as input or output. It has up to 128 channels for calculating quantities from the measured information. The 32 alarm events allow the triggering of outputs, sending emails or SNMP traps.

The RS485 interface works with Modbus RTU protocol and can be configured as a master or slave, which allows the acquisition of up to 64 external channels for registration. The Ethernet interface allows access to the equipment by browser (HTTP), FTP (client or server), SNMP and Modbus TCP.

One of the USB ports allows you to connect to a computer for configuration, monitoring or data collection. The other makes it possible to connect a Pen Drive for data collection. Its 512k memory can be expanded by SD card.

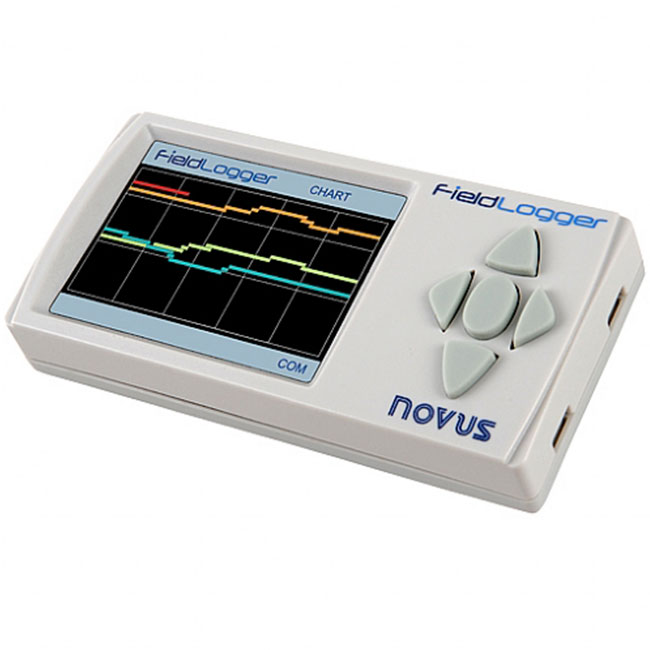

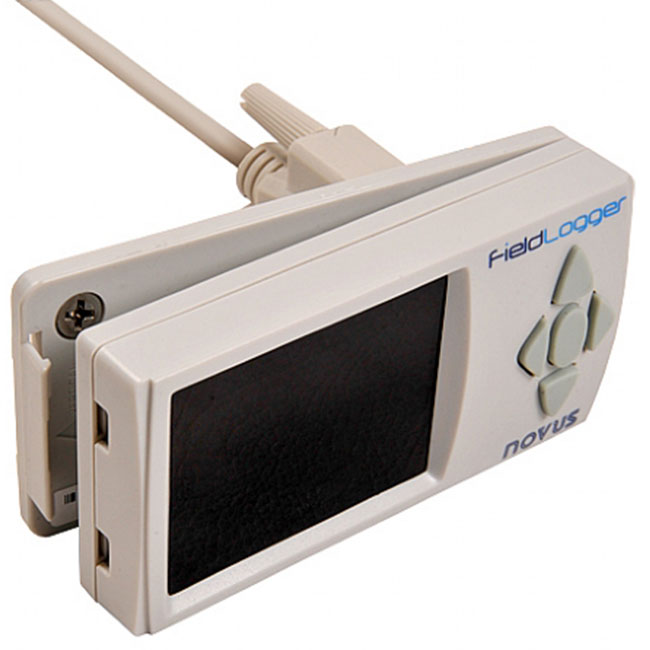

For viewing or local configuration, the exclusive HMI (optional) with color display can be used, which can be attached or installed remotely.

The user-friendly configuration software allows you to change the settings, whether via Ethernet, USB or RS485, in addition to online diagnostics, collection of records and export to different formats.
