21 June 2018

Magnetic cylinder sensor MZCG from Sick

A F.Fonseca presents magnetic cylinder sensor MZCG from Sick

Extremely short cylinder sensor for pneumatic grippers and miniature cylinders.

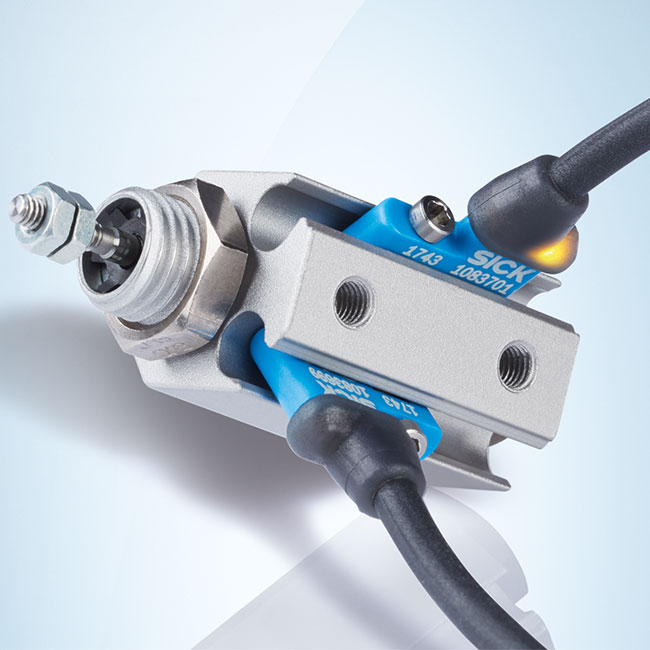

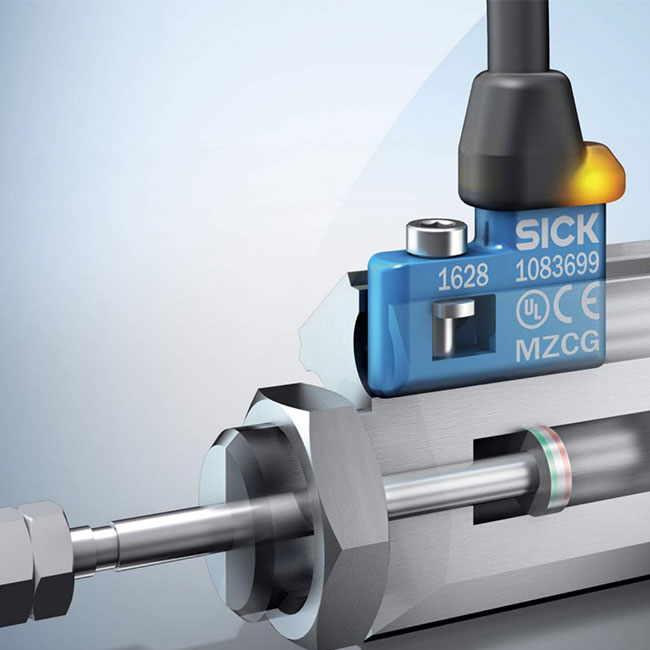

The MZCG magnetic cylinder sensor detects the piston position in pneumatic grippers and pneumatic miniature cylinders. Thanks to its very small design, the MZCG is particularly well-suited for the C-slots of very small pneumatic actuators such as are used in handling and assembly, robotics or the electronics industry. The sensor is simply inserted in the C-slot and can be quickly and safely fastened on the cylinder. The MZCG fits in a wide range of C-slots of various manufacturers due to its universal housing design. This reduces storage costs, enables flexible machine design and easier service.

Specially designed for pneumatic grippers and miniature cylinders
The MZCG magnetic cylinder sensor from SICK is specially designed for the detection of piston position in pneumatic grippers and miniature cylinders with C-slots, which are used in handling and assembly, robotics and the electronics industry, to name a few examples. This tiny device shows its true might anywhere space is limited.

The MZCG fits in a wide range of C-slots of the most common gripper and cylinder manufacturers due to its universal housing design. This reduces storage costs, enables flexible machine design and simplifies service.

Quick and easy mounting, minimal space requirements

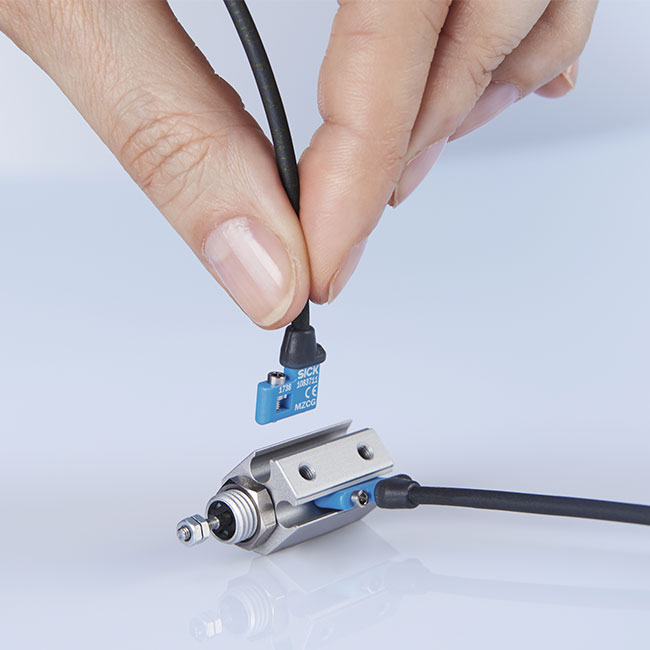

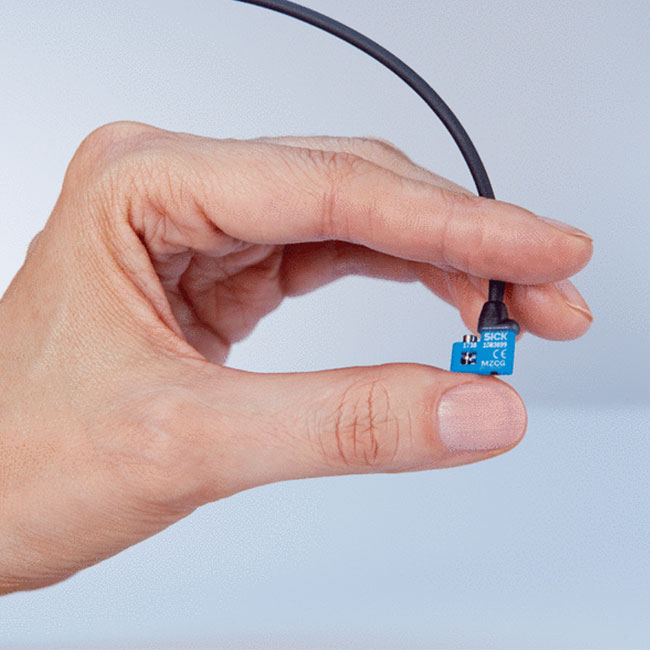

Thanks to the universal construction, the MZCG can be easily inserted into the C-slot from above. The new fixing concept with a non-detachable screw ensures quick and secure fixing in C-slots. A housing of only 12.2 mm and a 90° rotated radial cable connection allows flexible mounting if space is tight. In spite of the small construction, the sensor ensures maximum functionality at minimum weight.

The fields of applications for this sensor are  open-close position detection in pneumatic grippers;  end position detection in pneumatic miniature cylinders for electronics, handling and assembly (e.g. small part assembly), robotics and packaging industries.
