Industrial Automation

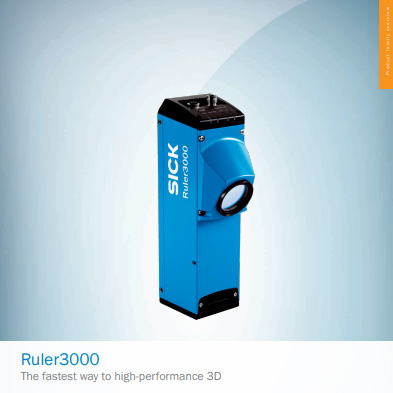

3D machine vision Ruler3000 - SICK

Highly accurate with an unmatched measurement speed, the new generation Ruler3000 3D cameras will be the number one choice for machine vision system integrators and industrial applications. Being powered by the unique 3D CMOS sensor from SICK tailored for superior image processing, their measurement results are very reliable.

more details
Downloads
Request Offer
The factory-calibrated sensor extracts the true 3D shape of an object, regardless of its contrast or color. Ruler3000 delivers accurate measurement values down to 8 µm in height. Thanks to the guaranteed field-of-view concept, commissioning is easy. GigE Vision and GenICam compliance ensures cost-effective integration.

Features
  • Factory calibration shortens integration time;
  • The unique CMOS sensor enables fast 3D measurement speed for increased throughput;
  • Guaranteed field of view simplifies commissioning;
  • Suitable for batch size one and flexible production thanks to reliable and accurate measurements on dark and shiny surfaces;
  • High light sensitivity for 3D inspection with laser class 2;
  • Standardized and cost-effective software integration with GigE Vision and GenICam;
  • Scalability by sharing software and feature set with Ranger3 3D vision cameras.

Advantages
  • SICK’s CMOS sensor with ROCC technology for superior 3D performance;
  • 3D profiles at up to 7 kHz full format;
  • Easy commissioning with guaranteed FOV concept;
  • GigE Vision and GenICam compliant;
  • Accurate 3D, reflectance, and scattered light measurements in one device;
  • Modular industrial design, IP65/67.

Industries
  • Automotive;
  • Electronics;
  • Tire.

F.Fonseca is the representative of SICK in Portugal.
