Process, Instrumentation & Environment

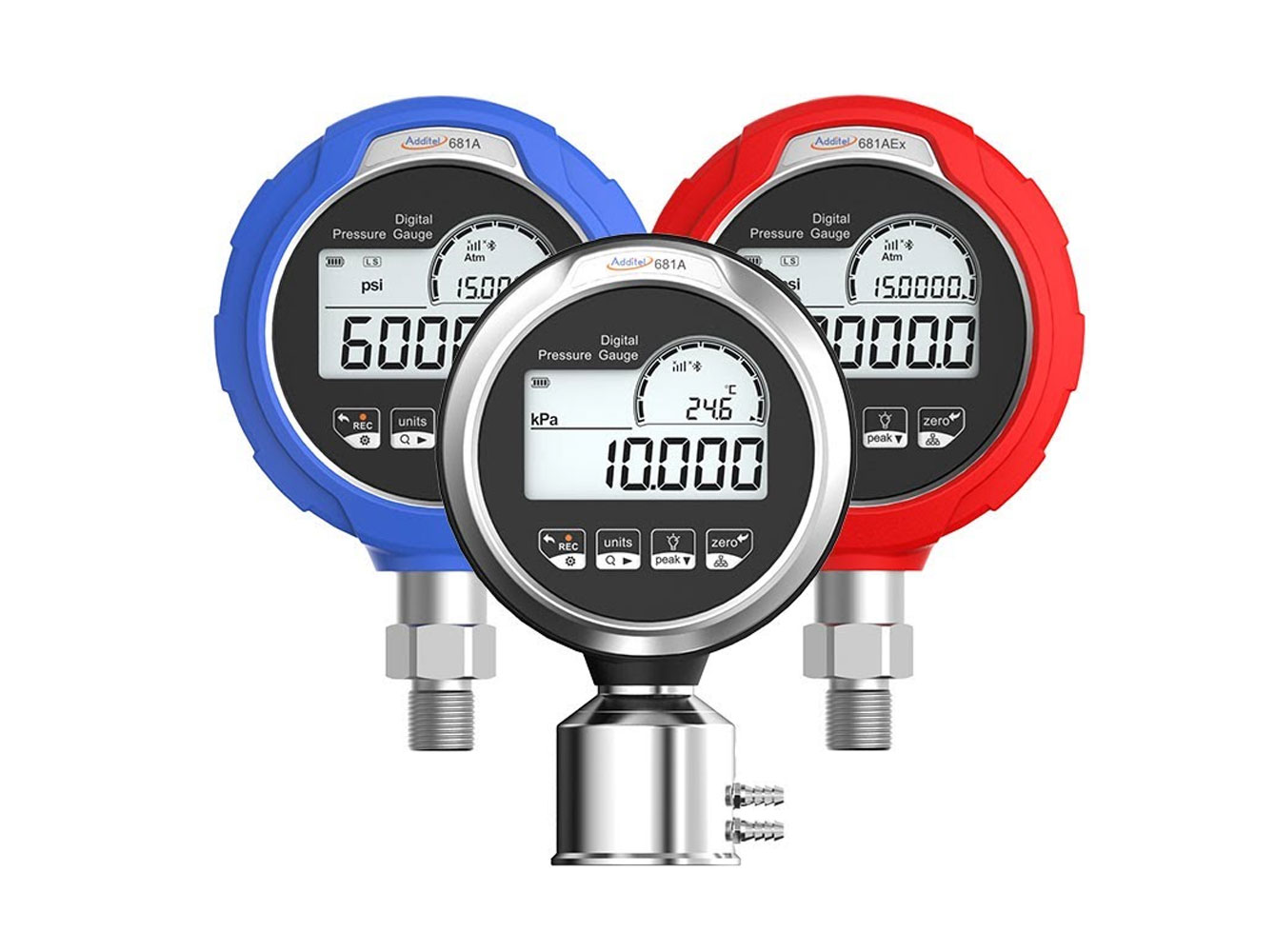

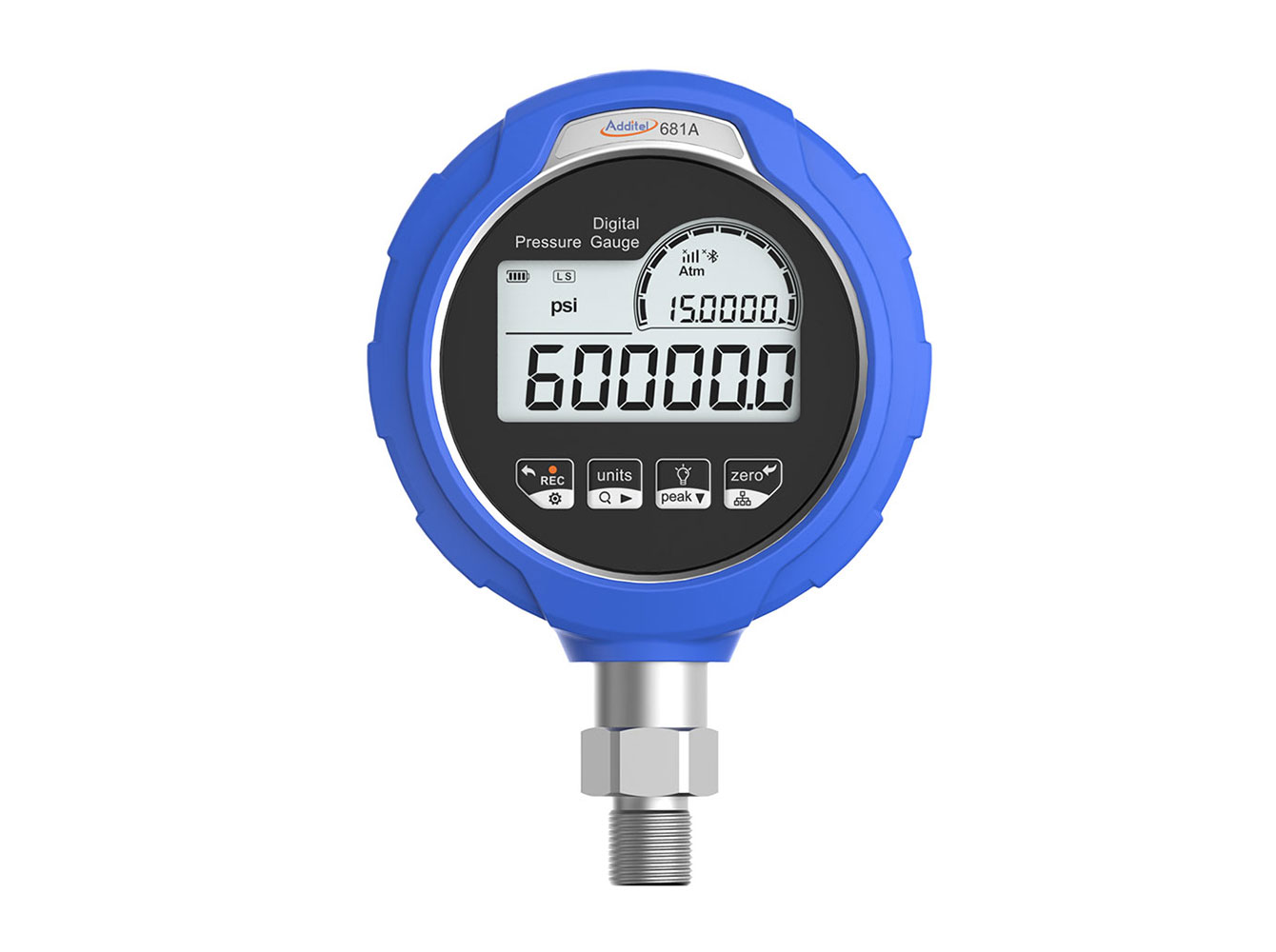

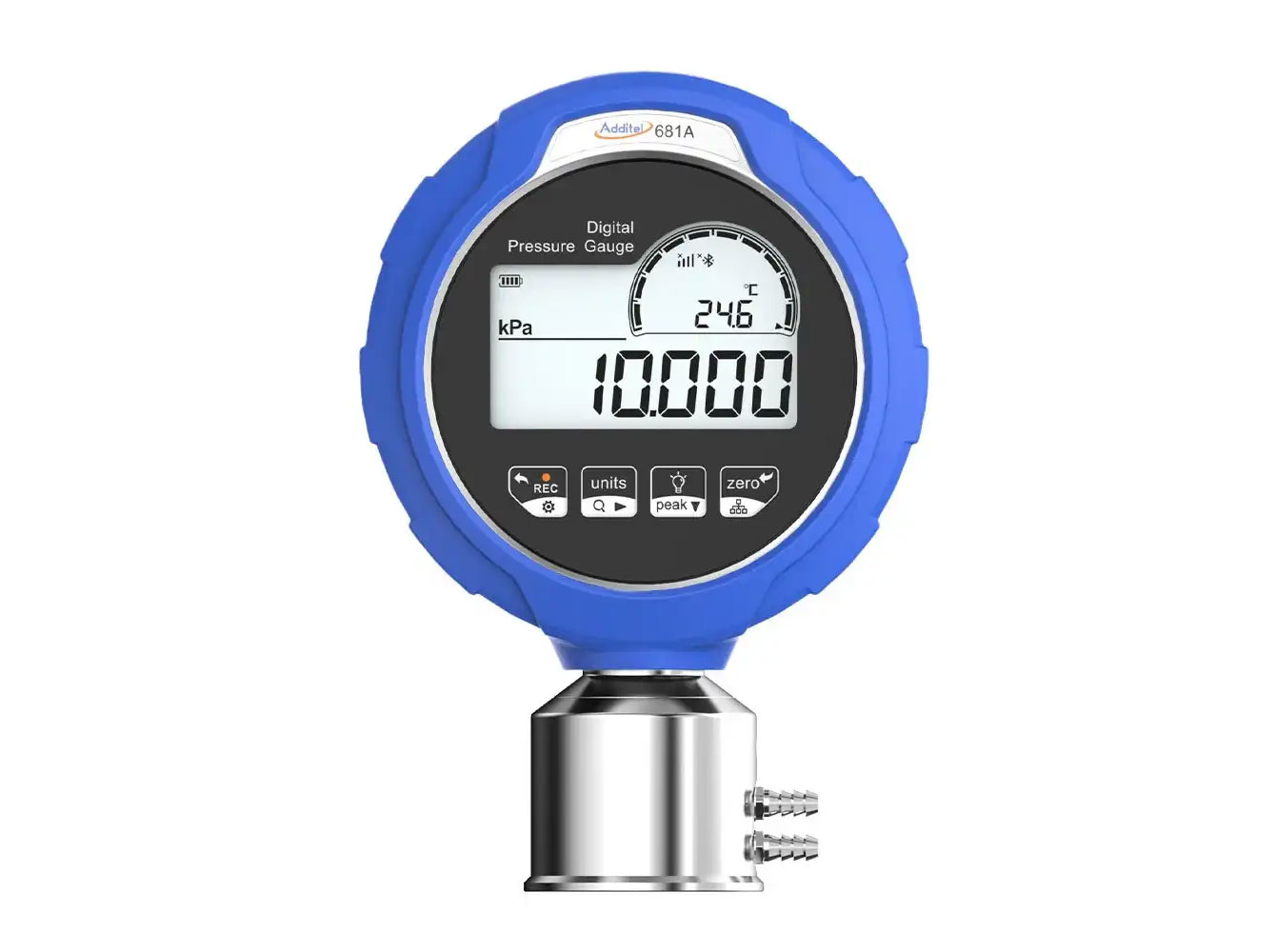

Digital pressure gauge ADT681A - Additel
The ADT681A digital pressure gauge is designed to be your tool of choice for a wide range of pressure measurements and calibration applications.
With features like data logging and Bluetooth technology included, you'll find these gauges to be a great value at a reasonable cost. With an IP67 rating, they were developed with external elements in mind and are perfect for both field work and the laboratory. If you are working in intrinsically safe area, check out the Ex-versions for an extra level of security in sensitive areas.
With features like data logging and Bluetooth technology included, you'll find these gauges to be a great value at a reasonable cost. With an IP67 rating, they were developed with external elements in mind and are perfect for both field work and the laboratory. If you are working in intrinsically safe area, check out the Ex-versions for an extra level of security in sensitive areas.
more details
Request Offer
This pressure gauge has been constructed from the finest materials to ensure it can withstand the elements. Everything from the outer stainless-steel housing to the internal sensor design has been optimized so the gauge keeps you informed with current and memorized readings. Dusty and humid environments will not impair the pressure gauge's performance capabilities, while shock and vibration resistance (5g vibration, 10g shock) along with corrosion-protected parts help protect the internal workings of the equipment.
The design of the button functions has been carefully thought out and the menus are easy to use, which saves time. The display is clear in bright sunlight and the backlight can be turned on with the press of a button in low-light situations. The pressure value can be read in large fonts and from a few meters away, making it perfect for measurement, calibration and verification.
Cleaning and maintenance are made easier thanks to membrane buttons. Maintenance is minimal and infrequent due to long-lasting batteries.
Features
Advantages
Industries
F.Fonseca is the representative of Additel in Portugal.
The design of the button functions has been carefully thought out and the menus are easy to use, which saves time. The display is clear in bright sunlight and the backlight can be turned on with the press of a button in low-light situations. The pressure value can be read in large fonts and from a few meters away, making it perfect for measurement, calibration and verification.
Cleaning and maintenance are made easier thanks to membrane buttons. Maintenance is minimal and infrequent due to long-lasting batteries.
Features
- Range: -1 to 4200 bar;
- Accuracy: 0.02%, 0.05% FS or 0.1% of reading;
- Measures relative and absolute pressure;
- Indication of % pressure on a fan graph;
- Fully compensated temperature compensation (-10~50ºC);
- Bluetooth and USB communication;
- Communication with the Additel Link mobile application;
- Large, easy-to-read display;
- Internal barometer 50 Pa precision;
- Intrinsically safe version 681AEx (option);
- Datalogger for 10.000.000 records (option);
- IP67.
Advantages
- All models measure relative or absolute pressure;
- Robust;
- Very easy to use;
- Intuitive interface, similar to using a Smartphone;
- Monitoring and control via the Additel Link app on your cell phone.
Industries
- Calibration laboratories;
- Industrial maintenance.
F.Fonseca is the representative of Additel in Portugal.
