DMX512 gateway - HDL Automation

Name: DMX512 gateway - HDL Automation
Brand: HDL Automation

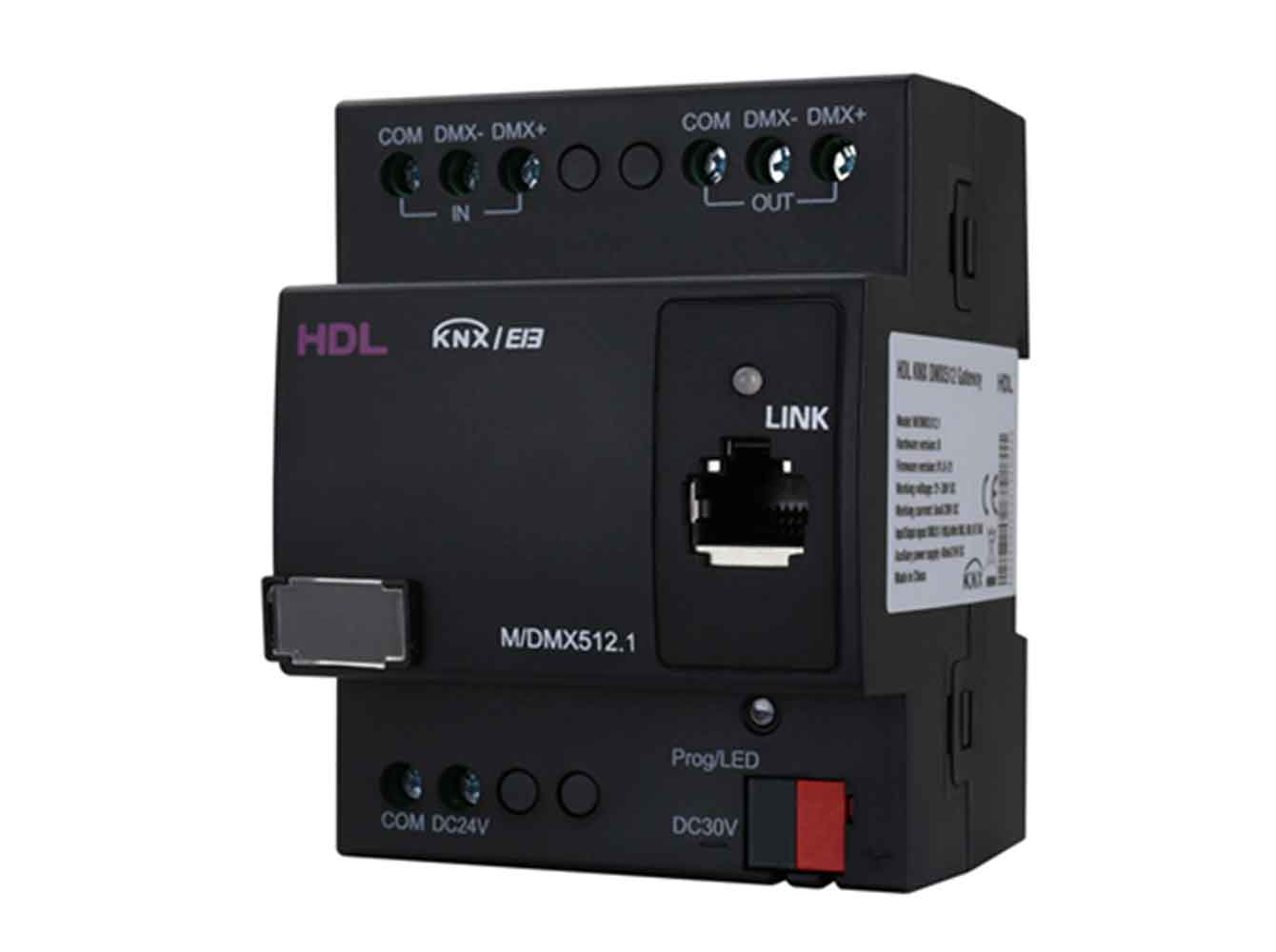

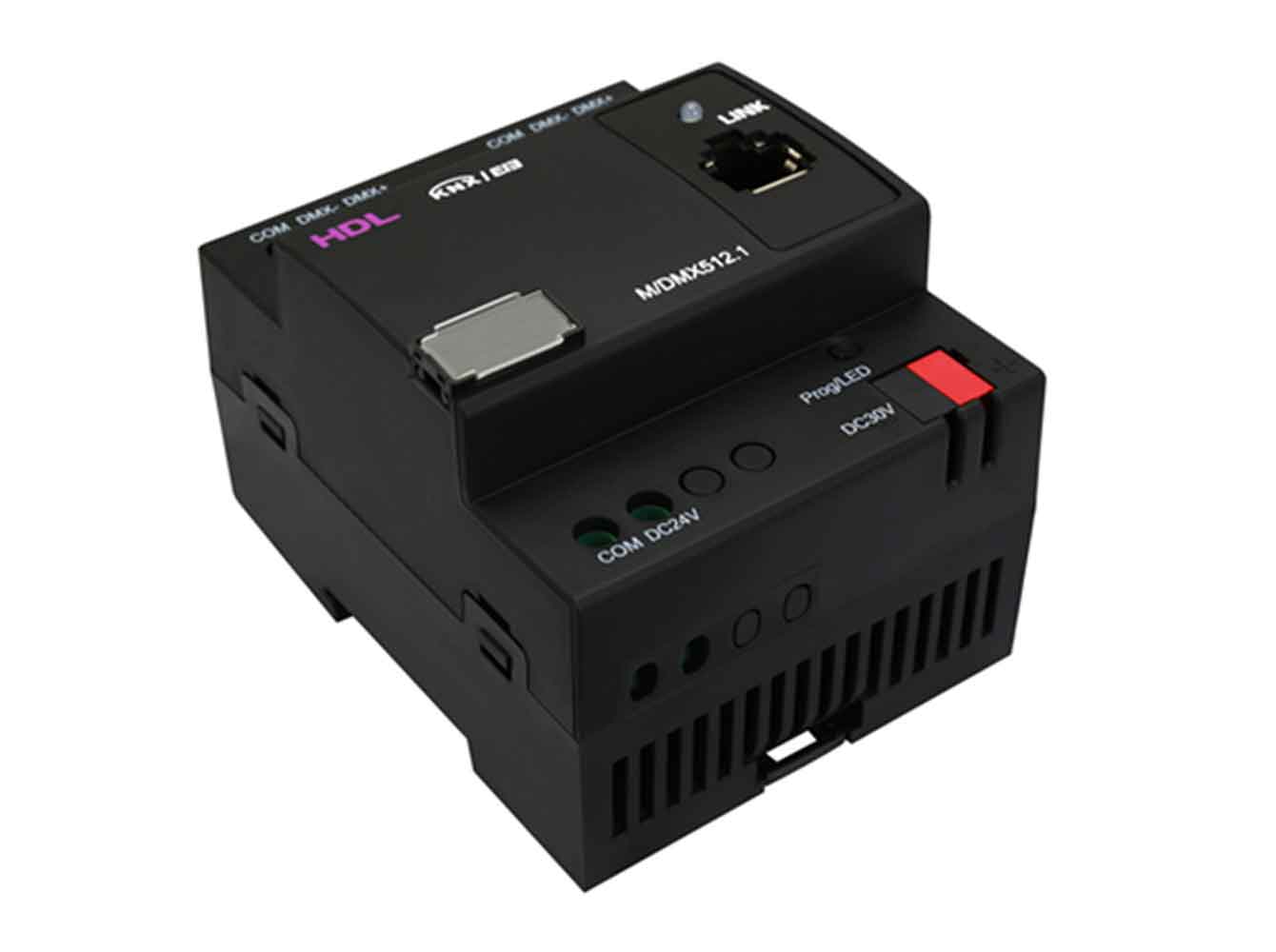

The DMX512 gateway from HDL Automation belongs to the HDL KNX/EIB series. The gateway supports two-way control, and can record, play and delete DMX programs. With recording time up to 4 hours, DMX512 gateway can be widely used to control devices with built-in DMX protocol port for LED color control, for example, computer light, moving head light, laser light, etc.

more details

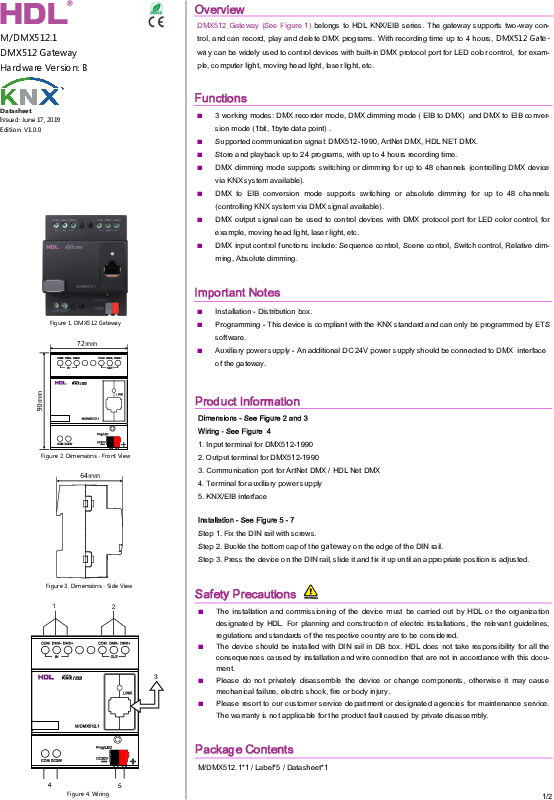

Downloads

Request Offer

Features

3 working modes: DMX recorder mode, DMX dimming mode (EIB to DMX) and DMX to EIB conversion mode (1bit, 1byte data point);
Supported communication signal: DMX512-1990, ArtNet DMX, HDL NET DMX;
Store and playback up to 24 programs, with up to 4 hours recording time;
DMX dimming mode supports switching or dimming for up to 48 channels (controlling DMX device via KNX system available);
DMX to EIB conversion mode supports switching or absolute dimming for up to 48 channels (controlling KNX system via DMX signal available);
DMX output signal can be used to control devices with DMX protocol port for LED color control, for example, moving head light, laser light, etc;
DMX input control functions include: Sequence control, Scene control, Switch control, Relative dimming, Absolute dimming.

Advantages

Centralised control of lighting systems across KNX and DMX domains;
Reduction of integration complexity in mixed-protocol environments;
Increased commissioning efficiency through programmable sequences;
Flexibility in operation via multiple control modes;
Improved system scalability without additional gateways;
Consistent user experience across building automation and lighting control layers.
