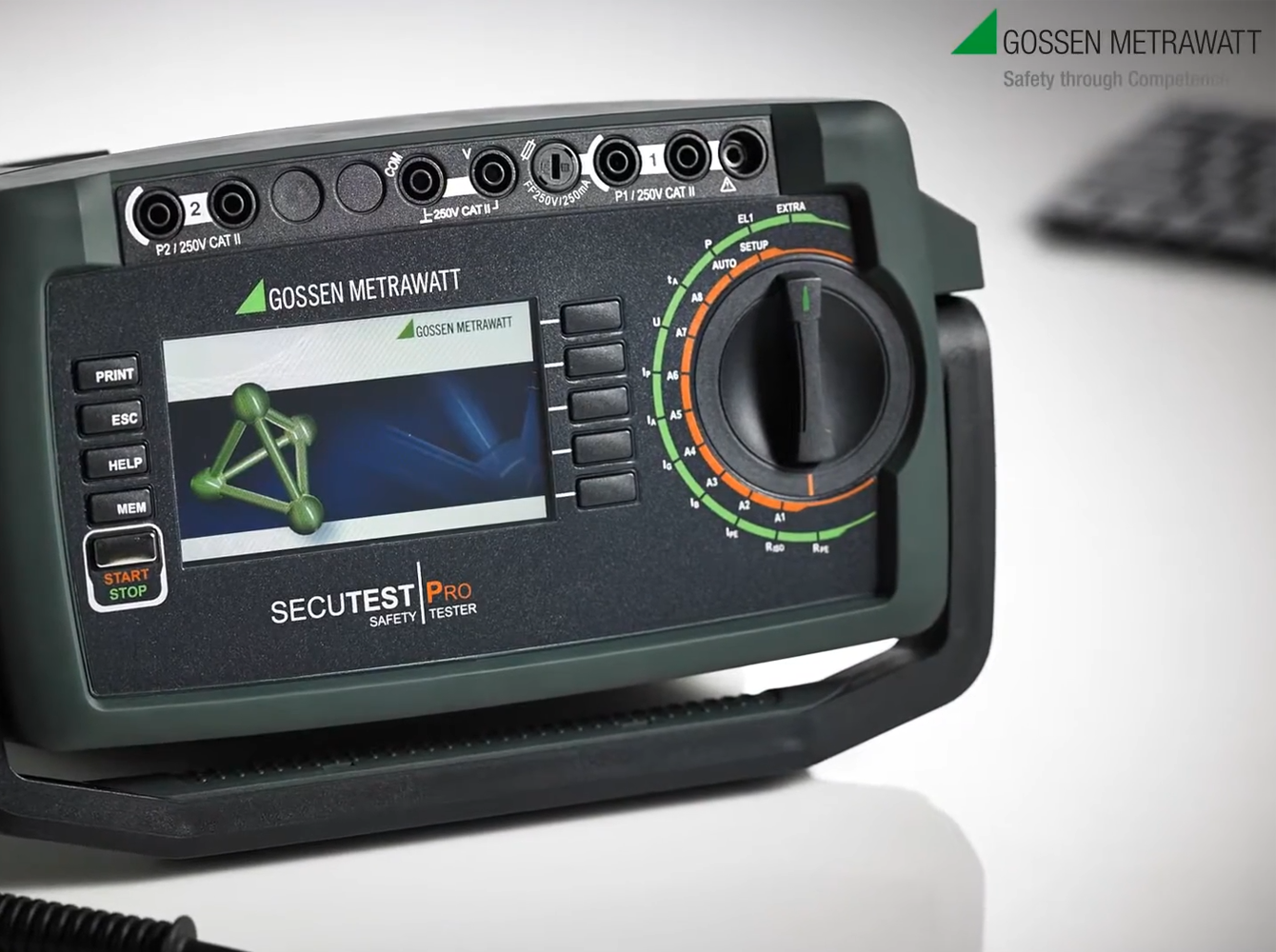

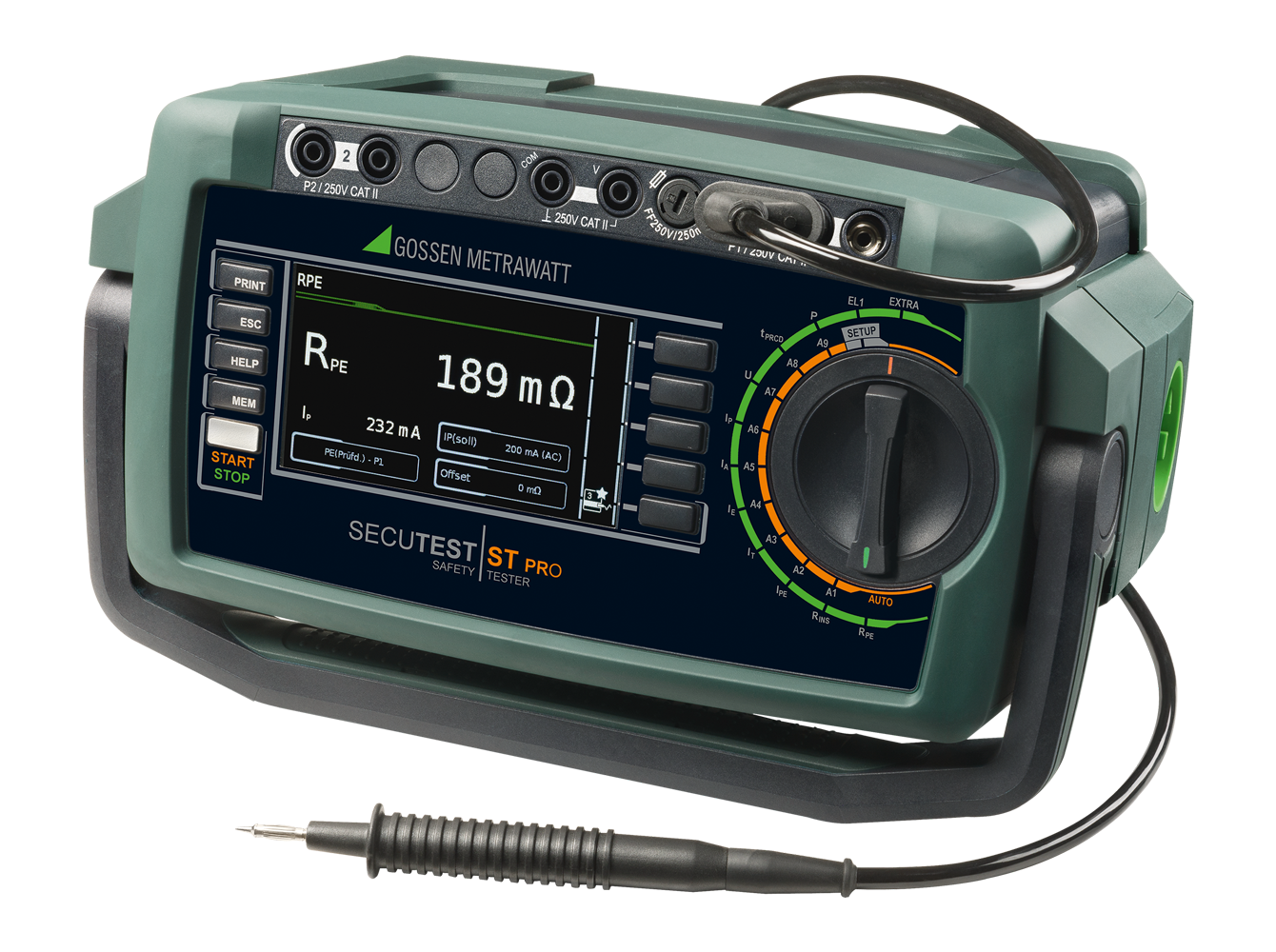

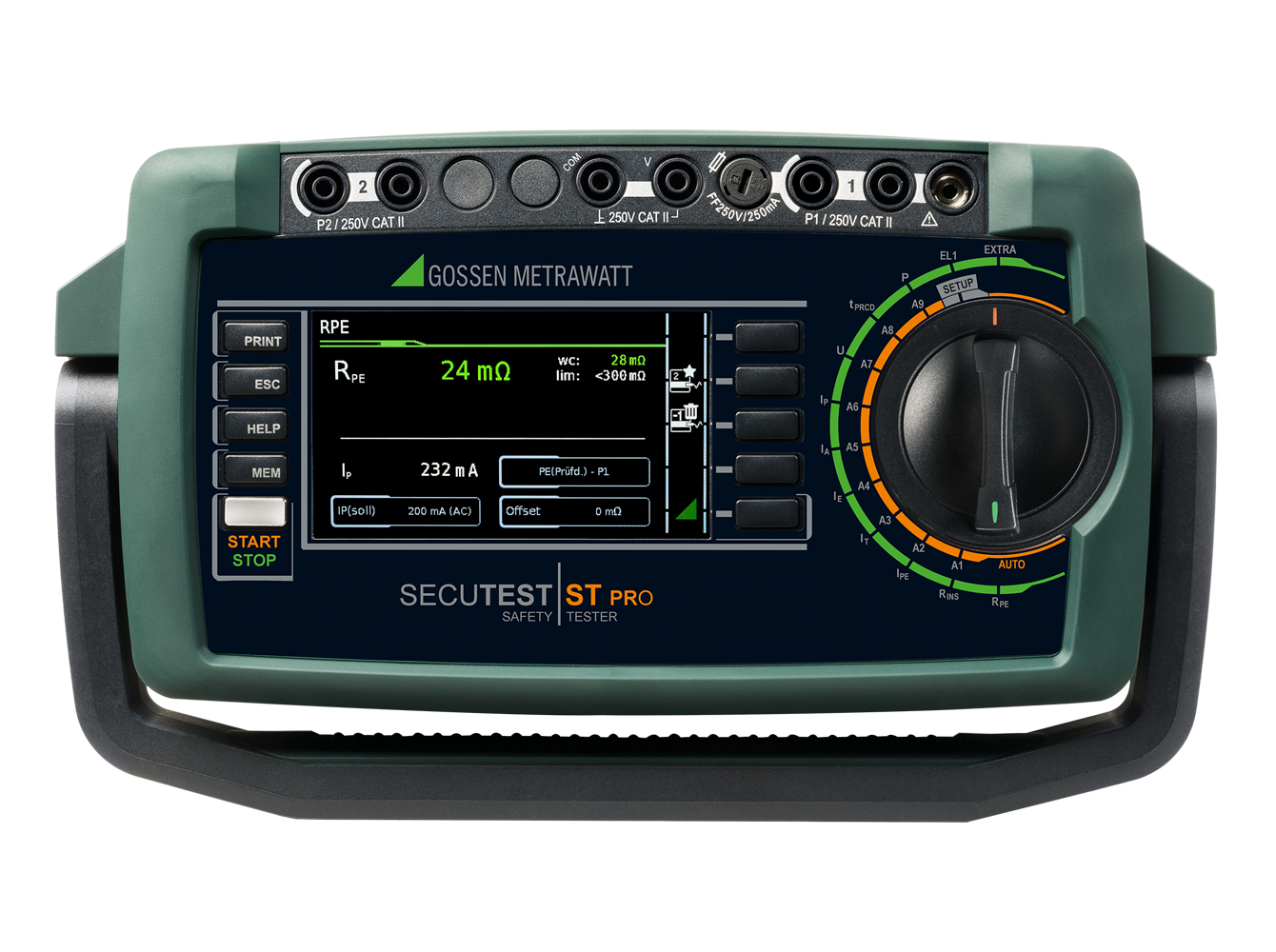

Electrical safety testing equipment SECUTEST ST PRO – Gossen Metrawatt

The SECUTEST ST PRO from Gossen Metrawatt provides all measurement and test functions required for verifying the effectiveness of protective measures on electrical devices, medical electrical equipment and welding systems. It offers both predefined and user-programmable test sequences in compliance with EN 50699 / EN 50678 (VDE 0701-0702), IEC/EN 62353 (VDE 0751) and IEC/EN 60974-4 (VDE 0544-4).

With its optimized measurement cycles, the Gossen Metrawatt SECUTEST ST PRO allows more tests per day. Operation is simple enough to enable testing without advanced technical knowledge. Thanks to the long-term service guarantee from Gossen Metrawatt, you can rely on your test instrument being kept up to date even after 10 years. For more than 20 years, SECUTEST devices have been trusted by customers worldwide – making it the best-selling safety tester for devices up to 400 V, with or without plug connection.

more details

Downloads

Request Offer

Features

Context-sensitive color graphic display;

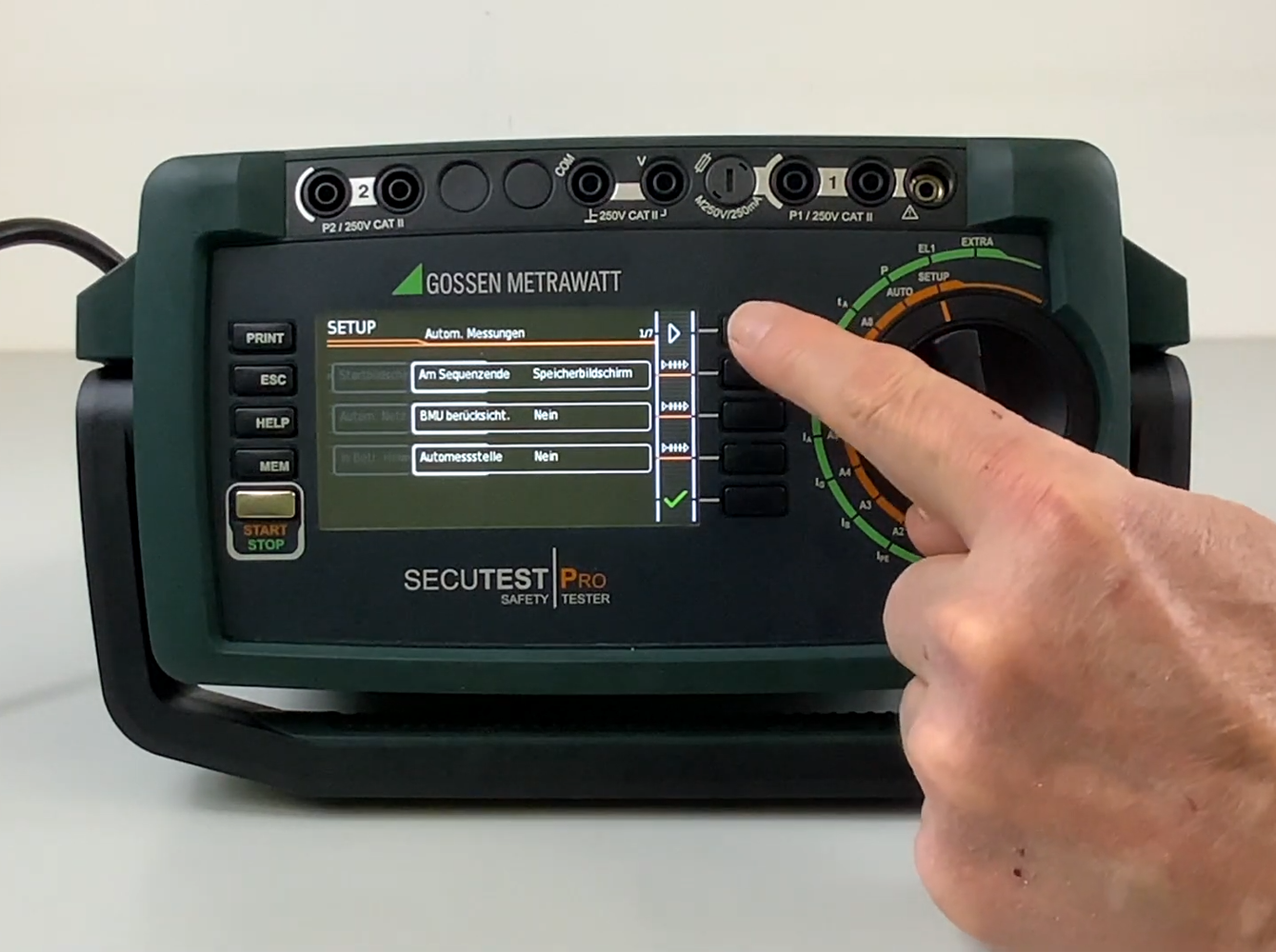

Easy test sequence setup: system configuration / measurement & storage / report generation;
Preconfigured and user-programmable test sequences for fast testing of electrical systems;
Data storage capacity of up to 50,000 records;
Testing of all current AC/DC-sensitive RCDs, RDC-DDs and RCMBs;
Enhanced user safety with PE detection for finger contact;
Measurement category: 600 V CAT III / 300 V CAT IV;
4-wire measurement method – no compensation of test leads required;
RELOOP earth loop resistance measurement;
RE selective earth resistance measurement;
Proven reliability and precision.
