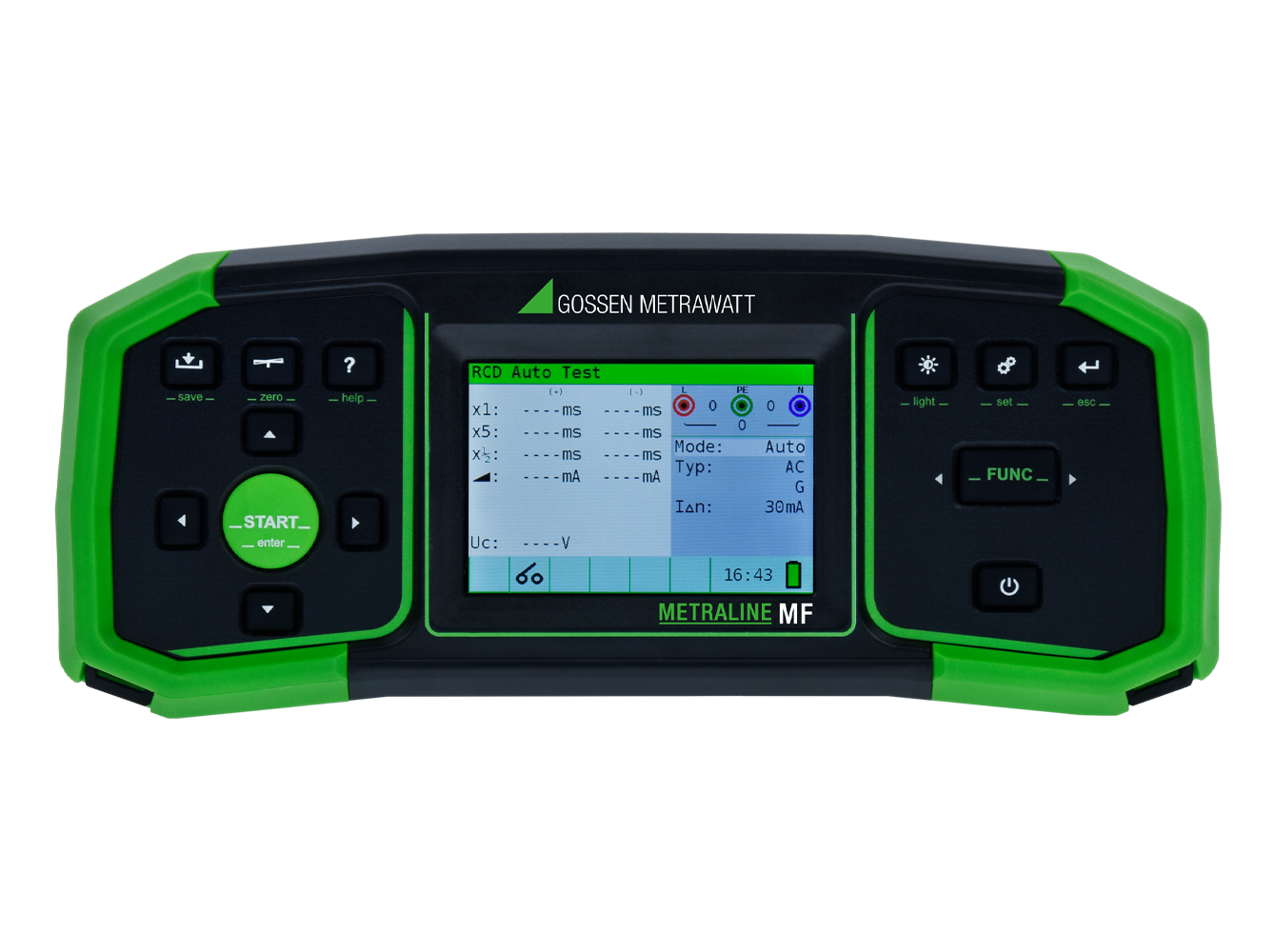

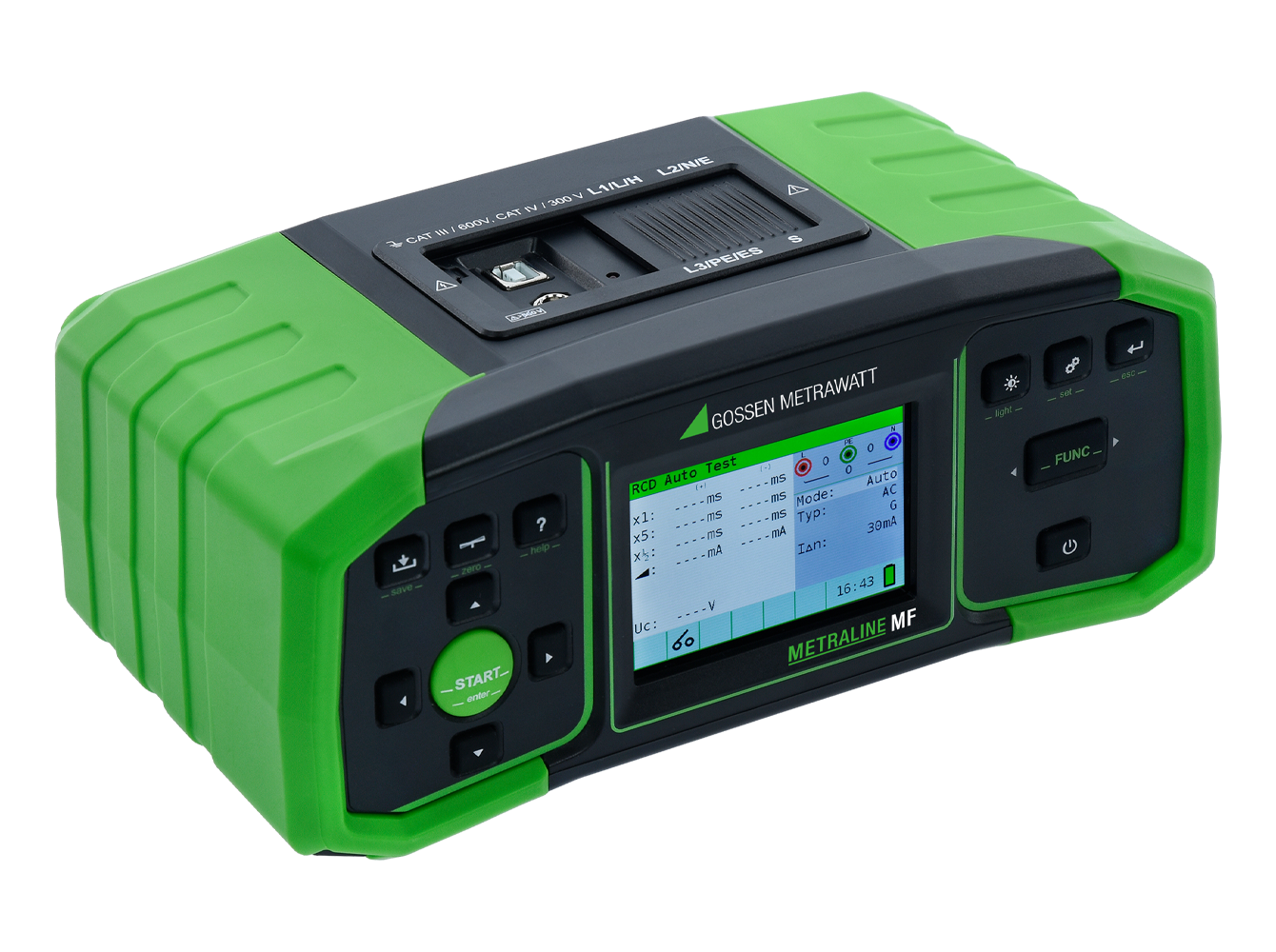

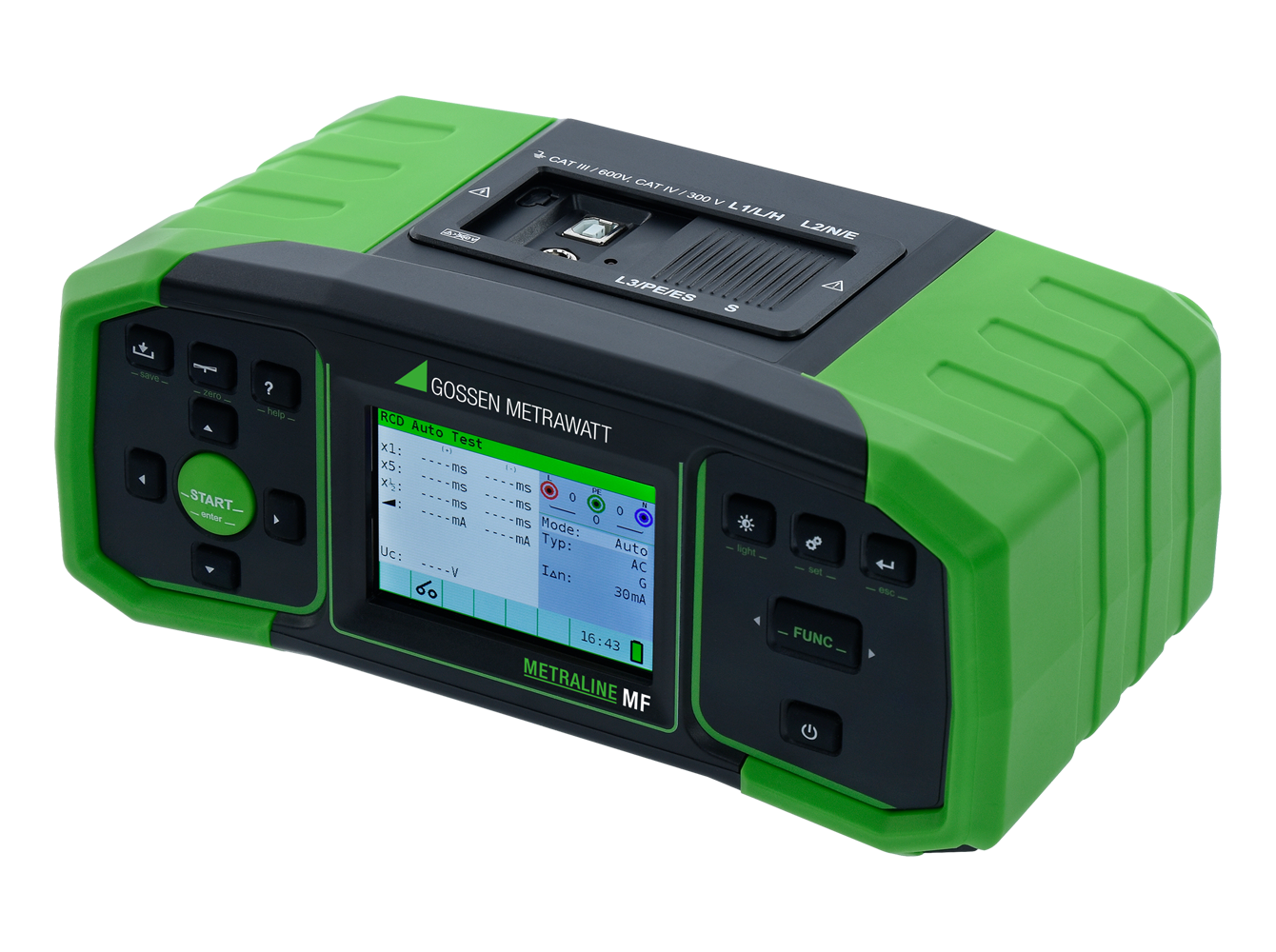

Electrical testing equipment METRALINE MF – Gossen Metrawatt
The METRALINE MF from Gossen Metrawatt is an installation tester for standards-compliant testing of electrical systems and installations, in accordance with IEC 60364-6 (DIN VDE 0100-600), DIN EN 50110-1 (DIN VDE 0105-100), IEC 61851-1 (DIN VDE 0122-1), and the relevant sections of EN 61557 (VDE 0413).
The METRALINE MF installation tester by Gossen Metrawatt is a rugged and portable measuring instrument designed to verify electrical safety in residential buildings, industrial applications, and AC charging points. The device, together with all necessary accessories, can be safely stored in the included carrying case, ensuring easy transport between different locations. All measurements required to verify the electrical safety of building installations can be performed with this multifunctional instrument.
The METRALINE MF installation tester by Gossen Metrawatt is a rugged and portable measuring instrument designed to verify electrical safety in residential buildings, industrial applications, and AC charging points. The device, together with all necessary accessories, can be safely stored in the included carrying case, ensuring easy transport between different locations. All measurements required to verify the electrical safety of building installations can be performed with this multifunctional instrument.
more details

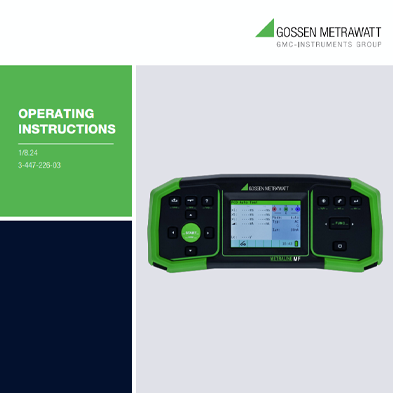

Downloads
Request Offer
Features
Advantages
Applications
F.Fonseca is distributor of GMC Instruments in Portugal.
- Loop resistance L-PE measurement with short-circuit current calculation;
- Loop resistance L-N measurement;
- Low-resistance protective conductor continuity measurement;
- Insulation resistance measurement;
- Testing of residual current devices (RCDs) of types A, AC, B, B+ and F, including detection of 6 mA DC (RDC-DD) for electric vehicle charging stations;
- Voltage measurement (TRMS);
- Phase sequence and frequency measurement;
- Earth resistance measurement;
- EVSE (Electric Vehicle Supply Equipment) testing.
Advantages
- Portable;
- Colour graphic display;
- Intuitive operation;
- USB interface for updates and data evaluation;
- Large memory for up to 1000 measurements;
- Comprehensive range of modern functions;
- Optimized value for investment;
- Easy handling thanks to integrated help function and acoustic signals;
- From testing to results in just a few clicks.
Applications
- Electric mobility;
- Electrical installations and construction;
- Energy and distribution;
- Industrial maintenance.
F.Fonseca is distributor of GMC Instruments in Portugal.
