Electrical Testing Equipment PROFITEST MF XTRA – Gossen Metrawatt

The PROFITEST MF XTRA from Gossen Metrawatt, provides all measuring and testing functions for verifying the effectiveness of protective measures in stationary electrical installations – with predefined or optionally programmable test sequences, as required by IEC 60364-6 (DIN VDE 0100-600) and EN 50110-1 (DIN VDE 0105-100).
Measuring category: 300 V CAT IV / 600 V CAT III.

The PROFITEST MF XTRA makes investment decisions easy, as it is the ideal test instrument for daily routine work – day after day – thanks to its wide range of functions perfectly tailored to the requirements of professional electricians.
Test report generation is quick and straightforward thanks to optimized operation and a practical memory concept. This saves time with every measurement and allows more tests to be completed each day.
Once a system structure has been created, it can be used with all PROFITEST instruments. As a result, all employees carry out testing in exactly the same way.

more details

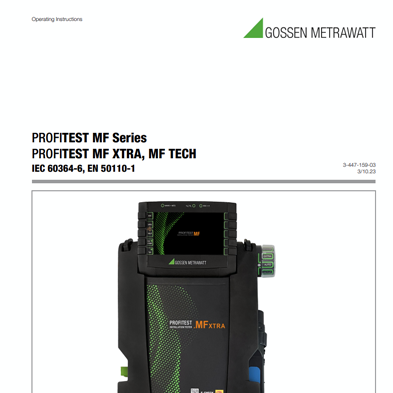

Downloads

Request Offer

And with the PROFITEST service guarantee, you can be confident that your instrument will remain up to date even after 10 years.

Features

Context-sensitive color graphic display;
Measuring and test sequence – easy setup of the system structure / measurement and storage / report generation;
Predefined and user-programmable test sequences for fast testing of electrical systems;
Storage capacity for up to 50,000 data records;
Testing of all current AC/DC-sensitive RCDs, RDC-DDs and RCMBs;
Enhanced user safety thanks to PE detection when using finger contact;
Measuring category: 600 V CAT III / 300 V CAT IV;
4-wire measuring method – no need to compensate measurement cables;
RELOOP earth loop resistance measurement;
Selective earth resistance measurement (RE).

Advantages

Intuitive operation with innovative user guidance;
Test sequences for efficient workflows;
Standards-compliant testing in line with ZVEH requirements;
Legally reliable documentation via interfaces;
Wide range of applications with diverse measurement options;
Convenient operation without the need for repeated reconnection of measurement cables;
Global usability thanks to multilingual interface;
Future-proof with on-site firmware updates;
Cascadable software concept designed for long-term use;
On-site support with built-in help function and wiring diagrams.
