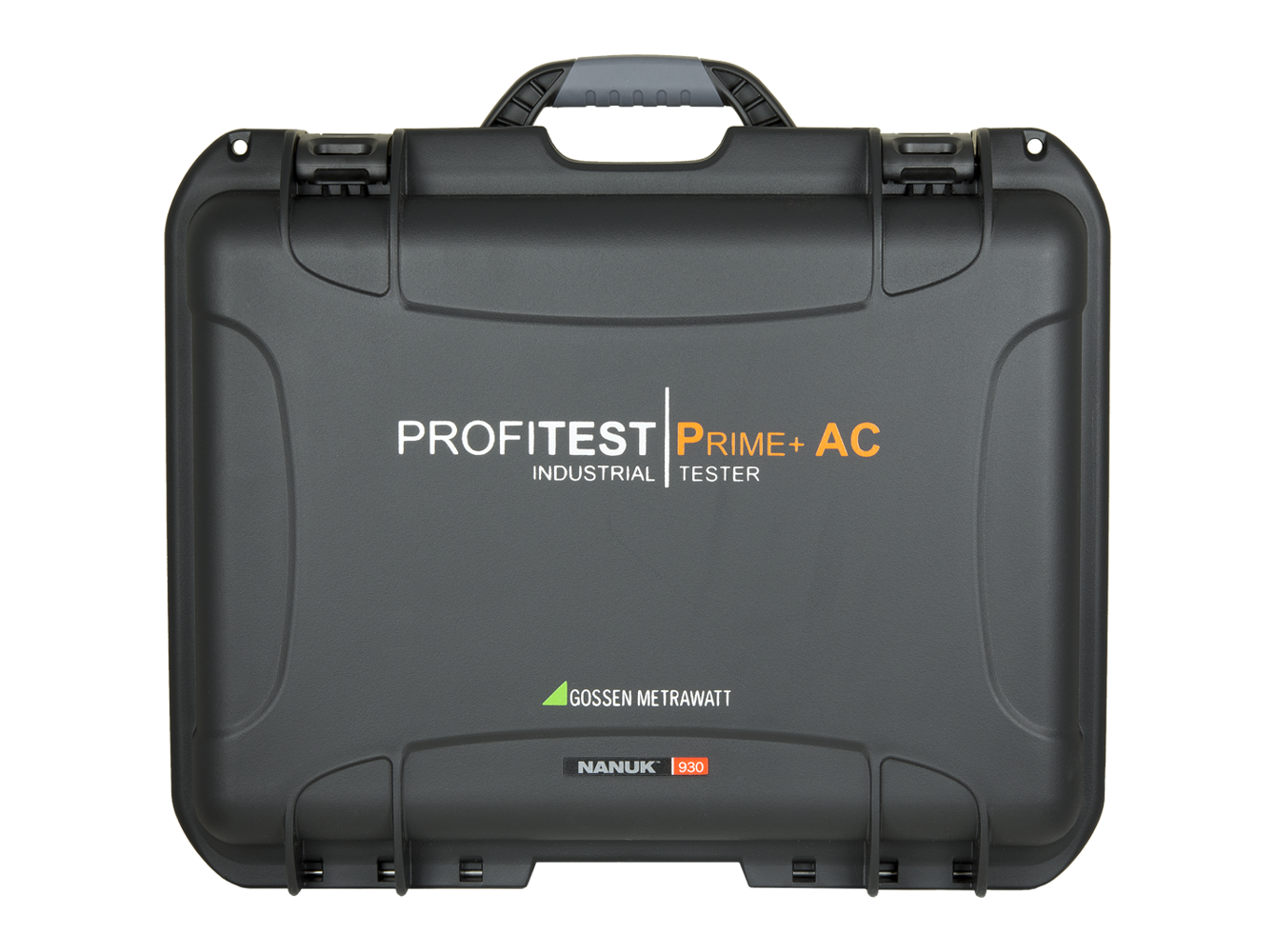

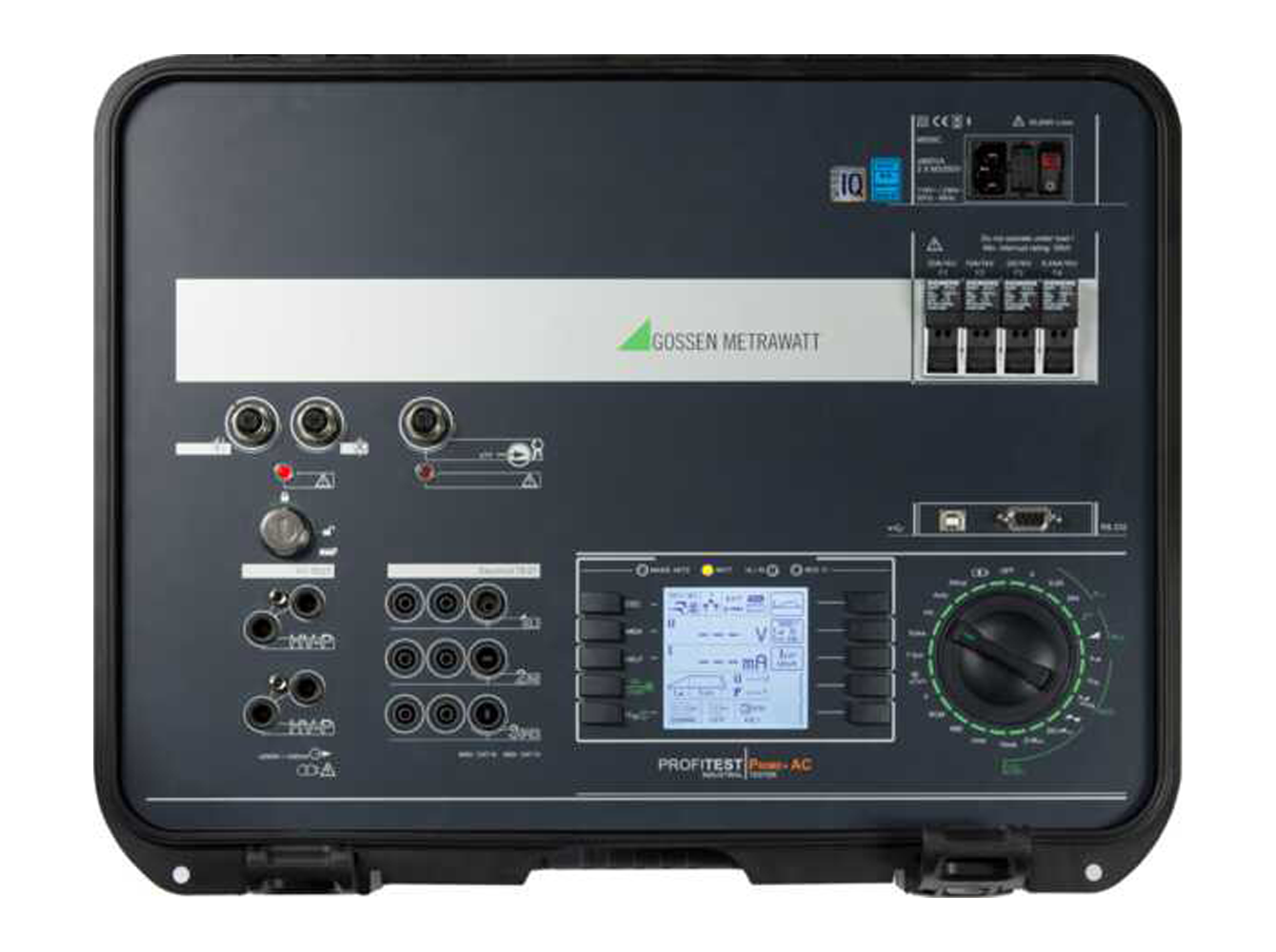

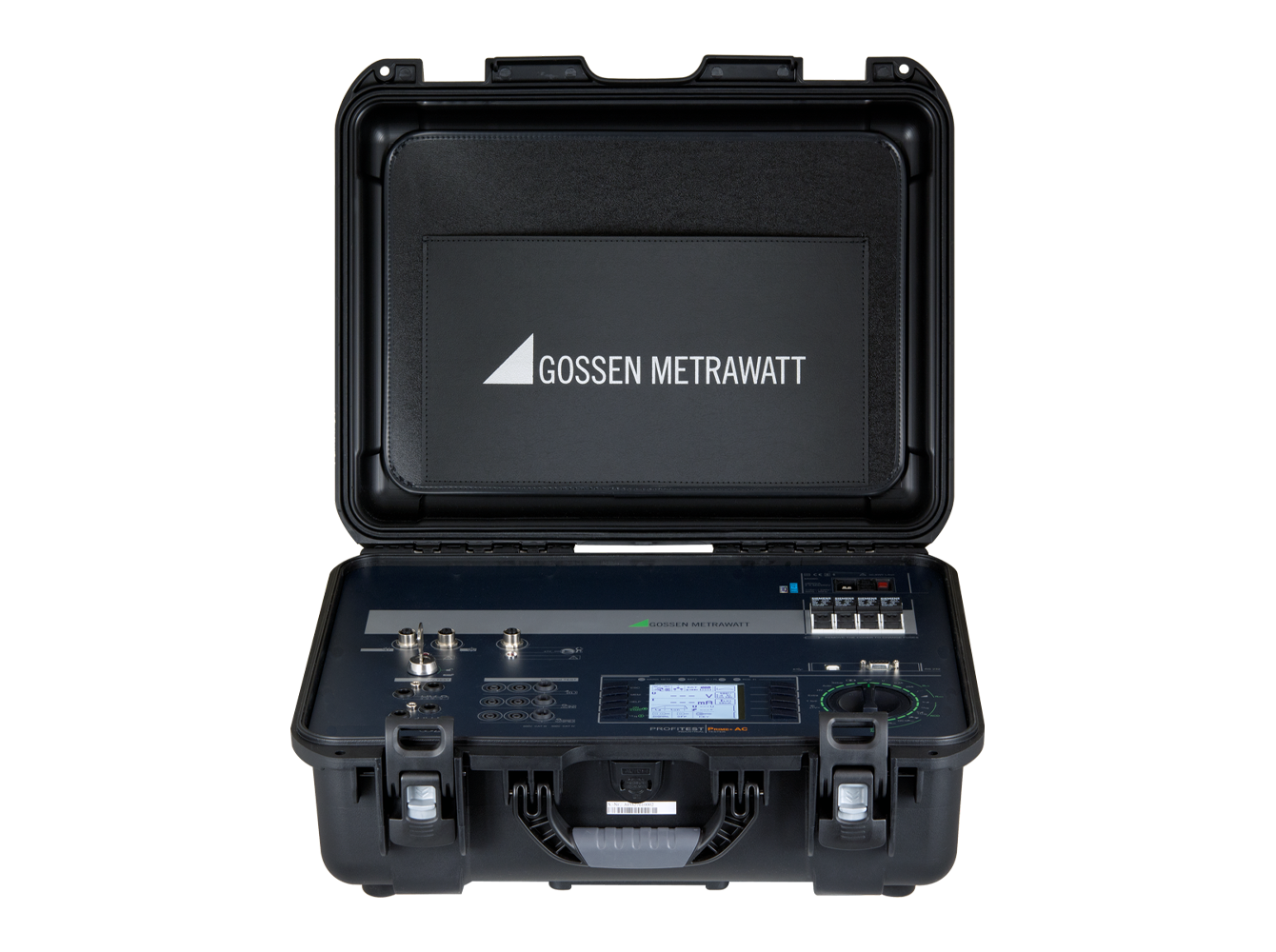

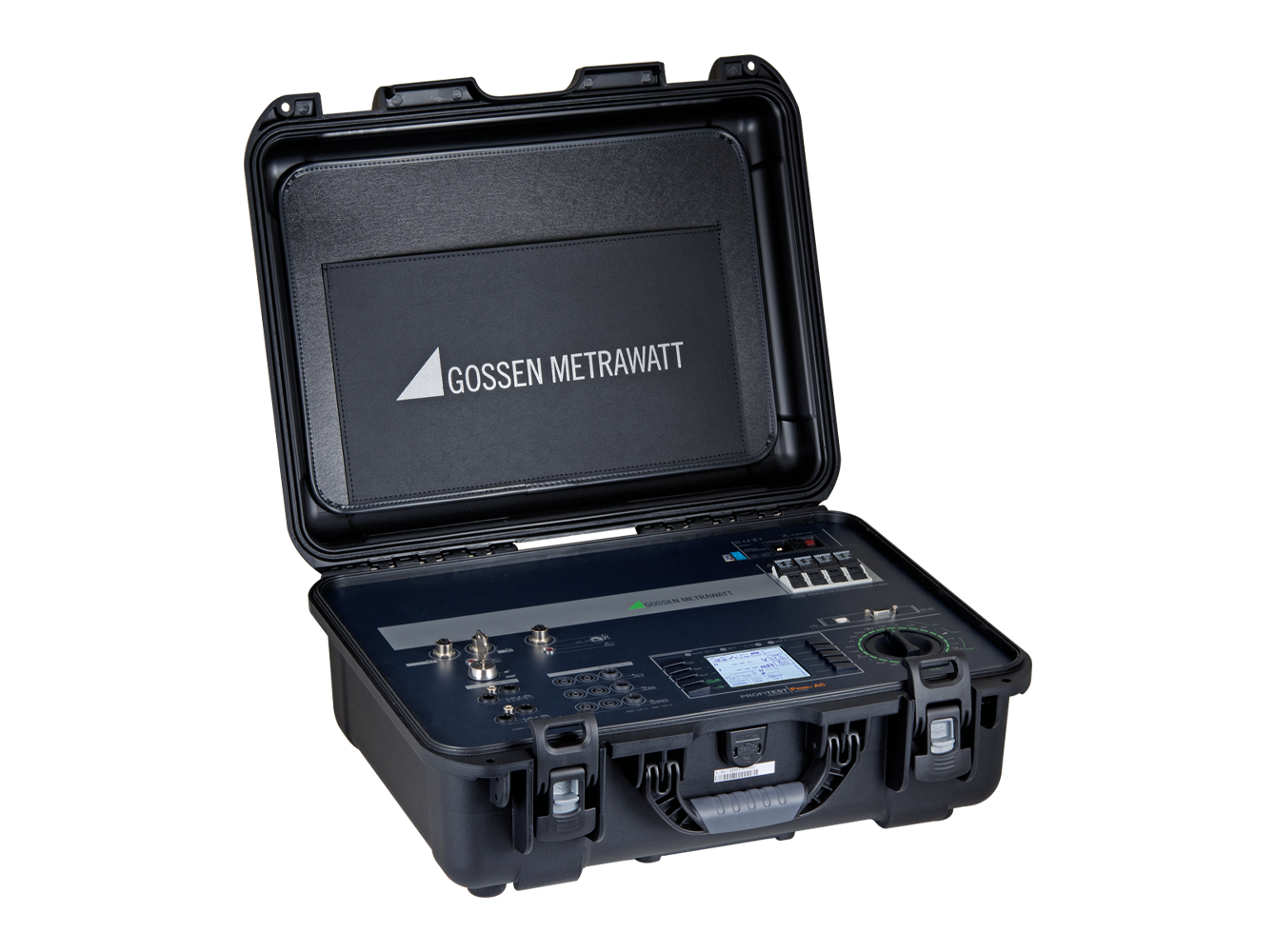

Electrical tests equipment PROFITEST PRIME AC – Gossen Metrawatt
Multimeter, milliohmmeter, insulation tester, coil tester and data logger for hybrid and electric drives – all in one.
The PROFITEST PRIME AC is the ideal choice for professionals seeking efficiency, reliability and compliance in a single device. Designed to provide intuitive operation, efficient workflows and testing in line with international standards, this instrument is a complete solution for a wide range of electrical measurement scenarios.
The PROFITEST PRIME AC is the ideal choice for professionals seeking efficiency, reliability and compliance in a single device. Designed to provide intuitive operation, efficient workflows and testing in line with international standards, this instrument is a complete solution for a wide range of electrical measurement scenarios.
more details

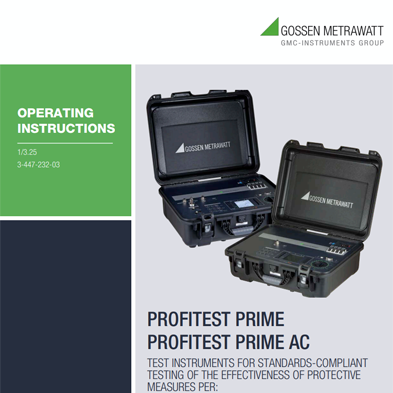

Downloads
Request Offer
Features
Advantages
Applications
F.Fonseca is distributor of GMC Instruments in Portugal.
- Measurement in AC and DC systems;
- Measurement of system internal resistance and fault loop with high test currents: up to ≈ 690 VAC / 800 VDC, without tripping residual current devices (RCDs) of types A and B;
- Low-resistance measurement in protective conductors (“PE”) and equipotential bonding, with 200 mA and automatic polarity reversal, up to 25 A;
- Testing of RCD/RCCB (types A, AC, F, B, B+, EV, MI, G/R), as well as SRCDs and PRCDs;
- Combined RCD tests with continuous ramp, tripping time and tripping current;
- Insulation measurement up to 1000 V with rising ramp;
- Testing of RCM (Residual Current Monitor) and IMD (Insulation Monitoring Device);
- Measurement of leakage/differential current and voltage (up to ~1000 V AC/DC);
- Measurement of temperature and humidity.
Advantages
- Wide range of applications in a single device;
- Time savings;
- Compliance with safety standards;
- Efficient and processable documentation;
- Safe operation with reduced error risk;
- Continuous support.
Applications
- Electrical installations and construction;
- Electrical panel and distribution system manufacturing;
- E-mobility;
- Hospitals and critical infrastructures;
- Machinery and equipment industry;
- Solar energy;
- Testing and certification laboratories;
- Wind energy.
F.Fonseca is distributor of GMC Instruments in Portugal.
