End-of-Arm-Safeguard - SICK

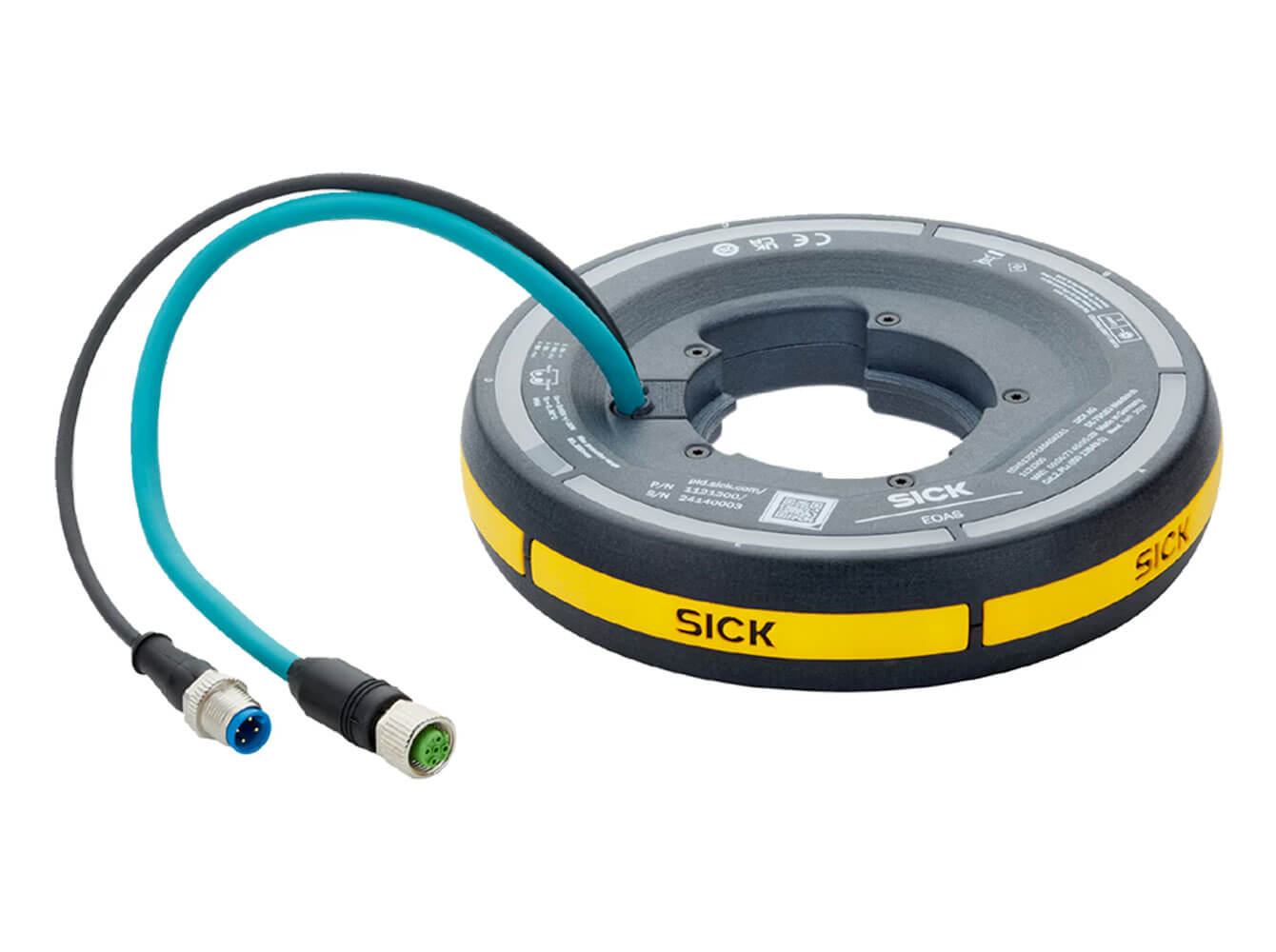

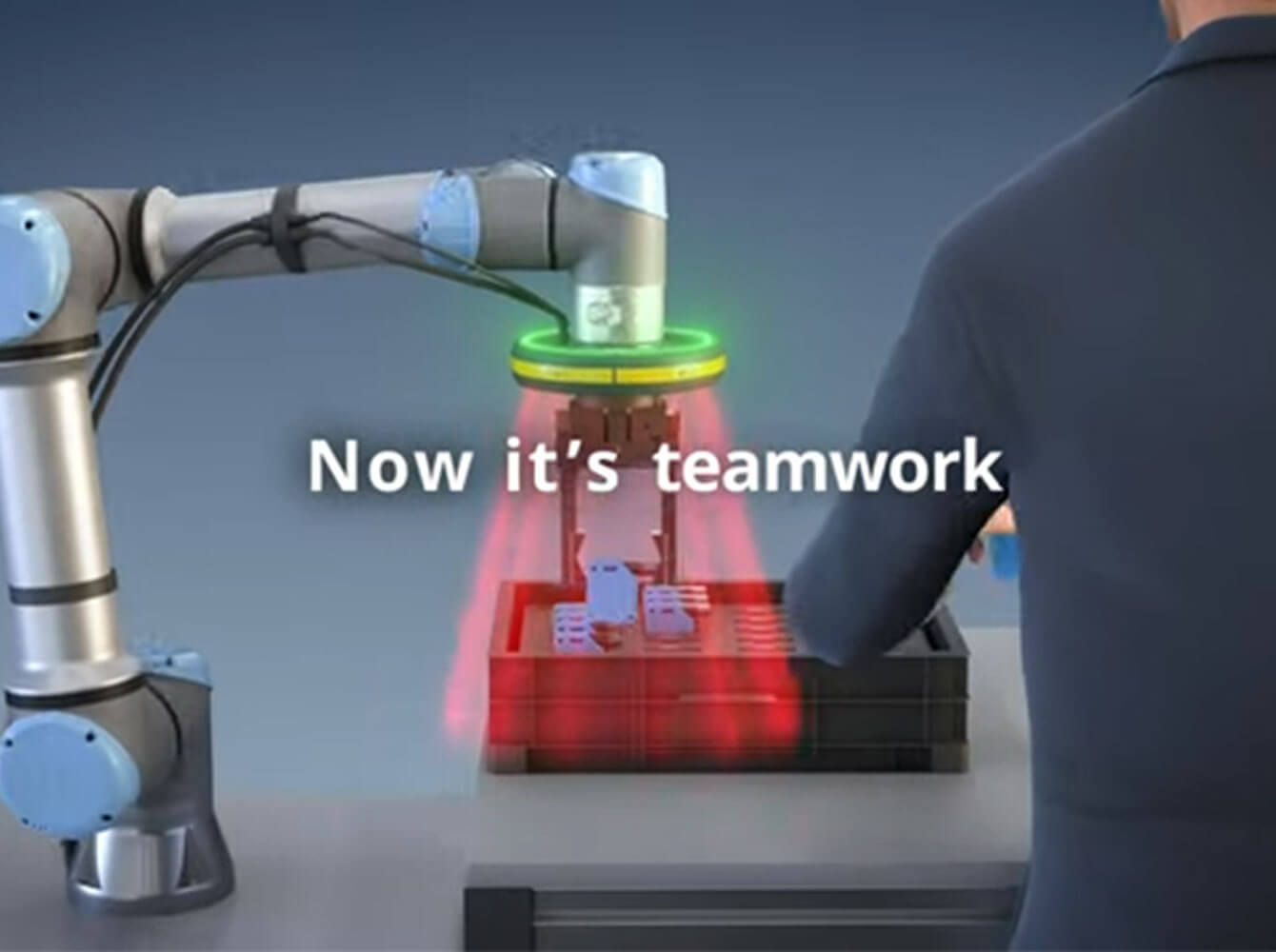

End-of-Arm-Safeguard from SICK is an innovative safety system for collaborative robot applications. The system creates a protective field around the robot tool, reduces the risk of crushing injuries, and makes it possible to work safely in the immediate vicinity of the robot. Thanks to contactless technology, the robot stops before a collision occurs. This increases the confidence of operators and increases productivity. With its small protective field, End-of-Arm-Safeguard offers a protection solution exactly where it is needed, thereby creating more space for humans and machines. The system is designed for the e-Series, from Universal Robots, and it’s installed directly on the robot flange. Configuration is carried out via the UR Teach Pendant.

more details

Downloads

Request Offer

Features

Reduces the residual risk of crushing hazards;
Contactless collision avoidance around robot grippers;
Protective field moves with the robot arm;
Muting mode for non-collaborative robot workspaces;

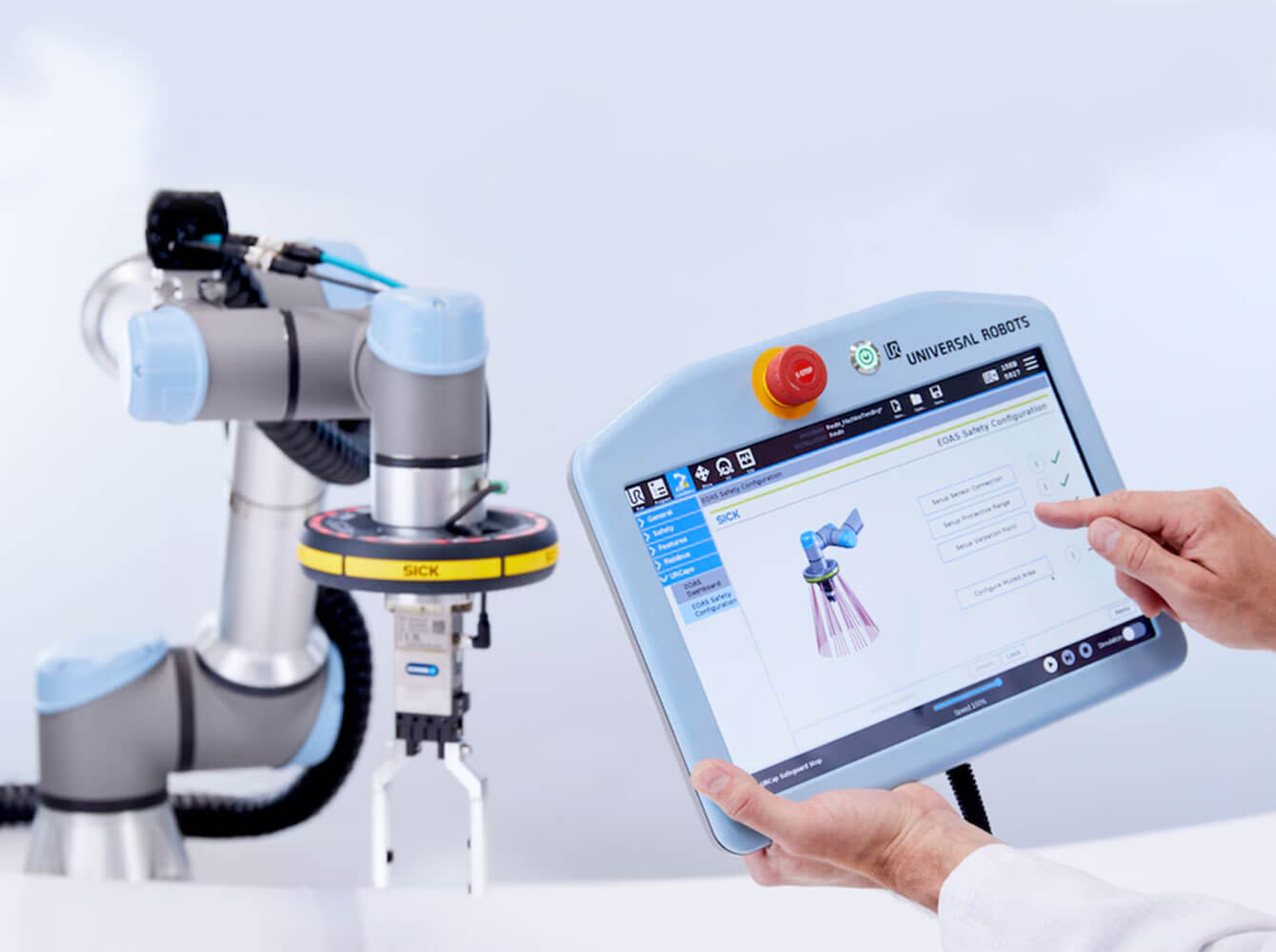

Configuration via the UR Teach Pendant;
Mounting on the robot flange;
Compatible with the e-Series from Universal Robots.

Advantages

Worker acceptance and trust in the robot: End-of-Arm-Safeguard stops the robot movement before crushing occurs;
Higher robot speeds possible in many collaborative applications;
Significantly reduces the effort and expense for force and pressure measurements according to ISO/TS 15066;
Optimizes the use of space and increases the operating efficiency;
Higher robot speeds in non-collaborative areas with the help of muting mode;
Intuitive and time-saving configuration;
Plug and play installation.

Industries

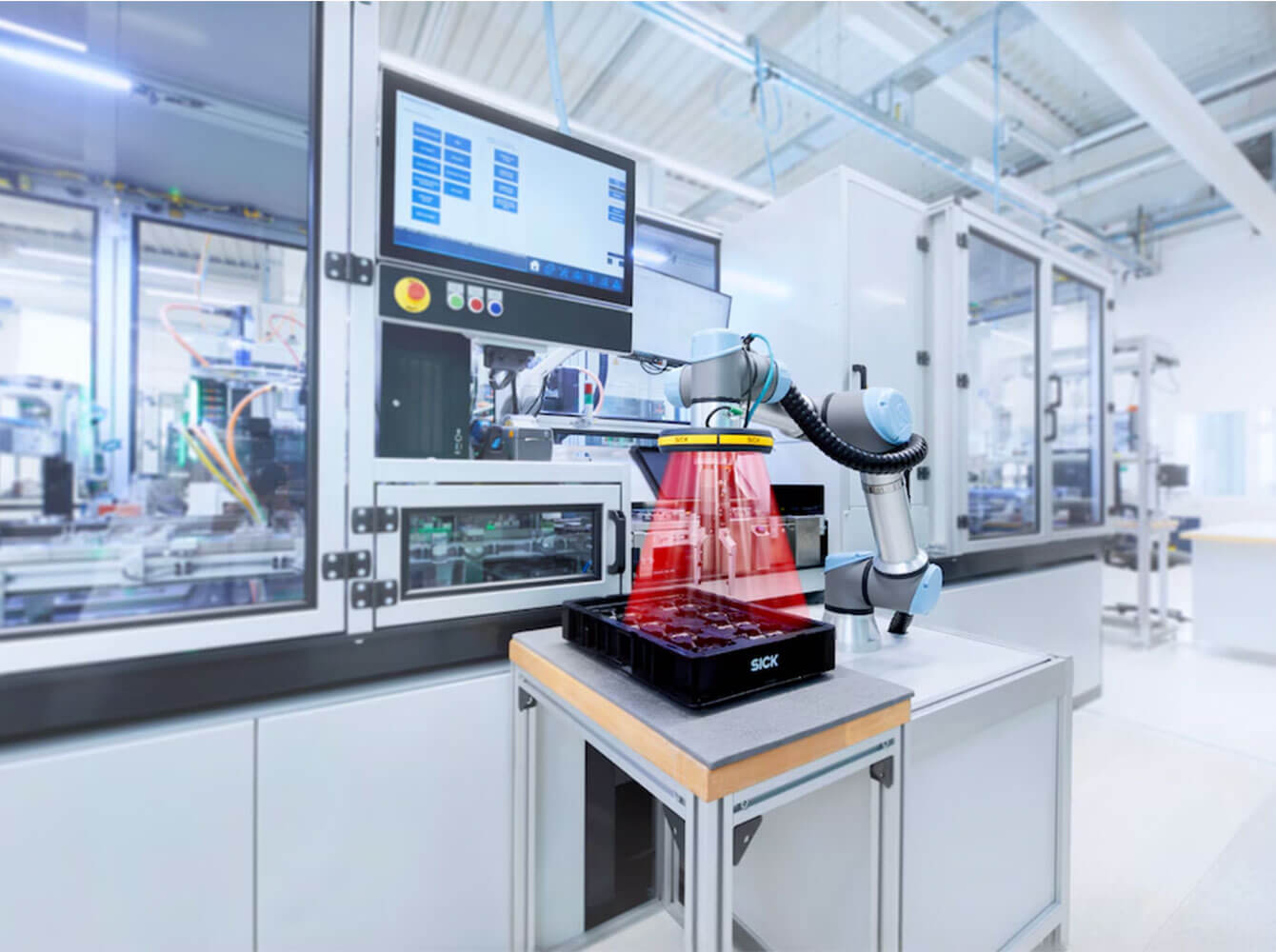

Various industries with collaborative robotic applications: pick & place, mounting, machine tending.
