Handheld thermal camera SP60 - HIKMICRO

The HIKMICRO SP60 handheld thermal camera is a powerful and versatile tool designed for demanding industrial applications, predictive maintenance, and energy diagnostics across oil & gas, utilities, and manufacturing sectors.
Equipped with a 640 × 480 VOx uncooled infrared detector and NETD < 30 mK, it delivers exceptionally detailed thermal imagery and precise temperature measurements up to 650 °C.

For high-temperature environments such as metal processing or glass manufacturing, the SP60H version extends the measurement range up to an industry-leading 2,200 °C, providing unmatched versatility and reliability.

more details

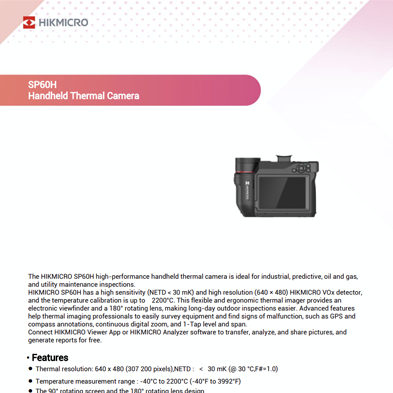

Downloads

Request Offer

Features

Thermal resolution: 640 × 480 (307,200 pixels) VOx detector;
Thermal sensitivity (NETD): < 30 mK (@ 30 °C, F# = 1.0);
Temperature measurement range: –20 °C to 650 °C (or -40 ºC to 2200 ºC with the SP60H model);

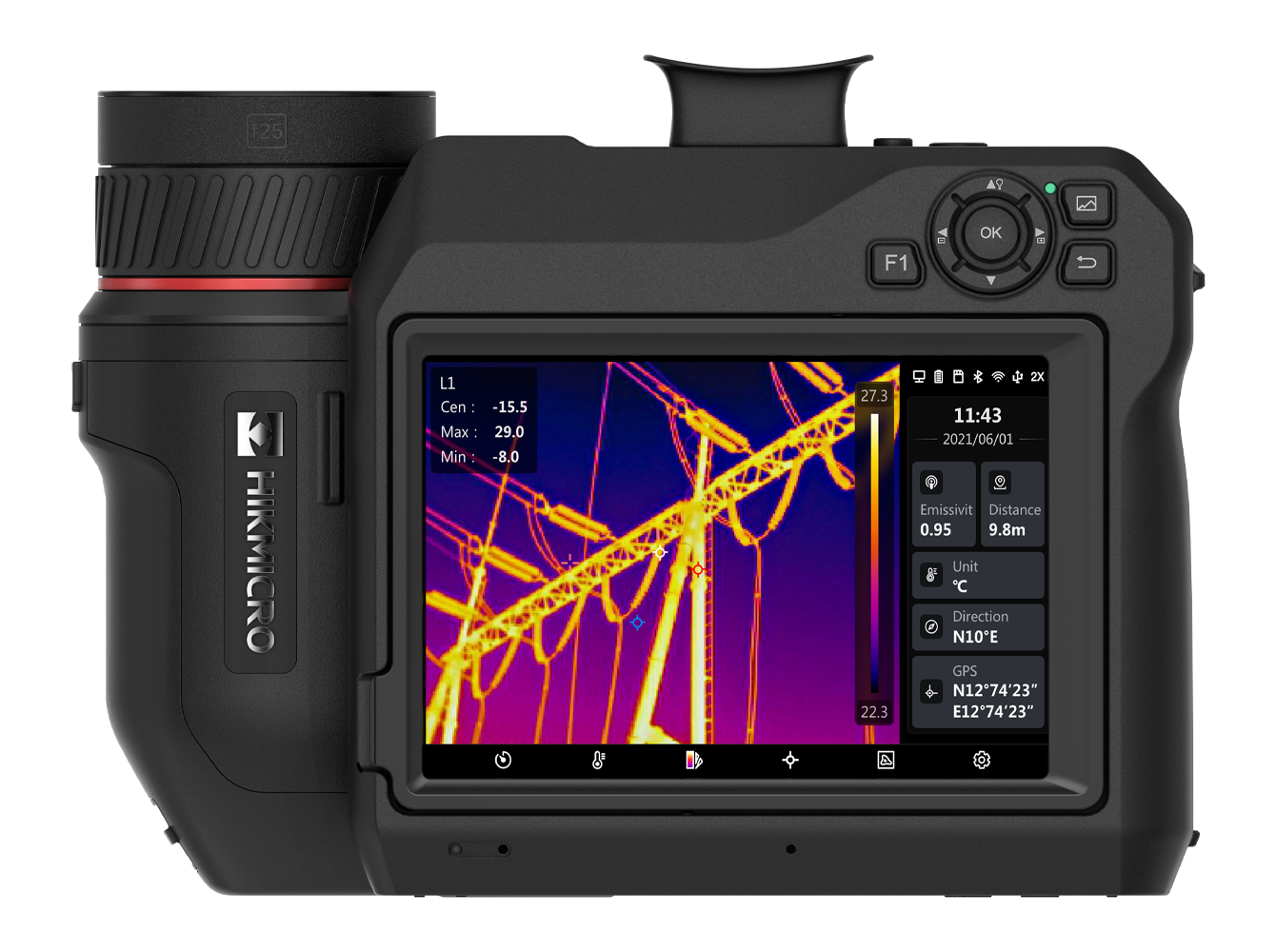

Display: 5-inch color LCD touchscreen with auto-brightness adjustment;
Viewfinder: 1024 × 768 OLED electronic viewfinder for excellent visibility in bright outdoor conditions;

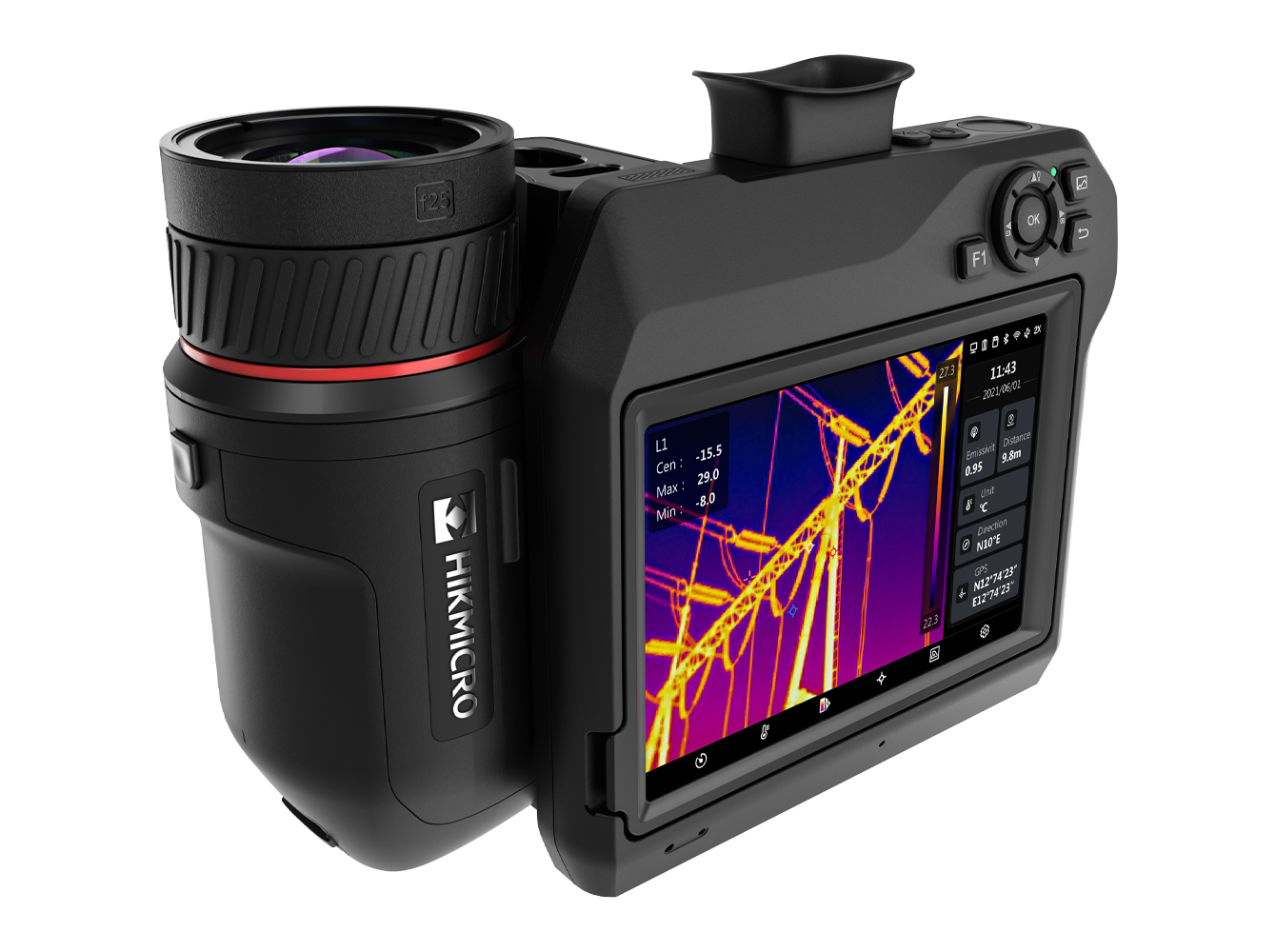

Lens and screen design: 180° rotating lens and 90° tilting screen for flexible operation;
Digital zoom: Continuous 1.0× to 12.0× zoom;
Level and span control: Manual, automatic, and 1-Tap Level & Span modes;
Image frequency: 30 Hz for smooth real-time imaging;
Positioning: Integrated GPS and compass for image annotation and location data;
Operating temperature range: –20 °C to +50 °C;
Operating time: Up to 4 hours of continuous operation per battery.

Advantages

SuperIR image enhancement: Upscales thermal images 4× to deliver superior clarity and detail for inspection and reporting;
Fast and accurate focusing: Five focus modes, including Laser-Assisted AF, achieve sharp focus in just one second for maximum measurement precision;
Supports multiple imaging modes: Thermal, Fusion, Picture-in-Picture (PIP), Blending, and Visual to adapt to different inspection requirements and provide clear visual references;
High-temperature capability (SP60H): Measures up to 2,200 °C, ideal for high-heat industries such as metallurgy, glass, and manufacturing;
Interchangeable lenses: Choose from a wide range of lenses for different inspection scenarios, including optional macro lenses for microscopic thermal analysis;
Rugged and durable construction: IP54-rated housing and 1 m drop resistance ensure reliable performance in harsh outdoor conditions;
Embedded laser distance meter: Provides accurate distance and area measurements, streamlining setup and reporting;
Extended battery system: Dual interchangeable Li-ion batteries and a dual charger provide up to 8 hours of uninterrupted operation;
Seamless connectivity: Built-in Wi-Fi and software compatibility with HIKMICRO Viewer and Analyzer allow real-time data transfer, analysis, and report generation;
Video output: Supports image and video capture to SD card (radiometric and non-radiometric formats);
Performance: Supports radiometric video recording with full temperature data for post-analysis using HIKMICRO Analyzer.
