Process, Instrumentation & Environment
Humidity and temperature transmitter hydroTRANS S40 – JUMO

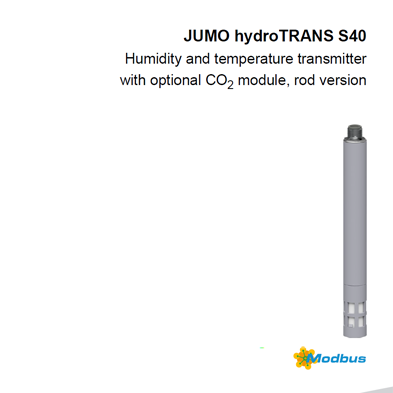

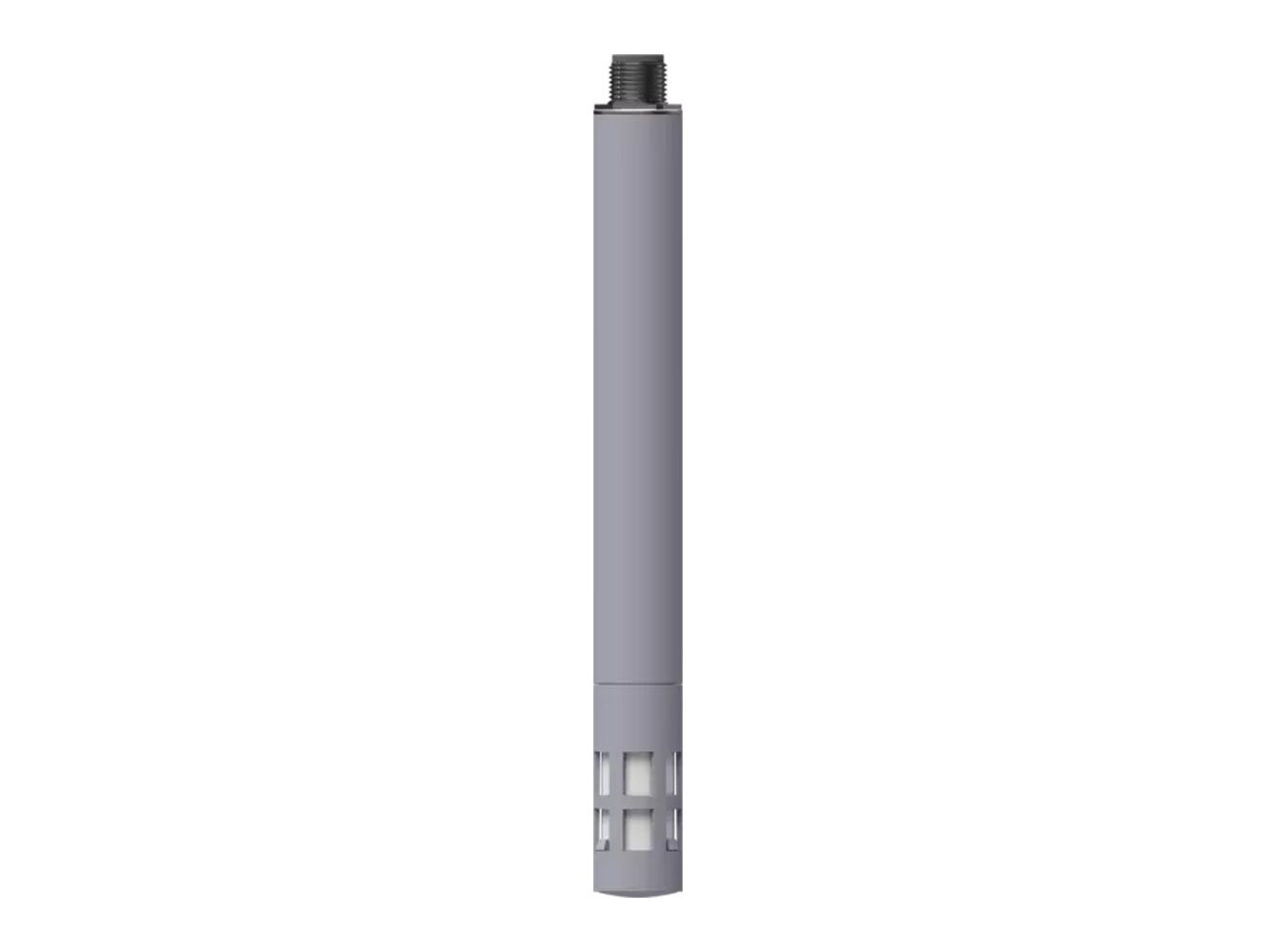

The JUMO hydroTRANS S40 is a rod-type humidity and temperature transmitter with an optional CO2 module designed for industrial and HVAC applications. The transmitter uses capacitive sensor technology for relative humidity measurement and integrates temperature sensing. The humidity measuring device is available with various interfaces. The robust design is suitable for environments requiring long-term stability and reliable data acquisition.
more details
Downloads
Request Offer
Features
Advantages
Applications
F.Fonseca is the representative of Jumo in Portugal.
- Measuring range: relative humidity from 0 to 100 % RH;
- Accuracy – relative humidity: ±2 % RH at 25 °C and 1013 mbar;
- Operating temperature: −40 to +80 °C; −20 to +60 °C (CO₂ version);
- Accuracy – temperature: ±0.2 K at 25 °C and 1013 mbar;
- CO₂ measuring range: 400 to 10,000 ppm;
- Accuracy – CO₂: ±50 ppm or ±5 % of the measured value at 25 °C and 1013 mbar;
- Voltage supply: 24 V DC, tolerance +33 %;
- Protection type: IP65;
- Vibration / shock resistance: suitable for industrial applications;
- EMI interference emission: Class B;
- EMI interference immunity: meets industrial requirements;
- Interfaces: voltage and current output, Modbus.
Advantages
- Reliable and stable humidity measurement for long-term operation;
- Easy integration into HVAC and BAS/BMS systems;
- Space-saving rod design for duct and air channel installation;
- Reduced maintenance thanks to robust sensor technology;
- Optional multi-parameter measurement (humidity, temperature, CO₂) in a single device;
- Available with various interfaces.
Applications
- Air-conditioning and ventilation systems;
- Climate control in industrial and commercial buildings;
- Duct air measurement;
- Indoor air quality monitoring.
F.Fonseca is the representative of Jumo in Portugal.
