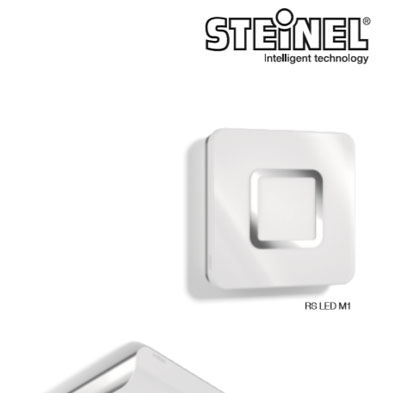

Indoor light RS LED M1 - Steinel

PrintSuggestShareMore info
Tasteful design for indoors.
Tasteful design for indoors. High-quality and, at only 11 watts, extremely energy-efficient RS LED M1 indoor light in stainless-steel or chrome finish. With a 360° high-frequency sensor inside the enclosure (ø 3 - 8 m reach). Light output of 530 lm for classy ambient lighting and perfect illumination in corridors, hallways or stairwells.

more details
Request proposal
Ideal for indoor use on walls and ceilings: the combination of ambient lighting, good illumination and intelligent technology. The new LED indoor lights with integrated highfrequency sensors provide a light output of 530 lumens and are equipped with the latest lighting technology. With a consumption of just eleven watts, the low energy costs will ensure that the master of the house is bright eyed. With optimum illumination and tasteful ambient lighting. The RS LED M1 comes in two design versions.

Features

RS LED M1 stainless steel 033187
RS LED M1 chrome 033194
Dimensions (H x W x D) 200 x 200 x 53 mm
Power supply 220 – 240 V, 50 / 60 Hz
Sensor type high frequency 5.8 GHz with transmission power approx. 1 mW​​​​​​​
Output 11 W
Luminous flux 530 lm
Colour temperature 3000 K / SDCM 3​​​​​​​
Colour rendering Ra ≥ 80​​​​​​​
LED life expectancy 50,000 h (L70B10 to LM80)​​​​​​​
Angle of coverage 360° with 160° angle of aperture​​​​​​​
Reach max. Ø 3 – 8 m, continuously variable​​​​​​​
Response brightness 2 – 2,000 lx​​​​​​​
Time setting 5 sec – 15 min​​​​​​​
IP rating /Protection class IP20/ II​​​​​​​
Material UV-resistant plastic​​​​​​​

Advantages
  • Safety, convenience and energy saving because light comes 'ON' automatically;
  • Extremely rapid response time;
  • Reliable, all-round detection regardless of ambient temperature and direction of movement;
  • Reach, twilight threshold and light 'ON' duration can be set to suit individual needs;
  • Rapid installation: Sensor and light = 1 connection.

Applications
  • Corridors;
  • Hallways;
  • Stairwells.

F.Fonseca is the representative of Steinel in Portugal.
