The perfect cylinder sensor for standard applications.

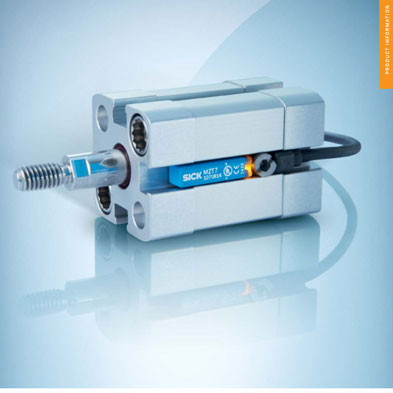

The MZT7/RZT7 magnetic cylinder sensor from SICK with GMR technology enables quick, precise and contactless sensing of the piston’s position in compact pneumatic cylinders. It is easy to mount, can be used in numerous applications and offers an outstanding price-performance ratio.

more details

Downloads

Request Offer

The MZT7/RZT7 can be mounted directly into all cylinders with standard T-slots. SICK also has an extensive range of adapters which enable the MZT7/RZT7 to be used with other cylinder types. The MZT7/RZT7 magnetic cylinder sensor is characterized by its simple mounting principle: insert the sensor into the slot and rotate the locking screw a quarter turn to fix it securely to the cylinder.

Features

Can be used in all standard cylinders, linear slides, and grippers using the T-slot and – with the help of adapters – in round rod, tie-rod, profile cylinders, and cylinders with a dovetail groove;
Drop-in mounting from above simplifies handling and assembly;
Locking screw combines an Allen key and slotted screw;
LED for indicating the output state (depending on type);
Enclosure rating: IP67;
Supply voltage up to 230 V.

Advantages

A sensor for a wide range of applications: the sensor design fits into all standard T-slots used around the world, regardless of the cylinder profile;
Simple mounting: thanks to the retaining ribs on the side, the sensor holds its position even before the screw is tightened, ensuring that it does not fall out;
Fast mounting: the sensor is fixed quickly and securely in the slot simply by rotating the fixing screw a quarter turn;
The rugged fixing screw holds the sensor in the required position, even when exposed to shock and vibration;
It is easy to replace the sensor during servicing without removing the end caps.
