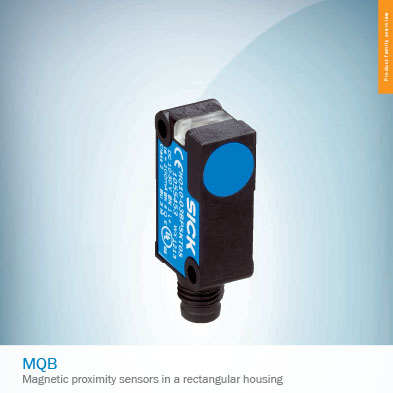

Magnetic sensors MQB - SICK

The MQB magnetic proximity sensors from SICK reliably detect permanent magnets through non-magnetic materials such as stainless steel, aluminum, plastic or wood.

The MQB sensors from SICK, feature a square, compact plastic housing that makes them easy to install. These sensors are resistant to dust, heat and vibration, making them ideal for use in harsh environments.

more details
Downloads
Request Offer
Features
  • Type: 10 mm x 28 mm x 16 mm;
  • Sensing ranges: up to 60 mm;
  • Electrical configuration: DC, 3-wire;
  • Enclosure rating: IP67;
  • Temperature range: –25 °C to +75 °C;
  • Tough VISTAL™ housing;
  • Reliable detection of permanent magnets through non-ferromagnetic materials such as stainless steel, aluminum, plastic or wood;
  • Solves high-temperature applications by installing the permanent magnet in the high-temperature area and the sensor behind an insulated area.

Advantages
  • Short-circuit protection (pulsed);
  • Large sensing ranges ensure reliable switching, even with target position tolerances;
  • Low-cost sensor solution saves installation time and costs;
  • Compact plastic housing makes machine integration easy.

Applications
  • Machines and motion.

F.Fonseca is the representative of SICK in Portugal.
