Process, Instrumentation & Environment
Micro calibration baths OBM/OBM-LT - Kambič

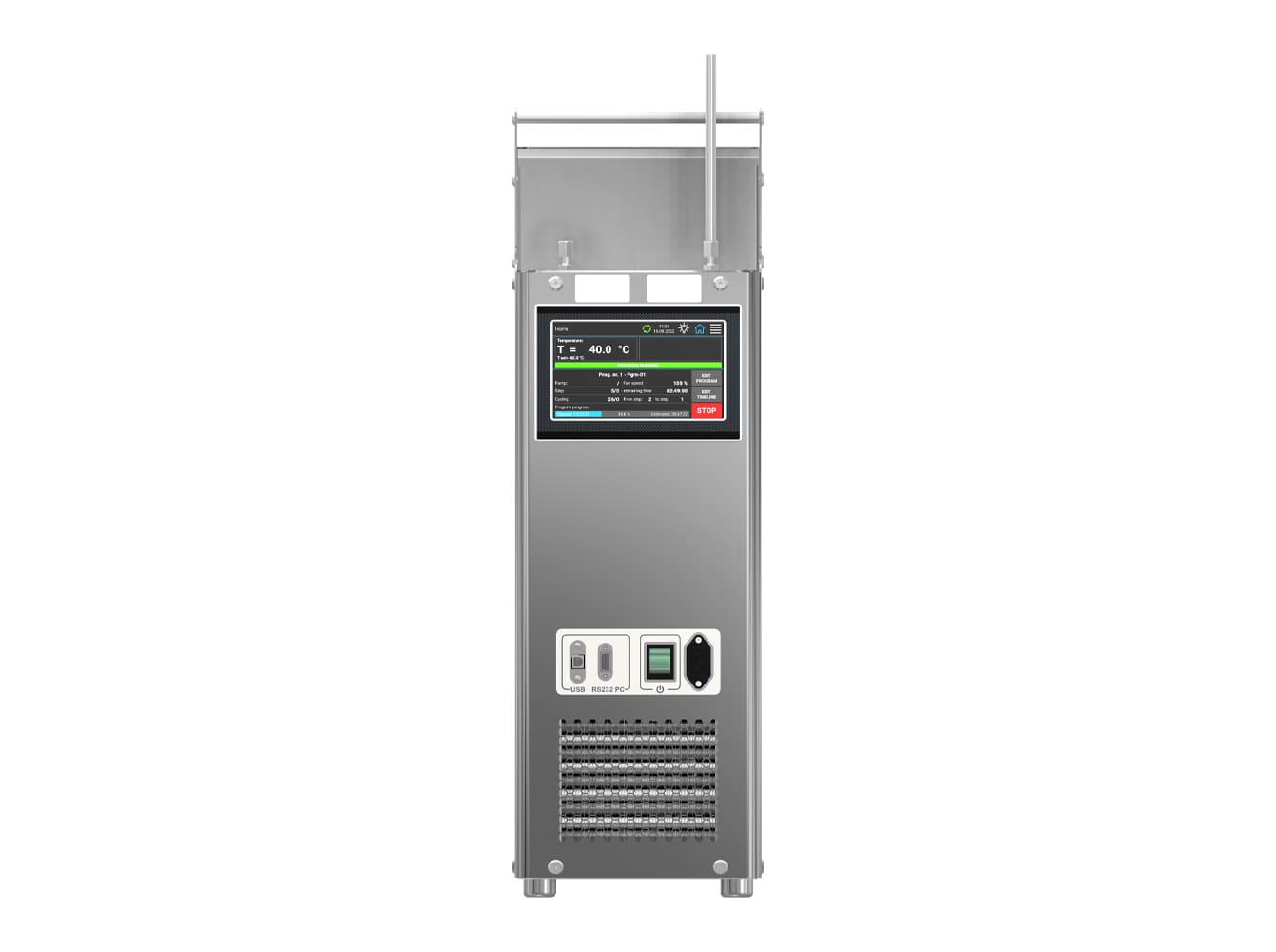

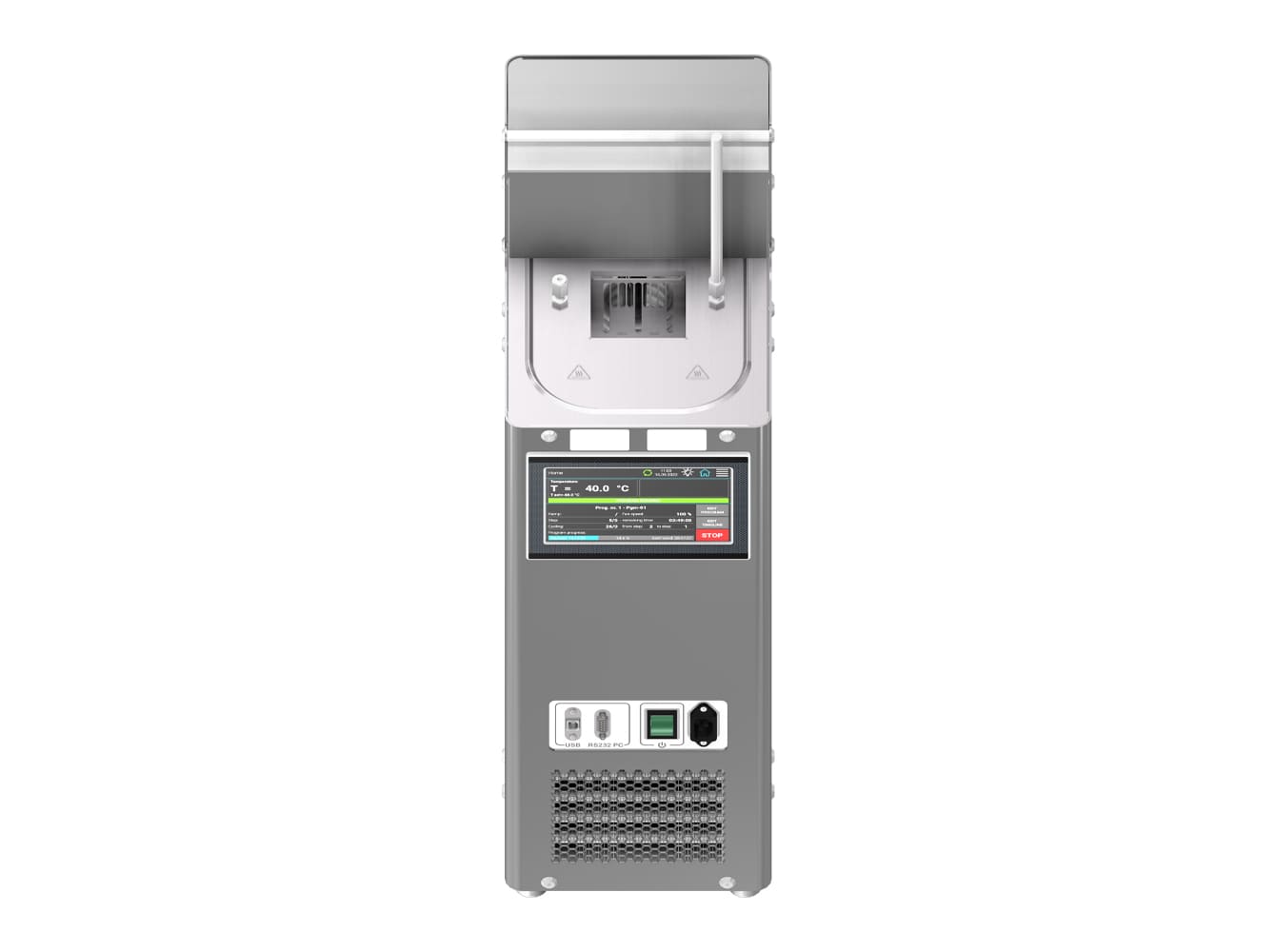

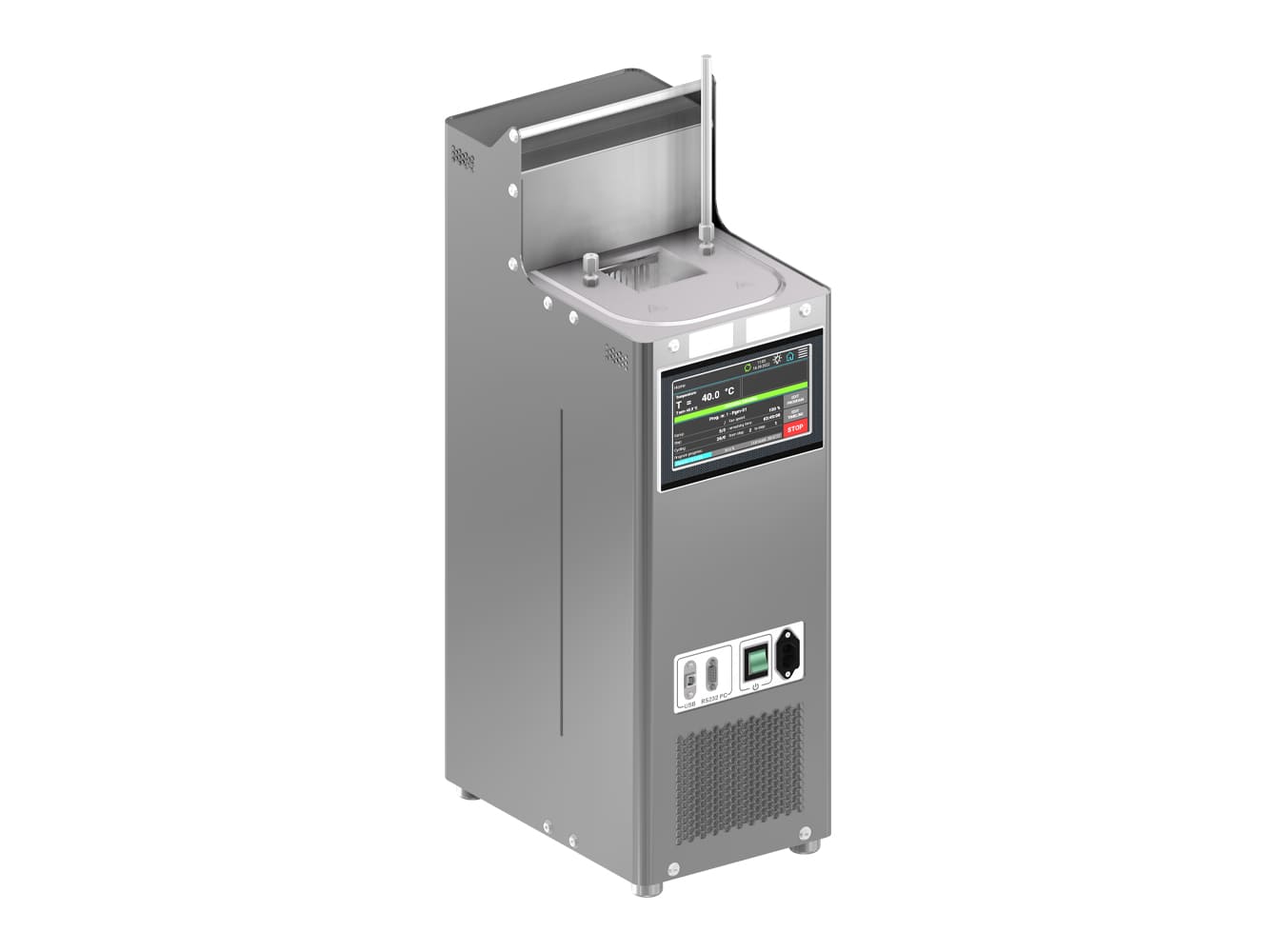

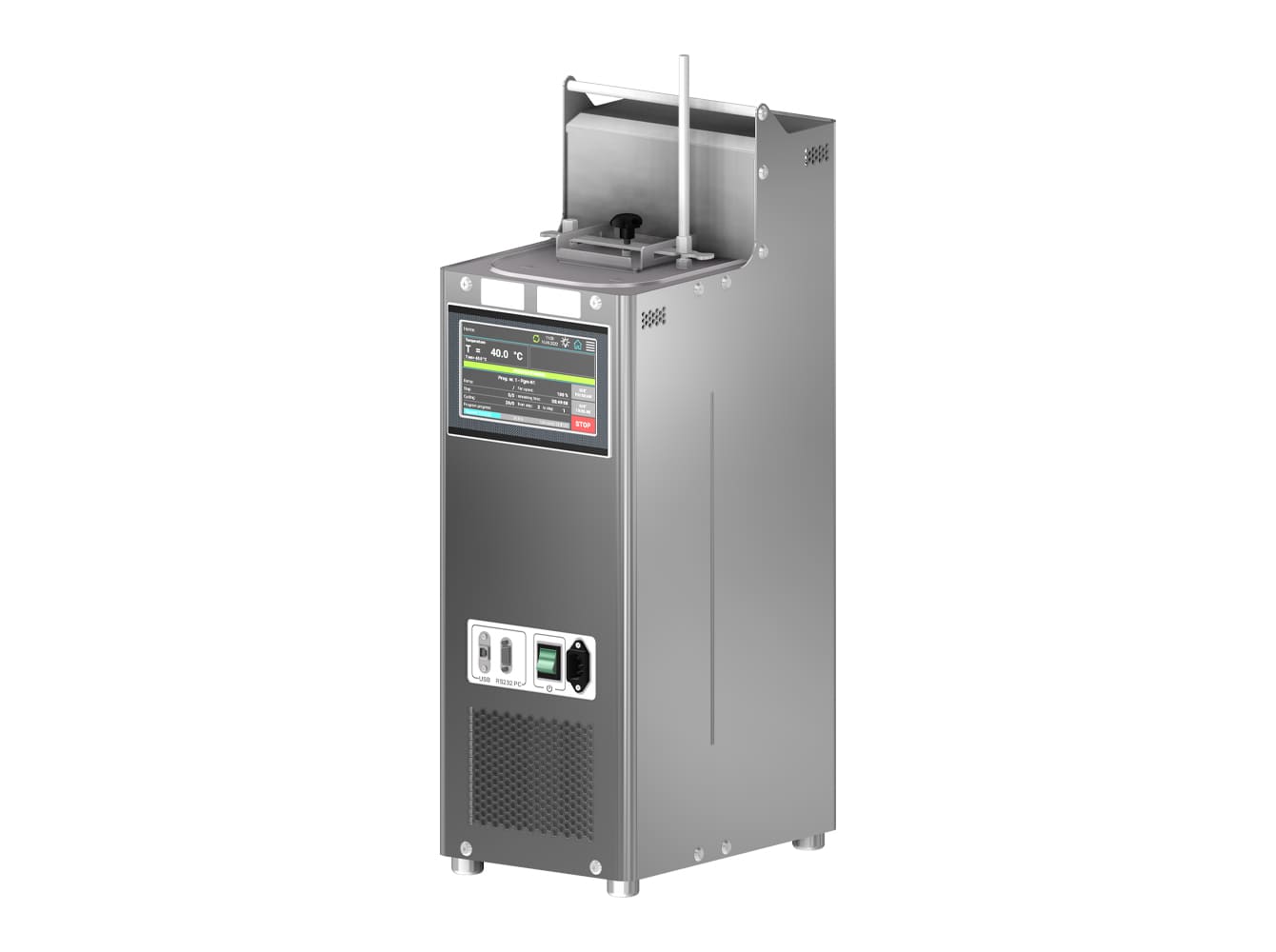

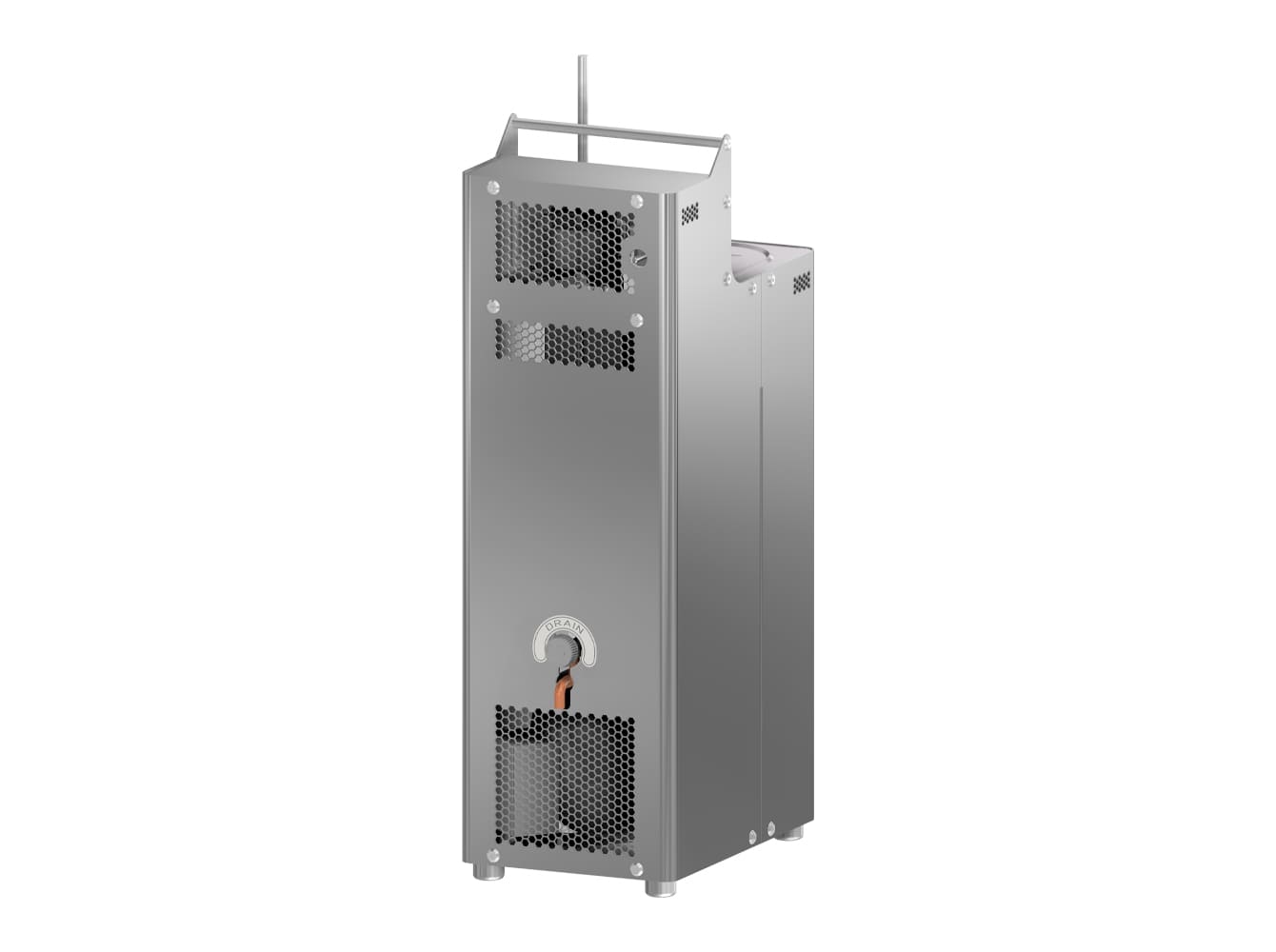

The Kambič OBM and OBM-LT micro calibration baths are portable fluid calibration baths for temperature sensors, probes and instruments. The range includes two models: OBM, for +35 °C to +220 °C, and OBM-LT, for -35 °C to +130 °C. Fluid calibration provides efficient heat transfer, while the vertical flow design contributes to thermal stability and uniformity at mK level.
more details

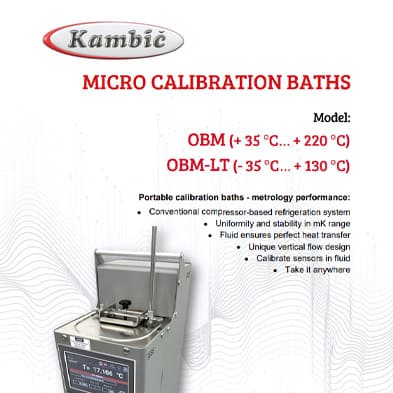

Downloads
Request Offer
Features
Advantages
Applications
F.Fonseca is the representative of Kambič in Portugal.
- Conventional compressor-based refrigeration system;
- Uniformity and stability in mK range;
- Fluid ensures perfect heat transfer;
- Unique vertical flow design;
- Calibrate sensors in fluid;
- Portable;
- Two models available: OBM (+35 °C ... +220 °C) and OBM-LT (-35 °C ... +130 °C);
- Working chamber of 80 x 290 x 80 mm and approximate volume of 4 L;
- Temperature display resolution of 0.001 °C and setting resolution of 0.01 °C;
- PID controller with 7” capacitive touchscreen, Ethernet and USB interface;
- OB-Tool software included for remote control, real-time data visualisation and process history;
- Interior and wetted parts in AISI 304 stainless steel; exterior in powder-coated aluminium;
- Power supply: 230 V, 50/60 Hz, ±10%. Power: 300 W for OBM and 650 W for OBM-LT;
- Approximate weight: 19 kg for OBM and 23 kg for OBM-LT.
Advantages
- Enables sensors to be calibrated directly in fluid, with efficient thermal transfer between the bath and the device under calibration;
- Thermal stability and uniformity support tests and calibrations with higher operational repeatability;
- Portable format, suitable for laboratory calibration, technical bench use, or field interventions;
- The 7” touchscreen controller and OB-Tool software reduce dependence on continuous local operation and facilitate data collection;
- The construction with AISI 304 stainless steel wetted parts supports durability and cleanability in laboratory or industrial use;
- The two temperature ranges cover low-temperature applications and higher positive temperature applications, depending on the selected model.
Applications
- Chemical, process, energy, water and environmental sectors, for verification of temperature instrumentation;
- Food and beverage industry, in processes where temperature measurement is critical;
- Metrology and calibration laboratories;
- Pharmaceutical industry, biotechnology and regulated laboratories, where compatible temperature sensors need to be calibrated;
- Quality, validation and industrial maintenance departments;
- Research, development and testing of sensors or thermal systems.
F.Fonseca is the representative of Kambič in Portugal.
