Process, Instrumentation & Environment

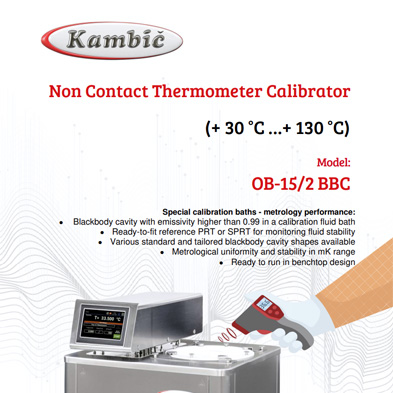

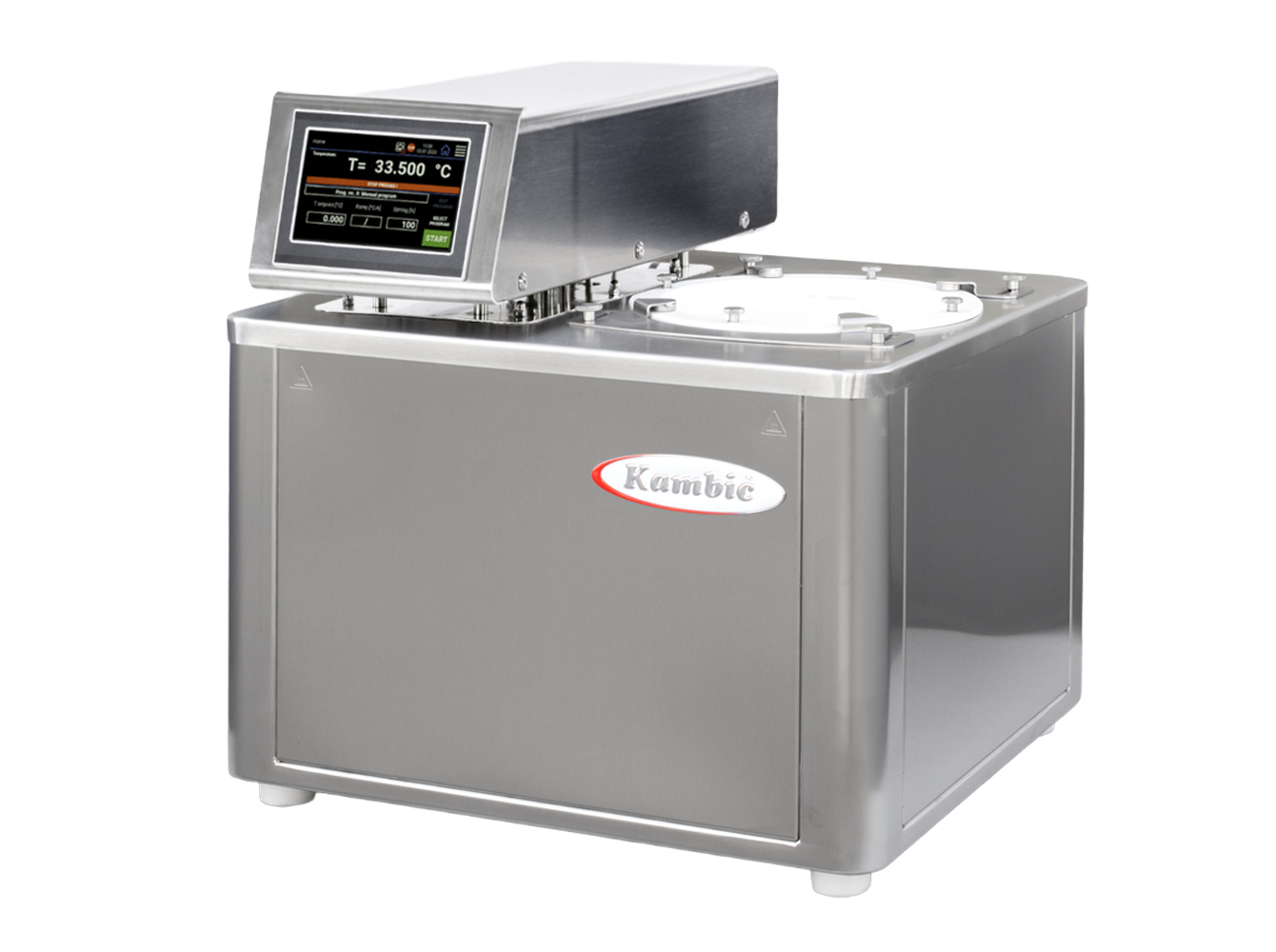

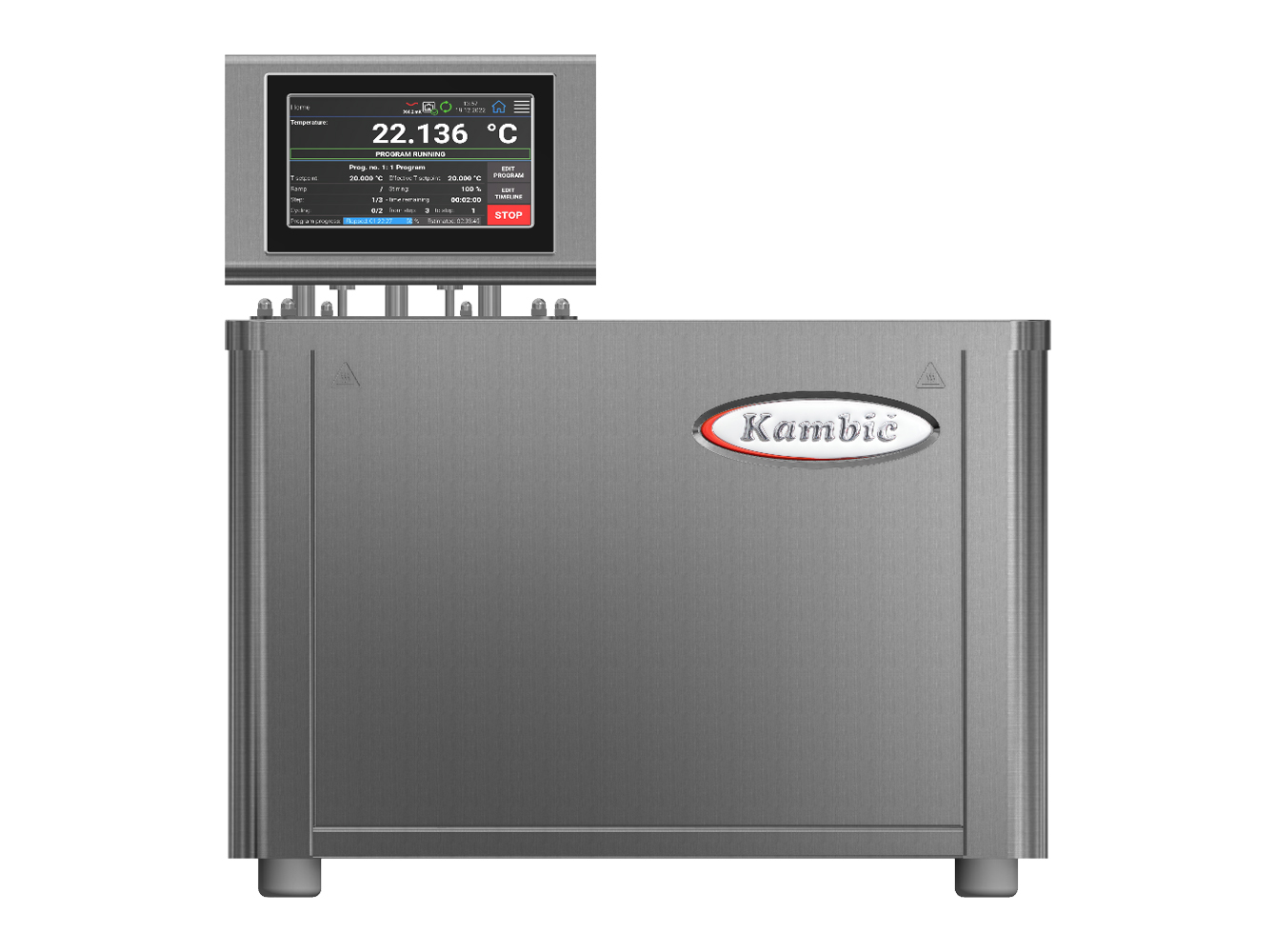

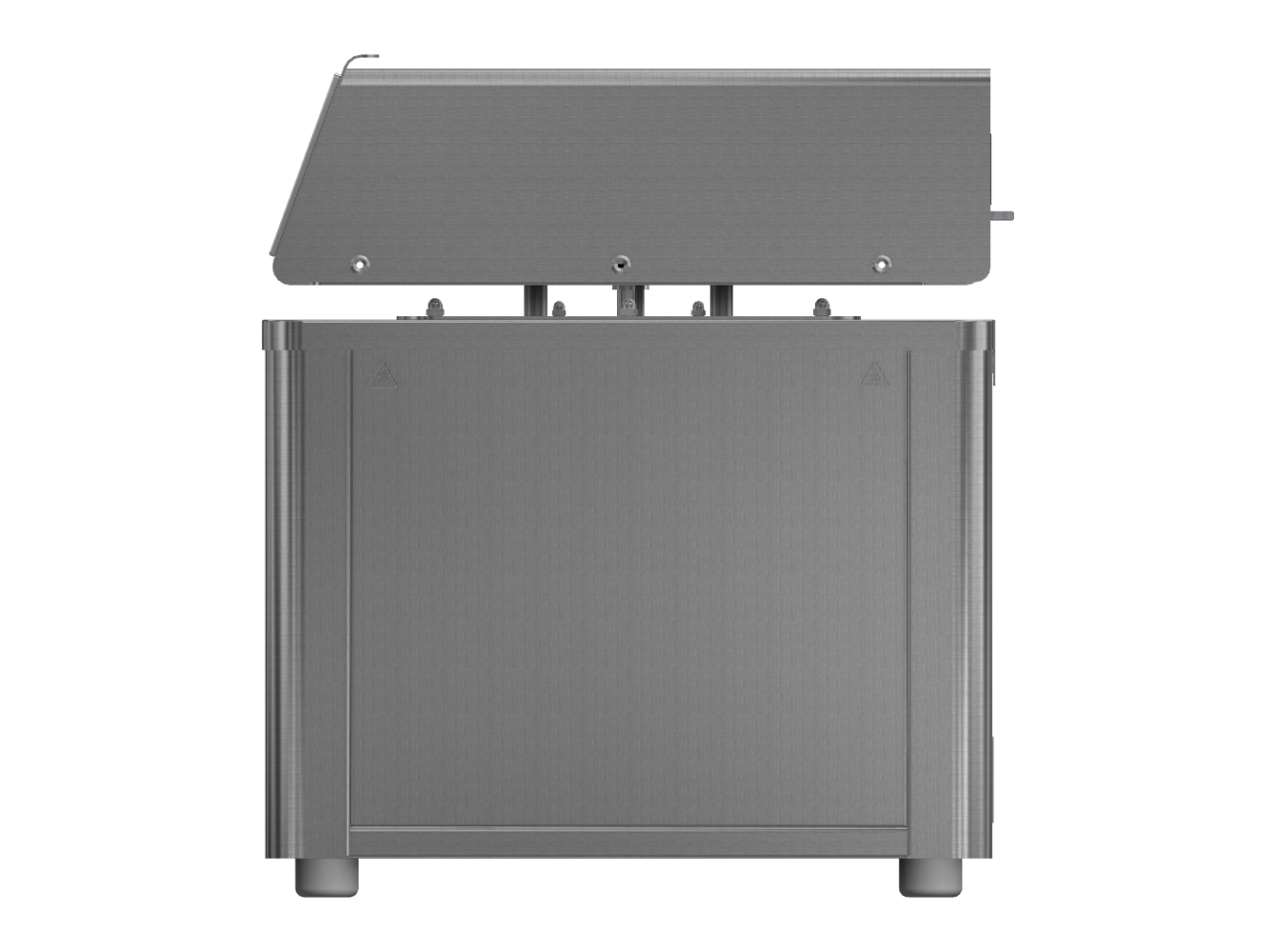

OB-15/2 BBC non-contact thermometer calibrator - Kambič
The Kambič OB-15/2 BBC is a benchtop non-contact thermometer calibrator designed for the calibration and verification of non-contact thermometers using a blackbody cavity immersed in a controlled calibration fluid bath. The system combines high-emissivity blackbody reference geometry, PID-controlled fluid bath stability and dedicated monitoring options for metrology applications requiring stable and uniform reference conditions.
more details
Downloads
Request Offer
Features
Advantages
Applications
Typical application areas, based on the product function and technical specification:
F.Fonseca is the representative of Kambič in Portugal.
- Blackbody cavity with emissivity higher than 0.99 in a calibration fluid bath.
- 15 L working chamber with 270 mm immersion depth.
- Special double-cylinder design with vertical flow across the entire working volume.
- Stainless-steel exterior and interior in AISI 304 SB with rounded corners.
- 7-inch capacitive touchscreen controller with user-friendly interface, advanced settings and status feedback.
- Ethernet and USB communication ports.
- OB-Tool PC software included for virtual control, real-time graphing and process history overview.
- Ready-to-fit reference PRT or SPRT for monitoring fluid stability.
- Insulation cover with pre-drilled holes for vertical fixture and temperature probe insertion.
- Overflow drain with catch pot, rear fluid drain valve and over-temperature shut-off device.
- Various standard and tailored blackbody cavity shapes available, including ASTM, JIS T, CEN EN, CN, EXERGEN and combo configurations.
Advantages
- High stability and uniformity in the mK range support repeatable calibration conditions for non-contact thermometer verification;
- The fluid bath configuration improves heat transfer to the blackbody cavity, supporting stable reference conditions during calibration cycles;
- The benchtop design reduces installation complexity and supports laboratory integration without a dedicated floor-standing system;
- Touchscreen operation and OB-Tool software simplify local and remote operation, data visualisation and process review;
- Reference PRT/SPRT monitoring enables independent observation of bath stability during metrology procedures;
- Configurable blackbody cavity geometries allow adaptation to different thermometer standards, probe alignments and calibration setups;
- Stainless-steel construction, insulation and over-temperature protection support durability and safer operation in laboratory environments.
Applications
Typical application areas, based on the product function and technical specification:
- Healthcare equipment verification and service laboratories;
- Industrial quality assurance departments using infrared or non-contact temperature measurement;
- Maintenance and technical service providers for non-contact thermometers and IR temperature devices;
- Medical device manufacturing and quality control;
- Metrology and calibration laboratories;
- Pharmaceutical and life sciences laboratories requiring controlled temperature verification;
- Research and development laboratories working with thermal measurement, validation or testing.
F.Fonseca is the representative of Kambič in Portugal.
