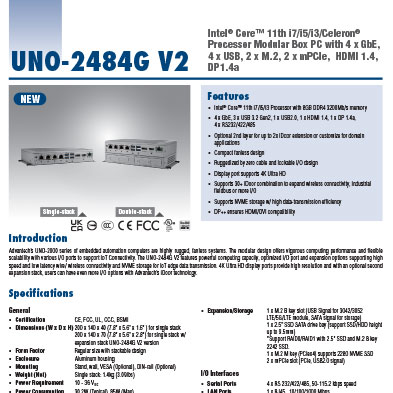

Modular Embedded Box PC with 11th Gen Intel® Core™ i CPU UNO-2484G V2 - Advantech

UNO-2000 box pc series serves as IoT automation gateways, offering flexible configurations with iDoor expandability and stackable modular design.
Advantech’s UNO-2000 series of embedded automation computers are highly rugged, fanless systems. The modular design offers vigorous computing performance and flexible
scalability with various I/O ports to support IoT Connectivity.
more details
Request Offer
The 4K Ultra HD display ports provide high resolution and with an optional second expansion stack, users can have even more I/O options with Advantech’s iDoor technology.
  • Intel® Core™ 11th i7/i5/i3 Processor with 8GB DDR4 3200Mb/s memory;
  • 4x GbE, 3x USB 3.2 Gen2, 1x USB2.0, 1x HDMI 1.4, 1x DP 1.4a, 4x RS232/422/485;
  • Optional 2nd layer for up to 2x iDoor extension or customize for domain applications;
  • Compact fanless design;
  • Ruggedized by zero cable and lockable I/O design;
  • Display port supports 4K Ultra HD;
  • Supports NVME storage w/ high data-transmission efficiency.
  • Diverse system I/O and Isolated Digital I/O by iDoor Technology eliminating the cost of remote I/O modules;
  • 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology allowing internet access in order to be able to send the data to the Cloud without using any cables;
  • The UNO-2484G V2 features powerful computing capacity, optimized I/O port and expansion options supporting high speed and low latency wire/ wireless connectivity and NVME storage for IoT edge data transmission.
  • Any kind of industry that can use a PC as a controller for monitoring the plant or to control a specific machine;
  • Any kind of process that needs HMI interaction in kiosk, merchandising, public services, publicity, among others.

F.Fonseca is the representative of Advantech in Portugal.
