MZC1 magnetic cylinder sensor - SICK

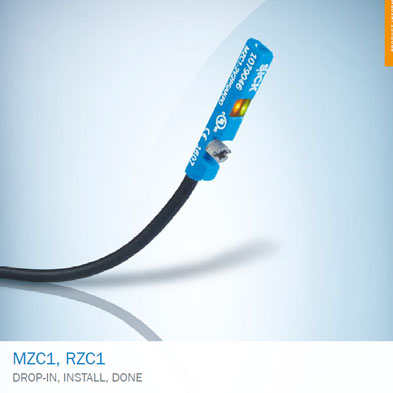

The MZC1 magnetic cylinder sensor from SICK is the flexible solution for detecting the piston position in pneumatic actuators. The MZC1 can be mounted directly into all cylinders with standard C-slots.

Sick also has an extensive range of adapters which enable the MZC1 to be used with other cylinder types. The MZC1 is characterized by its simple mounting principle: Insert the sensor into the slot and rotate the fixing screw a quarter turn to fix it securely to the cylinder. Furthermore, the MZC1 is available in a range of variants up to an enclosure rating of IP69K. This ensures the sensor has a long service life and reduces maintenance costs.

more details

Downloads

Request Offer

Features

Can be used in all standard cylinders, linear slides, and grippers using the C-slot and – with the help of adapters – in round rod, tie-rod, and profile cylinders;
Drop-in mounting from above simplifies handling and assembly;
Locking screw combines an Allen key and slotted screw;
LED for indicating the output state;
Enclosure ratings: IP67, IP68, IP69K.

Advantages

A sensor for a wide range of applications: The sensor design fits into all standard C-slots used around the world, regardless of the cylinder profile or make;
Quick and easy mounting using an Allen key or flat-head screwdriver;
Low maintenance costs as the sensor is resistant to shock and vibration, meaning it does not slide about in the slot;
Saves time on initial installation and when replacing devices as the sensor can be easily inserted into the slot from above. The end caps of the cylinder do not have to be removed;
Very rugged housing with enclosure rating IP67, IP68, or IP69K extends the service life of the sensor.
