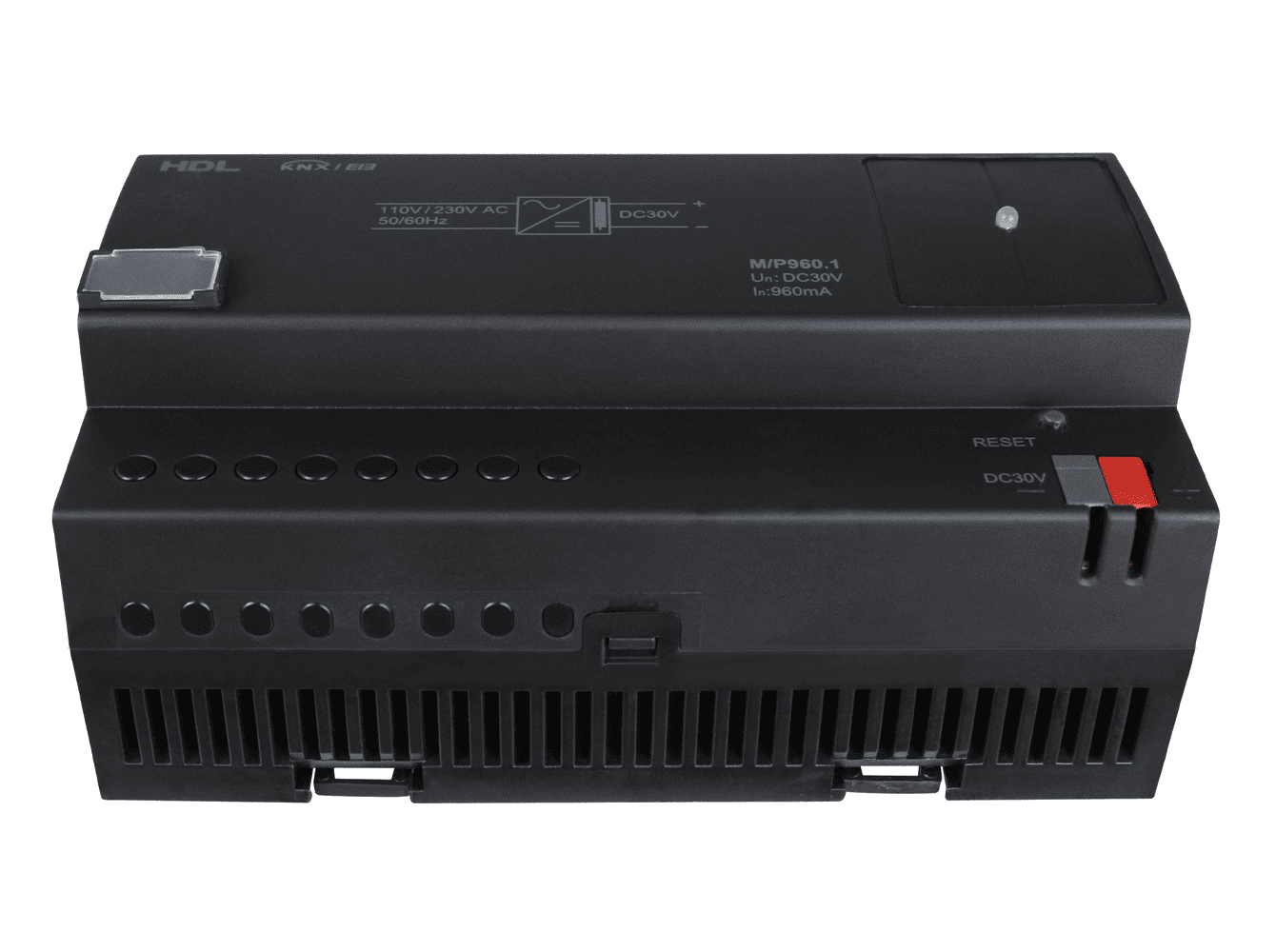

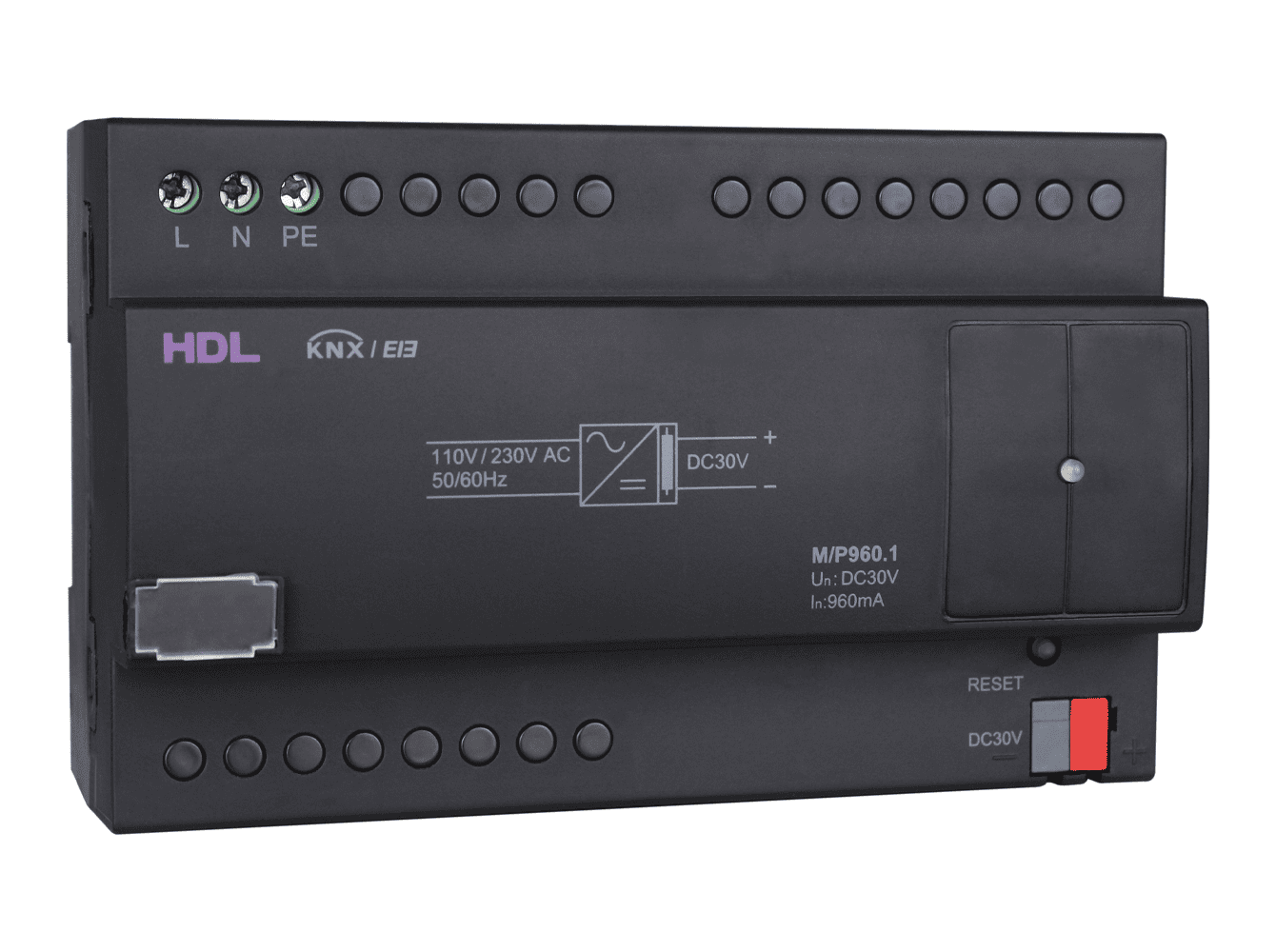

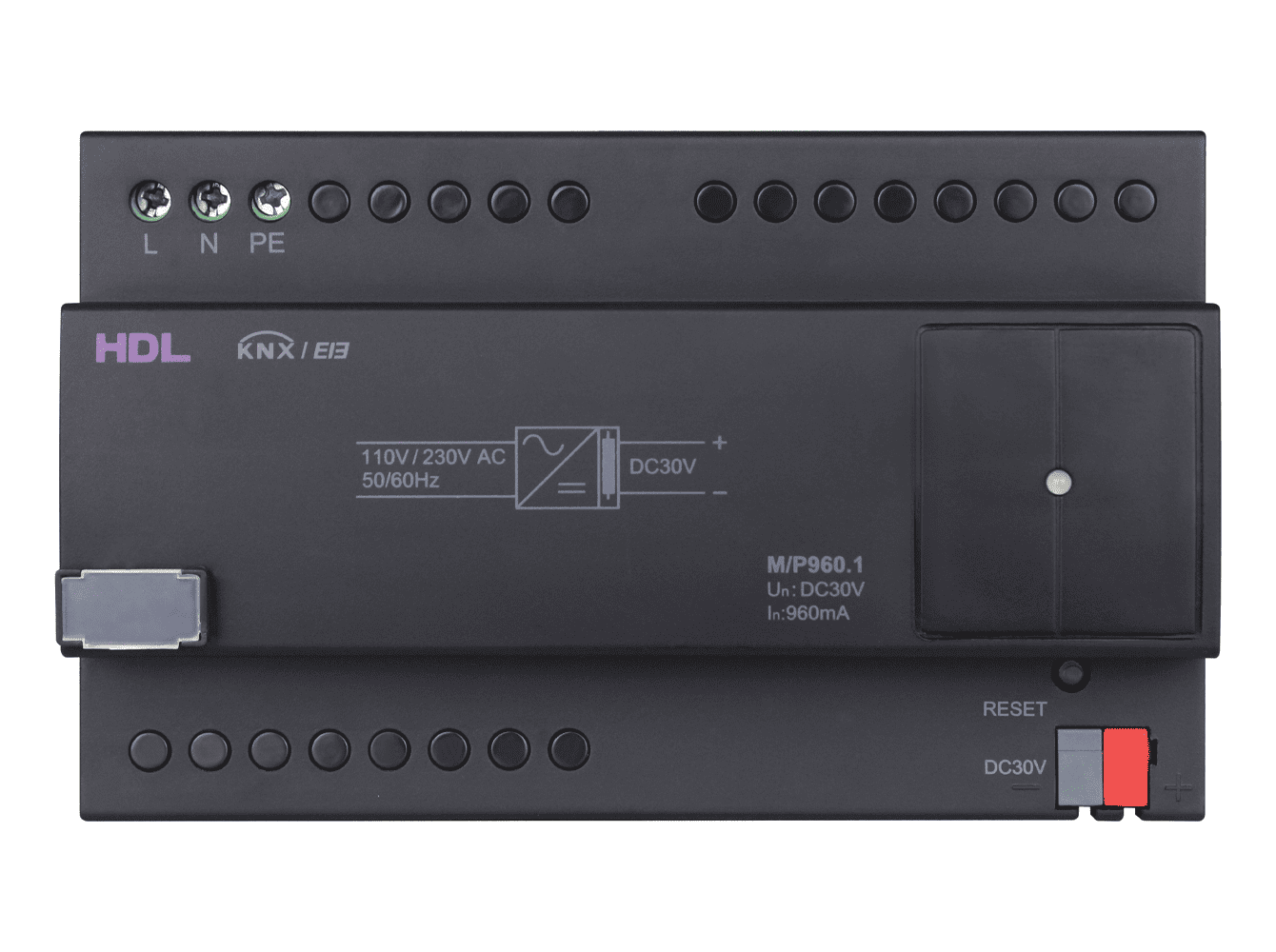

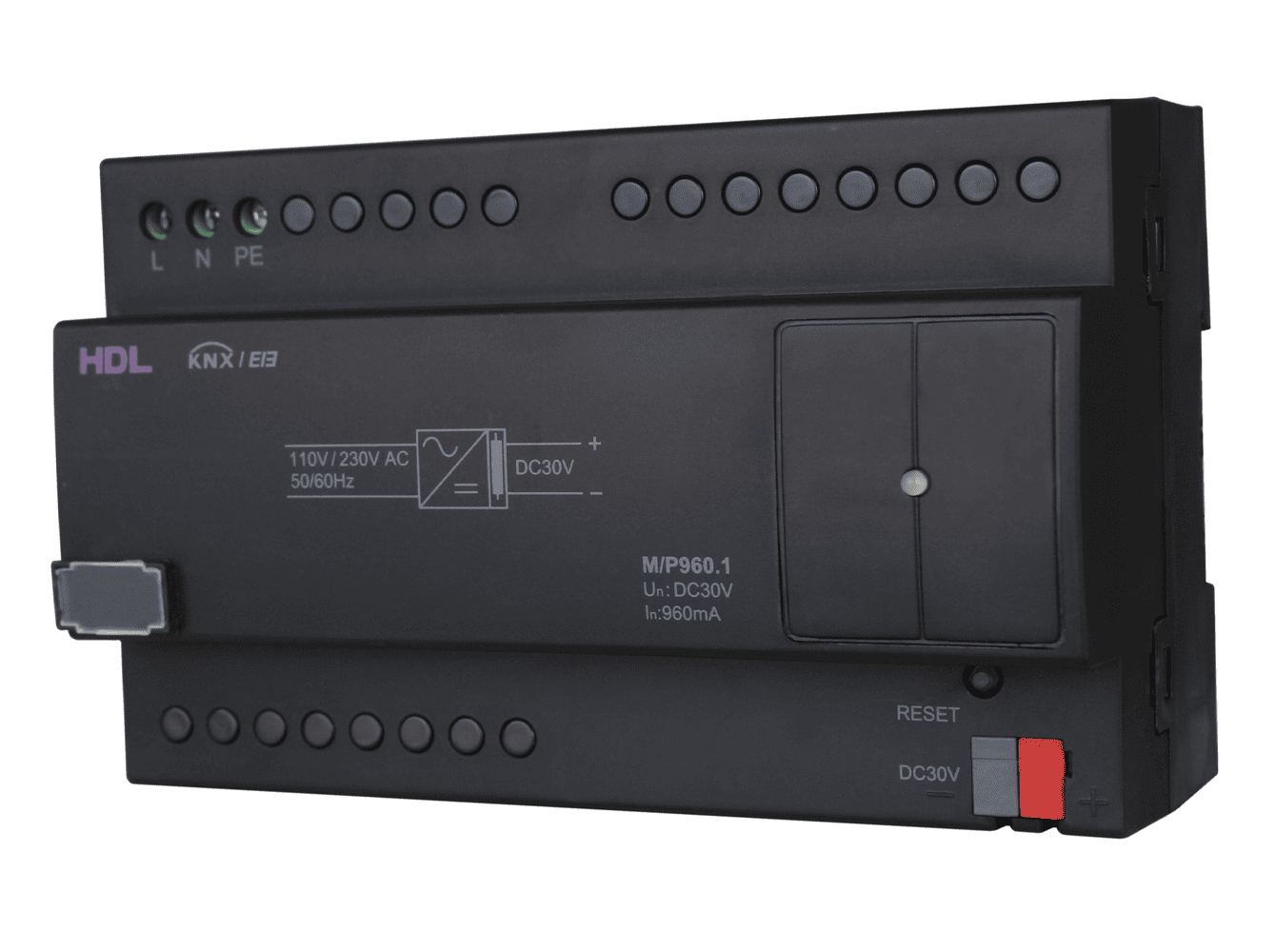

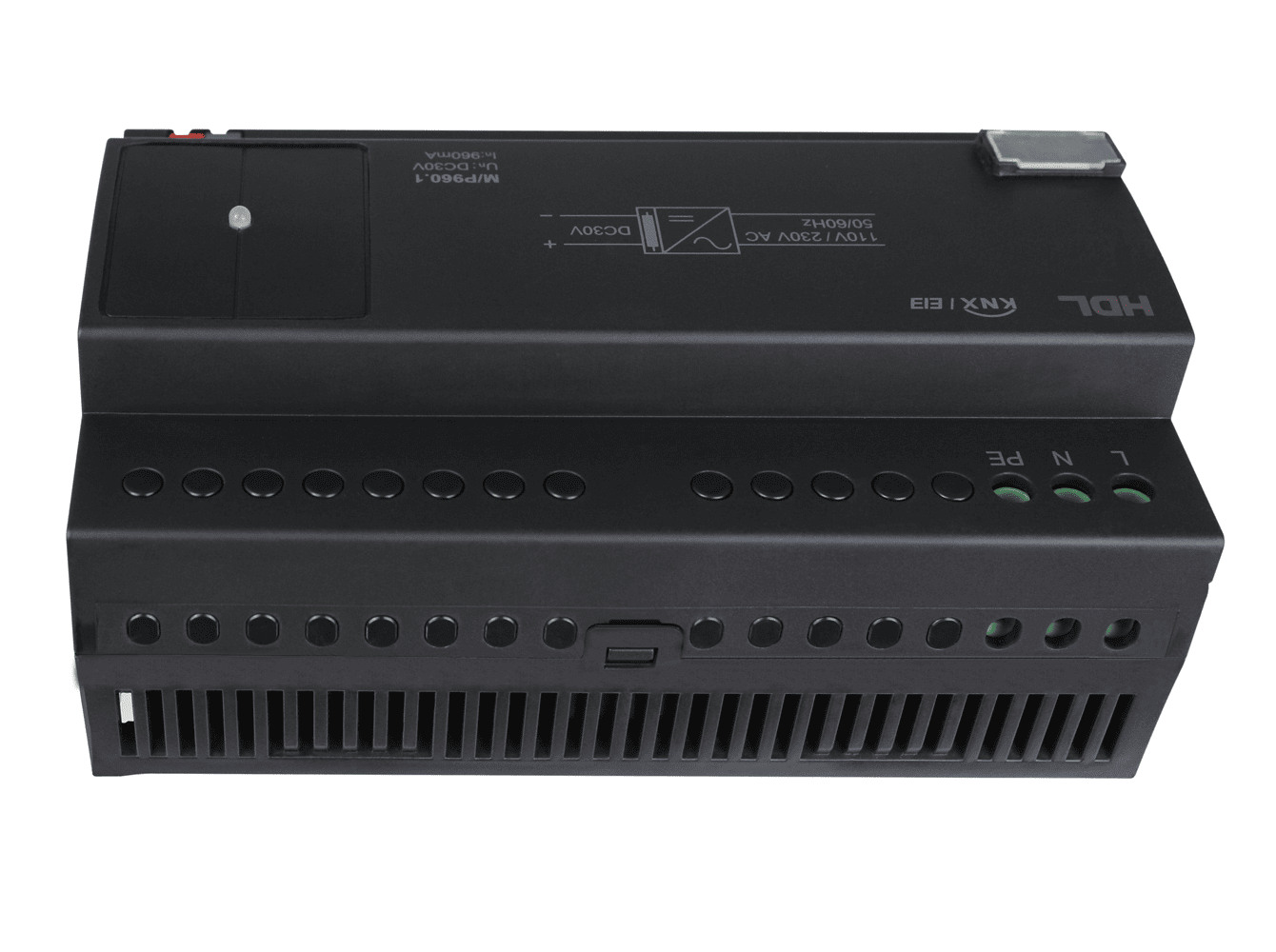

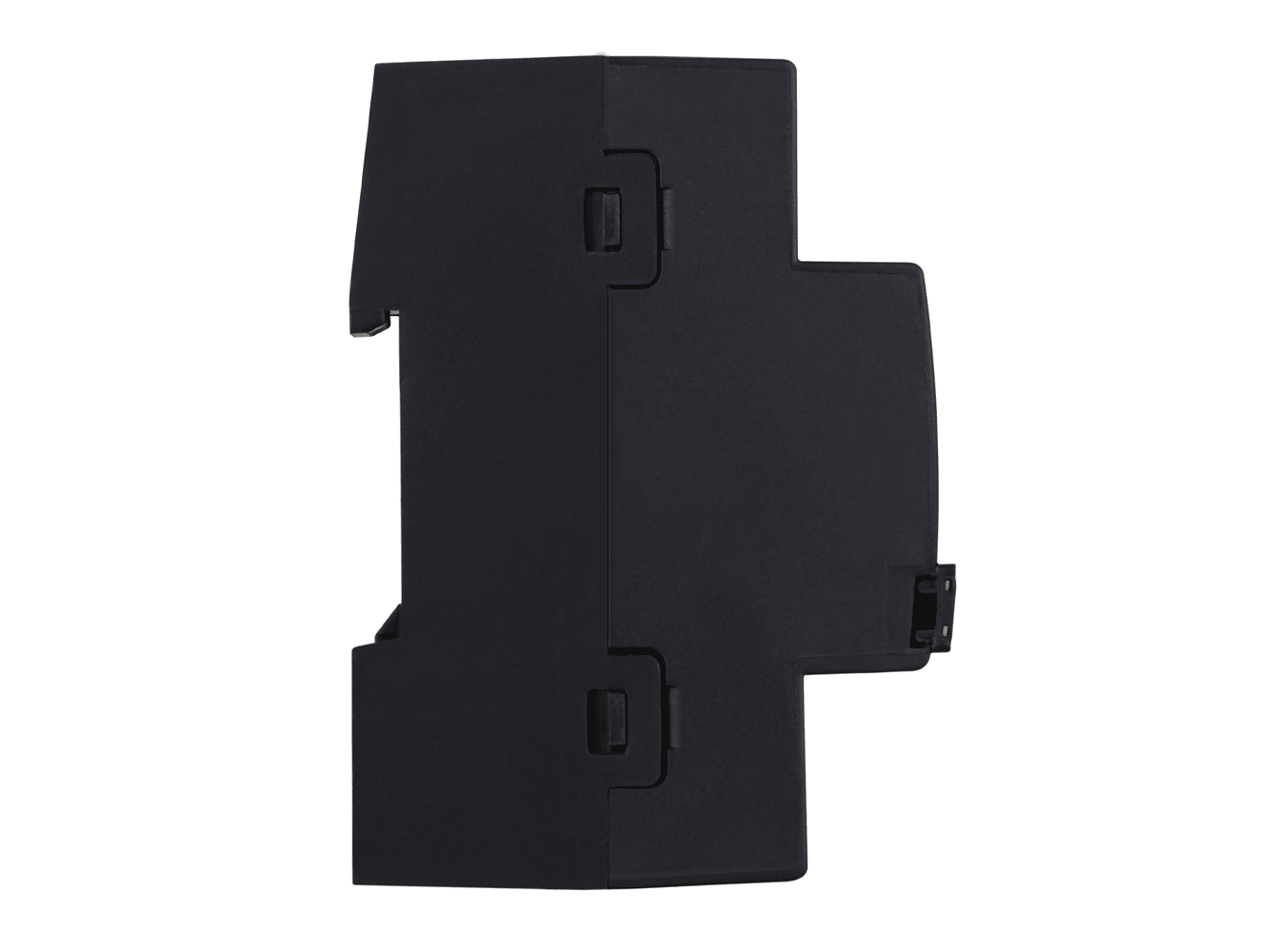

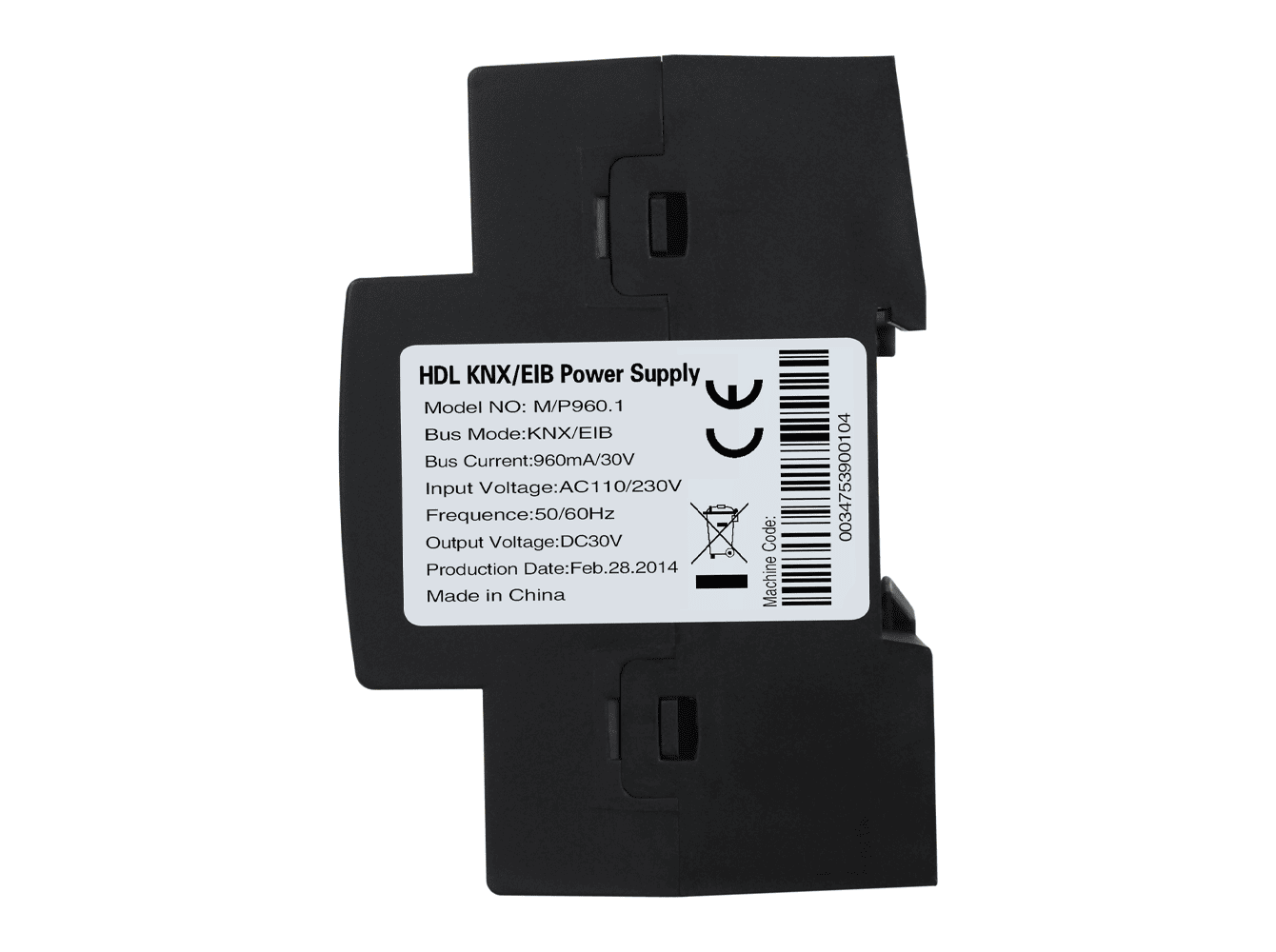

Power supply module KNX 960mA - HDL Automation

The KNX 960mA Power supply module from HDL is fully compliant with European safety standards and KNX standard protocol. It can provide up to 960mA current to KNX/EIB bus.

more details

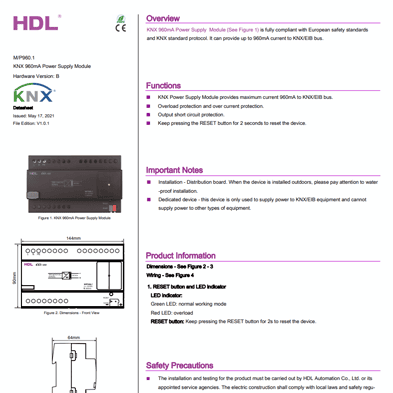

Downloads
Request Offer
Features
  • Input voltage AC100-240V(50/60Hz);
  • Output voltage 30V DC;
  • Output current 960mA;
  • Communication KNX;
  • Power loss < 20%;
  • Power on time <2s<>;
  • User controls Button reset EIB;
  • Green LED Output normal;
  • Red LED Overload (I> Imax);
  • Cable diameter of KNX terminal 0.6 – 0.8mm;
  • Working temperature -5℃~45℃;
  • Working relative humidity ≤90%;
  • Storage temperature -20℃~60℃;
  • Storage relative humidity ≤93%;
  • Dimensions 144mm×90mm×64mm;
  • Net weight 390g;
  • Housing material Nylon;

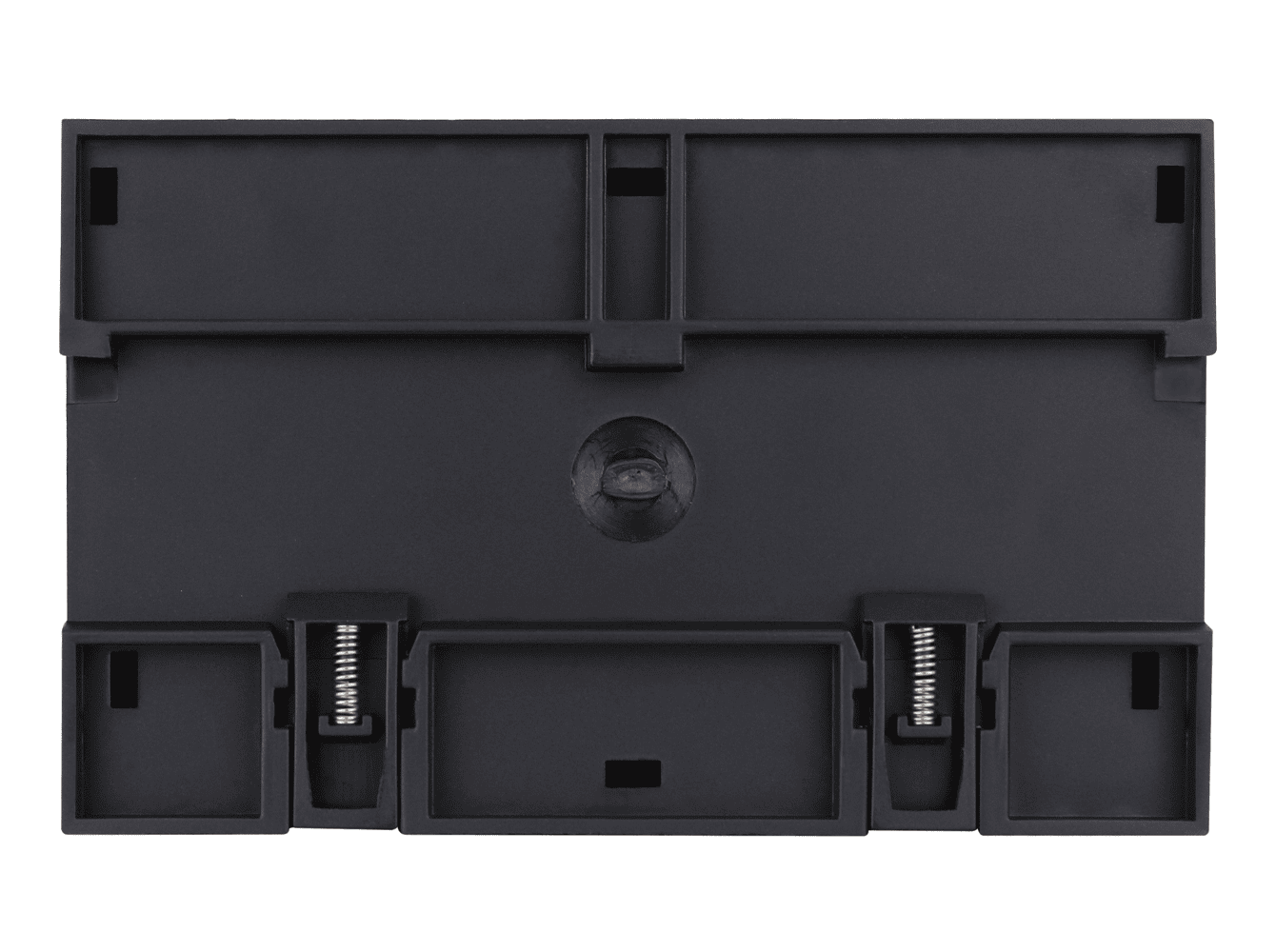

  • 35mm DIN rail installation;
  • Protection rating (Compliant with EN 60529) IP20;
  • Maximum current of 960mA to KNX/EIB bus;
  • Overload protection and over current protection;
  • Output short circuit protection.

Advantages
  • Ensures stable KNX bus operation and communication reliability;
  • Protects connected devices against electrical faults;
  • Reduces downtime and maintenance interventions;
  • Enables fast local recovery through manual reset;
  • Suitable for medium-sized KNX installations (up to 960 mA load capacity).

Applications
  • Building Management Systems (BMS);
  • Commercial and residential installations;
  • HVAC integration in KNX environments;
  • Intelligent lighting control;
  • KNX-based building automation systems;
  • Shading and blind control systems.

F.Fonseca is distributor of HDL Automation in Portugal.
