Building Technologies

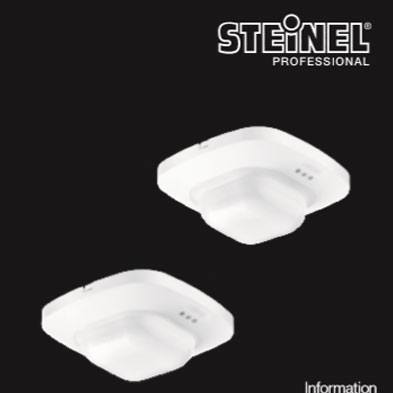

Presence detector IR Quattro - STEINEL
More than a presence detector. Squaring the circle.
Infrared presence detector Presence Control PRO IR Quattro COM1 for indoors, ideal for small offices, store, service and utility rooms, washrooms and WCs, installation height up to 8 m, for switching light 'ON' and 'OFF', 1760 switching zones for excellent detection quality, square presence detection zone covering 16 m2, mechanically scalable.
Infrared presence detector Presence Control PRO IR Quattro COM1 for indoors, ideal for small offices, store, service and utility rooms, washrooms and WCs, installation height up to 8 m, for switching light 'ON' and 'OFF', 1760 switching zones for excellent detection quality, square presence detection zone covering 16 m2, mechanically scalable.
more details
Downloads
Request Offer
Providing 1,760 switching zones, its sets new standards in detection quality especially in smaller-type offices, store rooms, service rooms, utility rooms and wash rooms. And the square detection zone too can be mechanically scaled without any loss of quality - a capability that's exclusive to STEINEL Professional Presence Control PRO.
Features
COM1 UP (concealed) 000349
COM1 AP (surface mounted) 592301
COM2 000356
DALI 002749
DIM 002718
KNX 008772
Dimensions (H x W x D) UP 120 x 120 x 76 mm
Dimensions (H x W x D) AP 120 x 120 x 71 mm
Sensor type passive infrared
Installation indoors/ ceiling
Recommended installation height 2.5 - 8 m
Square detection zone, presence max. 4 x 4 m (16 m²)
Square detection zone, radial max. 5 x 5 m (25 m²)
Square detection zone, tangential max. 7 x 7 m (49 m²)
Sensor system 13 detection levels, 1760 switching zones
Parallel-connected configurations master/master, master/slave
User-friendly setting teach-In (with optional remote control RC8)
Twilight setting 10 – 1000 lx
Twilight setting DIM 100 – 1000 lx
IP rating with AP Box (from accessories) IP20/IP54
Enclosure UV-resistant, paintable
Advantages
Applications
F.Fonseca is the representative of STEINEL in Portugal.
Features
COM1 UP (concealed) 000349
COM1 AP (surface mounted) 592301
COM2 000356
DALI 002749
DIM 002718
KNX 008772
Dimensions (H x W x D) UP 120 x 120 x 76 mm
Dimensions (H x W x D) AP 120 x 120 x 71 mm
Sensor type passive infrared
Installation indoors/ ceiling
Recommended installation height 2.5 - 8 m
Square detection zone, presence max. 4 x 4 m (16 m²)
Square detection zone, radial max. 5 x 5 m (25 m²)
Square detection zone, tangential max. 7 x 7 m (49 m²)
Sensor system 13 detection levels, 1760 switching zones
Parallel-connected configurations master/master, master/slave
User-friendly setting teach-In (with optional remote control RC8)
Twilight setting 10 – 1000 lx
Twilight setting DIM 100 – 1000 lx
IP rating with AP Box (from accessories) IP20/IP54
Enclosure UV-resistant, paintable
Advantages
- Unique square-shaped detection zone;
- All the main connection options (relay, 2 outputs, DALI, DIm, KNX);
- Master-master/master-slave systems;
- All products in one and the same design;
- Pushbutton/switch input for semi-automatic operation;
- Constant-light function, permanent light 'OFF' function;
- Can be remotely controlled.
Applications
- Office buildings;
- Commercial spaces;
- Hospitals;
- Schools;
- Airports;
- Hotels;
- Industrial buildings.
F.Fonseca is the representative of STEINEL in Portugal.
