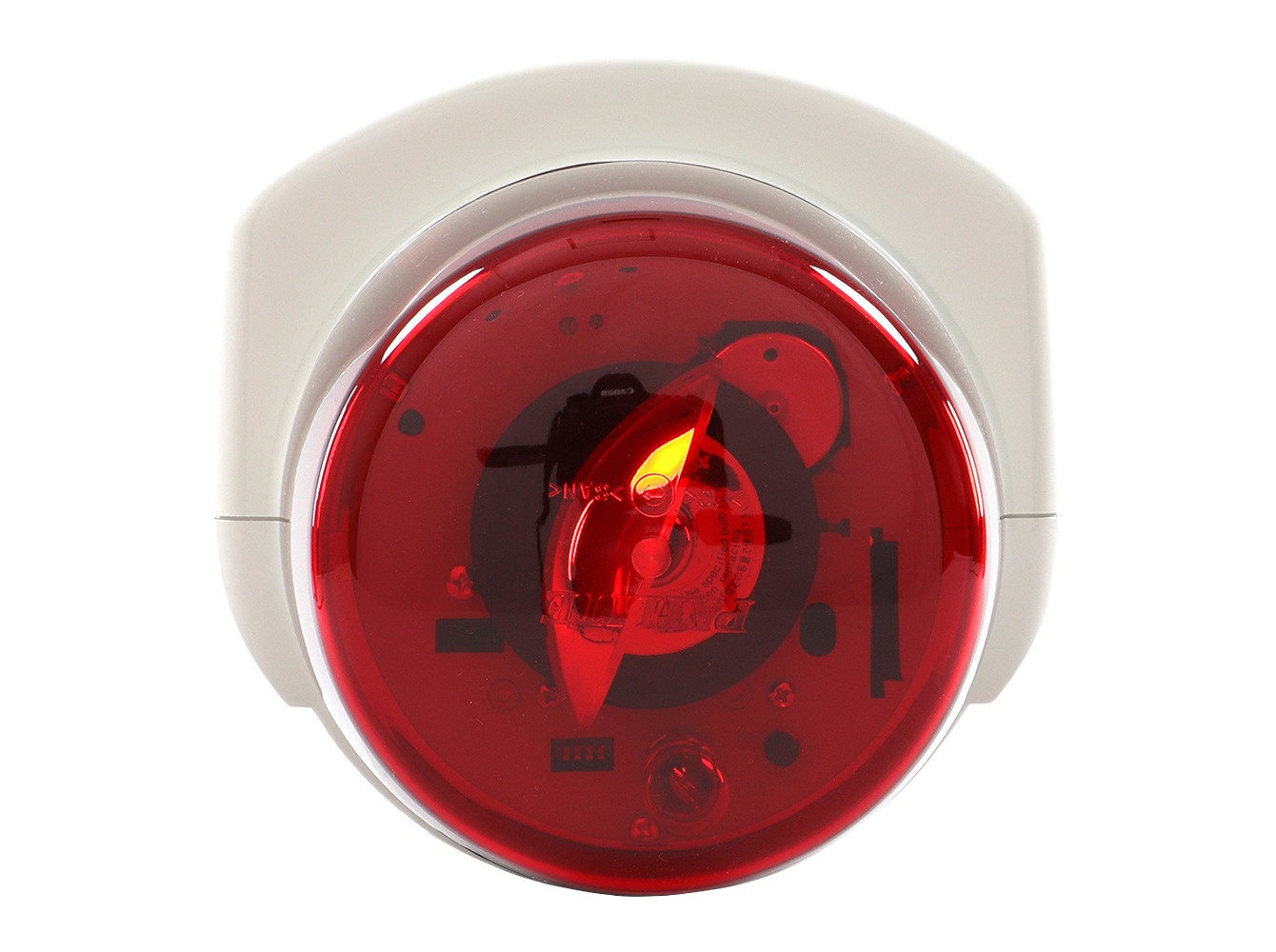

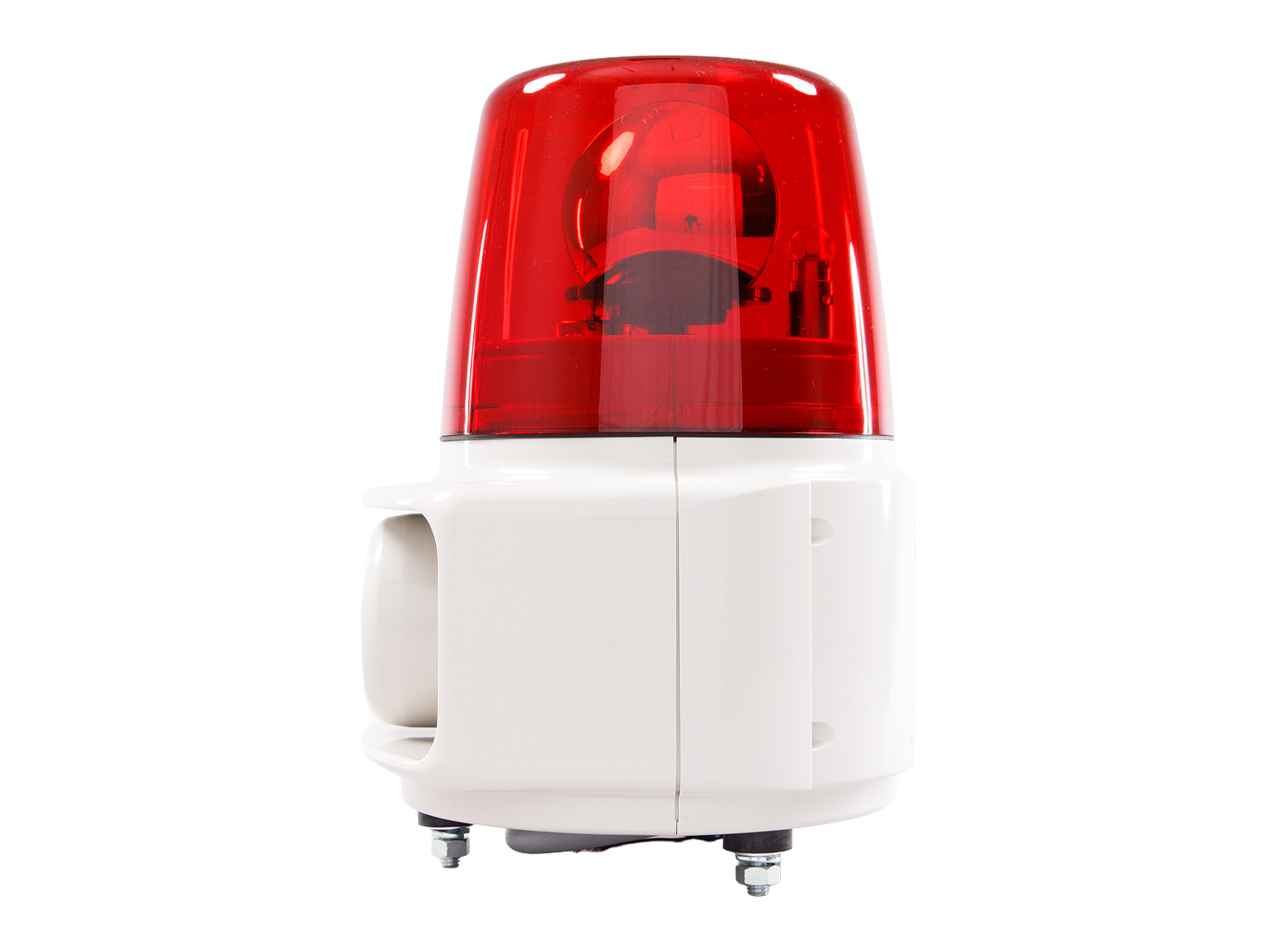

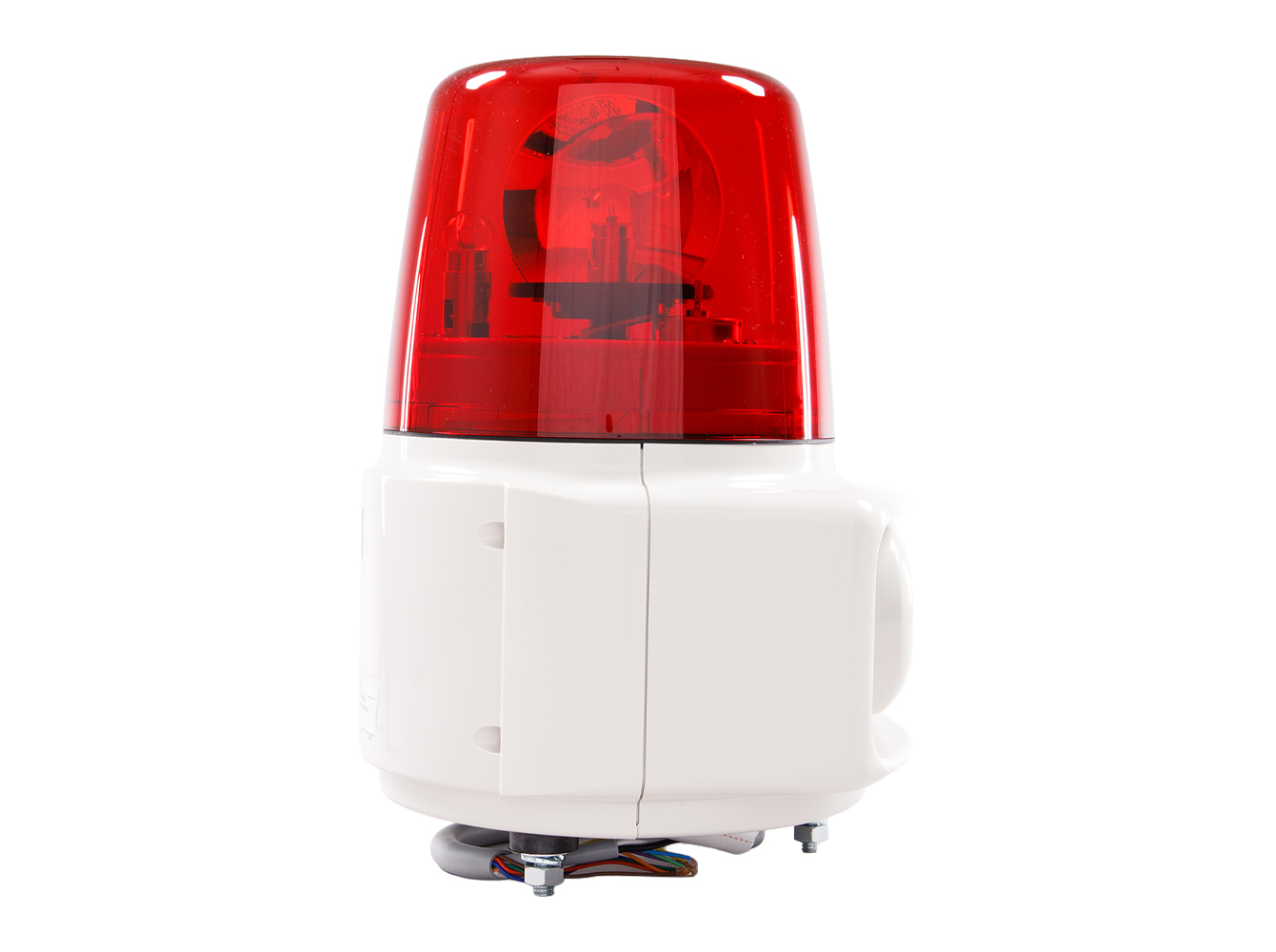

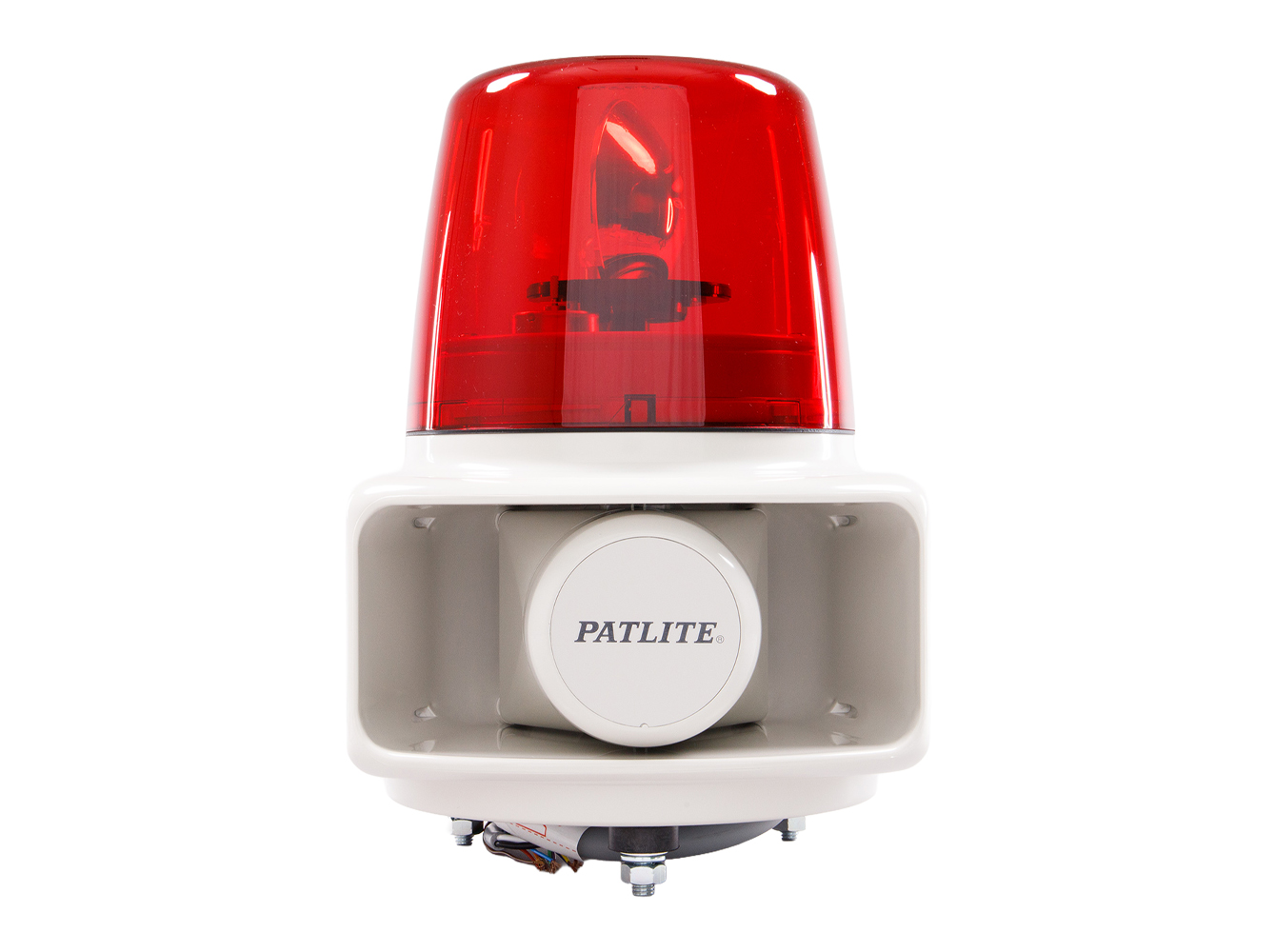

Rotating light and sound beacon RT-A/C/D/E – PATLITE

This rotating beacon with an integrated audible buzzer delivers a powerful 105 dB output, providing a wide frequency range for clear alerts across both low and high tones. With 32 selectable tones and an adjustable volume control, it is ideally suited for noisy industrial environments and outdoor applications, thanks to its weather-resistant housing. The unit supports binary and bit input control, is compatible with NPN open collector systems, and features a convenient test playback switch to simplify installation and setup.

more details

Downloads

Request Offer

Features

Rated voltage: 24 V DC, 100 V AC, and 200 V AC;
Audible style: 32 preloaded tones;
Audio volume: adjustable and up to a maximum of 105 dB (at 1 meter);
Color options: Red, Amber, Green, and Blue;
Protection rating: IP23 (IP65 available upon request);

Advantages

Wide variety of preloaded sounds: with 32 built-in tones in a single unit, the beacon offers exceptional versatility to match different signaling needs without requiring multiple models;
Rugged and reliable design: engineered for durability and operational safety, ensuring dependable performance even in demanding industrial environments;
Powerful and adjustable audible alarm: delivers up to 105 dB (at 1 meter), with adjustable volume control to suit both quiet and noisy locations;
Flexible mounting options: for indoor use, the unit supports vertical, inverted, or horizontal mounting, and vertical mounting when used outdoors.

Applications
