Multifunction light beacons SF08/SF10 – PATLITE

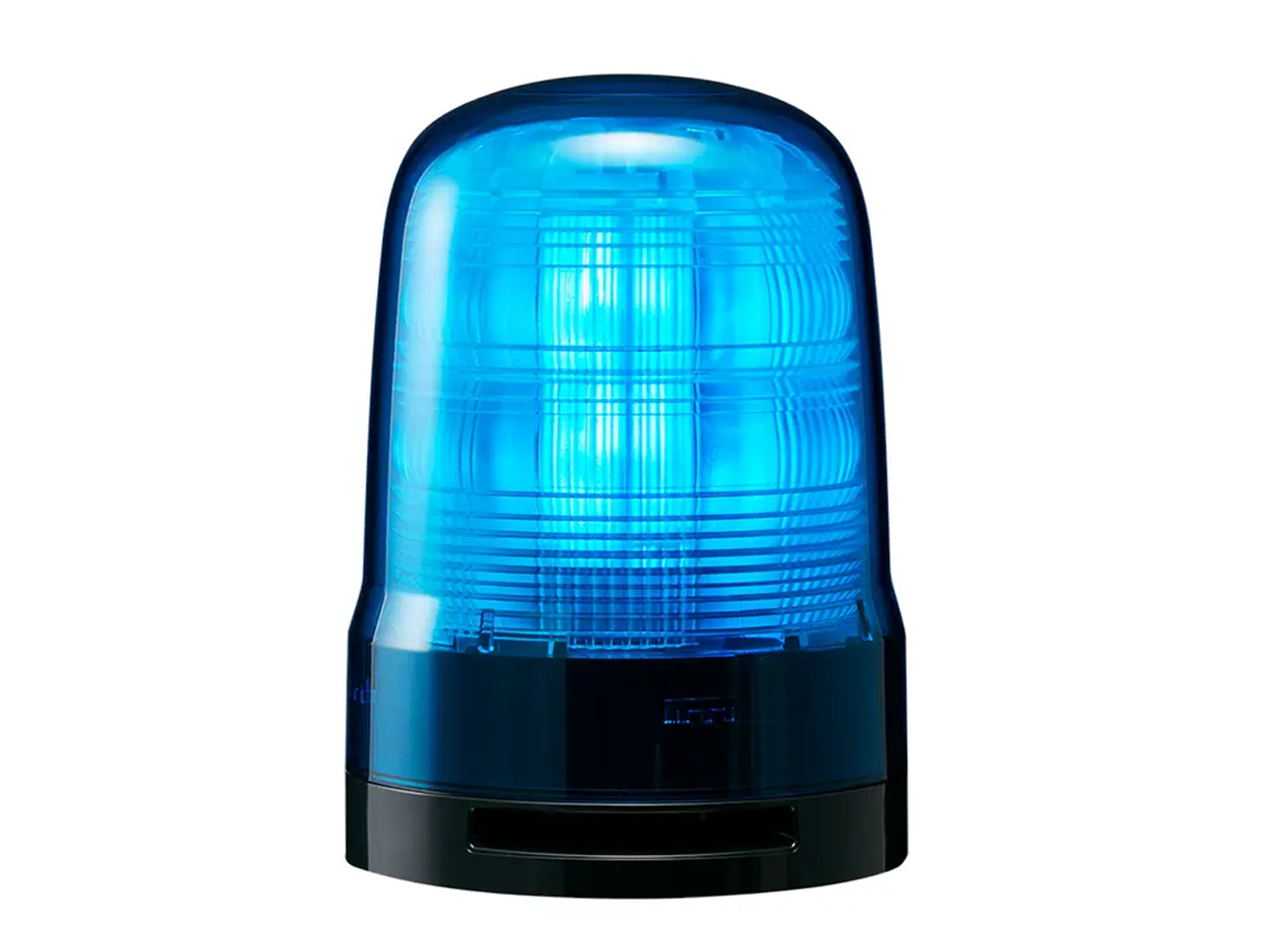

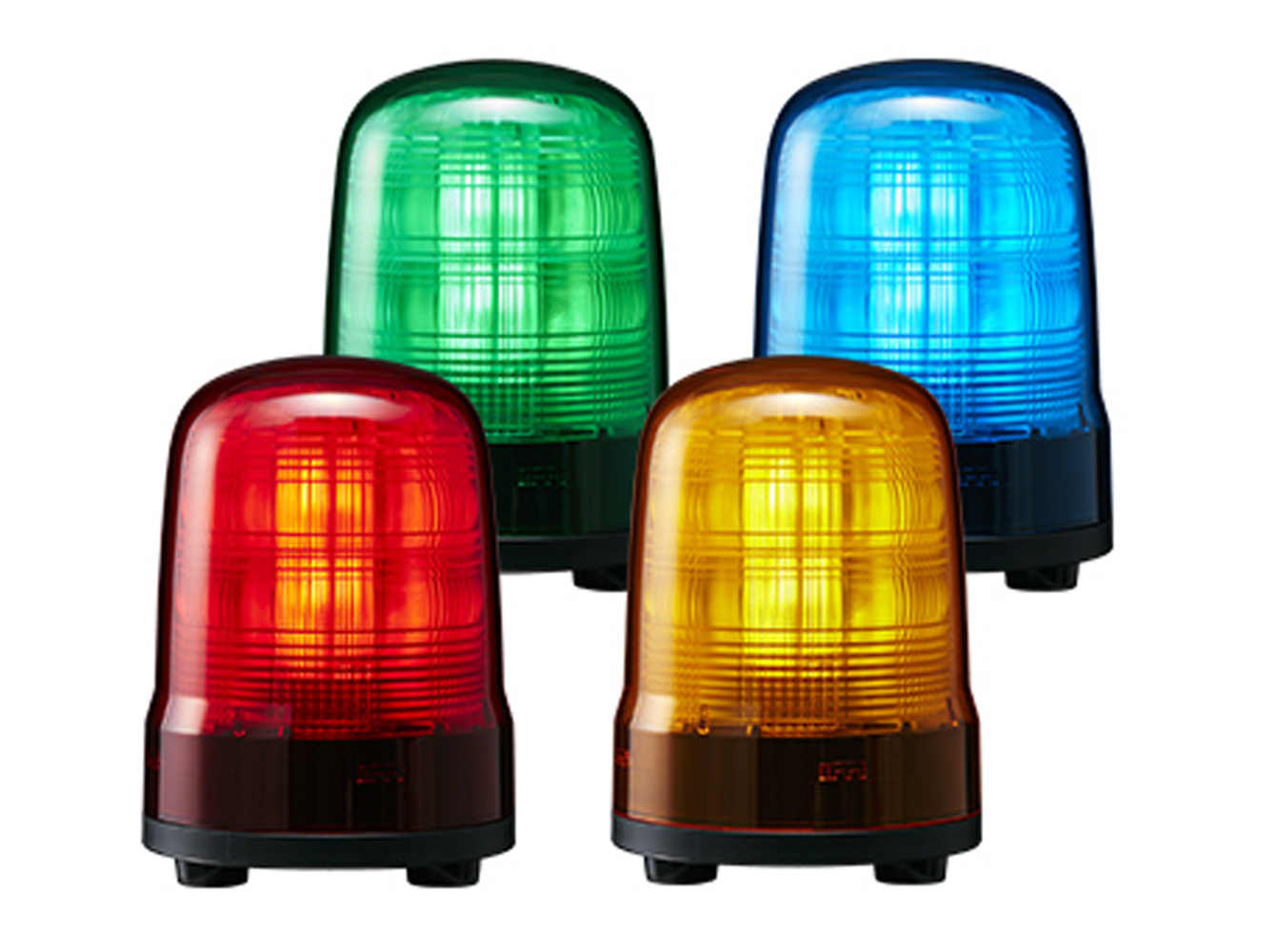

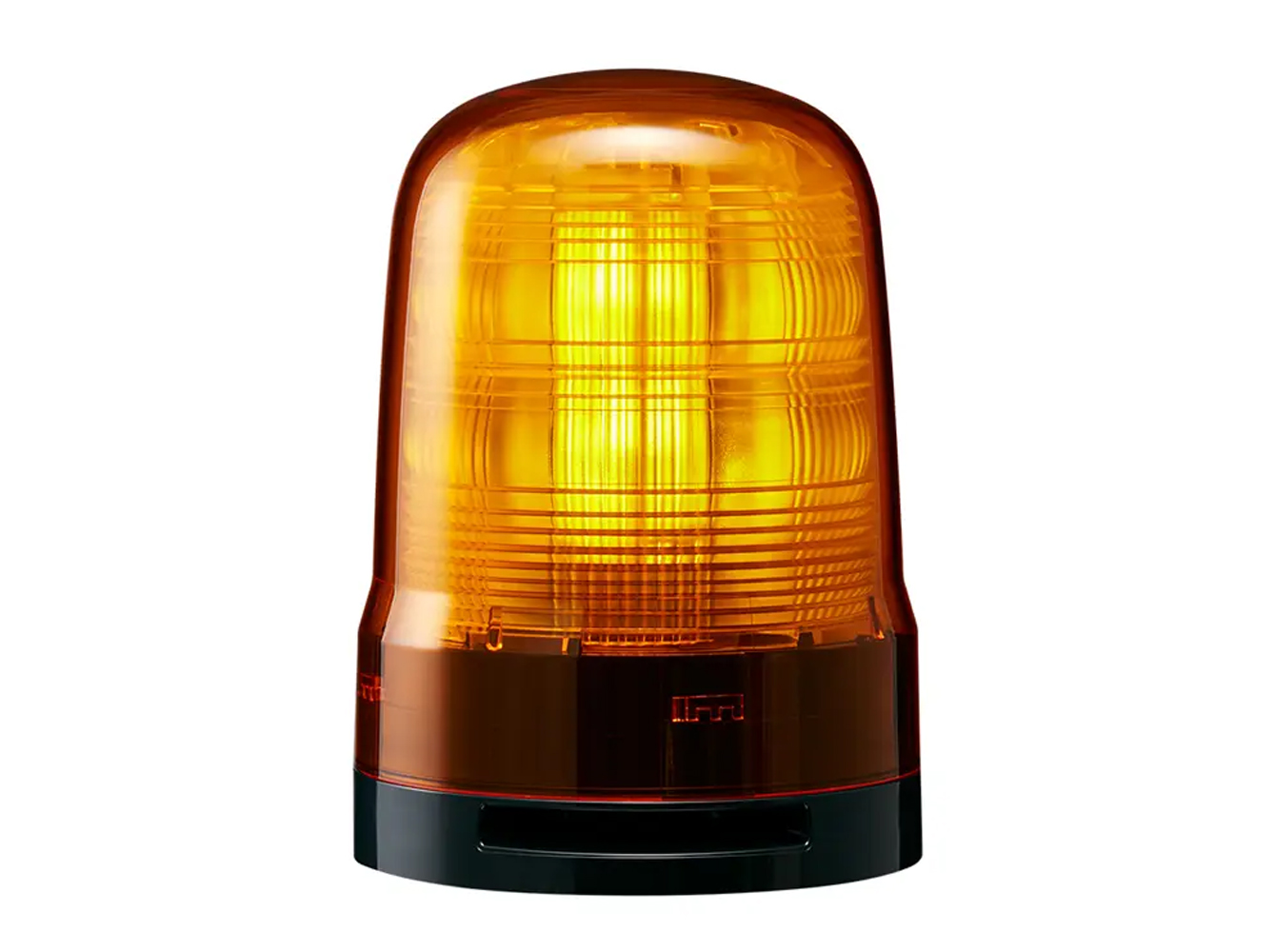

The SF08/SF10 multifunction Beacons from PATLITE are high-efficiency LED signaling devices designed for reliable performance in demanding industrial environments. Featuring a motorless, maintenance-free design and a newly developed multi-Fresnel lens that delivers brighter, clearer, and more effective light diffusion compared to conventional lenses.

With 22 selectable light patterns, these beacons offer unmatched versatility to indicate machine status, trigger automatic signaling, or provide safety warnings in areas such as gates and passageways. Compact, lightweight, and certified to international standards, the SF08/SF10 series is ideal for both indoor and outdoor applications where dependable visual and audible alerts are essential.

more details

Downloads

Request Offer

Features

Operating voltage: Models available for 12–24V DC (10–30V DC) and 100–240V AC (90–264V AC for AC models);
Operating temperature: −20 °C to +50 °C;
Operating location: indoor and outdoor;
Mounting direction: indoors can be upright, inverted, or sideways, and for outdoors, upright only;
Sound level: 86 dB sound pressure level at 1 m;
Protection rating: IP65 (when used with SZW-102 Rubber Gasket attachment);
Rotating speed: 180, 120, or 60 rpm;
Flashing rate: possible single-flash (60 flashes/min), double-flash (90 flashes/min), triple-flash (120 flashes/min), and pulse pattern (20 flashes per minute);
Conformity Standards: compliance with UL, EMC Directive, KC, FCC, RoHS Directive, and Low Voltage Directive.

Advantages

Maintenance-free reliability: motorless LED design eliminates wear and reduces the need for maintenance;
High-efficiency lighting: advanced multi-Fresnel lens ensures brighter, clearer, and more effective light diffusion compared to conventional lenses;
Versatile signaling: offers 22 selectable light patterns to suit a wide range of status indications;

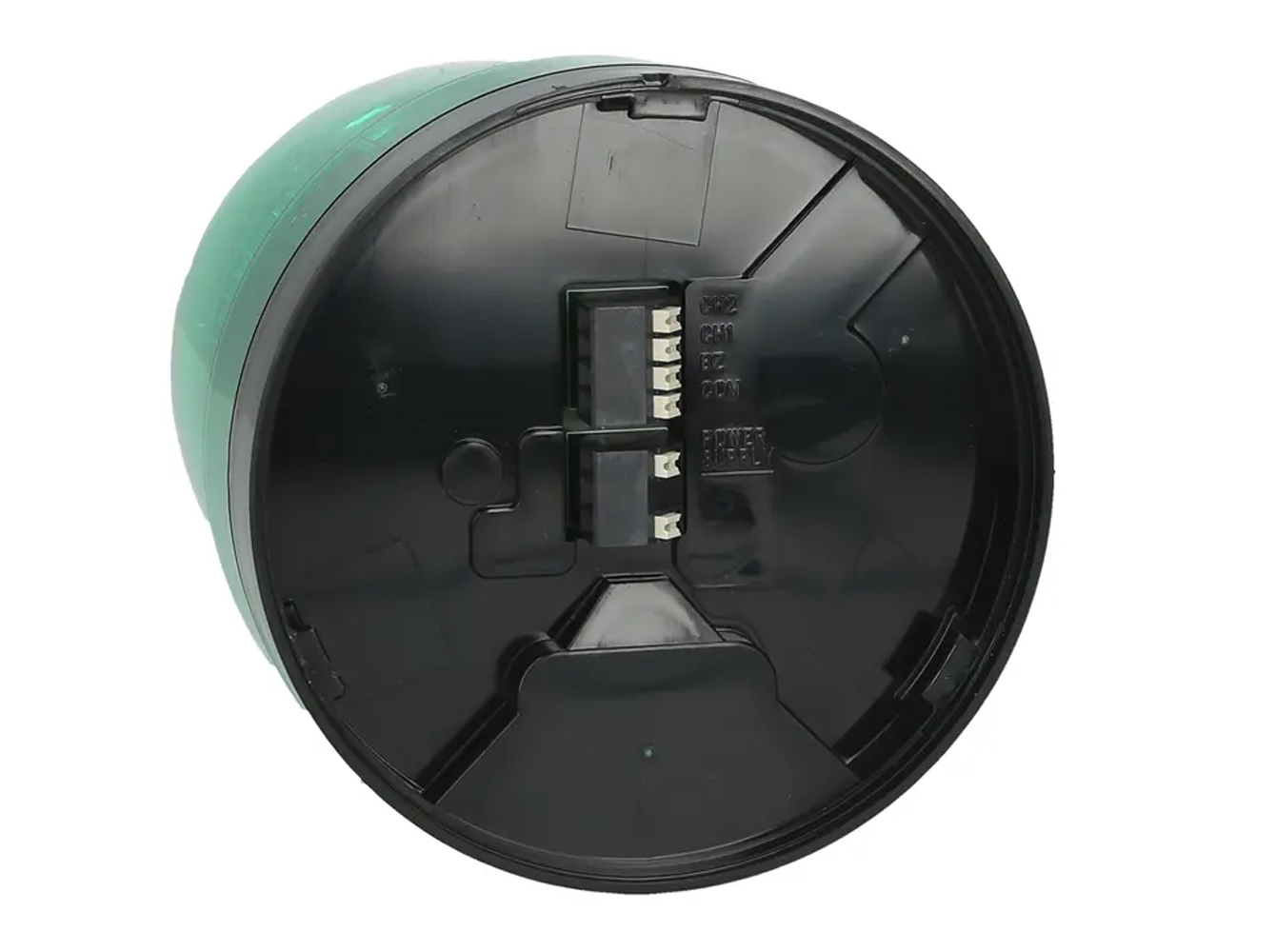

Easy configuration: light patterns can be quickly set using a rotary switch and wiring channels.
