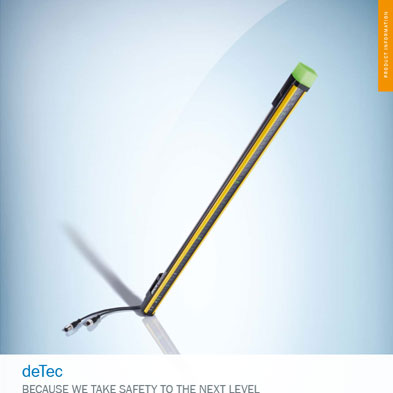

Safety light curtain detec4 core - SICK

SICK, creator of the safety light curtain, is the world‘s leading manufacturer of optical safety devices. SICK is now introducing a completely new generation of light curtains – the deTec4 Core and the deTec2 Core.

With this development, SICK is focusing on the essentials: state-of-the-art safety.

more details
Request Offer
A new standard in every sense
The deTec4 Core and deTec2 Core safety light curtains makes it easier than ever before to cost-effectively protect hazardous zones and access points. The deTec family is efficient to integrate, quick to install and safe in routine operation – deTec4 Core or deTec2 Core is also the best-in-class safety light curtain in each case.

Based on more than 60 years of experience.
The development and production of safety light curtains has been one of SICK‘s core areas of competency for more than six decades. Our safety light curtains are proven in the field through their widespread use worldwide in a multitude of applications. Economic factors are also an important consideration, in addition to safety matters. Optimally designed safety technology with user-oriented functionality is key to increasing system efficiency. Of course, it goes without saying that SICK utilizes open systems.
The deTec4 Core safety light curtain is impressive with a new innovative system of brackets, no blind zones, and the increased height of its protective field. The effort required for commissioning and maintenance is minimized. The half-rounded contour of the rear of the housing enables the brackets to be positioned in any location on the housing. The FlexFix bracket facilitates alignment at up to +/–15°. Integrated LED displays, diagnostic functions, and automatic distance measurements help to save time and costs during commissioning. The deTec2 Core is also suitable for use in harsh ambient conditions thanks to the enclosure rating IP65 and IP67. The deTec2 Core provides reliable hand and finger protection at PL c protection level. With ambient operating temperatures of between -30 °C and +55 °C, the safety light curtain can also be used in low-temperature environments. The available protective field heights range from 300 mm to 2,100 mm.
  • Type 4 (IEC 61496), SIL3 (EN 62061), PL e (EN ISO 13849);
  • Absence of blind zones;
  • Resolution of 14 mm or 30 mm;
  • Protective field height of 300 mm to 2,100 mm;
  • Automatic calibration on the protective field width up to 10 m range;
  • Ambient operating temperature of -30 °C to +55 °C;
  • Enclosure rating IP65 and IP67;
  • Flexi Loop-compatible M12 male connector.
  • Simple assembly with innovative mounting and no blind zones;
  • Quick commissioning thanks to integrated LED display and automatic calibration on the protective field width up to 10 m range;
  • Simply safe: rugged and reliable thanks to enclosure rating IP67 and an ambient operating temperature down to -30 °C, enabling use in harsh ambient conditions;
  • Intelligently standardized: M12, 5-pin provide cost reductions and enables a safe series connection with Flexi Loop;
  • Basic function without configuration effort enables quick replacement when servicing is required.
  • Machine tools industry: handling & assembly;
  • Food & Beverage;
  • Packaging industry;
  • Electronics.

F.Fonseca is the representative of SICK in Portugal.
