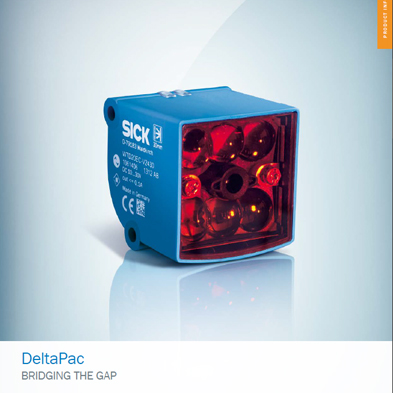

Photoelectric sensor DeltaPac - SICK

For higher efficiency and quality in the packaging industry, the DeltaPac MultiTask photoelectric sensor utilizes Delta-S-Technology®, which combines four PinPoint emitters and two receivers with SIRIC® and distance measurement technology.

The photoelectric sensor detects object contours with radii between 1 and 20 mm – independent of the direction and irrespective of the object’s surface color –with the highest level of immunity to active and passive interference. The operating distance is between 30 and 40 mm to the front edge of the object. This means that packages do not need to be manually separated. Collisions are avoided. For better space and time utilization. The DeltaPac provides information about how many packages are present in the process for full production monitoring. The photoelectric sensor is available as a pre-configured device for fast and error-free commissioning. IO-Link, which is also available, enables tailored configuration and adaptation to match the desired application.
more details
Request Offer
  • Delta-S-Technology®: four PinPoint emitters and two energy scales combined with SIRIC® and distance measurement technology;
  • Direction-independent object contours with radius up to 20 mm;
  • For conveyor speeds up to 3 m/s or production capacities up to 200.000 packages per hour;
  • Pre-configured sensors and individual setting via IO-Link;
  • Compact housing (42 mm x 42 mm x 45 mm) with an IP 67 enclosure rating.
  • High reliability in industrial environments;
  • Flexible and reliable application – the IO-Link communication facilitates remote diagnosis and the setting of the signal length per detected specimen.
  • The Delta 20 has a default setting of 20 ms;
  • Fast and convenient plug-and-play installation – the Delta 20 requires no adjustment and can be connected using a standard M12 connection cable;
  • Secure function monitoring through easily visible display LEDs;
  • The small and compact housing permits space-saving installation under tight conditions.
  • Package control - gapless counting of all packages. Exchanging this information between single machines to control the whole plant;
  • Triggering of downstream processes, e.g. code printing, labeling, barcode reading, camera control, etc;
  • Quality insurance - gapless counting behind separation mechanic to ensure right amount of objects being packaged.

F.Fonseca is the representative of SICK in Portugal.
