Sensor technology HPD3 IP - Steinel

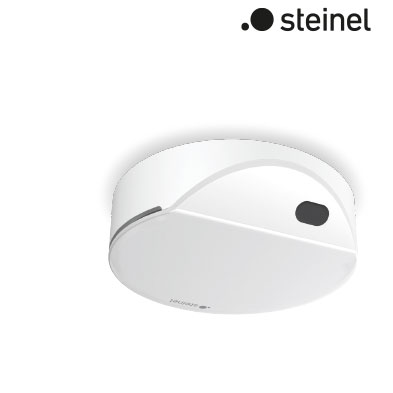

HPD3. Optical multisensors now also available for ceilings.
The highly sensitive optical system of the HPD3 doesn’t just detect people’s presence – it counts them, too. In combination with the built-in temperature and humidity sensors, this enables even more precise control of heating, ventilation and air conditioning in conference rooms and offices.
more details
Request Offer
In the field of FlexDesk management, the STEINEL HPD sensors provide a solid platform from which you can start optimising the use of space in your buildings.

Mounting height 2.00–4.00m
Mounting site Ceiling
Application, location Indoors
Sensor technology high-frequency
Detection zones 10 individually definable
Reach, radial 10m (avg.)
Angle of coverage 110°
Teach function Yes
Twilight setting 2-2000 lx
Settings via Bluetooth, web interface
IP rating IP20
Ambient temperature 0-40°C
Manufacturer‘s warranty 5 years
Application, room Lecture theatre, classroom, open-plan office, conference room,recreation room, production facilities,dining room/canteen
Order details
HPD 3 concealed wiring ........................ 4007841 067304
HPD 3 surface-mounted ......................... 4007841 067298

  • Counts the number of people presente;
  • Temperature measurement;
  • Air humidity measurement;
  • IP interface (Power over Ethernet);
  • Number of people;
  • 10 individually defina[1]ble detection zones;
  • 110° built-in high-frequency sensor;
  • max. 10m;
  • Air humidity;
  • Temperature;
  • Brightness;
  • Bluetooth interface;
  • HPD2 as wall[1]mounted version;
  • IP interface (MQTT, REST, API, BACnet).
Health & care;
Industry & logistics;
Office & workspaces.

F.Fonseca is the representative of Steinel in Portugal.
