Building Technologies

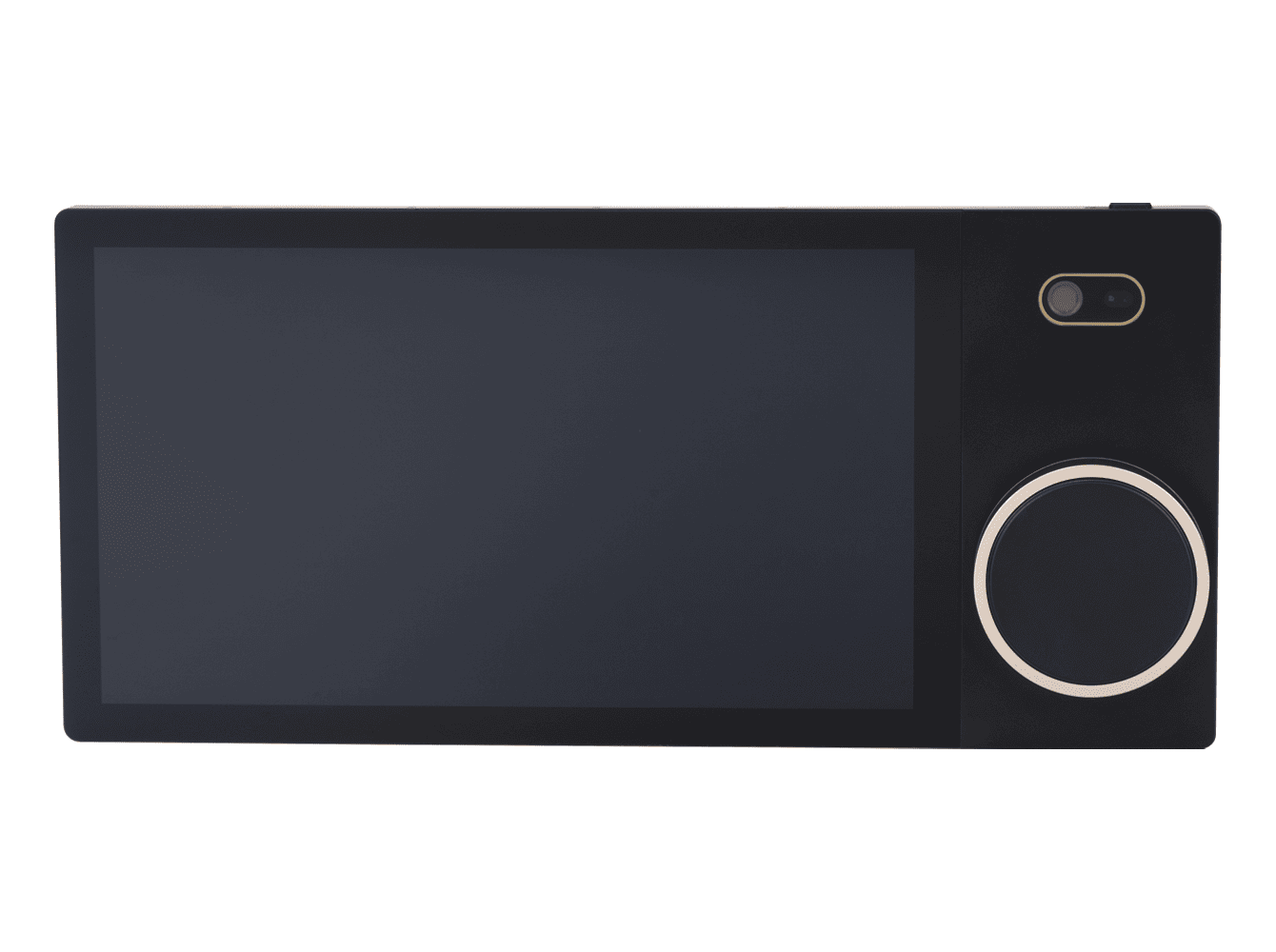

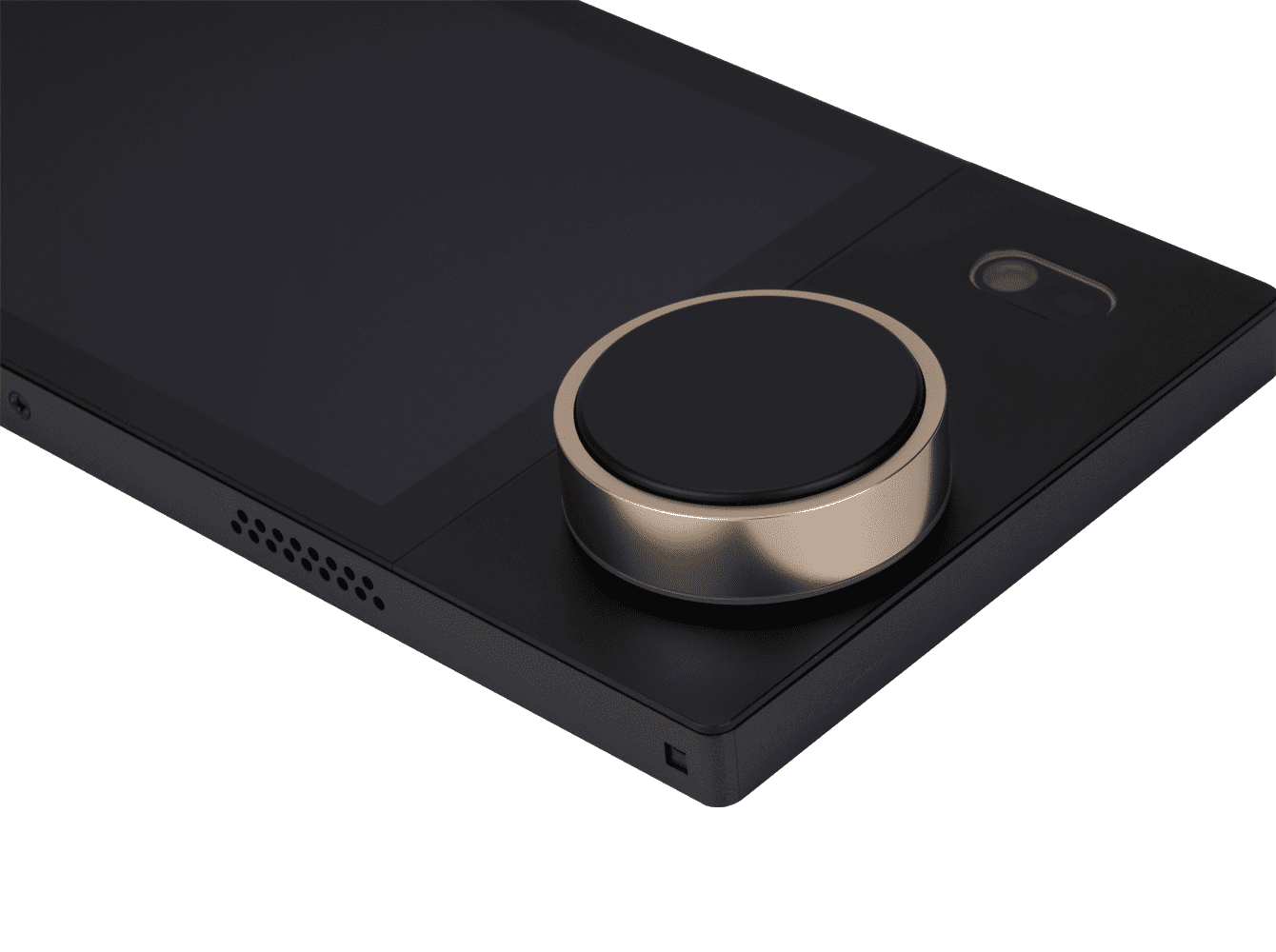

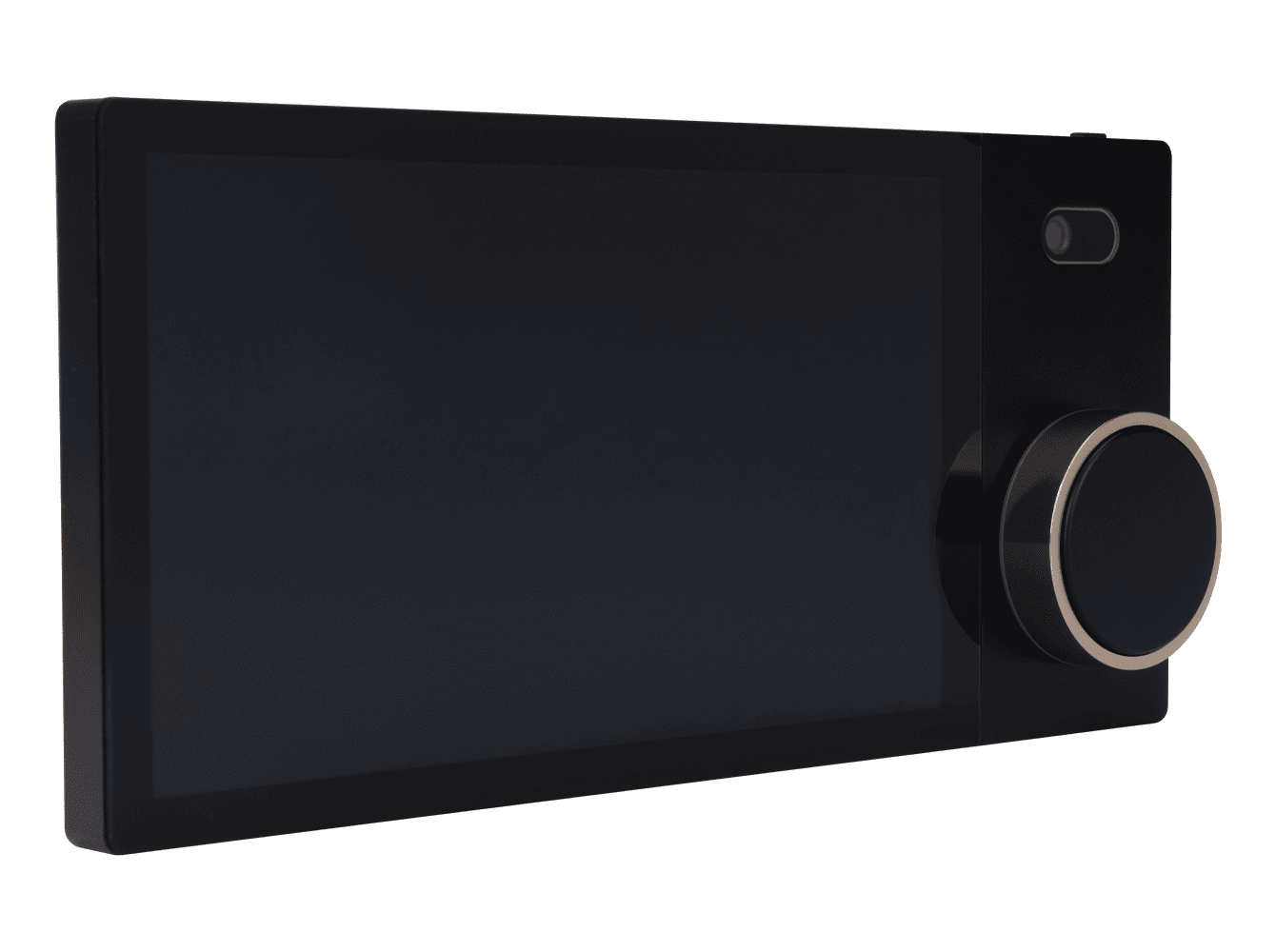

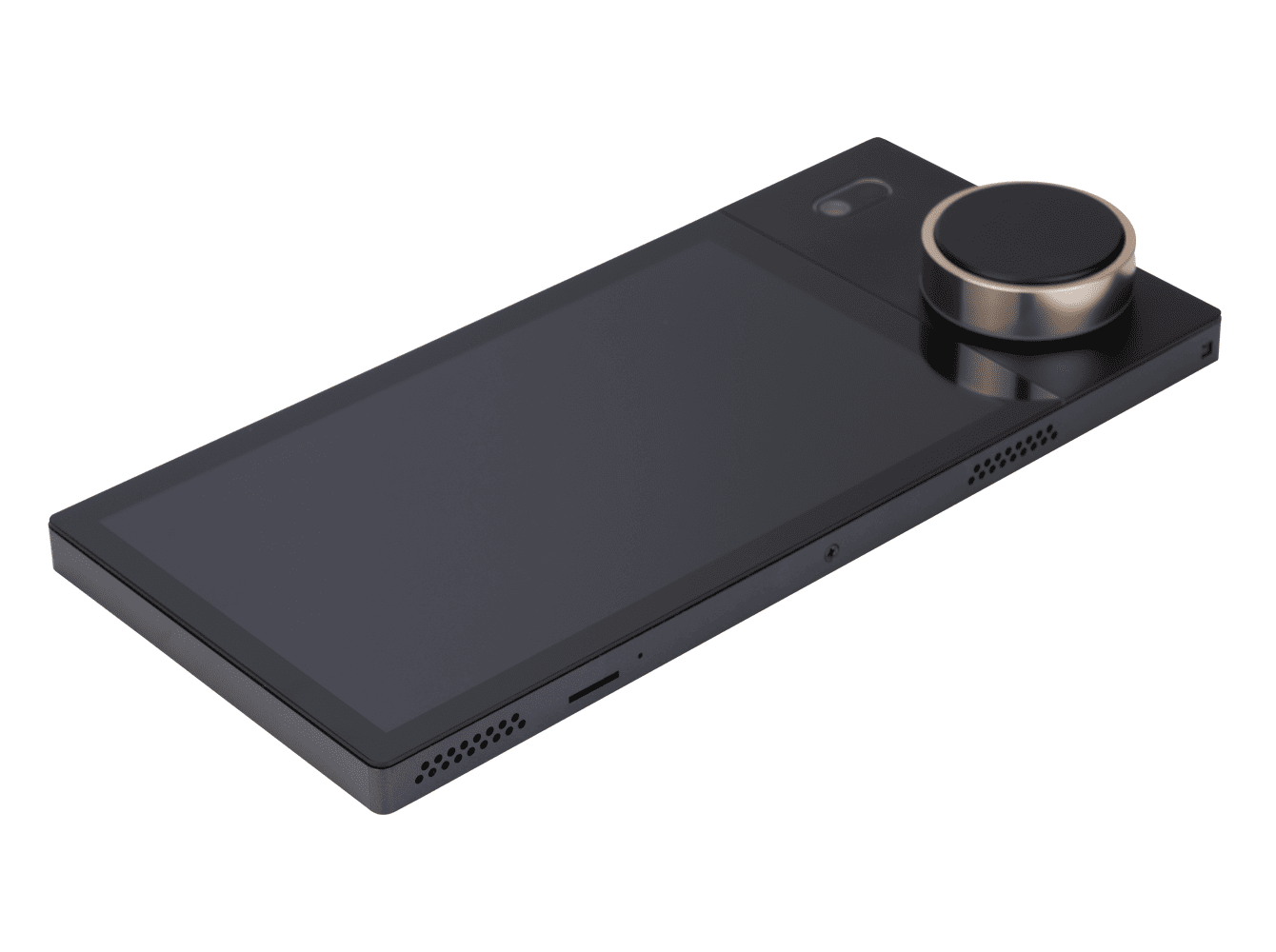

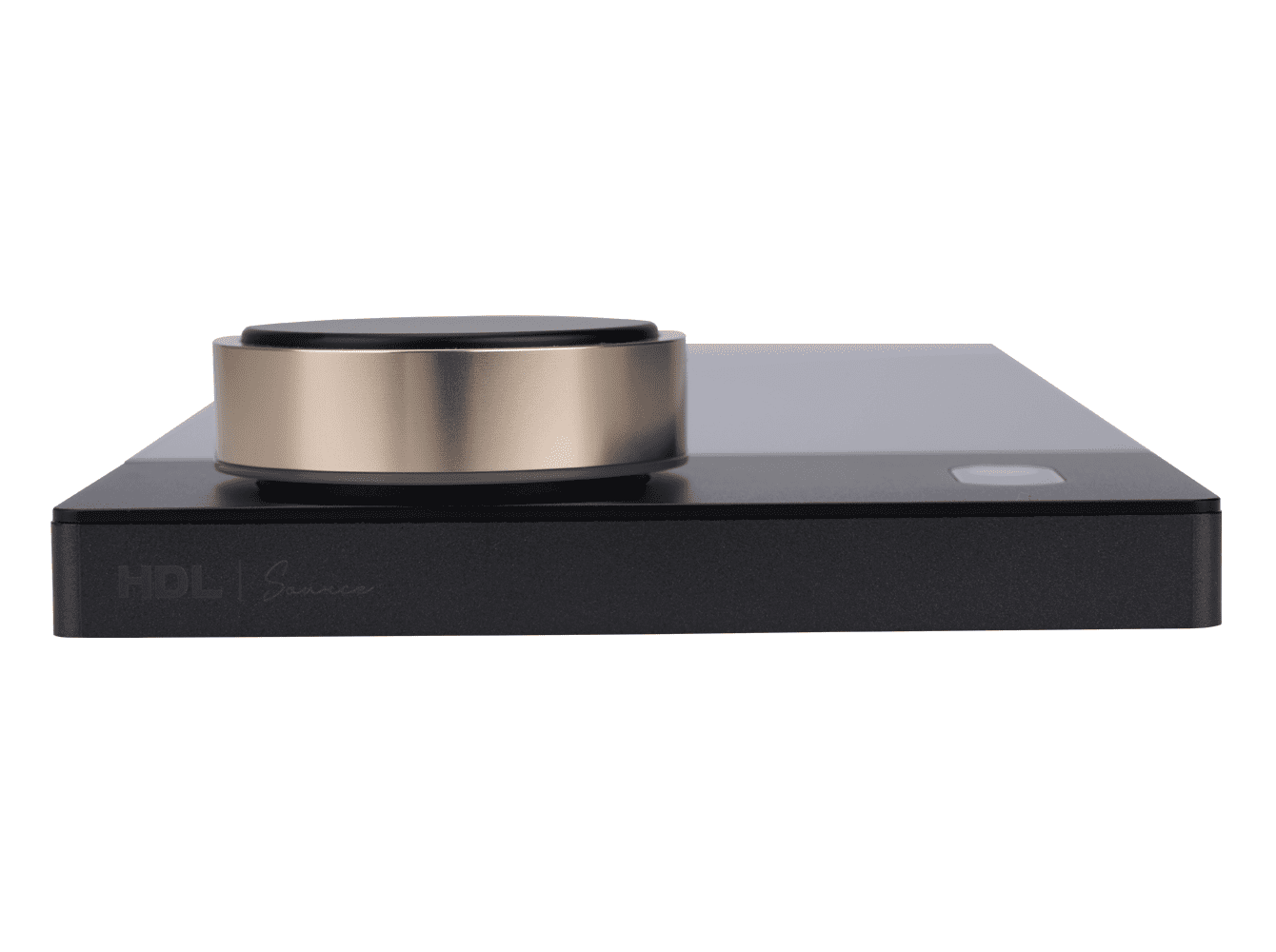

Source 7’’ touch panel – HDL Automation
Source 7'' touch panel from HDL Automation is a winner of six prestigious design awards. It combines a sleek metal body with a refined appearance that exudes elegance. Its innovative knob design and selection of classy colors further enhance its appeal, making it a true standout in touch screens.

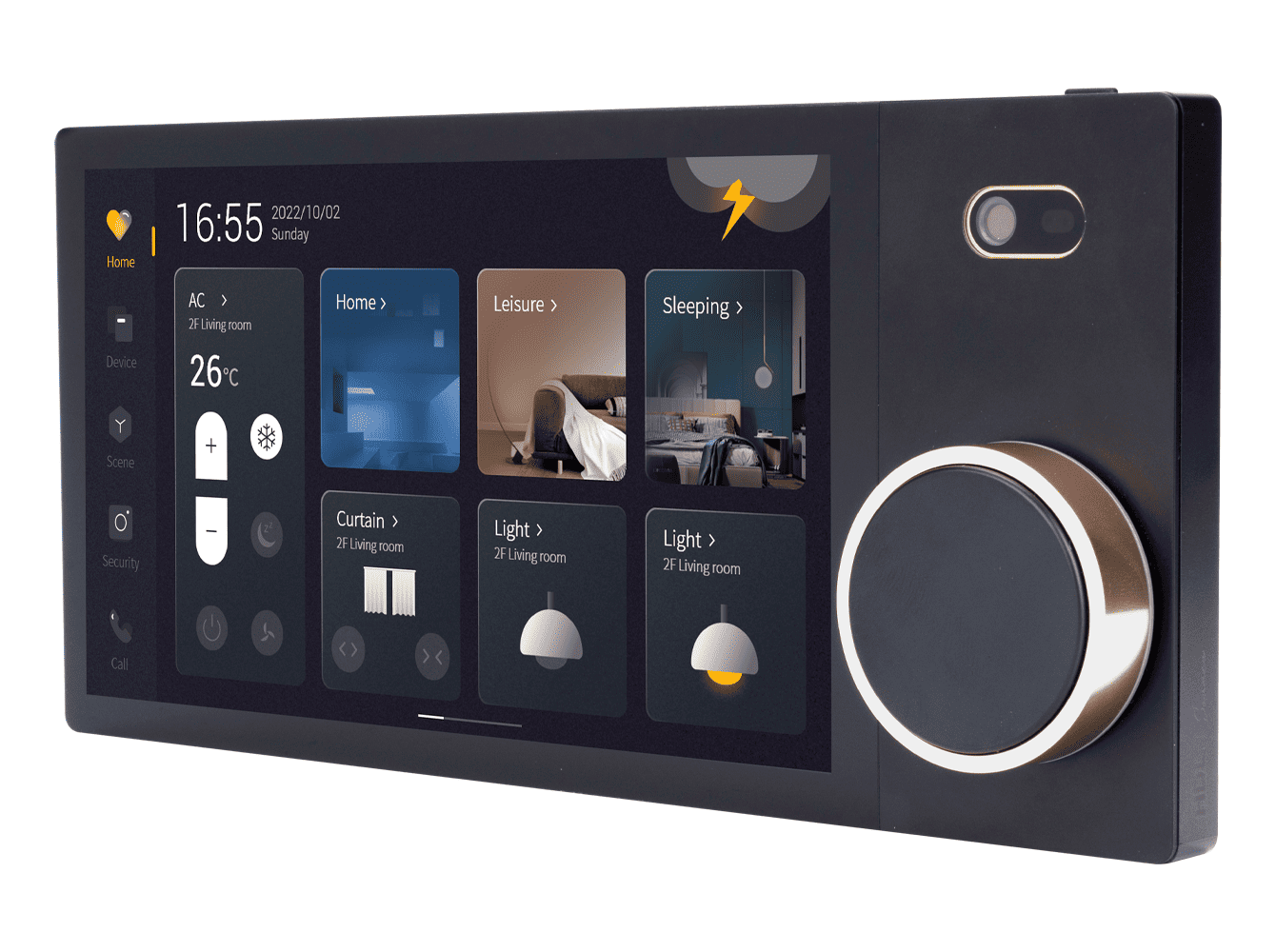

Source 7'' tpuch panel from HDL Automation is a versatile smart panel with multiple functions. Equipped with a 7-inch capacitive touch screen, this product is suitable for controlling home automation through its interactive interface and knob. Upon proper installation and commissioning, end users can easily and conveniently control various aspects of their home, including lighting, curtains, air conditioners, floor heating, fresh air, music, and scenes.
Source 7'' tpuch panel from HDL Automation is a versatile smart panel with multiple functions. Equipped with a 7-inch capacitive touch screen, this product is suitable for controlling home automation through its interactive interface and knob. Upon proper installation and commissioning, end users can easily and conveniently control various aspects of their home, including lighting, curtains, air conditioners, floor heating, fresh air, music, and scenes.
more details
Downloads
Request Offer
Features
Advantages
Applications
F.Fonseca is distributor of HDL Automation in Portugal.
- Input voltage: 100~240V AC (Zigbee interface) 18~28V DC (Buspro interface) 21~30V DC (KNX interface);
- KNX Auxiliary voltage: 18~28V DC;
- Communication: HDL LINK, WiFi, RJ45;
- Working temperature: -5℃~45℃;
- Working relative humidity : ≤90%RH, non-condensed;
- Storage temperature: -20℃~60℃;
- Storage relative humidity : ≤93% RH;
- Built-in proximity sensor and LUX sensor;
- Built-in temperature&humidity sensor;
- Supports 1280*720 resolution ratio;
- Available in Buspro, KNX, Zigbee, WiFi and RJ45;
- Stepless knob assures accurate positioning;
- Local control without fear of network interruption;
- Protection rating (Compliant with EN 60529) : IP20.
Advantages
- User-friendly interface with intuitive icons and clear control feedback;
- Fast access to frequently used functions through a customizable homepage and favorites section;
- Precise adjustment of lighting, curtains, and temperature through the stepless rotary knob;
- Flexible integration of wired and wireless systems via the built-in HDL Link Gateway;
- Local control capability, maintaining device operation even during network interruptions;
- Built-in room-to-room voice call function for simplified communication between indoor areas.
Applications
- Centralized control of lighting, curtains, temperature, and scenes;
- Commercial building automation;
- Hospitality and hotel room control;
- Indoor protected installations requiring local control during network interruptions;
- Integration between wired and wireless automation devices;
- Residential building automation.
F.Fonseca is distributor of HDL Automation in Portugal.
