Name: Touch control panel KNX Granite 4.3 HDL Automation
Brand: HDL Automation

The touch control panel KNX Granite 4.3" from HDL Automation is a high-end and multi-function control panel for home automation. With a 4.3-inch LCD screen and full-screen touch control, allows users to control devices of lighting, curtain, scene, AC/FCU, floor heating, music, and fresh air intuitively.

more details

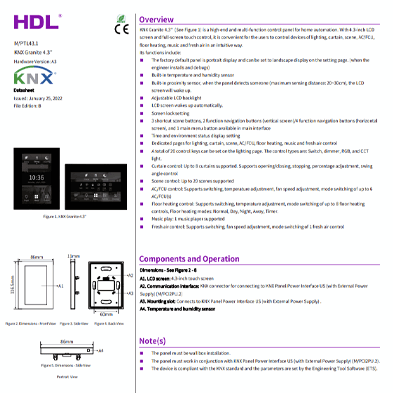

Downloads

Request Offer

Features

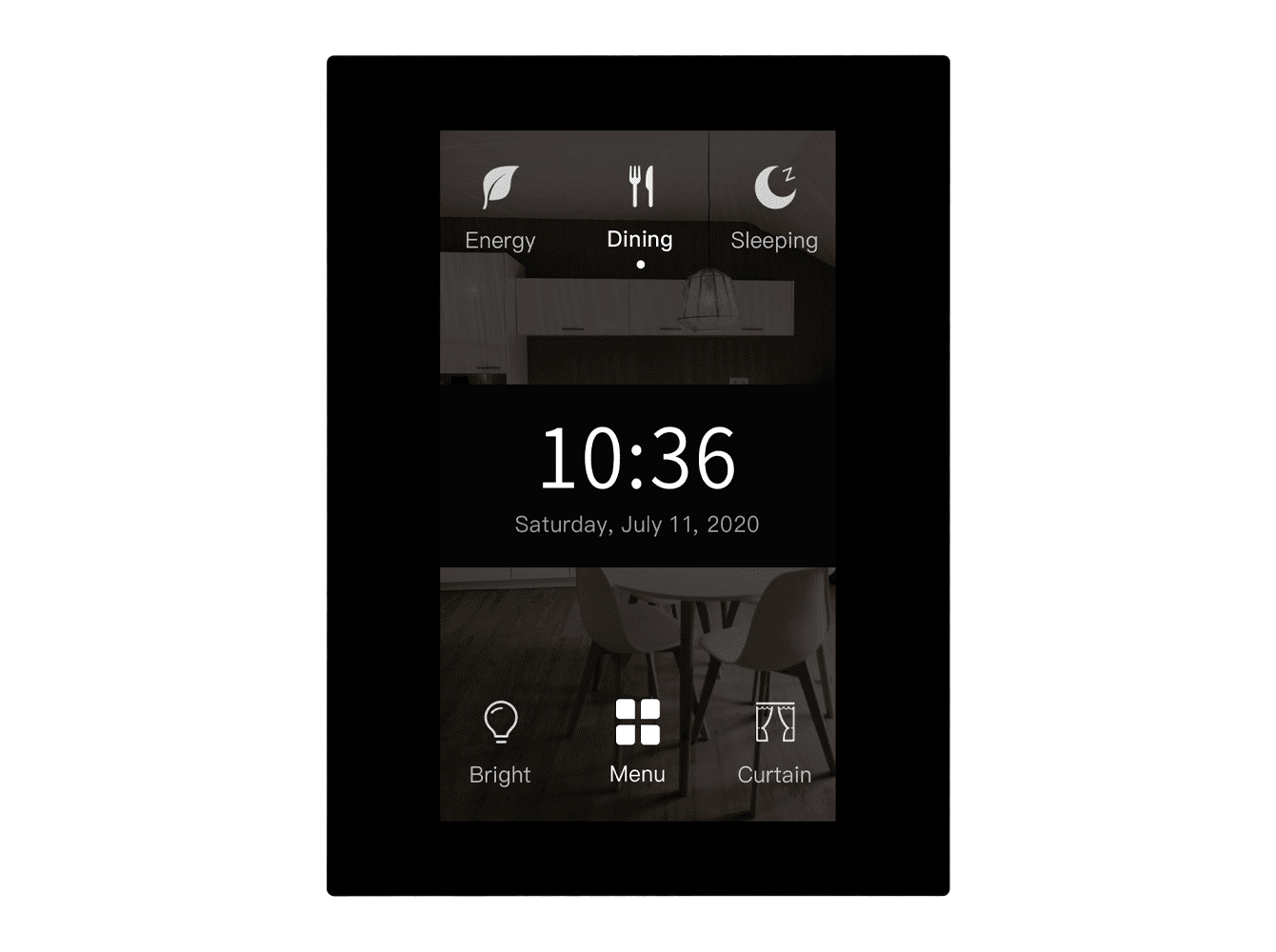

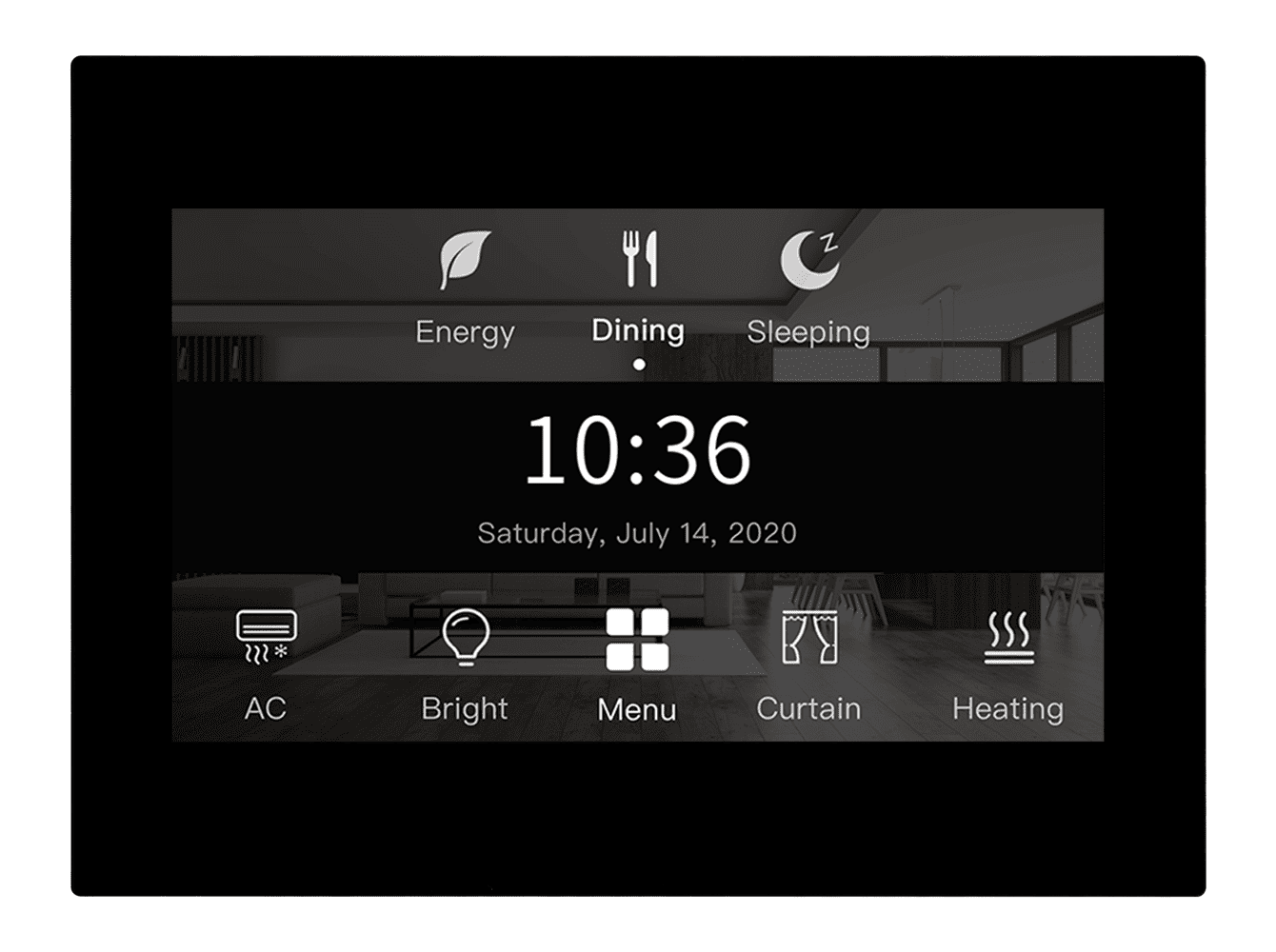

The factory default panel is a portrait display and can be set to landscape display on the setting page;
Built-in temperature and humidity sensor;
Built-in proximity sensor, when the panel detects someone (maximum sensing distance: 20 - 30cm), the LCD screen will wake up;
Adjustable LCD backlight;
LCD screen wakes up automatically;
Screen lock setting;
Includes 3 shortcut scene buttons, 2 function navigation buttons (vertical screen), 4 function navigation buttons (horizontal screen), and 1 main menu button;
Time and environment status display setting;
Dedicated pages for lighting, curtain, scene, AC/FCU, floor heating, music and fresh air control.

Advantages

Centralized control reduces interface fragmentation and simplifies user interaction;
Integrated environmental sensing enables local feedback and more responsive control logic;
Proximity-based activation optimizes energy use and improves user experience;
Flexible interface configuration adapts to installation requirements and user preferences;
Direct access to multiple subsystems reduces operation time and increases efficiency;
Clear visualization of environmental and system status supports faster decision-making.
