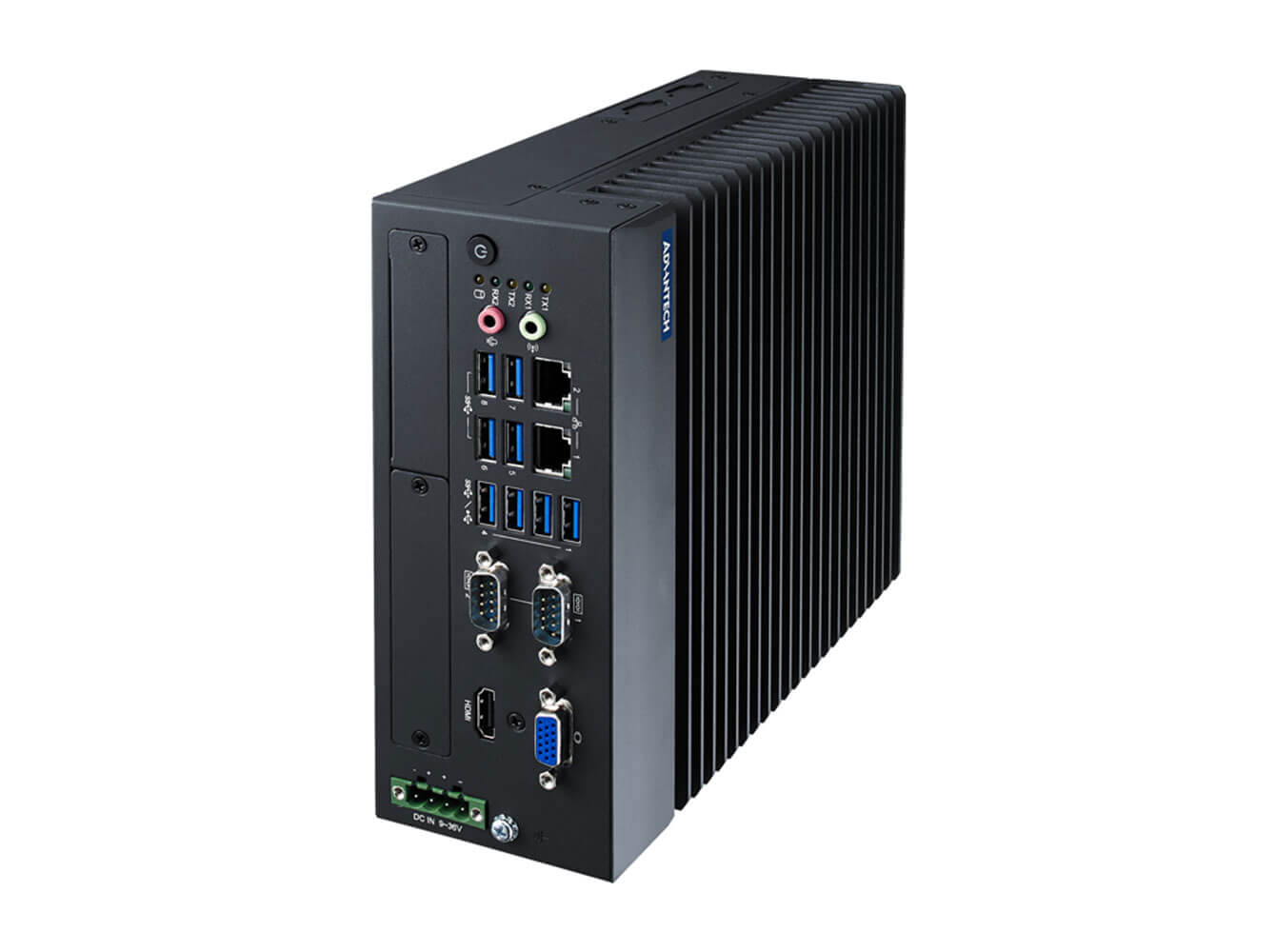

Compact fanless system MIC-770 V3 - Advantech

To enable the realization of Industry 4.0, field-based edge intelligence is important for developing new IoT applications. Advantech’s MIC-7 series PCs provide high-performance computing, multiple I/O interfaces, flexible expandability with the integration of i-Modules and iDoor, and can be widely deployed to support various industrial IoT applications.

The MIC-7 series can be equipped with a wide range of processors to provide custom entry-level and high-end solutions. With the provision of multiple I/O for connecting devices, MIC-7 systems can serve as a data gateway and industrial controller. Moreover, when integrated with an intelligent i-Module, various add-on cards can be installed for machine automation applications.

more details

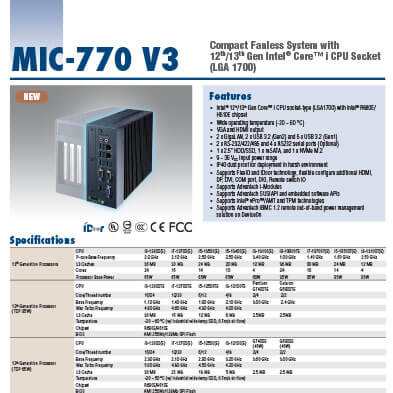

Downloads

Request Offer

Features

Intel® 12th/13th Gen Core™ i CPU socket-type (LGA1700) with Intel® R680E/H610E chipset;
Wide operating temperature (-20 ~ 60 °C);
VGA and HDMI output;
2x GigaLAN, 2x USB 3.2 (Gen2) and 6x USB 3.2 (Gen1);
2x RS-232/422/485 and 4x RS232 serial ports (Optional);
1x 2.5" HDD/SSD, 1x mSATA, and 1x NVMe M.2;
9 ~ 36 VDC input power range;
IP40 dust proof for deployment in harsh environment;
Supports FlexIO and iDoor technology, flexible configure additional HDMI, DP, DVI, COM port, DIO, Remote switch IO;
Supports Advantech i-Modules;
Supports Advantech SUSIAPI and embedded software APIs;
Supports Intel® vPro™/AMT and TPM technologies;
Supports Advantech iBMC 1.2 remote out-of-band power management solution on DeviceOn.

Advantages

Modular computer reduces lead time for CTOS (Configure To Order Services) due to easy configuration and can be widely deployed for factory and machine automation;
The compact modular PC supports i-module expansion to satisfy diverse application requirements;
To support various IoT applications, the MIC-7 series can be equipped with various Intel® processors, including those from the Core™, Pentium®, Celeron®, and Xeon® families. The wide selection of compatible processors allows customers to flexibly configure custom solutions based on specific application requirements;
The MIC-7 series PCs are equipped with multiple I/Os, but occasionally you need more! Located in the front panel for convenient cabling, the system’s flexible I/O interfaces can support various displays, expansion I/O, and intelligent alarm functions to enable diverse machine automation applications. Moreover, with the inclusion of a mini PCIe I/F onboard, Advantech’s PCM/MOS iDoor industrial fieldbus, smart I/O, and communication modules can be integrated for enhanced functionality;
The MIC i-Module family supports PCIe/PCI I/F add-on cards, such as frame grabber, GPU, and motion control cards. In addition to the power sources from the PCIe/PCI slot, i-Modules reserve an additional 12 VDC of power from the onboard connector for cards that require more power. To better manage the heat generated by these add-on cards, optional system fans with smart functions are supported for enhanced thermal management. Furthermore, Advantech’s i-Modules provide additional HDD/SDD bays for increased storage capacity and also support removable storage bays.
