Compact industrial PC UNO-127 – Advantech

The Din-Rail edge controller, UNO-1 series, is designed to provide rapid configurable design for edge computing and machine intelligence applications.

Advantech’s UNO-100 series of integrated DIN-rail controllers feature a modular design for flexible configuration according to specific usage requirements.
The UNO-127 model is equipped with an Intel® Atom® x6413E processor, 4 GB or 8 GB DDR4 RAM, 64 GB eMMC storage, 2x LAN, 2x USB, and 1x HDMI, as well as 1x full-size mini PCIe for expansion.

more details

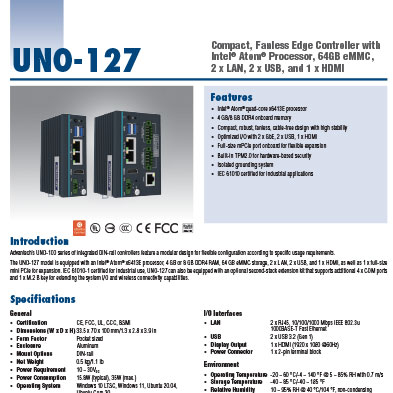

Downloads

Request Offer

Features

Intel® Atom® quad-core x6413E processor;
4 GB/8 GB DDR4 onboard memory;
Compact, robust, fanless, cable-free design with high stability;
Optimized I/O with 2x GbE, 2x USB, 1x HDMI;
Full-size mPCIe port onboard for flexible expansion;
Built-in TPM2.0 for hardware-based security;
Isolated grounding system;
IEC 61010 certified for industrial applications;
0 ~ 50 °C (-4 ~ 140 °F) operating temperature range for industrial applications;
Supports wall and DIN-rail mounting for flexible and industrial installation.

Advantages

Aluminum industrial-grade chassis to support industrial environment with improved heat dissipation and ESD protection;
Included OS enables RPi identification of UNO-127 and automatically configures GPIOs and drivers for the board;
IEC 61010-1 certified for industrial use, UNO-127 can also be equipped with an optional second-stack extension kit that supports additional 4x COM ports and 1x M.2 B key for extending the system I/O and wireless connectivity capabilities.

Applications

The UNO-127 complete industrial-grade gateway kit provides the ideal Raspberry Pi-based solution for rapid prototyping and mass deployment for developing unique IoT applications.
