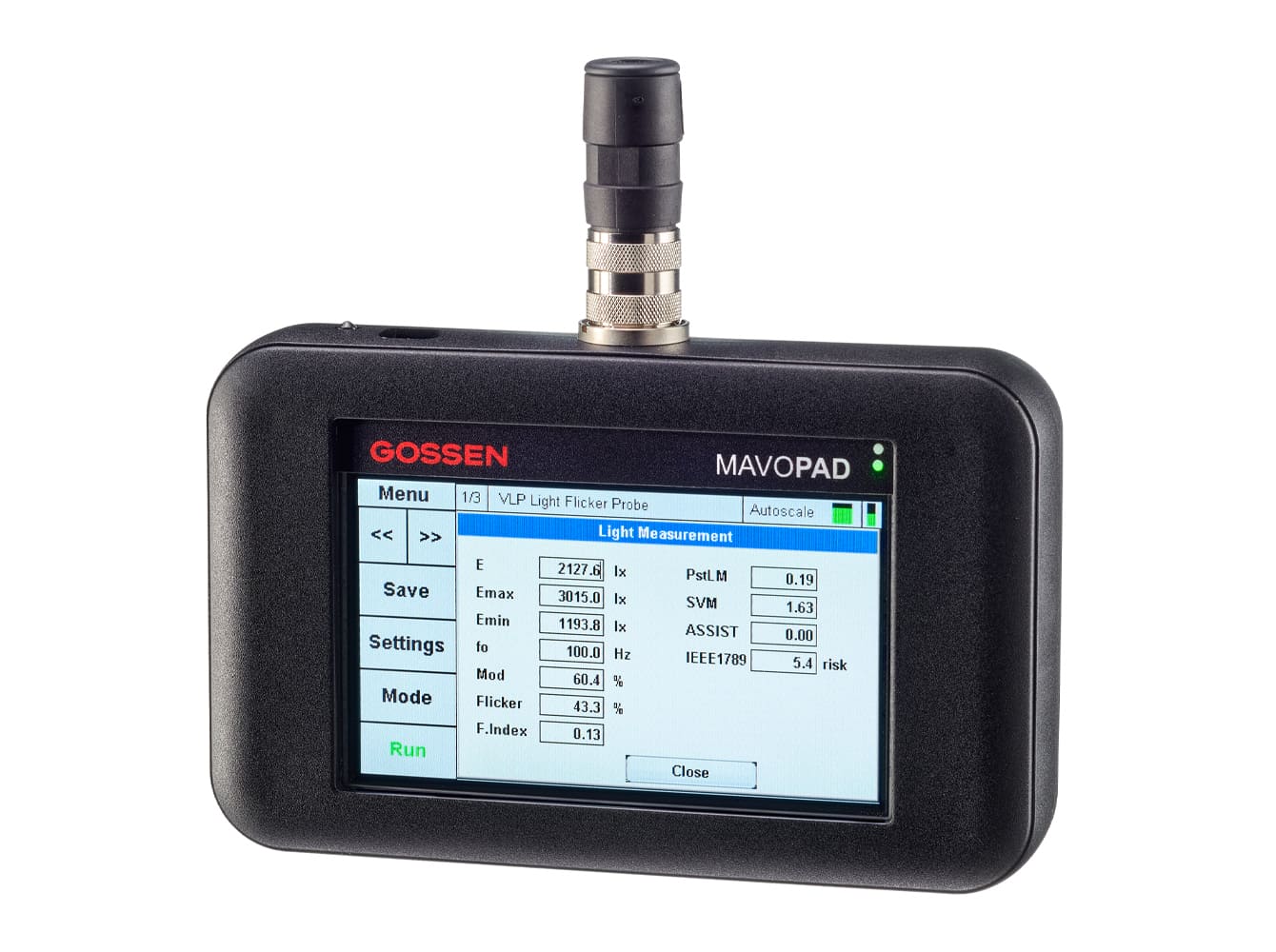

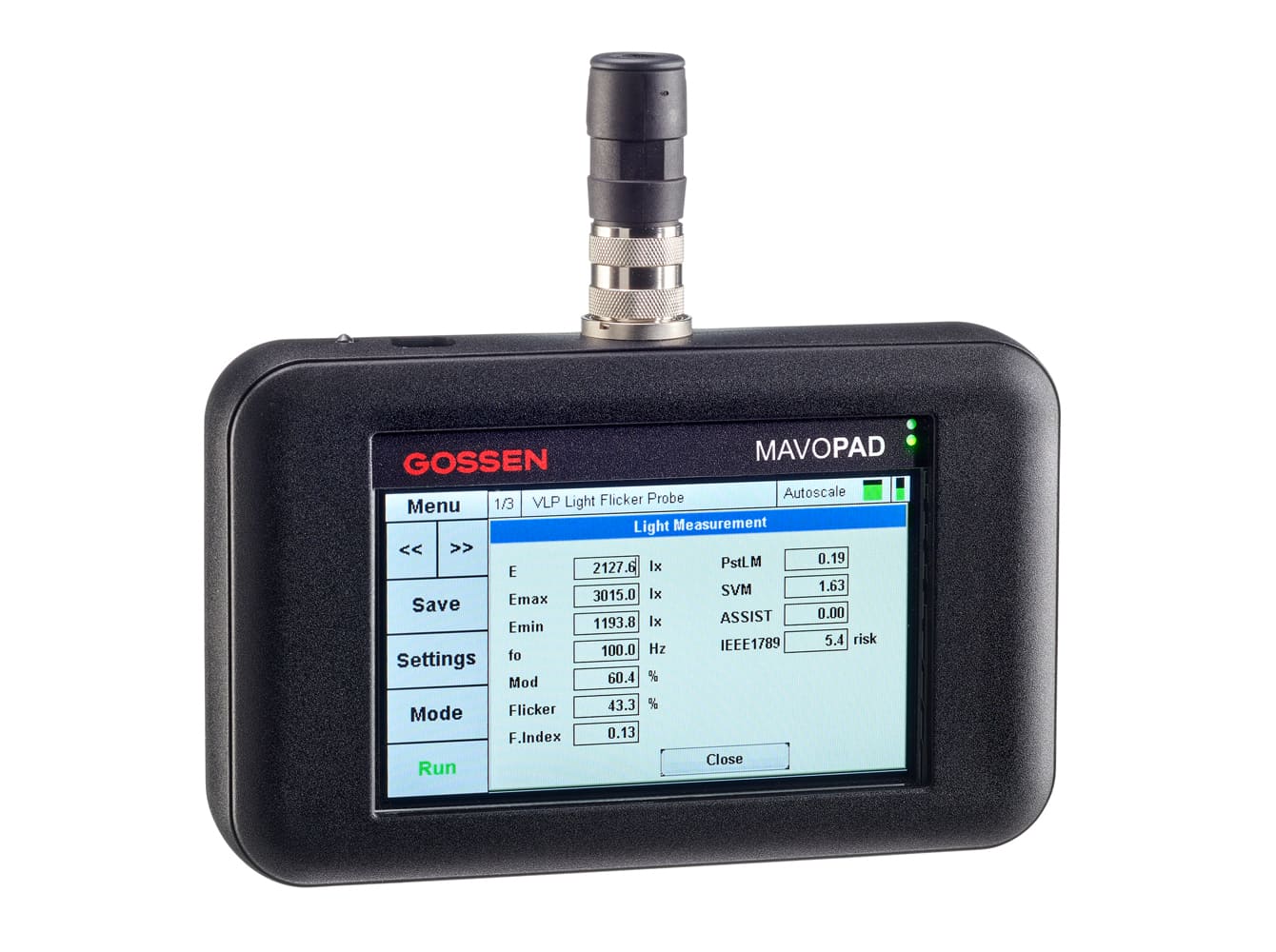

Flicker meter MAVOPAD - Gossen Metrawatt

The MAVOPAD from Gossen Metrawatt is a professional instrument for high-precision measurement and analysis of temporal light modulation (TLM) and light flicker in modern lighting systems.
Its integrated digital signal processing enables comprehensive evaluation in both the time domain and frequency domain, supporting standardized flicker assessment according to current international regulations and recommendations.

The instrument from Gossen Metrawatt is specifically designed for LED light source characterization, compliance verification and quality assurance applications.

more details

Downloads

Request Offer

Features

Measurement of Temporal Light Modulation (TLM) and light flicker;
Calculation of PstLM, SVM, Percent Flicker and Flicker Index;
High-resolution 16-bit A/D conversion;
Simultaneous time-domain and frequency-domain analysis (FFT);
Photometric sensor corrected to CIE V(λ);
Integrated data memory with CSV export via USB;
Optional DAkkS-accredited calibration.

Advantages

Standard-compliant flicker evaluation according to EU Ecodesign and international recommendations;
Reliable detection of low- and high-frequency modulation components;

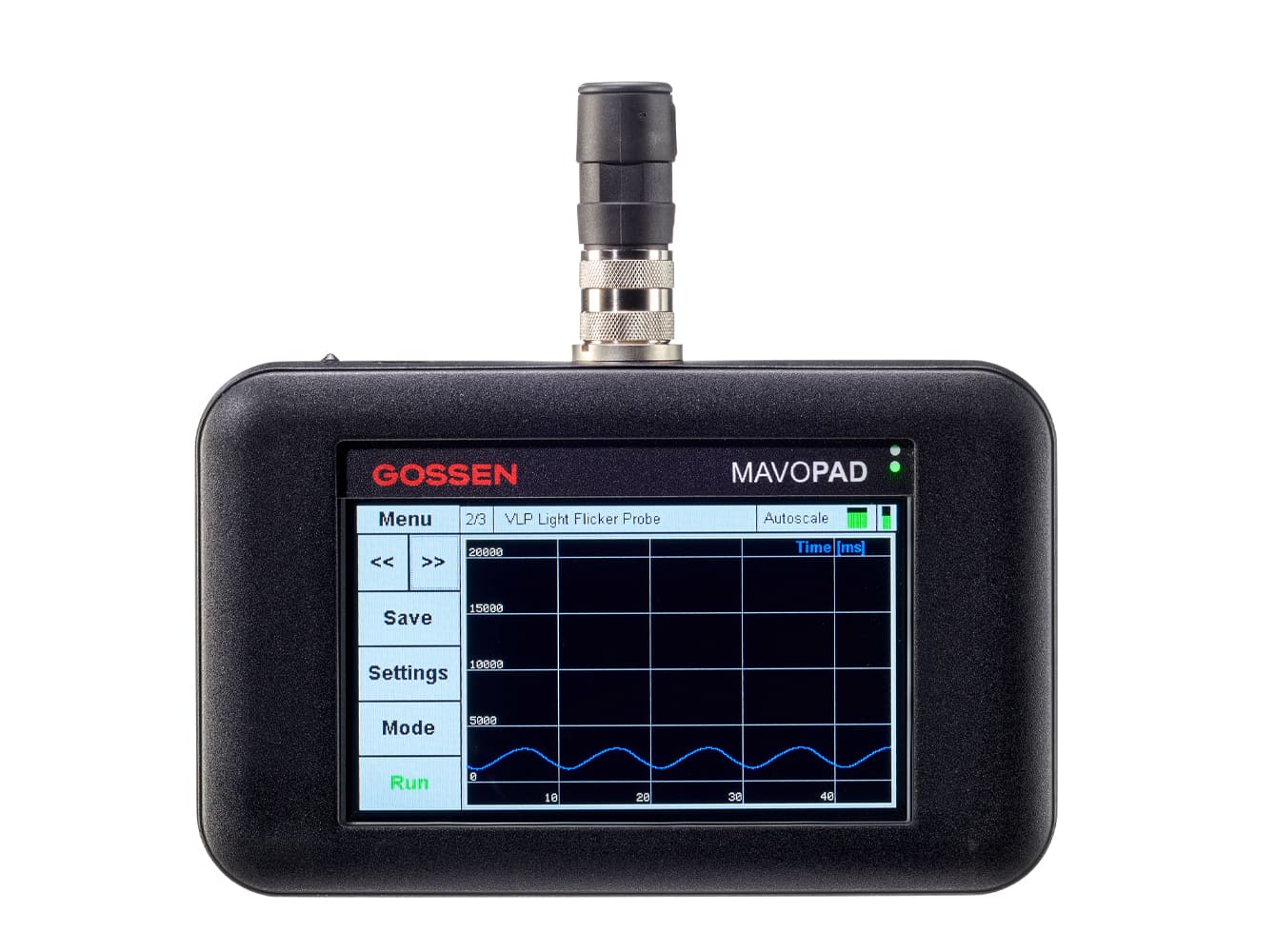

Clear visualization of waveform and frequency spectrum on graphical display;
High measurement accuracy with full metrological traceability;
Suitable for both laboratory and field applications.
